Introducció
Thank you for choosing the Alpicool C22 Portable Refrigerator. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and retain it for future reference.
The Alpicool C22 is a versatile 23-quart (22-liter) portable refrigerator and freezer designed for vehicle, car, truck, RV, and outdoor use. It operates on 12V/24V DC power and features a USB socket for charging mobile devices, an ice cube tray, and a built-in LED light.
Instruccions de seguretat
- Assegureu-vos una ventilació adequada al voltant de la unitat.
- No obstruïu les obertures de ventilació.
- Eviteu col·locar la unitat sota la llum solar directa o a prop de fonts de calor.
- Use only the specified power adapters.
- No submergiu la unitat a l'aigua.
- Mantenir fora de l'abast dels nens.
- Desconnecteu l'alimentació abans de la neteja o el manteniment.
Producte acabatview

Figura 1: Principal view of the Alpicool C22 Portable Refrigerator.

Figure 2: Close-up of the LCD display panel with USB socket and the separated ice tray box.

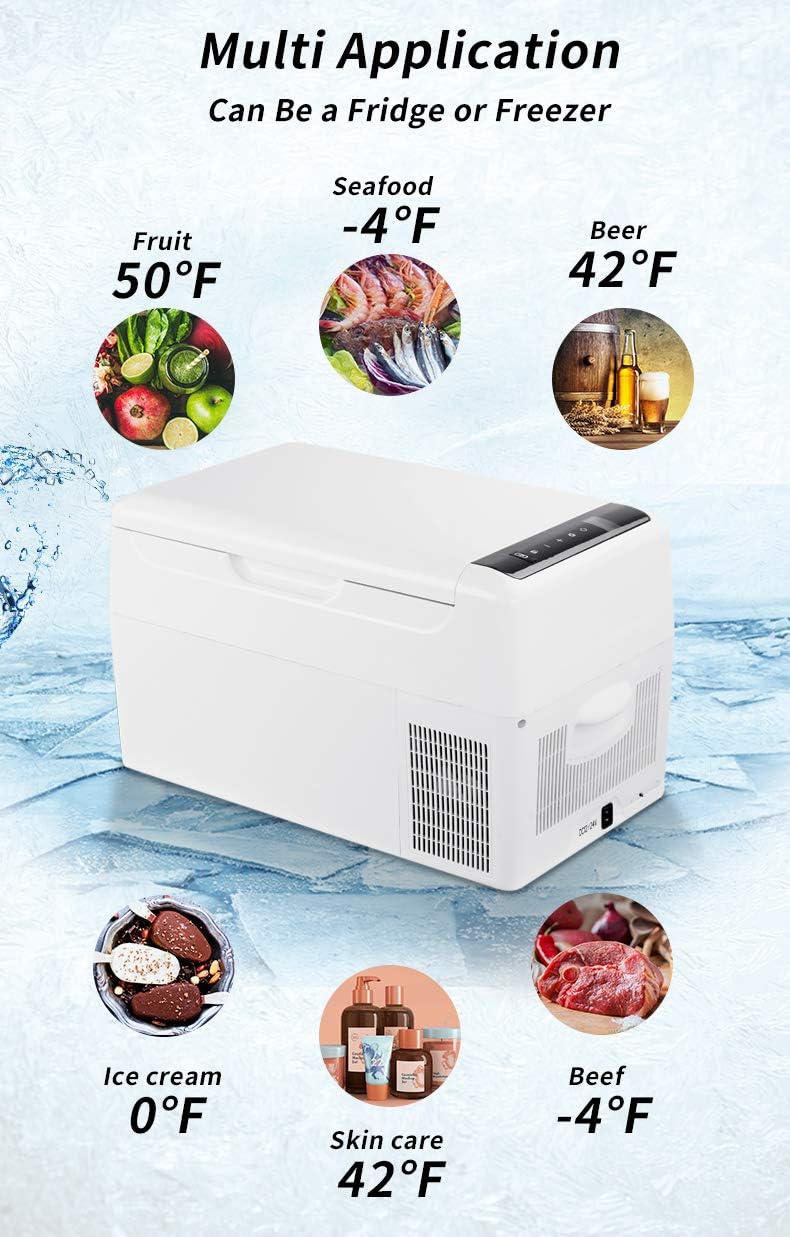

Figure 3: Illustrates the multi-application capability, functioning as a fridge or freezer for various items at different temperatures.

Figura 4: Interior view demonstrating storage capacity with various beverages.

Figura 5: De dalt a baix view of the unit with the lid open, revealing the internal compartment and control panel.

Figure 6: Empty interior of the Alpicool C22, highlighting the clean design and ice cube tray slot.

Figure 7: Technical diagram illustrating the product dimensions and internal capacity measurements.
Configuració
Desembalatge
- Traieu amb cura la nevera del seu embalatge.
- Inspect the unit for any shipping damage. If damaged, contact your retailer immediately.
- Traieu tots els materials d'embalatge i accessoris interns.
Col·locació
- Col·loqueu la unitat sobre una superfície plana i estable.
- Ensure adequate air circulation around the unit, especially around the ventilation grilles.
- Eviteu la llum solar directa i les fonts de calor.
Connexió d'alimentació
- Connect the DC power cable to the unit's DC input port (12V/24V).
- Plug the other end into your vehicle's cigarette lighter socket or a compatible DC power source.
- For AC operation (if using an optional AC adapter, not included), connect the AC adapter to the unit and then to a standard wall outlet.
Instruccions de funcionament
Funcions del tauler de control
The Alpicool C22 features an intuitive LCD display panel for easy control.
- Botó d'encesa: Premeu per encendre o apagar la unitat.
- Botó de configuració: Press to enter temperature setting mode or switch between modes (e.g., MAX/ECO).
- Botons d'ajust de temperatura (+/-): Use to increase or decrease the desired temperature.
- Presa USB: Located on the control panel, provides power for charging mobile devices.
Configuració de la temperatura
- Engegueu la unitat amb el botó d'engegada.
- Press the Set button. The display will flash.
- Use the +/- buttons to set your desired temperature. The unit can achieve temperatures as low as -4°F (-20°C).
- La configuració es desarà automàticament després d'uns segons d'inactivitat.
Mode de protecció de la bateria
The unit includes a 3-level battery protection system to prevent your vehicle battery from running down.
- H (Alt): Highest protection, suitable for starting batteries.
- M (mitjana): Protecció moderada.
- L (baix): Lowest protection, suitable for deep cycle batteries.
To change the battery protection mode:
- With the unit ON, press and hold the Set button for 3 seconds until the display flashes.
- Press the Set button again to cycle through H, M, L.
- Release the Set button to confirm your selection.
Mode MAX/ECO
The unit offers two operating modes for efficiency:
- MÀXIM: Provides maximum cooling performance.
- ECO: Energy-saving mode for extended battery life.
To switch between MAX and ECO modes:
- With the unit ON, press the Set button briefly to toggle between MAX and ECO.
Manteniment
Neteja
- Desconnecteu sempre l'alimentació abans de netejar.
- Netegeu l'interior i l'exterior amb anunciamp drap i detergent suau.
- No utilitzeu netejadors abrasius ni dissolvents.
- Assegureu-vos que la unitat estigui completament seca abans de tornar a connectar l'alimentació.
Descongelació
Frost may accumulate on the interior cooling surfaces. Defrost the unit when the frost layer is approximately 0.2 inches (5mm) thick.
- Apagueu la unitat i desconnecteu l'alimentació.
- Elimina tot el contingut.
- Leave the lid open to allow frost to melt naturally.
- Netegeu l'aigua fosa amb un drap net.
- No utilitzeu objectes punxeguts per eliminar la gebrada.
Emmagatzematge
Quan emmagatzemeu la unitat durant períodes prolongats:
- Assegureu-vos que la unitat estigui neta i seca.
- Deixeu la tapa lleugerament entreoberta per evitar males olors i floridura.
- Emmagatzemar en un lloc sec i ben ventilat.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | Sense font d'alimentació; cable defectuós; bateria baixatage. | Comproveu la connexió d'alimentació; assegureu-vos que la font d'alimentació estigui activa; comproveu el volum de la bateria del vehicletage; try a different cable. |
| La unitat no refreda prou. | Temperature setting too high; blocked ventilation; excessive contents; lid not sealed properly. | Lower temperature setting; clear ventilation; reduce contents; ensure lid is closed tightly. |
| La pantalla mostra el codi d'error. | Error intern específic. | Consulteu el codi d'error específic al manual complet (si n'hi ha) o poseu-vos en contacte amb el servei d'atenció al client. |
| Soroll inusual. | Unitat no anivellada; obstrucció del ventilador; problema del compressor. | Ensure unit is on a level surface; check for obstructions around fan; if noise persists, contact support. |
Especificacions
| Característica | Detall |
|---|---|
| Model | C22 |
| Capacitat | 23 quarts (22 litres) |
| Dimensions (L x A x A) | 23.5 x 12.6 x 13.19 polzades |
| Pes de l'article | 21.4 lliures |
| Voltage | DC 12V/24V |
| Potència nominal | 45 watts |
| Interval de temperatura | -4 °F a 50 °F (-20 °C a 10 °C) |
| Característiques especials | LCD Display, USB Charging Port, Ice Cube Tray, Built-in LED Light, 3-level Battery Protection |
Informació de la garantia
The Alpicool C22 Portable Refrigerator comes with a 1 any de garantia des de la data de compra. Aquesta garantia cobreix els defectes de fabricació dels materials i la mà d'obra en condicions d'ús normal.
La garantia no cobreix els danys causats per:
- Instal·lació o funcionament incorrectes.
- Accident, abús o mal ús.
- Reparacions o modificacions no autoritzades.
- Power surges or improper voltage.
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
Atenció al client
Per a assistència tècnica, reclamacions de garantia o consultes generals, poseu-vos en contacte amb el servei d'atenció al client d'Alpicool a través del distribuïdor on vau comprar el producte o visiteu el lloc web oficial d'Alpicool. weblloc.
Podeu trobar més informació i dades de contacte a Alpicool Brand Store on Amazon.
