1. Introducció
The CGOLDENWALL JP-1200B is a digital ultrasonic cleaner designed for effective cleaning of various small items. It utilizes ultrasonic waves to remove dirt, oil, and grime from surfaces without causing damage. This manual provides essential information for the safe and proper use, maintenance, and troubleshooting of your device.
2. Instruccions de seguretat
Si us plau, llegiu atentament totes les instruccions de seguretat abans de fer servir el dispositiu per evitar lesions o danys.
- No submergiu la unitat principal en aigua o altres líquids.
- Assegureu-vos que el cable d'alimentació no estigui danyat i que estigui connectat correctament a una presa de corrent amb connexió a terra.
- Do not operate the cleaner without liquid in the tank.
- Mantingueu el dispositiu fora de l'abast dels nens.
- Unplug the unit from the power source before cleaning or when not in use.
- Do not disassemble the unit; refer servicing to qualified personnel.
- Avoid using flammable or corrosive cleaning solutions.
3. Producte acabatview
Familiarize yourself with the components of your ultrasonic cleaner.

Figura 3.1: Tauler de control
This image displays the control panel of the ultrasonic cleaner, highlighting the 'SET', 'RESET', 'WEAK', and 'STRONG' buttons, along with the digital display.

Figura 3.2: superior View with Cleaning Basket
This image shows the ultrasonic cleaner from a top-down perspective, with the transparent lid open and the cleaning basket placed inside the tank.
4. Configuració
- Desempaquetar la unitat: Traieu amb cura el netejador ultrasònic i tots els accessoris de l'embalatge.
- Col·locació: Place the unit on a stable, flat, and dry surface away from heat sources and direct sunlight. Ensure adequate ventilation.
- Omplir el dipòsit: Open the lid and fill the stainless steel tank with an appropriate cleaning solution (usually water, or water with a specialized cleaning agent) up to the 'MAX' fill line. Do not overfill.
- Connectar l'alimentació: Connecteu el cable d'alimentació a una presa de corrent estàndard. La pantalla digital s'il·luminarà.

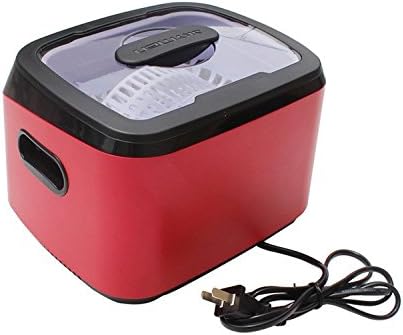

Figura 4.1: lateral View amb cable d'alimentació
This image shows the side of the ultrasonic cleaner with the power cord connected, illustrating the unit's compact design.
5. Instruccions de funcionament
Follow these steps to operate your ultrasonic cleaner:
- Preparar els elements: Place the items to be cleaned into the cleaning basket. Ensure items are fully submerged in the cleaning solution but do not touch the bottom of the tank directly. Close the lid.
- Select Cleaning Time: Premeu el botó TEMPORIZADOR button repeatedly to cycle through the available preset cleaning times: 90s, 180s, 280s, 380s, and 480s. The selected time will be displayed on the LED screen.
- Comença a netejar: The cleaning cycle will begin automatically after a time setting is selected.
- DEGAS Function: For enhanced cleaning, press the DEGAS button. The machine will operate for 9 seconds, then pause for 6 seconds, repeating this cycle to remove dissolved gases from the solution, which can improve ultrasonic efficiency.
- Fi de cicle: The unit will automatically shut off once the selected cleaning time has elapsed.
- Eliminar elements: Open the lid, carefully remove the cleaning basket, and rinse the cleaned items under running water.
Applicable Items for Cleaning:
- Jewelry (rings, diamonds, bracelets, necklaces)
- Eyeglasses, sunglasses, optical lenses
- Dentures, retainers, mouth guards
- Watches (waterproof only), watch parts
- Small metal items (coins, badges, valves)
- Printer ink-jet heads, machine nozzles
- Tattoo instruments, piercing tools
- Baby bottles and accessories

Figura 5.1: Examples of Cleanable Items
This image illustrates various items suitable for cleaning with the ultrasonic cleaner, including rings, accessories, nursing bottles, glasses, retainers, and shaver heads.
6. Manteniment
Un manteniment adequat garanteix la longevitat i el rendiment òptim del vostre netejador ultrasònic.
- Després de cada ús: Unplug the unit and empty the cleaning solution from the tank. Do not leave water in the tank for extended periods.
- Neteja del dipòsit: Wipe the interior of the stainless steel tank and the exterior housing with a soft, dry cloth. Do not wash the cleaner with water directly to avoid electric shock.
- Emmagatzematge: Guardeu el netejador en un lloc fresc i sec quan no l'utilitzeu.
- Eviteu productes químics durs: Do not use abrasive cleaners or solvents on any part of the unit.
7. Solució De Problemes
Si teniu problemes amb el vostre netejador ultrasònic, consulteu els següents problemes i solucions habituals:
- La unitat no s'encén:
- Comproveu si el cable d'alimentació està ben connectat tant a la unitat com a la presa de corrent.
- Verifiqueu que la presa de corrent funciona correctament.
- La neteja no és eficaç:
- Ensure items are fully submerged in the cleaning solution.
- Use an appropriate cleaning solution for the items being cleaned.
- Augmenta el temps de neteja.
- Consider using the DEGAS function to improve ultrasonic action.
- Ensure the water level is between the MIN and MAX marks.
- Soroll o vibració inusuals:
- Assegureu-vos que la unitat estigui col·locada sobre una superfície plana i estable.
- Verify that no foreign objects are in contact with the tank or transducers.
Si el problema persisteix, poseu-vos en contacte amb el servei d'atenció al client.
8. Especificacions
| Característica | Especificació |
|---|---|
| Model | JP-1200B |
| Tipus de producte | Netejador ultrasònic |
| Mida total | 230 x 200 x 160 mm |
| Mida del dipòsit | 168 x 126 x 64 mm |
| Pes | 2 kg |
| Volum | 1.2 litres |
| Poder | 35W/70W |
| Freqüència | 40 kHz |
| Configuració de l'hora | 5 options (90s, 180s, 280s, 380s, 480s) |
| Material intern | Acer inoxidable |
9. Informació de la garantia
The CGOLDENWALL JP-1200B Ultrasonic Cleaner comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
10. Atenció al client
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact CGOLDENWALL customer support through their official weblloc web o la informació de contacte proporcionada amb la compra.
