T-WINNER Automatic Mechanical Watch User Manual

1. Introducció

Thank you for choosing the T-WINNER Automatic Mechanical Watch. This timepiece features a sophisticated automatic self-winding movement and a distinctive skeleton dial design, showcasing the intricate internal mechanisms. This manual provides essential information for the proper setup, operation, and maintenance of your watch to ensure its longevity and accurate performance.

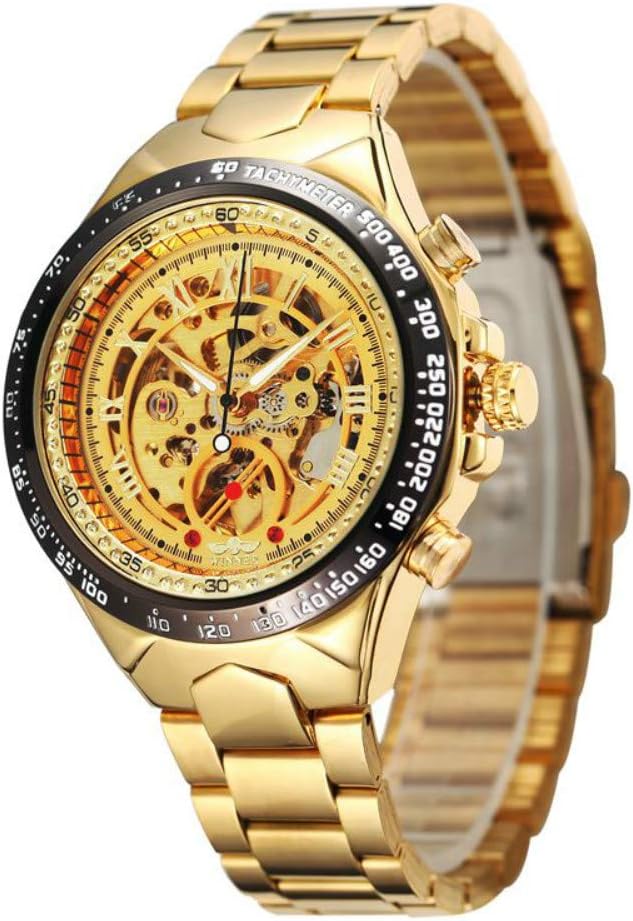

Imatge: Frontal view of the T-WINNER Automatic Mechanical Watch, highlighting its gold-tone finish and visible skeleton movement.

2. Configuració

2.1 Enrotllament inicial

As an automatic mechanical watch, it requires an initial manual winding if it has stopped or has not been worn for an extended period. To wind the watch:

1. Assegureu-vos que la corona estigui completament encaixada (Posició 1).
2. Gireu la corona en sentit horari aproximadament 20-30 vegades. Això generarà prou reserva de marxa per engegar el rellotge.
3. El rellotge continuarà donant-se corda a través dels moviments diaris del canell.

2.2 Configuració de l'hora

Per establir l'hora correcta:

1. Gently pull the crown out to Position 2.
2. Rotate the crown in either direction to move the hour and minute hands to the desired time.
3. Once the time is set, push the crown back into Position 1 to secure it and restart the watch movement.

3. Operating Your Automatic Watch

Your T-WINNER watch is powered by an automatic mechanical movement. This means it does not require a battery. The movement is powered by the natural motion of your wrist. An oscillating weight inside the watch rotates with your arm movements, winding the mainspring and storing energy. For optimal performance, wear the watch regularly.

If the watch is not worn for an extended period (typically 36-48 hours), the power reserve will deplete, and the watch will stop. Simply re-wind it manually as described in Section 2.1, or wear it for several hours to allow the automatic mechanism to build up power.

4. Manteniment i cura

4.1 Resistència a l'aigua

Aquest rellotge té una classificació de resistència a l'aigua de 30 metres (3 ATM). This rating indicates that the watch is suitable for daily use, such as splashes, rain, or accidental short immersion in water. No és adequat per dutxar-se, nedar, bussejar ni practicar cap esport aquàtic.

• No feu funcionar la corona ni els polsadors sota l'aigua.
• Avoid exposing the watch to hot water, steam, or extreme temperature changes, as this can compromise the water seals.
• Excessive water contact will shorten the watch's lifespan.

4.2 Neteja

To maintain the appearance of your watch, wipe the case and strap regularly with a soft, dry cloth. For stainless steel components, a slightly damp es pot utilitzar un drap, seguit d'assecat immediat.

Imatge: Detall view showing the stainless steel case and strap construction, emphasizing durability.

4.3 Temperature and Magnetic Fields

Avoid exposing your watch to extreme hot or cold temperatures, as this can affect the accuracy of the mechanical movement and shorten its life. Keep the watch away from strong magnetic fields (e.g., speakers, refrigerators, certain electronic devices), which can magnetize the movement and cause it to run inaccurately.

5. Solució De Problemes

5.1 El rellotge s'ha aturat

If your automatic watch has stopped, it likely means the power reserve has run out. Manually wind the watch by rotating the crown clockwise 20-30 times (with the crown in Position 1). After winding, wear the watch for several hours to allow the automatic mechanism to fully recharge the power reserve.

5.2 Cronometratge inexacte

Minor variations in timekeeping are normal for mechanical watches. If the watch is consistently running too fast or too slow, ensure it is fully wound. Exposure to strong magnetic fields can also affect accuracy; if you suspect this, consult a professional watchmaker for demagnetization.

6. Especificacions

Imatge: Part posterior view of the T-WINNER watch, featuring a transparent case back that reveals the automatic mechanical movement.

7. Garantia i Suport

For warranty information or technical support, please refer to the documentation provided at the point of purchase or contact the retailer. The manufacturer of this watch is T-WINNER. For specific inquiries, it is recommended to reach out to the seller or manufacturer directly.
