Gigo 7335R Remote Control Machines User Manual

Introducció

Welcome to the Gigo 7335R Remote Control Machines kit. This kit allows you to build and control various mechanical models using an infrared remote controller. It is designed to introduce users to the principles of mechanics, gears, and turbines through hands-on construction and experimentation. With 151 pieces, you can assemble up to 20 different models, including vehicles, lifting machines, and robotic structures.

Image 1: The Gigo 7335R Remote Control Machines kit box, showing a Mars rover model and other potential builds.

Muntatge i muntatge

1. Desembalatge i identificació dels components

Carefully unpack all components from the box. It is recommended to sort the pieces by type (e.g., beams, connectors, gears, wheels, motors, remote control, battery box) to facilitate assembly.

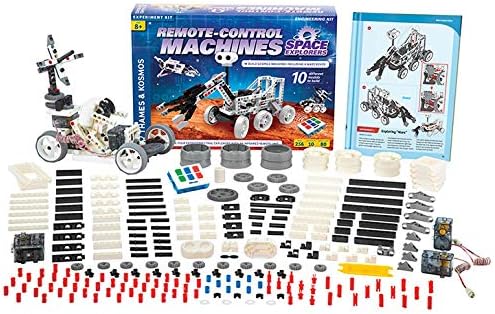

Image 2: All components of the Gigo 7335R kit laid out, including structural pieces, gears, wheels, motors, and the remote control unit.

2. Instal·lació de la bateria

The Gigo 7335R kit requires 5 AA / LR06 batteries (not included) for operation. These batteries power the battery box receiver, which in turn supplies power to the DC motors.

1. Locate the battery compartment on the battery box receiver.
2. Amb un tornavís petit, obriu la tapa del compartiment de la bateria.
3. Insert 5 AA / LR06 batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
4. Substituïu la tapa del compartiment de la bateria i fixeu-la amb el cargol.

Important: Always use fresh batteries and ensure they are inserted correctly. Do not mix old and new batteries, or different types of batteries.

3. Assemblea Inicial

Refer to the included instruction booklet for detailed step-by-step guides on building the various models. Each model will have specific instructions for connecting the structural pieces, gears, wheels, and motors. Ensure all connections are secure for proper functionality.

Instruccions de funcionament

The Gigo 7335R uses an infrared remote controller to independently control the forward/backward movements of up to 3 DC motors. Once your model is assembled and the battery box is connected to the motors, you can begin operation.

1. Connecting Motors to the Receiver

• The battery box receiver has multiple ports for connecting the DC motors.
• Connect the wires from each DC motor to the designated ports on the receiver. The instruction booklet for each model will specify which motor connects to which port.
• Assegureu-vos que les connexions siguin fermes.

2. Using the Infrared Remote Control

The remote control unit transmits infrared signals to the receiver. Point the remote control directly at the receiver for optimal performance.

• Each button on the remote control corresponds to a specific motor and direction (forward/backward).
• Press and hold the desired button to activate the motor. Release the button to stop the motor.
• Experiment with different button combinations to achieve complex movements for your assembled model.

Imatge 3: Un example of an assembled model, a Mars rover, demonstrating the potential for complex builds and remote control operation.

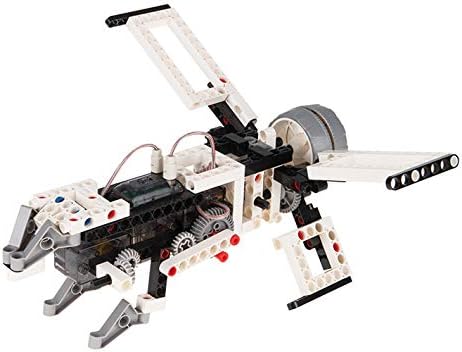

Image 4: Another example of an assembled model, a robotic insect, showcasing the versatility of the kit's components.

3. Exploring Models

The kit allows for the construction of 20 different models, including but not limited to:

• Three-wheel car
• Camió
• Sports car
• Ascensor
• Grua
• Scissor lifter
• Bulldozer
• Robot
• Braç robòtic
• And many more complex machines.

Each model provides a unique learning experience in understanding mechanical principles and engineering design.

Manteniment

Proper care and maintenance will extend the life of your Gigo 7335R kit.

• Neteja: Use a soft, dry cloth to wipe down components. Avoid using water or chemical cleaners, especially on electronic parts (motors, receiver, remote control).
• Emmagatzematge: Store all components in a clean, dry place away from direct sunlight and extreme temperatures. Keep small parts in their designated compartments or bags to prevent loss.
• Cura de la bateria: Remove batteries from the battery box receiver if the kit will not be used for an extended period to prevent leakage and damage.

Resolució de problemes

If you encounter issues with your Gigo 7335R kit, refer to the following common problems and solutions:

Especificacions

Suport i Contacte

For further assistance, missing parts, or technical inquiries regarding your Gigo 7335R Remote Control Machines kit, please refer to the contact information provided in the original product packaging or visit the official Gigo weblloc.

Always ensure you have the product model number (Gigo-7335R) ready when contacting support.
