Homend WS952
Homend DC12V Linear Actuator (8-inch Stroke) Instruction Manual
Model: WS952
1. Producte acabatview
The Homend DC12V Linear Actuator is a versatile electromechanical device designed to convert rotational motion into linear push/pull motion. This 8-inch stroke model (200mm) is suitable for a wide range of applications requiring controlled linear movement, such as adjusting recliners, lifting TV tables, operating massage beds, and electric sofas. It features a robust aluminum alloy construction, low-noise operation, and is rated IP54 for environmental protection.

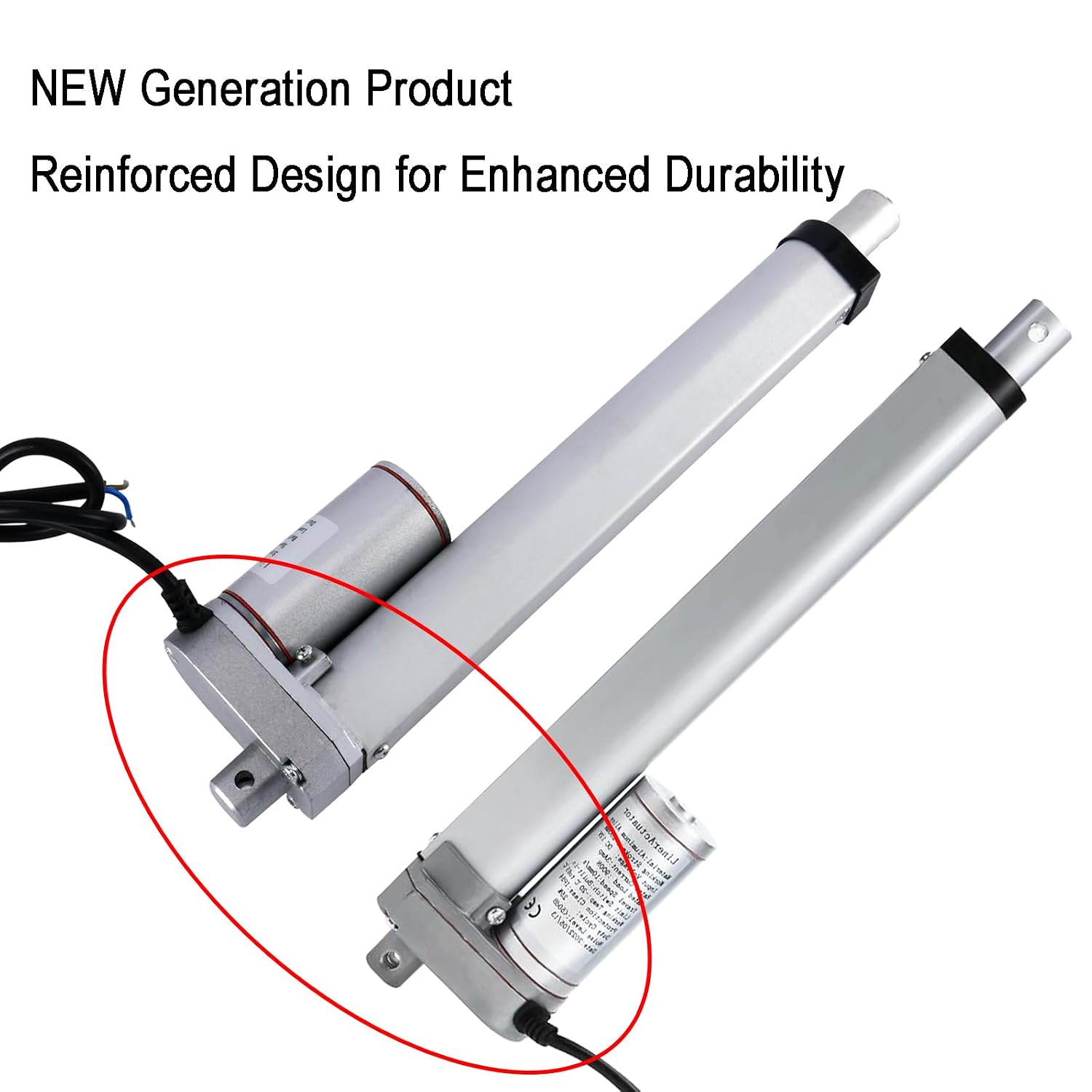

Image 1.1: Homend DC12V Linear Actuator, featuring a reinforced design for enhanced durability.
Image 1.2: Key features including aluminum alloy shell, low-noise operation (below 50dB), and IP54 protection rating.
2. Contingut del paquet
En obrir el paquet, comproveu que tots els components hi siguin presents i que no estiguin danyats:
- 1x Homend DC12V 8-inch Linear Actuator
- 2x suports de muntatge
Image 2.1: The linear actuator and its included mounting brackets as packaged.
3. Especificacions
Detailed technical specifications for the Homend DC12V 8-inch Linear Actuator:
| Especificació | Valor |
|---|---|
| Longitud del traç | 8 polzades / 200 mm |
| Longitud retraïda | 320 mm |
| Longitud ampliada | 520 mm |
| Entrada Voltage | DC 12 V |
| Càrrega màxima | 900 N (225 lliures) |
| Velocitat de viatge | 10 mm/s (0.39 inches/sec) |
| Consum màxim de corrent | 3 Amps |
| Cicle de treball | 25% |
| Interruptor de límit | Built-in (Factory preset, not adjustable) |
| Temperatura ambient | -20 °C a +65 °C |
| Grau de protecció | IP54 |
| Material | Aliatge d'alumini |
| Pes de l'article | 1.24 kg |
| Número de model | WS952 |
Image 3.1: Actuator dimensions: Stroke Length (200mm), Retracted Length (320mm), Extended Length (520mm).
Image 3.2: Technical drawing and detailed specifications table for the linear actuator.
4. Informació de seguretat
Please read and understand all safety instructions before installing or operating the linear actuator. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
- Seguretat elèctrica: Assegureu-vos que la font d'alimentació coincideixi amb el volum de l'actuadortage (DC 12V). Disconnect power before any installation, maintenance, or troubleshooting. Avoid exposing electrical connections to moisture.
- Seguretat mecànica: Keep hands, clothing, and other objects clear of moving parts during operation. Do not exceed the maximum load capacity of 900N (225lbs). Ensure the actuator is securely mounted to prevent accidental detachment.
- Ambiental: The actuator is IP54 rated, meaning it is protected against dust ingress and splashing water. However, it is not designed for submersion. Avoid operating in extreme temperatures outside the specified range (-20°C to +65°C).
- Nens i animals de companyia: Keep children and pets away from the actuator during operation to prevent injury.
5. Configuració i instal·lació
Proper installation is crucial for the safe and efficient operation of your linear actuator. Follow these general guidelines:
- Muntatge: Use the provided mounting brackets to securely attach the actuator to a stable surface. Ensure the mounting points can withstand the maximum force exerted by the actuator. The actuator can be mounted in any orientation.
- Alineació: Ensure the actuator is properly aligned with the load it will be moving. Misalignment can cause excessive wear, reduced performance, and potential damage.
- Connexió elèctrica: Connect the actuator to a DC 12V power source. The actuator typically has two wires; reversing the polarity will reverse the direction of motion. Consider using a control switch or relay for easy operation and safety.
- Interruptors de límit: The actuator has built-in, non-adjustable limit switches that automatically stop the rod at its fully retracted and fully extended positions. Do not attempt to bypass or modify these switches.
Image 5.1: The linear actuator with its mounting brackets, ready for installation.
6. Instruccions de funcionament
Operating the linear actuator is straightforward:
- Encès: Connect the actuator to a stable DC 12V power supply.
- Estendre/Retreure: Apply DC 12V power to the actuator. The direction of the rod's movement (extend or retract) depends on the polarity of the voltage applied to the two wires.
- Parada: The actuator will automatically stop when it reaches its fully extended or fully retracted position due to the internal limit switches. To stop the actuator at an intermediate position, simply cut the power supply.
- Reversing Direction: To reverse the direction of motion, reverse the polarity of the DC 12V power supply. This can be achieved using a DPDT (Double Pole Double Throw) switch or a motor control circuit.
Image 6.1: The linear actuator shown in its fully extended state.
Image 6.2: The linear actuator shown in its fully retracted state.
7. Manteniment
The Homend DC12V Linear Actuator is designed for minimal maintenance. However, periodic checks can help ensure its longevity and optimal performance:
- Neteja: Keep the actuator rod and housing clean from dust, dirt, and debris. Use a soft, dry cloth. Avoid using harsh chemicals or solvents.
- Lubricació: The internal components are pre-lubricated for life. Do not attempt to lubricate the internal mechanism.
- Inspecció: Regularly inspect the mounting points, wiring, and the actuator rod for any signs of wear, damage, or corrosion. Tighten any loose fasteners.
- Protecció del medi ambient: While IP54 rated, avoid prolonged exposure to direct heavy rain or harsh environmental conditions if possible, to maximize lifespan.
8. Solució De Problemes
Si teniu problemes amb el vostre actuador lineal, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| L'actuador no es mou | No power, incorrect voltage, loose wiring, overloaded, internal damage. | Check power supply (DC 12V), ensure secure connections, reduce load, inspect for damage. |
| Actuator moves in wrong direction | Polaritat incorrecta del cablejat. | Reverse the polarity of the power supply connections. |
| L'actuador s'atura prematurament | Overload, obstruction, internal limit switch fault. | Reduce load, check for obstructions, ensure free movement. If problem persists, contact support. |
| Soroll excessiu durant el funcionament | Overload, misalignment, internal wear. | Reduce load, check alignment, ensure smooth movement. If noise is significant, discontinue use and contact support. |
9. Aplicacions
The Homend DC12V Linear Actuator is suitable for a variety of applications due to its compact size, robust design, and precise control:
- Domòtica: Recliner chairs, adjustable beds, TV lifts, electric sofas, cabinet lifts.
- Industrial & Medical: Material handling, medical devices, engineering industry, patient lifts.
- Automoció: Electric trunk openers, hood lifts, custom vehicle modifications.
- Outdoor & DIY Projects: Solar panel tracking systems, chicken coop doors, greenhouse window openers.
Imatge 9.1: Ex.amples of diverse applications for linear actuators.
Solar Panel Tracking
Adjustable Bed Lift
Porta del galliner
Car Trunk Lift
10. Garantia i Suport
Homend products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact information provided at the point of purchase or visit the official Homend website. Please have your model number (WS952) and purchase details ready when contacting support.
