GUY-TECH AC Power Cord Adapter

1. Introducció

This manual provides essential information for the safe and effective use of your GUY-TECH AC Power Cord Adapter. This adapter is designed to supply power to specific Philips Norelco shaver models, ensuring your device operates correctly. Please read these instructions thoroughly before use.

Image 1: The GUY-TECH AC Power Cord Adapter, featuring a coiled cable and standard two-prong AC plug on one end, and a two-pin connector for the shaver on the other.

2. Informació de seguretat

• This product is a power supply ONLY. It is NOT a battery charger. Ensure your device does not require a charging function from this adapter.
• The adapter features built-in Over Voltage Output Protection, Over Current Output Protection, and Short Circuit Output Protection to safeguard your device.
• Use the adapter only with compatible devices as listed in this manual.
• No exposeu l'adaptador a l'aigua, la humitat ni a temperatures extremes.
• Do not attempt to disassemble or modify the adapter. Refer all servicing to qualified personnel.
• Ensure the wall outlet is easily accessible and properly grounded.
• Always handle the adapter with dry hands.

3. Compatibilitat

This GUY-TECH AC Power Cord Adapter is specifically designed for use with the following Philips Norelco Shaver models:

• Philips Norelco HP1135
• Philips Norelco HP1132
• Philips Norelco HP1131

If your shaver model is not listed, please verify compatibility before use. Using an incompatible adapter may damage your device.

4. Configuració i instal·lació

Follow these steps to connect your AC Power Cord Adapter to your Philips Norelco shaver:

1. Identify the Shaver's Power Input: Locate the power input port on your Philips Norelco shaver. It is typically a small, two-pin receptacle.
2. Connect to Shaver: Carefully insert the two-pin connector of the GUY-TECH adapter into the shaver's power input port. Ensure a snug and secure fit.
3. Connecteu-vos a la presa de corrent: Plug the standard two-prong AC plug of the adapter into a functional 120V wall outlet.

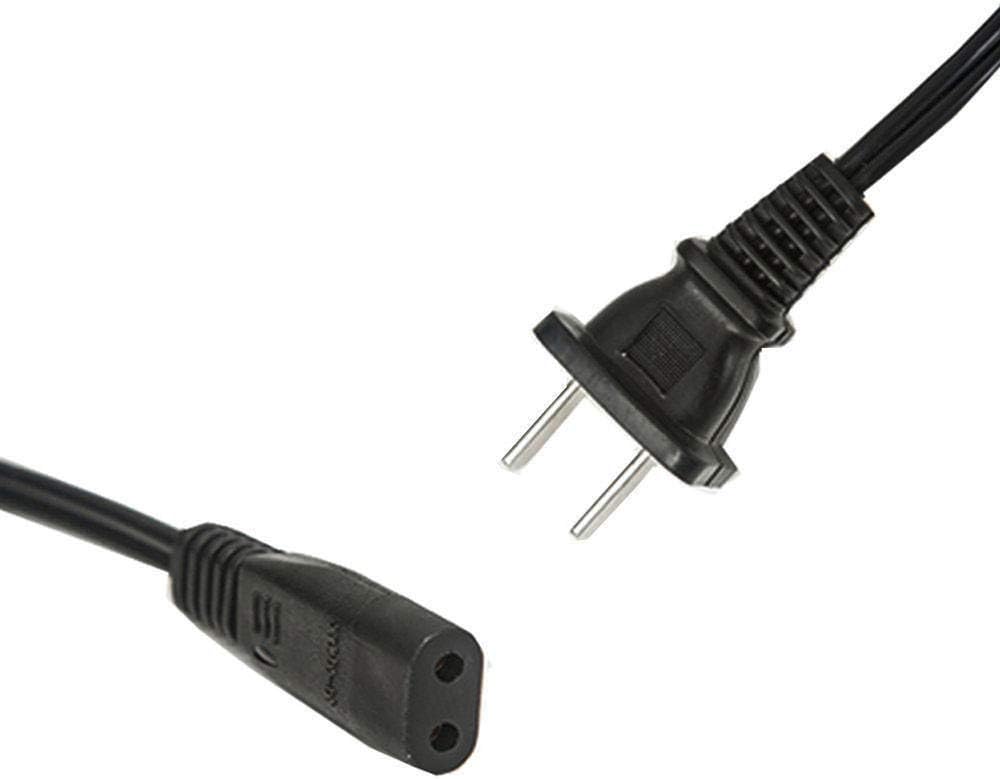

Imatge 2: Un primer pla view of the adapter's two-prong AC plug and the two-pin shaver connector, illustrating the connection points.

Once connected, your shaver should receive power. If your shaver has an indicator light, it may illuminate.

5. Instruccions de funcionament

The GUY-TECH AC Power Cord Adapter functions as a direct power supply. Once properly connected to both the shaver and a 120V wall outlet, the shaver will be powered and ready for use according to its own operational instructions. This adapter does not provide charging capabilities; it only supplies continuous power for operation.

6. Manteniment

• Neteja: Disconnect the adapter from the power outlet and the shaver before cleaning. Wipe the adapter with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Emmagatzematge: When not in use, store the adapter in a cool, dry place, away from direct sunlight and moisture. Avoid tightly coiling the cable to prevent damage.
• Inspecció: Periodically inspect the cable and connectors for any signs of wear, cuts, or damage. If any damage is observed, discontinue use immediately.

7. Solució De Problemes

• Shaver Not Powering On:
  • Ensure both ends of the adapter are securely connected to the shaver and the wall outlet.
  • Verifiqueu que la presa de corrent de paret funciona provant-la amb un altre dispositiu.
  • Check the shaver itself for any internal issues or damage.
• L'adaptador s'escalfa:
  • It is normal for power adapters to feel slightly warm during operation. However, if it becomes excessively hot, disconnect it immediately.
  • Check for any obstructions around the adapter that might prevent proper ventilation.
  • Ensure the adapter is not being used with an incompatible device or in an overloaded circuit.
• Danys visibles: If the adapter cable or connectors show any signs of damage, discontinue use and replace the adapter.

8. Especificacions

9. Garantia i Suport

For any questions, concerns, or support regarding your GUY-TECH AC Power Cord Adapter, please contact the manufacturer or your point of purchase. Please retain your proof of purchase for warranty claims, if applicable.
