Dorman 926-028 Fuel Injector Adapter Kit Instruction Manual

Introducció

The Dorman 926-028 Fuel Injector Adapter Kit provides a direct replacement for original equipment fuel injector sleeves on specified engines. These adapters are constructed from quality materials designed to resist damage from fuel and extreme temperatures, ensuring a long service life. Each part undergoes extensive testing to guarantee a precise fit and reliable performance.

Contingut del paquet

• 6 x Fuel Injector Adapters (Cups)

Producte acabatview

Image 1: The Dorman 926-028 Fuel Injector Adapter Kit, showing six black, cylindrical adapters.

Imatge 2: Pro lateralfile of the six Dorman 926-028 Fuel Injector Adapters, highlighting their cylindrical shape.

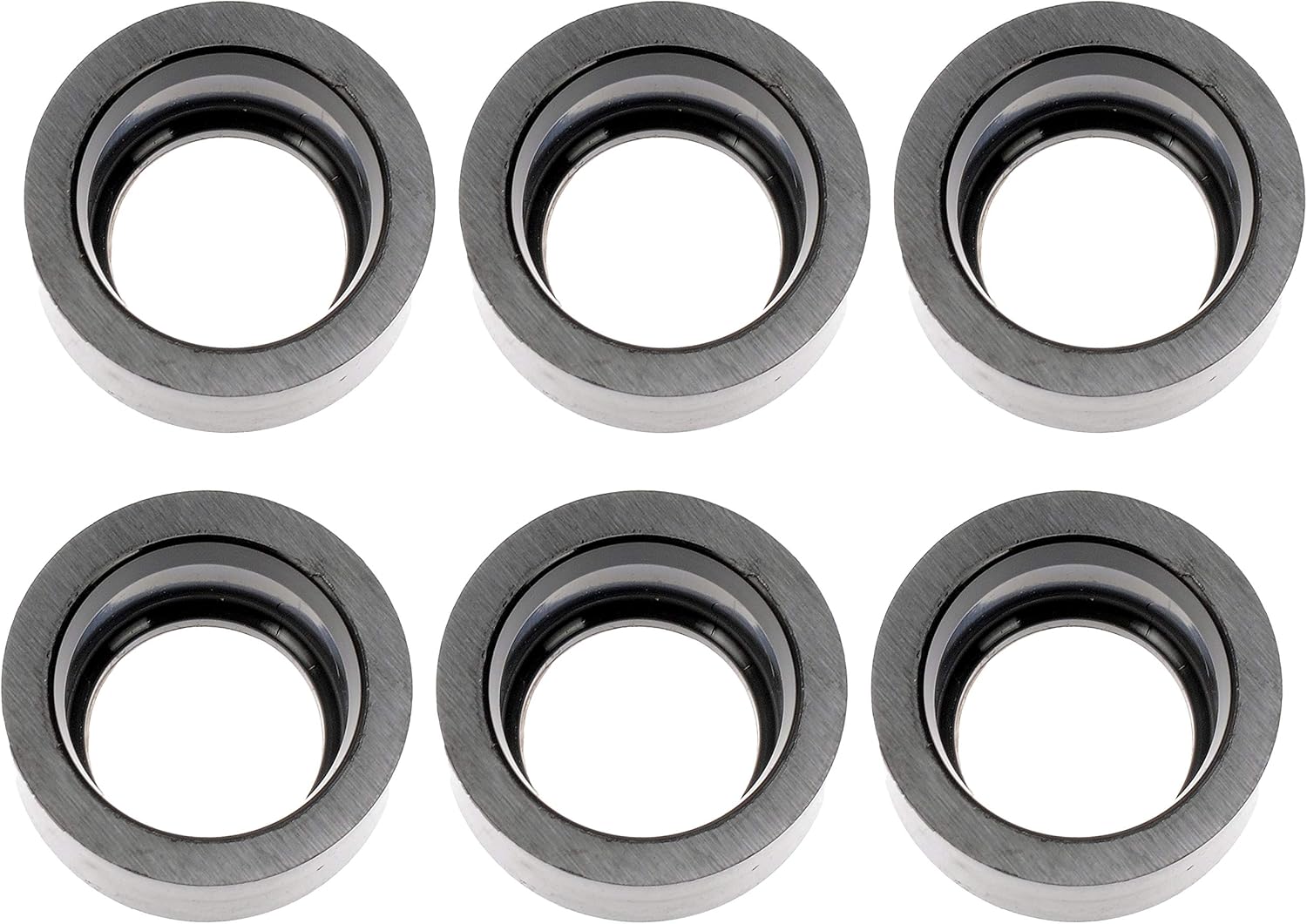

Imatge 3: De dalt a baix view of the six Dorman 926-028 Fuel Injector Adapters, showing the inner diameter.

Imatge 4: Part inferior view of the six Dorman 926-028 Fuel Injector Adapters, showing the base.

Compatibilitat de vehicles

This fuel injector adapter kit is compatible with various Ford and Mercury models. To ensure accurate fitment for your specific vehicle, it is recommended to use a vehicle compatibility tool or cross-reference with your vehicle's specifications.

Models compatibles:

• Ford Explorer Sport Trac: 2001, 2002, 2003, 2004, 2005, 2007, 2008, 2009, 2010
• Ford Explorer Sport: 2001, 2002, 2003
• Ford Explorer: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
• Ford Mustang: 2005, 2006, 2007, 2008, 2009, 2010
• Ford Ranger: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011
• Mercury Mountaineer: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

Instruccions d'instal·lació

Proper installation is crucial for the performance and longevity of the fuel injector adapters. It is recommended that installation be performed by a qualified technician.

Preparació:

• Ensure the engine is cool and the fuel system is depressurized.
• Gather necessary tools, including a socket, extension, and a soft-faced hammer or drift.
• For easier installation, you may lubricate the holes where the adapters will be seated with silicone grease or a similar lubricant.
• To soften the adapters for a smoother fit, place them in boiling water for approximately 5 minutes before installation.

Passos d'instal·lació:

1. Carefully remove the old fuel injector adapters from the engine block.
2. Clean the seating area in the engine block thoroughly to remove any debris or residue.
3. Install the new Dorman 926-028 adapters onto the fuel injectors first.
4. Next, install the assembled injectors (with new adapters) into the fuel rails. Ensure they are seated thoroughly to prevent leaks.
5. Install the entire assembled unit (injectors with adapters and fuel rails) into the engine block.
6. Gently tap the adapters into place using a socket on an extension and a soft-faced hammer or drift until fully seated.
7. Tighten any retaining screws according to manufacturer specifications.
8. After installation, perform a leak test to ensure all connections are secure and no fuel leaks are present.

Instruccions de funcionament

The Dorman 926-028 Fuel Injector Adapter Kit consists of passive replacement components. Once correctly installed, these adapters function as part of the fuel injection system without requiring any specific operational input from the user. Their purpose is to provide a secure and sealed fit for the fuel injectors within the engine block.

Manteniment

These fuel injector adapters are designed for long-term durability and typically do not require routine maintenance after proper installation. It is advisable to periodically inspect the fuel system for any signs of leaks or wear, especially around the injector areas. If any issues are detected, consult a qualified automotive technician.

Resolució de problemes

• Issue: Adapters are difficult to install or fit too tightly.
  Solució: Ensure the seating area is clean. Lubricate the holes with silicone grease. Placing the adapters in boiling water for approximately 5 minutes can soften them, making installation easier. Use a socket and extension with a soft-faced hammer to gently tap them into place.
• Issue: Fuel leaks after installation.
  Solució: Leaks often occur if the injectors are not thoroughly seated into the fuel rail or if the adapters are not fully seated in the engine block. Re-check all connections and ensure they are secure. Verify that all seals are intact and properly positioned.

Especificacions del producte

Garantia i Suport

Dorman Products are manufactured to high-quality standards and are backed by Dorman's commitment to customer satisfaction. For specific warranty information or technical support, please refer to the official Dorman website or contact Dorman customer service directly. You can find more information and contact details on the Botiga de la marca Dorman.
