1. Introducció
Thank you for choosing the VENTION Magnetic Wireless Power Bank. This device is designed to provide efficient and convenient charging for your mobile devices, featuring both magnetic wireless charging and PD 20W fast wired charging. With its compact design and 5000mAh capacity, it is an ideal companion for on-the-go power needs.
This manual provides essential information for the safe and effective use of your power bank. Please read it thoroughly before operation and retain it for future reference.
2. Producte acabatview
The VENTION Magnetic Wireless Power Bank combines portability with powerful charging capabilities. Key features include:
- Càrrega ràpida: Supports PD 20W fast wired charging and 15W wireless charging.
- Alta capacitat: Equipped with a 5000mAh battery for reliable power.
- Disseny magnètic: Ensures secure attachment for wireless charging with compatible devices.
- Pantalla intuïtiva: LED indicators provide real-time battery level information.
- Suport plegable integrat: Offers convenience for media viewmentre es carrega.
Figura 2.1: Frontal view of the VENTION Magnetic Wireless Power Bank. This image shows the compact, white design with the magnetic charging pad prominently displayed.

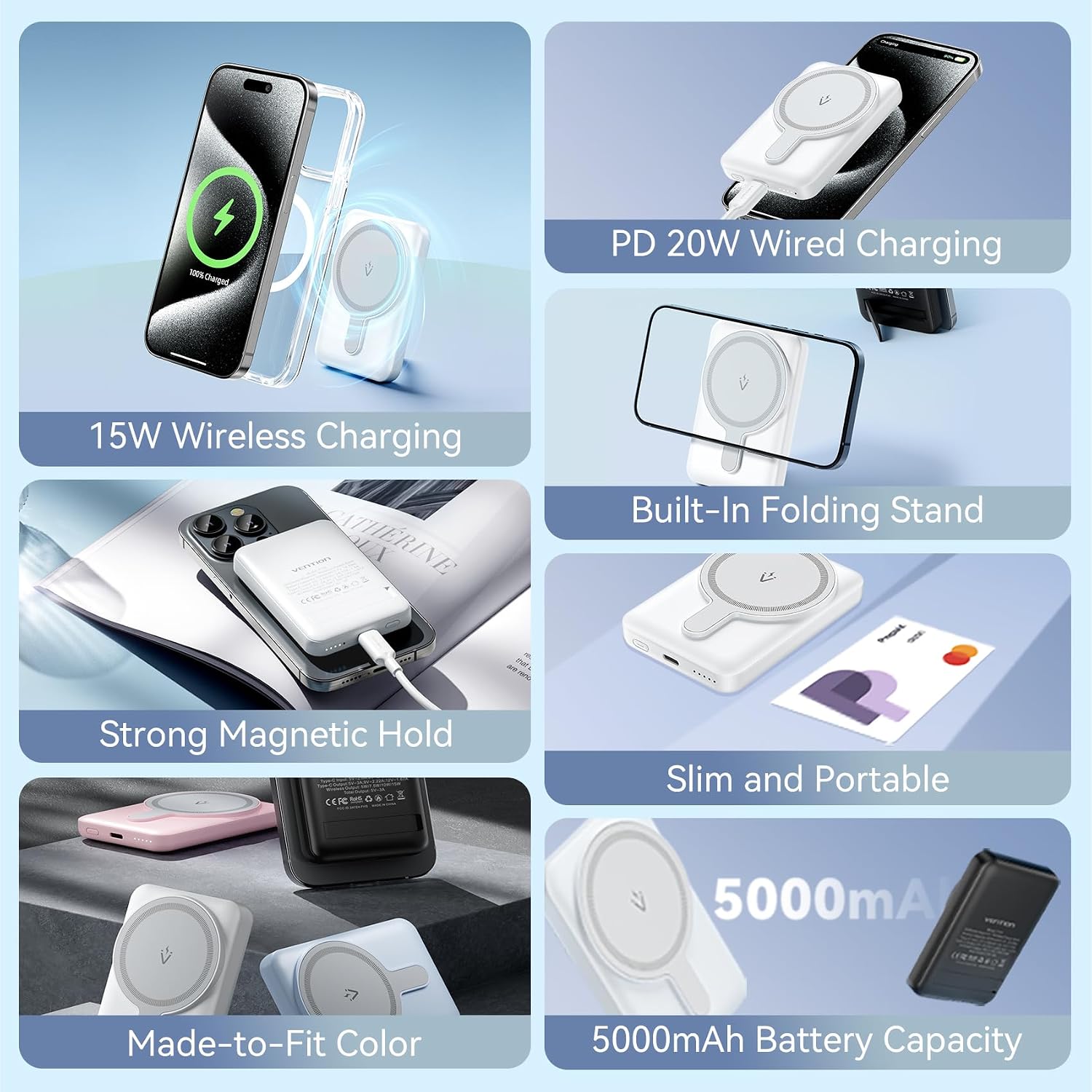

Figura 2.2: Mésview of key features including PD 20W wired charging, 15W wireless charging, built-in folding stand, strong magnetic hold, slim and portable design, color options, and 5000mAh battery capacity.
3. Configuració
3.1 Contingut del paquet
Before using your power bank, please verify that all items are present in the package:
- 1 x VENTION Magnetic Wireless Power Bank
- 1 x USB-A to USB-C Cable (0.3 m)
- 1 x Manual d'usuari (aquest document)
Figure 3.1: Illustration of the power bank, USB-A to USB-C cable, and color box packaging.
3.2 Càrrega inicial del banc d'energia extern
For optimal performance, fully charge your power bank before first use.
- Connect the provided USB-A to USB-C cable to the USB-C input port on the power bank.
- Connect the other end of the cable to a compatible USB power adapter (not included). For fastest charging, use a PD (Power Delivery) compatible adapter.
- The LED indicator lights on the power bank will illuminate to show the charging status. All lights will be solid when fully charged.
Figure 3.2: The power bank connected via USB-C for PD 20W fast charging. This demonstrates the speed advantage over standard 10W chargers.
4. Instruccions de funcionament
4.1 Charging Your Device Wirelessly
The power bank supports magnetic wireless charging for compatible devices (e.g., iPhone 12-15 series).
- Ensure your device supports wireless charging and has a magnetic alignment feature (e.g., MagSafe).
- Align the back of your device with the magnetic charging pad on the power bank. The magnets will securely snap into place.
- Wireless charging will begin automatically. The LED indicators on the power bank may show activity.
Note: For optimal magnetic attachment and charging, it is recommended to use devices without a case or with a MagSafe-compatible case. Standard phone cases may interfere with the magnetic connection.
Figure 4.1: Demonstrates the "Just Snap to Charge" feature, showing how the power bank magnetically attaches to a compatible smartphone for wireless charging.
4.2 Charging Your Device Via Cable
The power bank can also charge devices via its USB-C port.
- Connect one end of a compatible charging cable (e.g., USB-C to USB-C, or USB-C to Lightning) to your device.
- Connect the other end of the cable to the USB-C port on the power bank.
- Charging will commence automatically. The power bank supports PD 20W fast charging via this port.
Figure 4.2: The power bank simultaneously charging a phone wirelessly and another device via a USB-C cable, demonstrating its dual-charging capability.
4.3 Comprovació del nivell de la bateria
The power bank features LED indicator lights to show its remaining battery capacity:
- Press the power button once to activate the LED indicators.
- Each illuminated LED typically represents a percentage of the battery charge. Refer to the specific pattern on your device for exact interpretation (e.g., 4 LEDs for 100%, 3 for 75%, etc.).
4.4 Ús del suport plegable
The integrated foldable stand allows you to prop up your phone while it's attached to the power bank, ideal for hands-free viewing.
- Locate the foldable stand on the back of the power bank.
- Gently pull out the stand until it locks into position.
- Place your magnetically attached phone onto the stand for stable viewing.
- When not in use, fold the stand back into its recess until it is flush with the power bank's body.
Figure 4.3: The power bank with its foldable stand extended, supporting a smartphone in both portrait and landscape orientations.
4.5 Compatibilitat de dispositius
The VENTION Magnetic Wireless Power Bank offers broad compatibility:
- Càrrega ràpida per cable: Compatible with various smartphones and tablets that support USB-C charging, including iPhone (with appropriate cable), OPPO, Xiaomi, etc.
- Càrrega sense fils: Optimized for iPhone 12-15 Series and other devices supporting magnetic wireless charging.
- Mode de corrent baixa: Suitable for charging low-power devices such as Bluetooth earbuds and small USB fans.
Figure 4.4: A visual representation of the power bank's compatibility with various devices for wired fast charging, wireless charging, and low-current mode.
5. Cura i Manteniment
- Neteja: Feu servir un drap suau i sec per netejar la superfície del banc d'energia. Eviteu utilitzar productes químics agressius o materials abrasius.
- Emmagatzematge: Guardeu el banc d'energia en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Manipulació: Avoid dropping, impacting, or disassembling the device. This can damage internal components and void the warranty.
- Exposició a l'aigua: Keep the power bank away from water and other liquids. It is not waterproof.
- Cicles de càrrega: To prolong battery life, it is recommended to fully discharge and recharge the power bank periodically.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El banc d'energia no es carrega | Cable not connected properly; Faulty cable/adapter; Power bank fully charged. | Ensure cable is securely connected. Try a different cable or power adapter. Check LED indicators; if all are solid, it's fully charged. |
| El dispositiu no es carrega sense fil | Misalignment; Non-compatible device/case; Power bank low on charge. | Realign device on the magnetic pad. Ensure device/case is wireless charging compatible. Charge the power bank. |
| Device not charging via cable | Cable not connected properly; Faulty cable; Power bank low on charge. | Ensure cable is securely connected. Try a different cable. Charge the power bank. |
| Velocitat de càrrega lenta | Using a non-fast charging adapter/cable; Device not supporting fast charging. | Use a PD 20W compatible adapter and cable. Ensure your device supports fast charging protocols. |
| Els indicadors LED no funcionen | Power bank is off; Malfunction. | Premeu el botó d'engegada per activar-lo. Si encara no respon, poseu-vos en contacte amb l'atenció al client. |
7. Especificacions tècniques
| Marca | VENCIÓ |
| Model | FHSW0 |
| Capacitat de la bateria | 5000 mAh (3.7 V/18.5 Wh) |
| Entrada (USB-C) | 5V∷2.6A; 9V∷2A; 12V∷1.5A |
| Sortida (USB-C) | 5V∷2.4A; 9V∷2.22A; 12V∷1.67A |
| Sortida (sense fil) | 5W/7.5W/10W/15W |
| Sortida total | 5V∷3A |
| Color | White (also available in Pink, Blue, Black) |
| Material | PC + ABS |
| Interfície | USB-C |
| Dimensions | 15.6 x 8.8 x 2.9 cm (Paquet) |
| Pes | 150 g (Producte) |
Figure 7.1: A visual table summarizing the technical specifications of the VENTION Magnetic Wireless Power Bank.
8. Informació de seguretat
Per garantir un funcionament segur i evitar danys al dispositiu o lesions, observeu les següents precaucions de seguretat:
- No exposeu el banc d'energia a temperatures extremes (superiors a 45 °C o inferiors a 0 °C).
- No exposar a la llum solar directa durant períodes prolongats.
- Do not disassemble, modify, or attempt to repair the device. This will void the warranty and may cause safety hazards.
- Mantenir allunyat de l'aigua, la humitat i els materials inflamables.
- No l'utilitzeu si el banc d'energia extern està visiblement danyat, inflat o té fuites.
- Mantenir fora de l'abast dels nens.
- Desfeu-vos del banc d'energia de manera responsable d'acord amb la normativa local sobre residus electrònics.
El banc d'energia està equipat amb múltiples proteccions de seguretat:
- Protecció contra curtcircuits
- Més de voltage Protecció
- Protecció contra sobrecàrregues
- Protecció de sobredescàrrega
- Restaura la protecció
- Protecció contra sobrecàrrega
Figure 8.1: Visual representation of the multiple safety protection mechanisms integrated into the power bank.
9. Garantia i Suport
9.1 Informació de la garantia
This VENTION Magnetic Wireless Power Bank comes with a 1 anys de garantia from the date of purchase. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
9.2 Atenció al client
If you encounter any issues or have questions regarding your VENTION Magnetic Wireless Power Bank, please contact VENTION customer support. Refer to the product packaging or the official VENTION weblloc web per obtenir la informació de contacte més actualitzada.
For further assistance, you may visit the official VENTION store online: VENTION Store
