Introducció
This manual provides essential information for the installation, operation, and maintenance of the Rough Country 4-inch Suspension Lift Kit with N3 Shocks, model 43030. This kit is designed to enhance the appearance and performance of 1983-1997 Ford Ranger 4WD vehicles by providing an aggressive stance and improved ground clearance. Please read all instructions thoroughly before beginning installation.

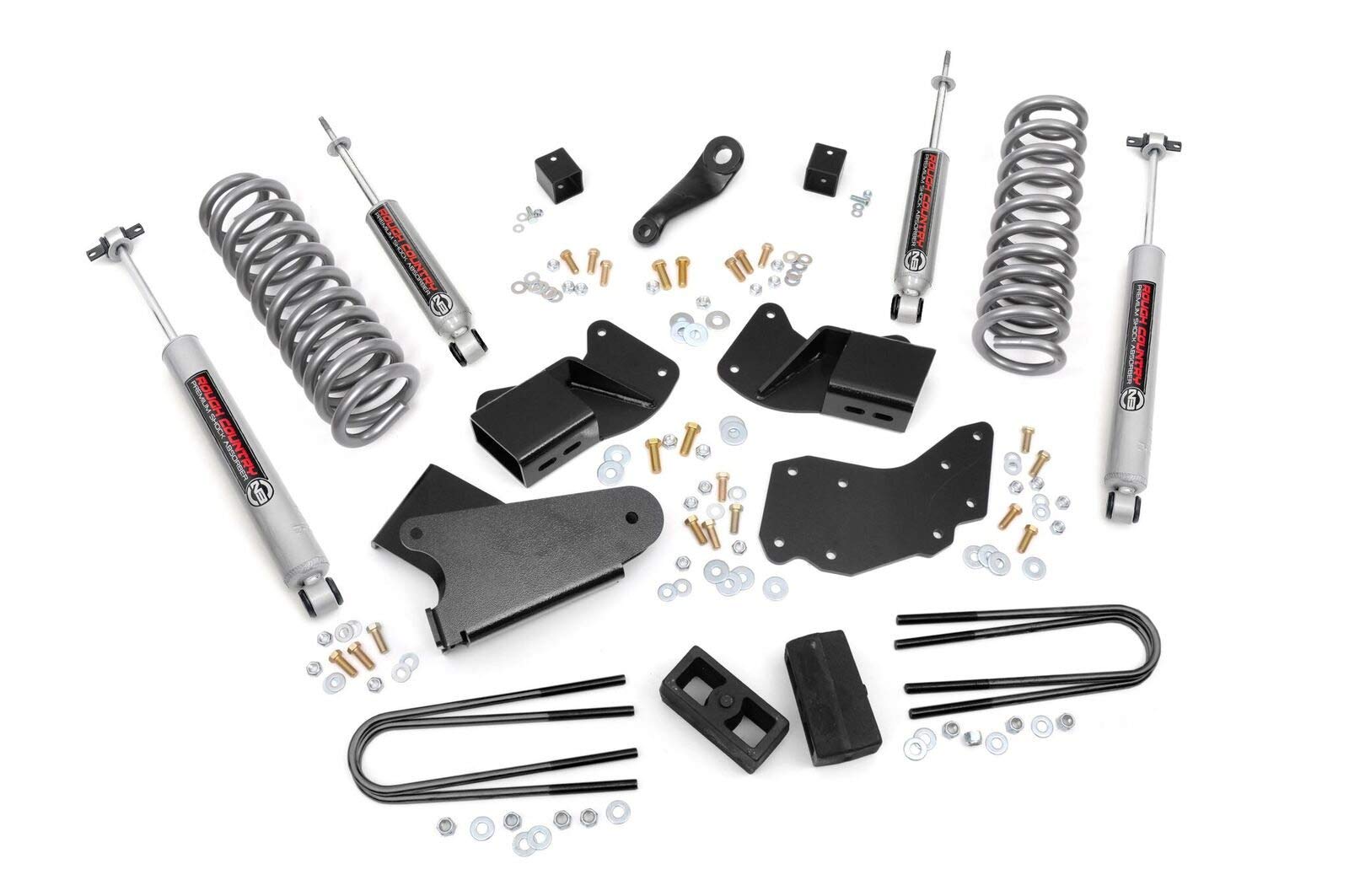

Imatge: Més deview of the Rough Country 4-inch Lift Kit components.
Informació de seguretat
Rough Country recommends that a certified technician install lift systems. Knowledge of Rough Country instructions, suspension procedures, and post-installation checks are required. If a system is installed without proper knowledge and expertise, it may impact the integrity and operating safety of the vehicle.
Què hi ha a la caixa
The Rough Country 4" Lift Kit (Model 43030) includes the following components:
- (2) Front Lifted Coil Springs
- (4) Premium N3 Series Shocks
- Power Steering Pitman Arm
- 3" Lift Blocks
- Radius Arm & I-Beam Drop Brackets
- U-Bolts & Hardware
Imatge: Detallada view of the kit's components, including coil springs, N3 shocks, and various brackets.
Configuració i instal·lació
For detailed, step-by-step installation instructions, please refer to the official Rough Country Installation Manual PDF available for download. This section provides a general overview and important considerations.
Key Installation Aspects:
- Installation involves replacing or modifying suspension components to achieve a 4-inch lift.
- Front lifted coil springs are installed to provide additional ride height.
- Radius arm and I-Beam drop brackets are crucial for maintaining optimum angles and proper caster, which is essential for factory-like handling and drivability after lifting.
- The kit includes premium N3 shocks, designed for a blend of off-road performance and smooth highway ride quality.
- Rear lift is achieved using 3-inch lift blocks and U-bolts.
Important Fitment Notes:
- This kit does NO fit models with manual steering.
- This kit does NO fit 1987-1988 models with the "High Rider STX" package.
- If your vehicle is equipped with a front sway-bar, drop brackets (Rough Country part #1018) are recommended.
After installation, a professional wheel alignment is required to ensure correct vehicle handling and tire wear.
Operating Your Lifted Vehicle
Operating a vehicle with a suspension lift kit may alter its handling characteristics. Be aware of the following:
- Centre de gravetat: A lifted vehicle has a higher center of gravity, which can affect stability, especially during sharp turns or on uneven terrain. Exercise caution and reduce speed in such situations.
- Frenatge: Braking distances may be slightly altered. Familiarize yourself with the new braking feel.
- Mida del pneumàtic: The kit allows for fitting up to 31x10.5" tires with proper wheel backspacing. Ensure your tires are correctly balanced and aligned.
- Ús fora de carretera: While designed for off-road action, always drive responsibly and within your vehicle's and your own capabilities.
Manteniment
Regular maintenance is crucial for the safety and longevity of your lift kit and vehicle. It is the buyer's responsibility to:
- Have all bolts and nuts checked for tightness after the first 500 miles of driving.
- Re-check all bolts and nuts every 1,000 miles thereafter.
- Ensure the wheel alignment, steering system, suspension, and driveline systems are inspected by a qualified, professional mechanic at least every 3,000 miles.
Resolució de problemes
If you encounter any issues after installation or during operation, consider the following:
- Sorolls o vibracions inusuals: Re-check all fasteners for proper torque. Inspect all components for proper seating and clearance.
- Steering or Handling Issues: Verify that the wheel alignment was performed correctly. Ensure the pitman arm and all steering components are installed and functioning as intended.
- Alçada de conducció desigual: Double-check that all springs and lift blocks are correctly seated and installed according to the manual.
For persistent issues, consult a certified technician or Rough Country customer support.
Especificacions
| Característica | Detall |
|---|---|
| Marca | País Aspre |
| Número de model | 43030 |
| Alçada màxima d'elevació | 4 polzades |
| Vehicles compatibles | 1983-1997 Ford Ranger 4WD |
| Amortidors | Premium N3 Series (4 included) |
| Material | Alloy Steel, Aluminum, Cast Iron, Rubber, Zinc |
| Pes de l'article | 112.3 lliures |
| UPC | 843030171520 |
N3 Series Shock Absorber Features:
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 54mm Shock Body dissipates heat faster
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Military Spec. Fluid Rated To -40° C
- Rubber bushings for better absorption
- Metallic Silver Paint
Garantia
The Rough Country 4" Ford Suspension Lift Kit is backed by Rough Country's Limited Lifetime Replacement Warranty. This warranty covers manufacturing defects and ensures replacement of eligible components. Please refer to the official Rough Country warranty policy for full terms and conditions.
Atenció al client
For technical assistance, warranty claims, or any questions regarding your Rough Country product, please contact Rough Country customer support. You can typically find contact information on the official Rough Country weblloc web o a través del vostre distribuïdor de productes.
