Introducció
Thank you for choosing the LEXIVON LX-771 Butane Soldering Iron and Torch Kit. This versatile 12-piece set is designed for a wide range of applications, from intricate soldering tasks to culinary uses. This manual provides essential information for safe and effective operation, maintenance, and troubleshooting.
Informació de seguretat
Please read all safety warnings and instructions carefully before use to prevent injury or damage.
- Butane is NOT included. Always use high-quality butane gas for refilling.
- Keep out of reach of children. This product features a safety ignition lock compliant with CPSC standards.
- Use only in well-ventilated areas. Butane is highly flammable.
- Do not use the torch continuously for more than 5 minutes to prevent damage to the unit. Allow it to cool down between extended uses.
- Never point the torch at people or animals.
- Do not attempt to disassemble or repair the torch yourself. Contact a professional for service.
- If the torch cannot be lit, do not use other igniters to light it. Follow troubleshooting steps.
- Store away from direct sunlight and sources of heat.
Contingut del paquet
Your LEXIVON LX-771 kit includes the following items:
- LEXIVON Butane Torch (LX-771)
- Soldering Support Stand
- Standard Soldering Tip
- Chisel Tip (3.5mm)
- Diagonal Tip (3mm)
- Punta de ganivet calenta
- Hot Air Blower Tip
- Deflector for Heat Shrink Tubing
- Sponge for Tip Cleaning
- Wrenches for Tip Tightening
- Estoig de protecció

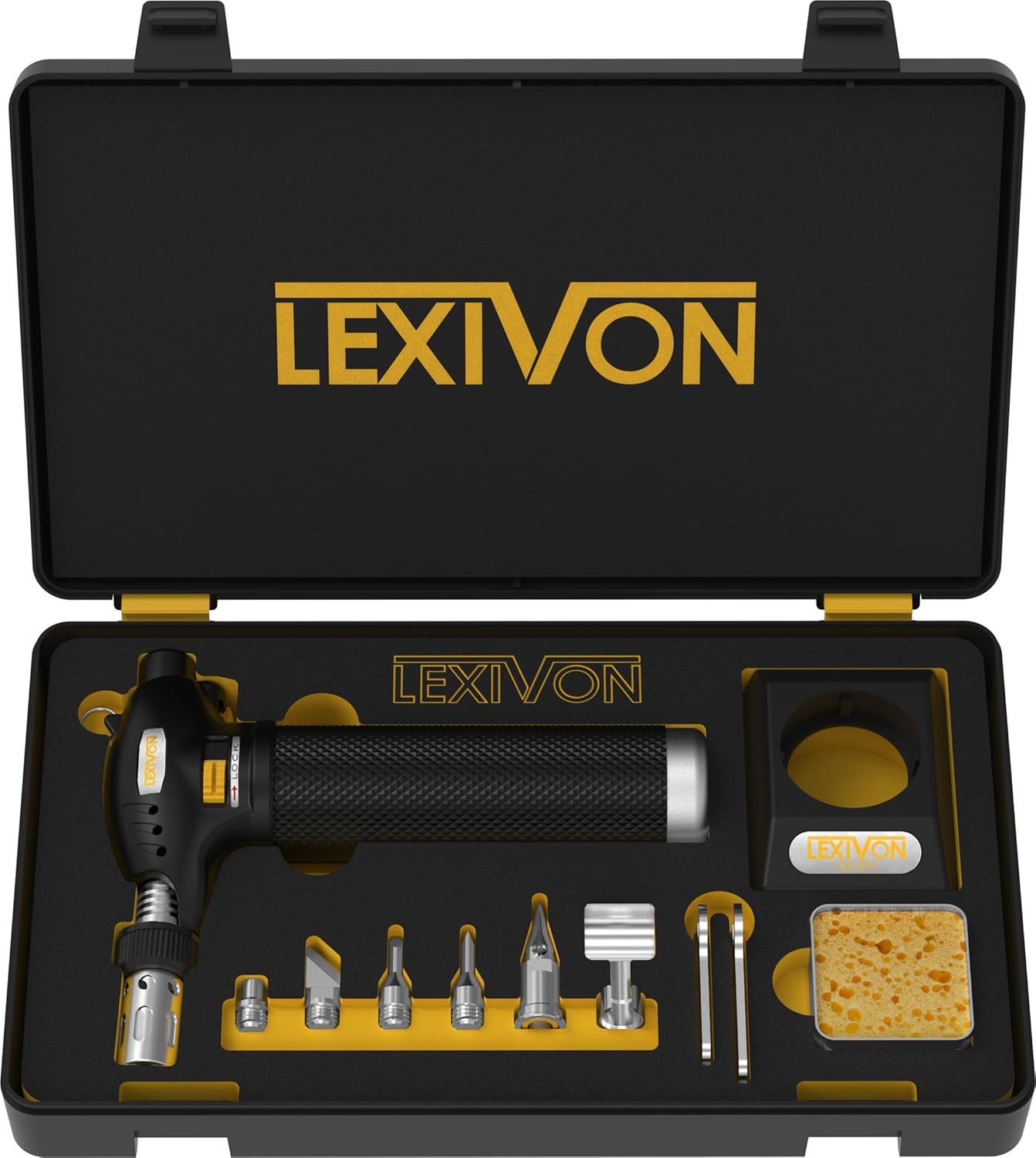

Image: The complete LEXIVON LX-771 kit, including the butane torch, various tips, and accessories, neatly organized within its protective storage case.
Configuració
1. Refilling the Butane Tank
- Ensure the torch is turned off and cooled down.
- Hold the torch upside down.
- Insert the nozzle of a standard butane gas canister (not included) into the refill valve at the bottom of the torch.
- Press down firmly for approximately 10-15 seconds until the tank is full. Avoid overfilling.
- Wait for 5-10 minutes after refilling to allow the gas to stabilize before ignition.
Video: This video demonstrates the proper technique for refilling a butane torch and addresses common issues like an unstable flame after refilling. It also provides general safety warnings for torch use.
2. Attaching Tips
- Ensure the torch is off and cool.
- Select the desired tip for your application (e.g., soldering tip, hot knife, blowtorch nozzle).
- Carefully screw the tip onto the torch head until secure. Do not overtighten.
- Use the provided wrenches if necessary for tightening or loosening tips.
Image: A detailed diagram illustrating the various interchangeable tips included in the kit, such as standard soldering, chisel, diagonal, hot knife, hot air blower, and deflector tips, along with their primary uses.
Instruccions de funcionament
1. Encesa
- Ensure the safety lock is disengaged.
- Press the ignition button to ignite the flame. The torch features auto-ignition.
2. Adjusting Flame Size and Type
- Use the flame adjustment lever (typically located on the side or rear) to increase or decrease the flame size. The flame can be adjusted from approximately 1.5 cm to 5 cm (1/2 inch to 3 inches).
- Some models may have an additional control to adjust the air-fuel mixture, allowing for a wider, softer flame or a more concentrated, hotter flame.
Imatge: Un cop mésview of the LEXIVON LX-771 butane torch, pointing out its main features: flame adjustment lever, auto-ignition button with safety, 100% aluminum refillable tank, continuous flame lock, support base, and ergonomic grip.
3. Continuous Flame Operation
For extended use, engage the continuous flame lock (refer to the product diagram for location). This allows for hands-free operation.
Video: This video demonstrates the ignition process, flame adjustment, and how to engage the continuous flame lock on a butane torch. It also shows various applications like lighting wood and cooking.
4. Apagada
To turn off the torch, disengage the continuous flame lock (if engaged) and release the ignition button. Ensure the flame is completely extinguished before storage.
Aplicacions
The LEXIVON LX-771 is suitable for a variety of tasks:
- Soldadura: Ideal for electrical wires, jewelry, dental work, and electronics repair.
- Soldadura: Suitable for joining copper pipes and other metal components.
- Retracció tèrmica: Use the deflector tip for heat shrink tubing.
- Hot Cutting: For cutting and sealing various materials.
- Culinary: Perfect for caramelizing sugar on crème brûlée, searing meats, and other kitchen tasks.
- Pyrography: For artistic wood burning.
Image: The LEXIVON LX-771 torch being used to solder copper pipes, demonstrating its capability for brazing applications.
Image: The LEXIVON LX-771 torch being used for culinary purposes, specifically caramelizing the top of crème brûlée.
Manteniment
1. Neteja
- Regularly clean the soldering tips using the provided sponge or a damp drap quan estigui fred.
- Keep the torch body clean and free from debris.
2. Emmagatzematge
- Always store the torch in its protective case when not in use.
- Ensure the torch is completely cool and empty of butane before storing for extended periods.
- Conservar en un lloc fresc i sec, allunyat de la llum solar directa i de fonts de calor.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Torch does not ignite or flame is weak/unstable. | Low butane level, air trapped in tank, or cold torch. | Refill with butane. After refilling, wait 5-10 minutes for gas to stabilize. If flame is still unstable, use the red inflation tool (if included) to release excess air from the tank, then refill. Ensure torch is at room temperature. |
| Flame is too large or too small. | Flame adjustment lever setting. | Adjust the flame adjustment lever to achieve the desired flame size. |
| Torch does not stay lit in continuous mode. | Continuous flame lock not engaged properly. | Ensure the continuous flame lock is fully engaged after ignition. |
Especificacions
| Característica | Detall |
|---|---|
| Número de model | LX-771 |
| Marca | LEXIVÓ |
| Color | Plata |
| Pes | 1.3 lliures (0.59 kg) |
| Dimensions (L x A x A) | 46 x 152 x 297 mm (1.8 x 6 x 11.7 polzades) |
| Material | Plàstic, coure |
| Temperatura màxima | 2400 °C (1315 °F) |
| Tipus de combustible | Butane Gas (not included) |
| Tipus d'encesa | Auto-ignition |
Garantia i suport
The LEXIVON LX-771 comes with a 2 any de garantia after registration. For warranty claims, technical support, or any questions regarding your product, please contact LEXIVON customer service through their official website or the retailer where you purchased the product. Please have your model number (LX-771) and proof of purchase ready.
