ASHATA DC 12V Electronic Cabinet Lock User Manual

1. Producte acabatview

The ASHATA DC 12V Electronic Cabinet Lock is designed for secure and stable locking applications. Its ultra-thin and compact design allows for easy installation in various container products. This lock operates by electrifying to unlock and automatically locks when the door is closed, providing a simple and effective security solution.

Les característiques clau inclouen:

• Disseny ultraprim: Compact and delicate for easy installation.
• Alta seguretat: Features anti-vibration, prying-resistant, anti-drilling, and anti-technology open design.
• Durabilitat: Tested for a long lifespan of 100,000 operations.
• Operació senzilla: Electrify to unlock, close the door to lock.
• Construcció robusta: Lock body made of metallic material for rigidity and stability.

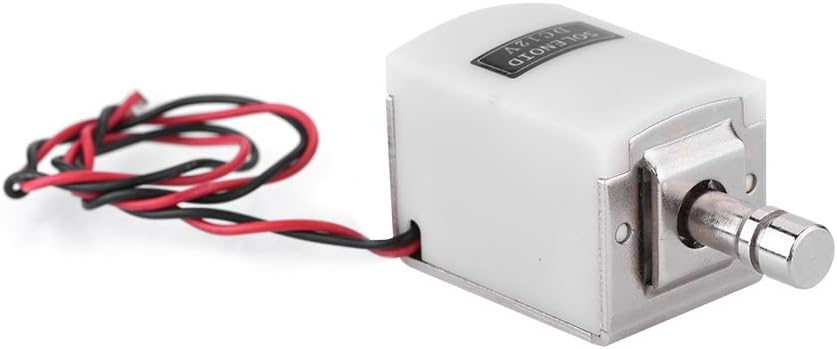

Imatge 1.1: Frontal view of the ASHATA DC 12V Electronic Cabinet Lock, showing the solenoid mechanism and power wires.

2. Components del producte

The ASHATA DC 12V Electronic Cabinet Lock package includes the following components:

• 1 x Electric Cabinet Lock unit

Note: Additional mounting hardware, power supply, and control modules are not included and must be sourced separately.

3. Especificacions

4. Guia d'instal·lació

The ASHATA DC 12V Electronic Cabinet Lock is designed for easy installation. Follow these general steps:

1. Preparació de la superfície de muntatge: Identify the desired location for the lock on your cabinet, drawer, or other container. Ensure the surface is clean and stable.
2. Col·loca el pany: Place the lock unit in the desired position. Mark the mounting points for screws.
3. Assegura el pany: Use appropriate screws (not included) to firmly attach the lock unit to the mounting surface. Ensure it is securely fastened to prevent movement.
4. Connectar l'alimentació: Connect the red and black wires of the lock to a DC 12V power supply. The red wire is typically positive (+), and the black wire is negative (-). Ensure correct polarity to avoid damage.
5. Funcionalitat de prova: Before final assembly, test the lock's operation by applying power. The lock should unlock when power is applied and lock when power is removed and the door is closed.

Imatge 4.1: Lateral view illustrating the ultra-thin design of the lock, suitable for compact installations.

Imatge 4.2: Part inferior view of the lock, highlighting the mounting holes for secure attachment.

Imatge 4.3: Ex.ample of the lock installed on a wall next to a door in an office setting, demonstrating a typical application.

5. Instruccions de funcionament

The ASHATA DC 12V Electronic Cabinet Lock operates on a simple principle:

• Per desbloquejar: Apply DC 12V power to the lock's red and black wires. The solenoid mechanism will retract, unlocking the door or drawer.
• Tancar: Remove the DC 12V power. The lock will remain in an unlocked state until the door or drawer is closed. Once the door is closed, the lock mechanism will engage, securing the container.

This operational mode is designed for applications where the lock needs to be released temporarily and then automatically secured upon closure.

Image 5.1: Illustration of the lock's easy operation, showing it installed within a safe.

Imatge 5.2: Ex.amples of suitable applications for the lock, including lockers, doors, and safes.

6. Informació de seguretat

To ensure safe and reliable operation of your ASHATA Electronic Cabinet Lock, please observe the following safety guidelines:

• Font d'alimentació: Only use a stable DC 12V power supply. Using incorrect voltage or an unstable power source can damage the lock and pose a safety risk.
• Cablejat: Ensure all electrical connections are secure and correctly polarized (red to positive, black to negative). Loose connections can lead to intermittent operation or electrical hazards.
• Instal·lació: Install the lock securely to a stable surface. Improper installation may compromise the lock's security features and lead to failure.
• Condicions ambientals: Avoid exposing the lock to extreme temperatures, moisture, or corrosive environments, which can affect its performance and lifespan.
• Ús previst: This lock is designed for securing cabinets, drawers, and similar container products. Do not use it for purposes other than its intended design.

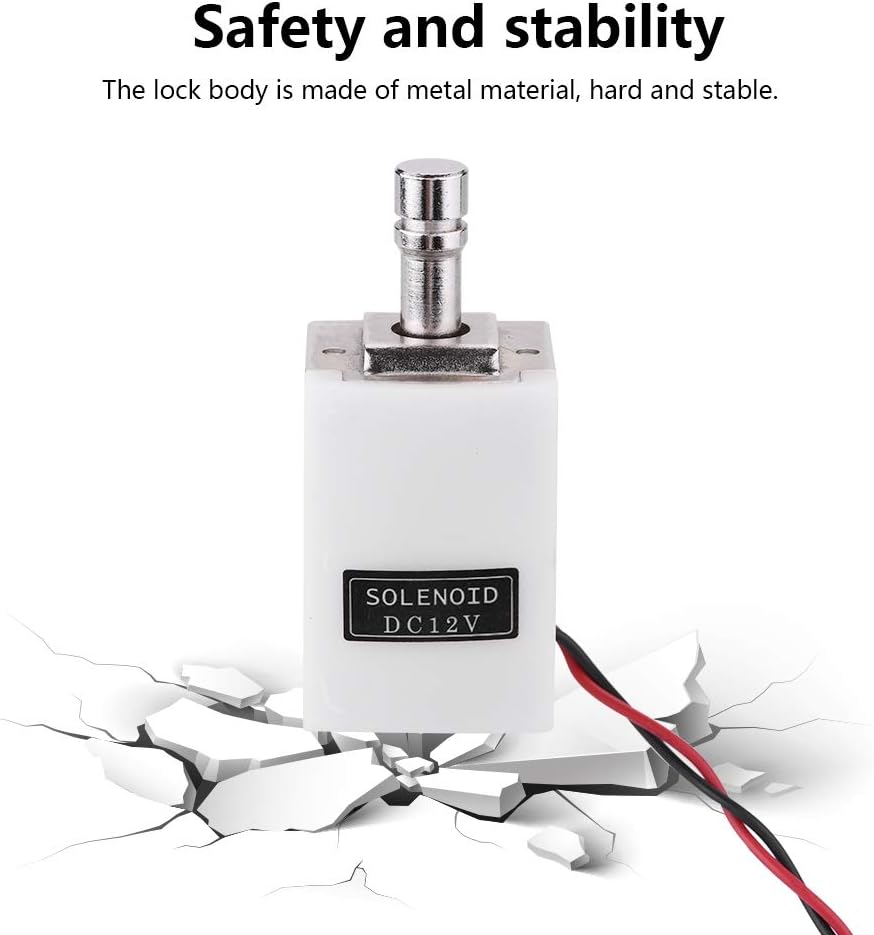

Image 6.1: The lock's metallic body ensures rigidity and stability, as depicted by its placement on a cracked surface.

Image 6.2: The lock offers high security with anti-vibration, prying-resistant, and anti-drilling features.

7. Manteniment

The ASHATA DC 12V Electronic Cabinet Lock is designed for long-term, maintenance-free operation, with an aging test indicating a lifespan of 100,000 cycles. Regular maintenance is generally not required.

• Neteja: If necessary, gently wipe the exterior of the lock with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Inspecció: Periodically check the mounting screws and wiring connections to ensure they remain secure.
• Evitar la lubricació: Do not apply lubricants or oils to the internal mechanism of the lock, as this can attract dust and interfere with its operation.

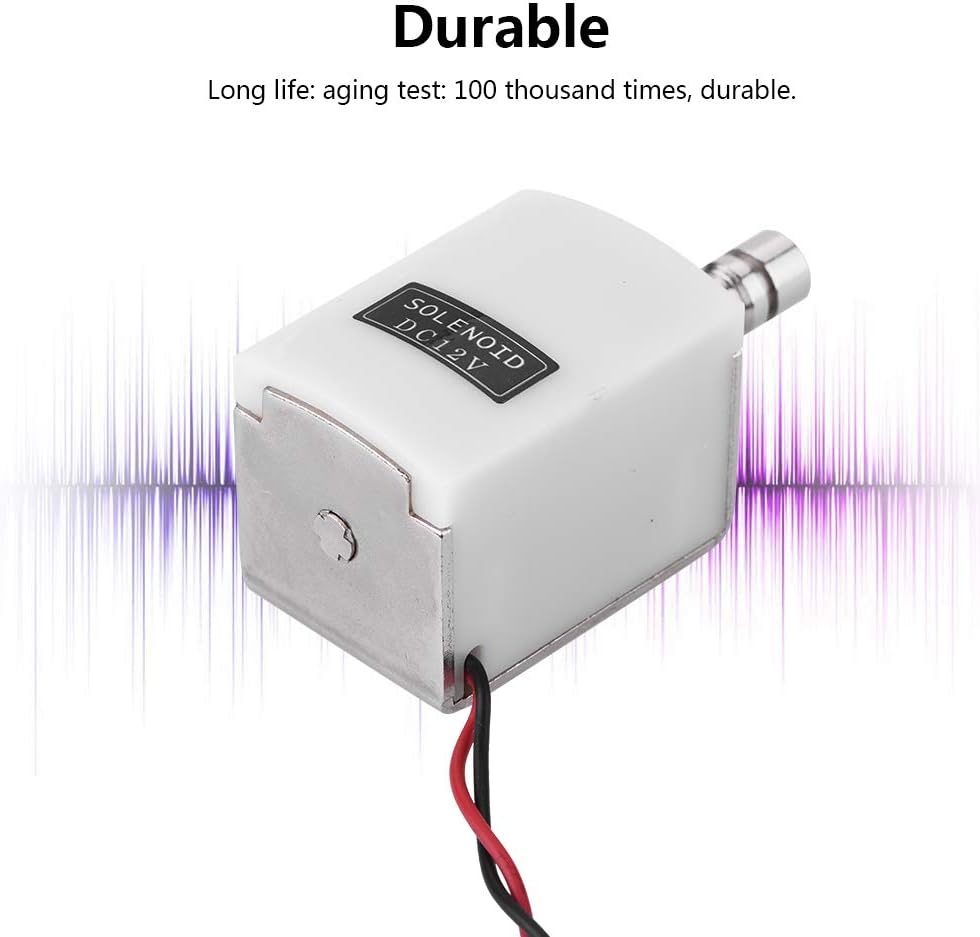

Image 7.1: The lock is built for durability, with a tested lifespan of 100,000 operations.

8. Solució De Problemes

If you encounter issues with your ASHATA Electronic Cabinet Lock, consider the following troubleshooting steps:

• Lock Not Unlocking:
  • Check if the DC 12V power supply is correctly connected and providing power.
  • Verify that the red and black wires are connected with correct polarity.
  • Ensure there are no obstructions preventing the solenoid from retracting.
• Lock Not Engaging (Locking):
  • Confirm that the DC 12V power supply has been removed. The lock engages when power is off and the door is closed.
  • Check if the door or drawer is fully closed, allowing the lock mechanism to engage.
  • Inspect for any physical obstructions preventing the lock from engaging.
• Funcionament intermitent:
  • Examineu totes les connexions del cablejat per detectar si hi ha fluïdesa o danys.
  • Assegureu-vos que el subministrament d'energia sigui estable i que no fluctuï.

Si aquests passos no resolen el problema, poseu-vos en contacte amb l'atenció al client per obtenir més ajuda.

9. Garantia i Suport

For information regarding warranty coverage and customer support, please refer to the documentation provided at the time of purchase or visit the official ASHATA weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

For technical assistance or inquiries, please contact ASHATA customer service through their official channels.
