Manual d'usuari de l'aplic de paret exterior Rabalux Equateur

1. Producte acabatview

The Rabalux Equateur outdoor wall light (Model 7997) is designed to provide efficient and durable illumination for exterior spaces. This luminaire features an integrated LED light source, offering a neutral white light suitable for various outdoor applications. Its robust construction ensures longevity and resistance to environmental elements.

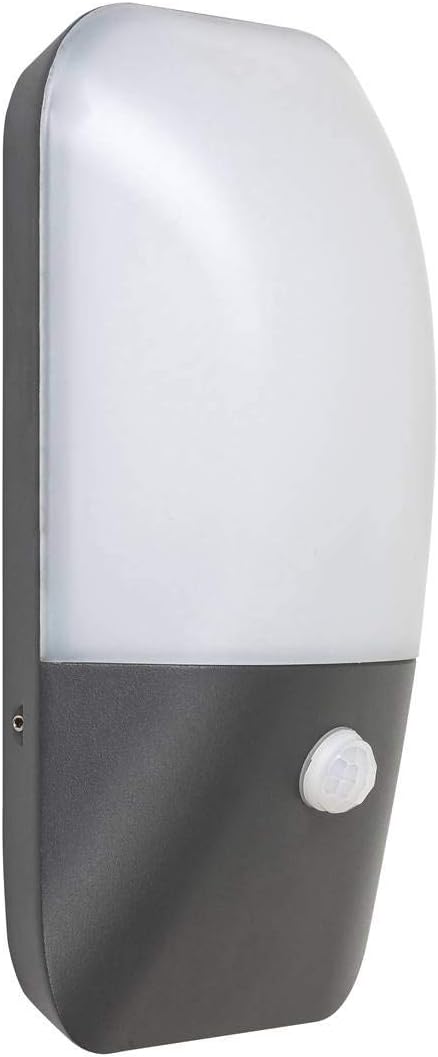

Figura 1.1: Davant view of the Rabalux Equateur outdoor wall light, showcasing its anthracite grey finish and white diffuser.

Figura 1.2: The Rabalux Equateur wall light installed on an outdoor wall, providing ambient lighting for a patio area.

2. Especificacions

Figura 2.1: Technical drawing illustrating the dimensions of the Rabalux Equateur wall light (Height: 220mm, Width: 120mm, Depth: 72mm).

Figura 2.2: Energy label for Rabalux Equateur 7997, indicating it contains built-in LED lamps that cannot be changed.

3. Configuració i instal·lació

Informació important de seguretat: Installation should only be performed by a qualified electrician. Always ensure the main power supply is turned off at the circuit breaker before beginning any electrical work.

Eines necessàries:

• Llapis
• Trepant
• Tornavís (Phillips i Flathead)
• Cinta mètrica
• Pelafils
• Nivell d'esperit

Figura 3.1: Step-by-step installation guide for the outdoor wall light.

Passos d'instal·lació:

1. Step 1: Power Disconnection. Before starting, ensure the main power supply to the installation area is switched OFF at the circuit breaker. This is crucial for safety.
2. Step 2: Disassemble Fixture. Carefully remove the front cover of the luminaire to access the mounting points and wiring terminals.
3. Step 3: Mark Mounting Holes. Place the backplate of the fixture against the wall at the desired installation height. Use a pencil to mark the positions for drilling the mounting holes.
4. Step 4: Drill Holes and Insert Anchors. Drill holes at the marked positions using an appropriate drill bit (e.g., 6mm for wall plugs). Insert the provided wall anchors into the drilled holes.
5. Step 5: Secure Backplate. Attach the luminaire's backplate to the wall using screws, ensuring it is level and securely fastened.
6. Step 6: Wiring Connections. Connect the electrical wires from your mains supply to the luminaire's terminals. Ensure correct polarity: Brown or Red (Live/L), Blue (Neutral/N), and Green/Yellow (Earth/Ground). Secure all connections firmly.
7. Step 7: Internal Wiring. Ensure all internal wiring is neatly arranged and secured within the fixture's housing, away from any moving parts or sharp edges.
8. Step 8: Reassemble Fixture. Carefully reattach the front cover of the luminaire, ensuring it is properly sealed and secured.
9. Step 9: Power Reconnection. Once the installation is complete and all connections are secure, switch the main power supply ON at the circuit breaker. Test the light to ensure proper operation.

4. Instruccions de funcionament

Once the Rabalux Equateur wall light is correctly installed and the power supply is reconnected, the light will illuminate when the corresponding wall switch is turned on. As this model is dimmable, you can control its brightness using a compatible dimmer switch (not included) connected to the circuit.

5. Manteniment

The Rabalux Equateur wall light requires minimal maintenance. The integrated LED lamps are designed for long life and are not user-replaceable. If the LED fails, the entire luminaire typically needs to be replaced.

Neteja:

• Before cleaning, ensure the power supply to the luminaire is turned off.
• Netegeu les superfícies exteriors amb un damp tela.
• No utilitzeu netejadors abrasius, dissolvents ni productes químics agressius, ja que poden danyar l'acabat o els components de plàstic.
• Assegureu-vos que l'aparell estigui completament sec abans de restablir el corrent.

6. Solució De Problemes

If you encounter issues with your Rabalux Equateur wall light, please refer to the following common troubleshooting steps:

• El llum no s'encén:
  • Check if the main power supply to the luminaire is switched on at the circuit breaker.
  • Verify that the wall switch controlling the light is in the 'ON' position.
  • Ensure all wiring connections (Live, Neutral, Earth) are secure and correctly made as per the installation instructions. If unsure, consult a qualified electrician.
• Parpelleigs de llum:
  • If using a dimmer, ensure it is compatible with LED lighting. Incompatible dimmers can cause flickering.
  • Comproveu si hi ha connexions de cablejat soltes.
• Light is Dimmer Than Expected:
  • If using a dimmer, ensure it is set to the maximum brightness level.
  • Comproveu que la font d'alimentació voltage is within the specified range for the luminaire.

If these steps do not resolve the issue, please contact customer support or a qualified electrician.

7. Garantia i Suport

For information regarding warranty coverage, technical support, or spare parts availability, please refer to the purchase documentation or contact your retailer. Rabalux products are designed for durability, and support is available through authorized channels.
