Informació important de seguretat
Si us plau, llegiu atentament totes les instruccions abans d'utilitzar la trituradora. Conserveu aquest manual per a futures consultes.
- Mantingueu els nens i les mascotes lluny de la trituradora.
- Keep loose clothing, jewelry, hair, and other foreign objects away from the shredder opening.
- Do not insert fingers or hands into the shredder opening.
- Desendolleu la trituradora quan no l'utilitzeu o abans de netejar-la.
- Do not shred metal objects, large paper clips, or hard plastic (other than credit cards/CDs in the designated slot).
- No utilitzeu productes en aerosol prop de la trituradora.
- No feu funcionar la trituradora si el cable d'alimentació està danyat.
Producte acabatview
The Amazon Basics AU862MA is a high-security micro-cut shredder designed for shredding paper, CDs, and credit cards. It features a pull-out waste bin and multiple indicator lights for safe and efficient operation.
Imatge: Frontal view of the Amazon Basics Micro-Cut Shredder, showcasinpel seu disseny compacte i acabat negre.
Configuració
- Desembalatge: Traieu amb cura la trituradora del seu embalatge. Conserveu els materials d'embalatge per a futurs transports o emmagatzematge.
- Col·locació: Place the shredder on a flat, stable surface. Ensure there is adequate space around the unit for ventilation and access to the waste bin. The shredder is equipped with casters for easy movement.
- Paperera: Ensure the 4-gallon pull-out waste bin is correctly inserted into the shredder housing. The shredder will not operate if the bin is not properly closed.
- Connexió d'alimentació: Plug the Type-A power cord into a standard electrical outlet.
Instruccions de funcionament
The shredder features a 4-mode switch for various operations.
Image: Close-up of the shredder's control switch, showing the four operational modes: Reverse, Off, Auto, and Forward.
- Auto Mode (I): This is the normal operating mode. The shredder will automatically start when paper is inserted into the feed slot and stop when shredding is complete.
- Off Mode (O): The shredder is powered off. Always switch to Off mode when emptying the waste bin or when the shredder is not in use.
- Reverse Mode (<<): Use this mode to clear paper jams. The shredder blades will rotate in reverse, allowing you to pull out jammed paper.
- Forward Mode (>>): This mode can be used to manually force paper through the shredder or to clear minor jams.
Paper de trituració

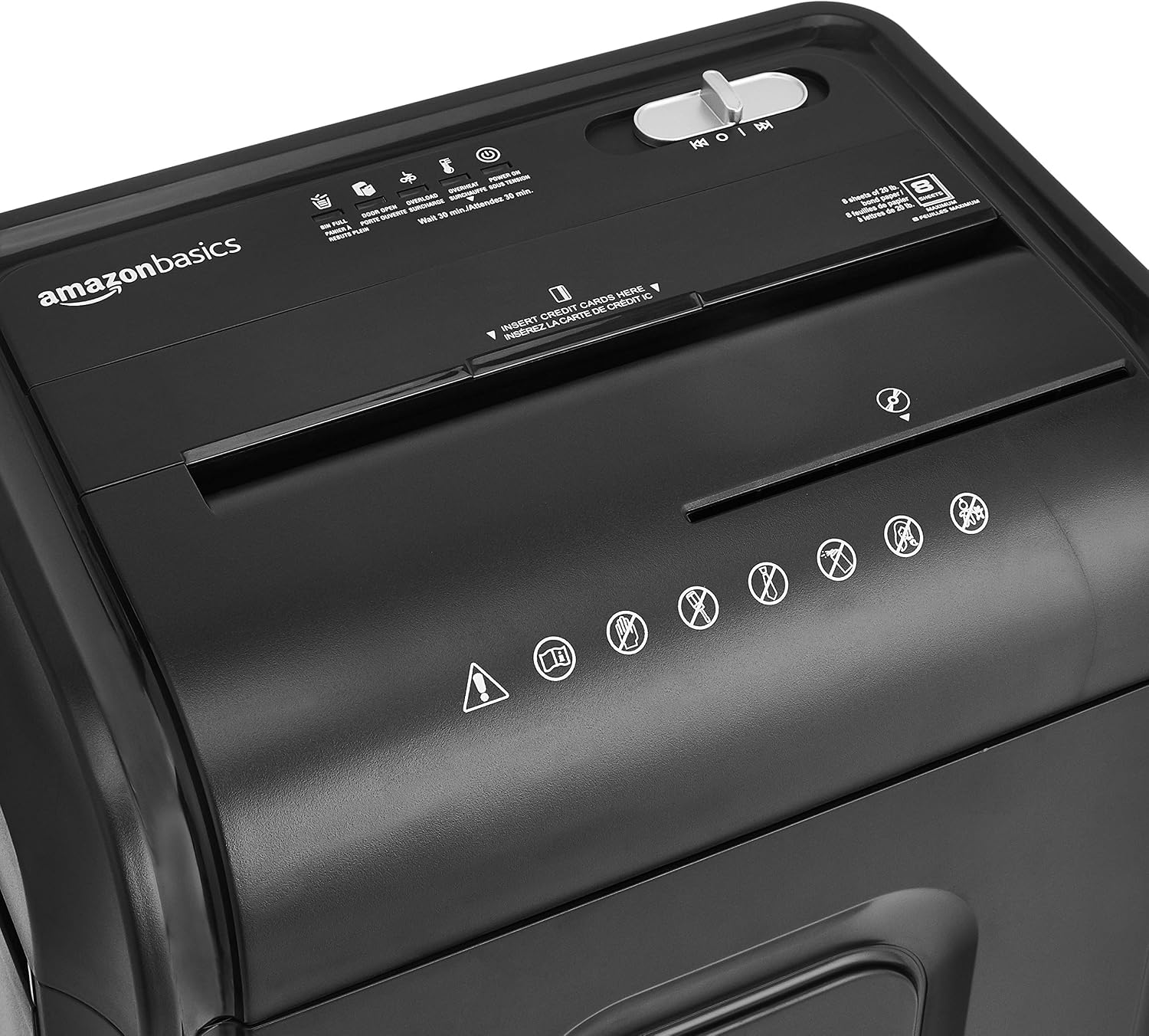

Imatge: Superior view of the shredder, highlighting the main paper feed slot and the separate slot for CDs and credit cards.
- Poseu l'interruptor de control a Auto (I).
- Insert up to 8 sheets of 20-pound paper into the main paper feed slot. Do not exceed the maximum sheet capacity to prevent jams.
- The shredder will automatically start and shred the paper into micro-cut particles.
- The shredder has a continuous run time of 5 minutes. After 5 minutes of continuous use, it requires a 30-minute cool-down period to prevent overheating.
Shredding CDs and Credit Cards
Imatge: Detallada view of the dedicated slot for shredding CDs and credit cards, separate from the paper feed.
- Poseu l'interruptor de control a Auto (I).
- Insert one CD or credit card into the separate slot designated for media.
- The shredder will automatically start and shred the item.
Llums indicadores
The shredder is equipped with several indicator lights to provide operational status.
Image: Close-up of the shredder's indicator panel, showing lights for Bin Full, Door Open, Overload, Overheat, and Power On.
- Encès: Illuminates when the shredder is connected to power and ready for operation.
- Safata plena: Illuminates when the waste bin is full and needs to be emptied. The shredder will stop operating until the bin is emptied and reinserted.
- Porta oberta: Illuminates if the pull-out waste bin is not properly closed or is open. The shredder will not operate until the bin is securely closed.
- Sobrecàrrega: Illuminates if too much paper is inserted, causing a jam. Refer to the Troubleshooting section.
- Sobrecalentament: Illuminates if the shredder has been used continuously for too long and needs to cool down. The shredder will automatically shut off. Allow it to cool for 30 minutes before resuming operation.
Manteniment
- Buidatge de la paperera: When the 'Bin Full' indicator light illuminates, switch the shredder to Desactivat (O) mode, pull out the waste bin, and empty its contents. Reinsert the bin securely.
- Lubricació de les fulles: To maintain optimal performance and extend the life of your shredder, regularly oil the cutting blades. Apply shredder oil (sold separately) to a sheet of paper and shred it. Repeat this process periodically, especially after heavy use.
- Neteja: Desendolleu la trituradora abans de netejar-la. Netegeu l'exterior amb un drap suau i sec. No utilitzeu netejadors abrasius ni dissolvents.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La trituradora no s'encén. | No power; Waste bin not closed; Overheat protection active. | Check power connection; Ensure waste bin is fully inserted; Allow 30 minutes for cool-down if Overheat light is on. |
| Emballament de paper. | Too many sheets inserted; Paper inserted incorrectly. | Canvia a Reverse (<<) mode to clear the jam. If unsuccessful, switch to Desactivat (O), unplug, and carefully remove paper manually. Reduce sheet count for future shredding. |
| La trituradora s'atura durant el funcionament. | Overheat protection; Waste bin full; Door open. | Allow 30 minutes for cool-down; Empty waste bin; Ensure waste bin is securely closed. |
| Shredder is noisy or slow. | Blades need oiling; Overload. | Oil the shredder blades as per Maintenance section; Reduce the amount of material being shredded. |
Especificacions
| Característica | Detall |
|---|---|
| Número de model | AU862MA |
| Tipus de tall | Micro Cut (P4 Security Level) |
| Capacitat del full | 8 sheets (20-pound paper) |
| Trituració de suports | Separate slot for CDs and Credit Cards |
| Capacitat de la paperera | 4 Gallons (approx. 15.1 Liters) / 3.8 Liters (as per specification) |
| Temps d'execució contínua | 5 minuts |
| Temps de refredament | 30 minuts |
| Mode d'operació | Automàtic |
| Soroll audible | 70 decibels |
| Dimensions (L x A x A) | 13" x 8.9" x 19.5" (33 cm x 22.6 cm x 49.5 cm) |
| Pes de l'article | 7.82 quilos |
| Color | Negre |
| Característica especial | Casters for mobility |
| UPC | 038572190829 |
Informació de la garantia
This Amazon Basics shredder is backed by an Amazon Basics 1-year limited warranty. For detailed terms and conditions, please refer to the warranty documentation included with your purchase or visit the official Amazon Basics weblloc.
Atenció al client
For any questions, troubleshooting assistance, or warranty claims, please contact Amazon Basics customer support. You can typically find contact information on the Amazon website under the 'Help' or 'Customer Service' sections, or by visiting the Botiga bàsica d'Amazon.
