Dorman 96472 Interior Door Handle Installation and Maintenance Manual

1. Producte acabatview

This manual provides instructions for the Dorman 96472 Interior Door Handle, designed as a direct replacement for the original handle in specific Dodge vehicle models. It ensures a matching fit and appearance, facilitating a seamless replacement process.

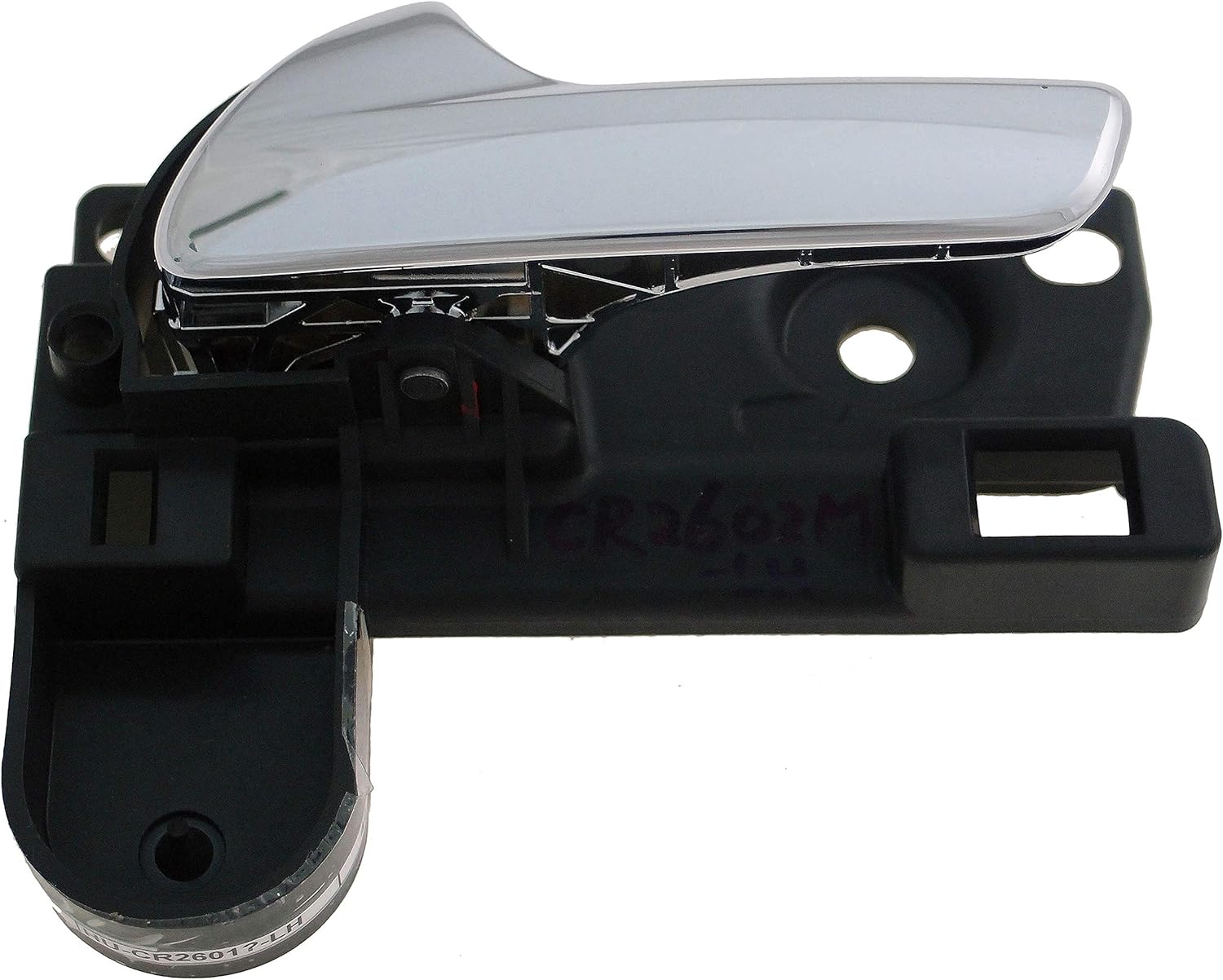

Imatge 1: Frontal view of the Dorman 96472 Interior Door Handle, showcasing its chrome finish and black base.

2. Compatibilitat i ajust

The Dorman 96472 Interior Door Handle is compatible with the following vehicle models:

• Dodge Journey: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

This handle is vehicle position specific. Verify that this handle corresponds to the correct position (e.g., front left, rear right) and side of the vehicle you intend to replace.

3. Què hi ha a la caixa

The package for the Dorman 96472 Interior Door Handle typically includes:

• 1x Dorman 96472 Interior Door Handle

Note: Additional fasteners or tools required for installation are not included unless specified.

4. Instruccions d'instal·lació

Installation of the Dorman 96472 Interior Door Handle requires basic automotive repair knowledge and tools. If you are unsure about any step, it is recommended to consult a professional mechanic.

Eines necessàries (no incloses):

• Tornavisos (Phillips i cap pla)
• Eines d'eliminació de panells
• Joc de claus de sòcol
• Guants (recomanats)

Passos d'instal·lació:

1. Preparar el vehicle: Ensure the vehicle is parked on a level surface with the engine off.
2. Remove Door Panel: Carefully remove the interior door panel. This typically involves removing screws hidden behind trim pieces, door handle bezels, or window switch panels. Use a panel removal tool to pry off the panel without damaging clips.
3. Disconnect Cables/Wiring: Disconnect any electrical connectors for window switches, door locks, or other components attached to the door panel. Detach the door handle cables from the existing handle mechanism.
4. Treure la nansa antiga: Locate the mounting screws or clips securing the old interior door handle. Remove these fasteners and carefully extract the old handle from its position.


Imatge 2: posterior view of the Dorman 96472 Interior Door Handle, showing the mounting points and cable attachment mechanism.

5. Instal·leu una nova maneta: Position the new Dorman 96472 handle into the opening. Secure it with the original mounting screws or clips. Ensure it is firmly seated.

Imatge 3: Anglesa view of the Dorman 96472 Interior Door Handle, illustrating its form and how it integrates with the mounting base.
6. Reconnect Cables/Wiring: Reattach the door handle cables to the new handle mechanism. Ensure they are properly seated and allow for smooth operation. Reconnect any electrical connectors to the door panel components.
7. Prova de funcionament: Before reattaching the door panel, test the new handle's function. Ensure the door opens and closes correctly from the inside, and that the lock mechanism operates as expected.
8. Reinstall Door Panel: Carefully align and reattach the interior door panel, ensuring all clips engage properly. Reinstall any screws or trim pieces removed in Step 2.

For visual assistance, refer to vehicle-specific repair manuals or online resources for detailed door panel removal procedures for your Dodge Journey model.

5. Operating the Door Handle

The Dorman 96472 Interior Door Handle operates identically to the original equipment. To open the door from the inside, pull the handle towards you. Ensure the door is unlocked before attempting to open it.

6. Manteniment

The Dorman 96472 Interior Door Handle is designed for durability and requires minimal maintenance. To ensure longevity and proper function:

• Neteja: Clean the handle surface with a soft, damp cloth and mild automotive interior cleaner. Avoid abrasive cleaners or solvents that may damage the finish.
• Inspecció: Periodically inspect the handle for any signs of wear, looseness, or damage. Ensure the cables connected to the handle are not frayed or obstructed.
• Lubricació: If the handle mechanism feels stiff, a small amount of silicone-based lubricant can be applied to the moving parts of the internal mechanism (accessing these parts may require partial door panel removal).

7. Solució De Problemes

Image 4: An assortment of door handle components, illustrating the variety of parts involved in door handle systems. This image emphasizes the importance of correct part selection and installation.

8. Especificacions

9. Garantia i Suport

Dorman products are engineered for quality and reliability. For specific warranty information regarding your Dorman 96472 Interior Door Handle, please refer to the documentation included with your purchase or visit the official Dorman weblloc.

For technical assistance or further inquiries, please contact Dorman customer support through their official channels. When contacting support, have your product model number (96472) and vehicle information readily available.

Podeu trobar més informació i dades de contacte a Botiga de la marca Dorman.
