Pinnacle 18-4400NG Super Combo Washer/Dryer Instruction Manual

Introducció

This manual provides essential information for the safe and efficient operation of your Pinnacle 18-4400NG Super Combo Washer/Dryer. Please read all instructions carefully before installation and use.

The Pinnacle 18-4400NG is a compact, all-in-one laundry solution designed for washing and drying clothes in a single unit. It features a 13 lb load capacity and various functions to optimize laundry care.

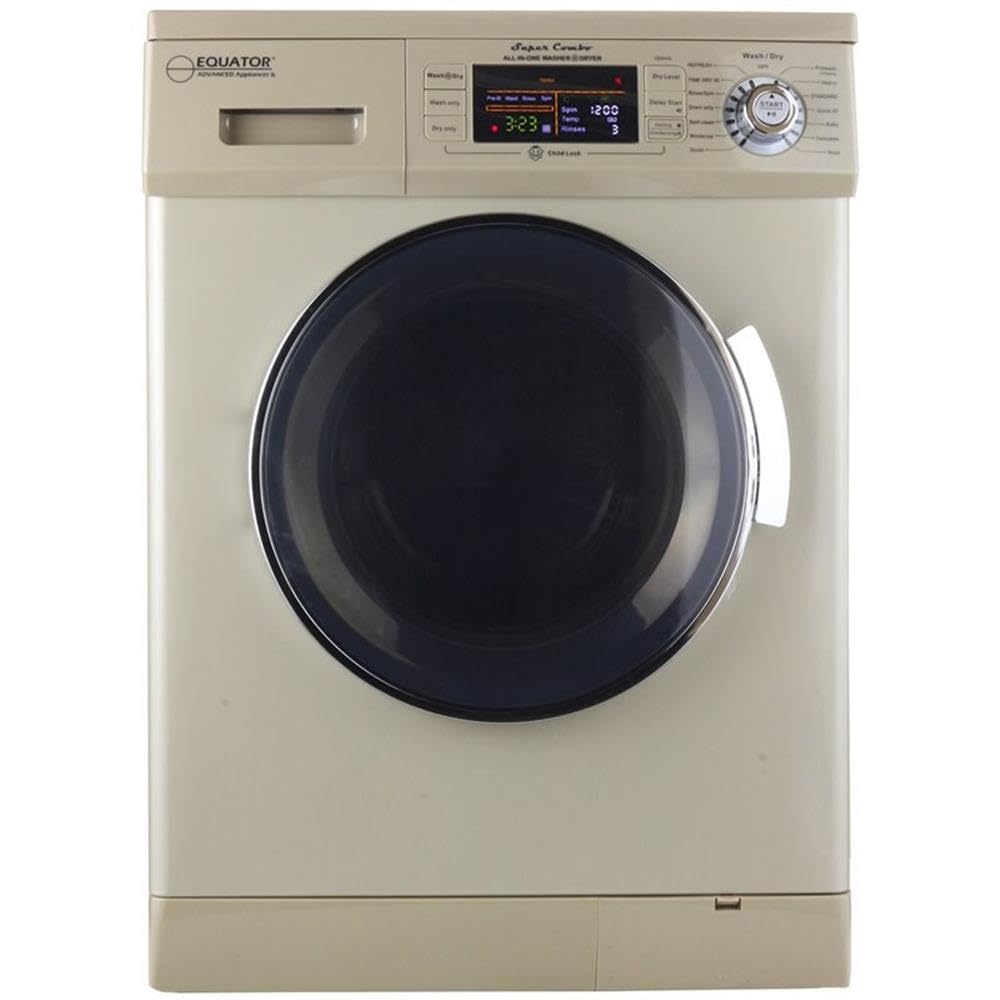

Imatge: Frontal view of the Pinnacle 18-4400NG Super Combo Washer/Dryer, showcasinel seu disseny i el panell de control.

Informació important de seguretat

ADVERTIMENT: To reduce the risk of fire, electric shock, or injury to persons, read all instructions before operating this appliance.

• Always follow local codes and ordinances for installation.
• No emmagatzemeu ni utilitzeu gasolina o altres vapors i líquids inflamables a prop d'aquest o qualsevol altre aparell.
• Keep the area around the appliance clear of combustible materials, gasoline, and other flammable vapors and liquids.
• No permeteu que els nens juguin sobre o dins de l'aparell. És necessària una supervisió estreta dels nens quan l'aparell s'utilitza a prop dels nens.
• Abans de treure l'aparell del servei o descartar-lo, traieu la porta del compartiment de rentat/assecat.
• No introduïu la mà a l'aparell si la tina o l'agitador es mou.
• No instal·leu ni emmagatzemeu aquest aparell on estigui exposat a la intempèrie.
• No tampeh amb controls.
• No repareu ni substituïu cap peça de l'aparell ni intenteu fer-ne el manteniment, llevat que s'ho recomani específicament en aquest manual o en les instruccions de reparació per a l'usuari publicades que entengueu i tingueu les habilitats per dur a terme.
• Always disconnect the appliance from the power supply before attempting any service or cleaning.
• Assegureu-vos d'una connexió a terra adequada per a les connexions elèctriques.

Configuració i instal·lació

Desembalatge

Traieu amb cura tots els materials d'embalatge. Inspeccioneu l'aparell per detectar qualsevol dany durant el transport. Informeu immediatament al vostre distribuïdor de qualsevol dany.

Requisits d'ubicació

The appliance should be installed on a firm, level floor capable of supporting its weight. Ensure adequate space for ventilation and access.

Imatge: Frontal view of the washer/dryer with height (33.5"), width (23.5"), and depth (22") dimensions indicated. Also shows a close-up of the control panel and the detergent dispenser.

Dimensions

• Alçada: 33.5 polzades
• Amplada: 23.5 polzades
• Profunditat: 22 polzades

Anivellació

The appliance is equipped with four adjustable leveling legs. Ensure the unit is perfectly level to prevent vibration and noise during operation.

Opcions de ventilació

This unit features a convertible venting/condensing drying system. Depending on your installation, you can choose between vented or ventless (condensing) operation. Refer to the detailed installation guide for specific instructions on setting up your preferred drying method.

Connexió elèctrica

Connect the appliance to a properly grounded electrical outlet as per local electrical codes. Refer to the appliance's rating plate for specific electrical requirements.

Connexió d'aigua

Connect the hot and cold water supply hoses to the corresponding inlets on the back of the appliance. Ensure all connections are tight to prevent leaks. Connect the drain hose to a suitable drain.

Instruccions de funcionament

Tauler de control acabatview

The electronic control panel with LED display allows for easy selection of wash and dry cycles and special functions. The color-coded LED display simplifies operation.

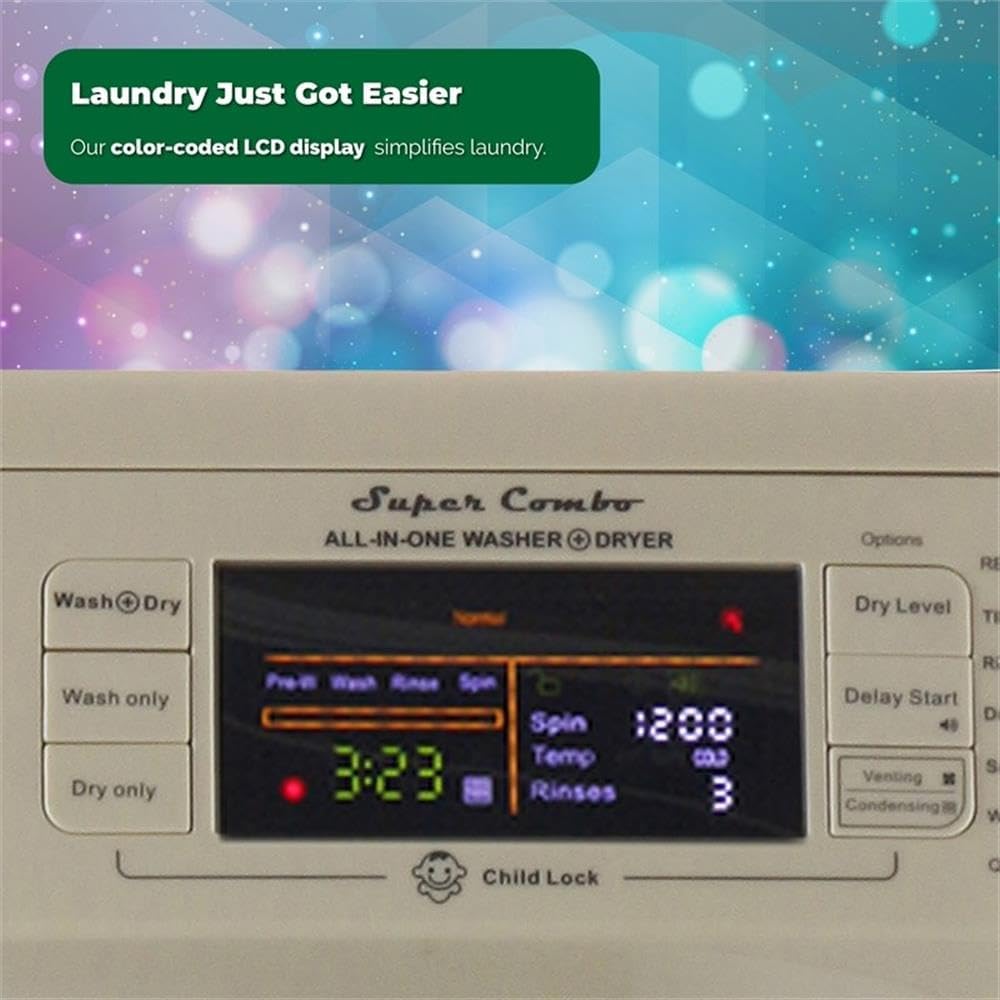

Imatge: Detallada view of the washer/dryer's control panel, highlighting the color-coded LCD display and various buttons for wash/dry options, delay start, and venting/condensing selection.

Carregant la bugaderia

Open the door and load laundry into the drum. Do not overload the appliance. The maximum load capacity is 13 pounds. Close the door firmly.

Image: The front-loading door of the washer/dryer is open, showing the interior stainless steel drum where laundry is placed.

Afegint detergent i suavitzant

Add appropriate amounts of detergent and fabric softener to the dispenser compartments. Refer to your detergent's instructions for dosage.

Selecció d'un cicle

Turn the cycle selector knob to choose your desired wash/dry program. Available cycles include:

• Wash + Dry: Combines washing and drying into a single continuous cycle.
• Només rentat: For washing clothes without drying.
• Només sec: For drying pre-washed clothes.
• Estàndard: General washing and drying for everyday items.
• Pesat: Per a articles molt bruts.
• Ràpid 20: Un cicle de rentat ràpid per a peces lleugerament brutes.
• Bebè: Gentle cycle suitable for baby clothes.
• Delicats: Per a teixits delicats.
• Llana: Cicle específic per a peces de llana.

Funcions especials

The appliance offers several special functions to enhance your laundry experience:

• Funció silenciosa: Reduces operational noise, with levels below 60 dB.
• Winterize Function: A quick cycle designed for RV users to prepare the unit for cold weather conditions.
• Funció d'actualització: Helps to freshen clothes without a full wash.
• Wrinkle Guard Function: Minimizes wrinkles by periodically tumbling clothes after the drying cycle.
• Inici retardat: Allows you to set a delayed start time for your laundry cycle.
• Bloqueig per a nens: Bloqueja el tauler de control per evitar canvis accidentals durant el funcionament.
• Self-Clean Option: A dedicated cycle to clean the washer drum.
• Add-a-Soak Option: Provides an additional soaking period during the wash cycle.
• Water Saver Option: Optimizes water usage for selected cycles.

Començar un Cicle

After selecting the cycle and any desired special functions, press the Inici/Pausa button to begin the operation.

Final de Cicle

An end-of-cycle chime will sound when the program is complete. Open the door and remove your laundry promptly.

Manteniment i cura

Neteja del Tambor

Utilitza el Autoneteja option periodically to clean the interior of the washer drum and remove any residue.

Neteja de la trampa de monedes

The appliance features an easy-to-open coin trap. Regularly check and clean the coin trap to remove lint, coins, or other small objects that may accumulate.

Neteja exterior

Wipe the exterior surfaces of the appliance with a soft, damp tela. No utilitzeu netejadors abrasius ni dissolvents.

Winterizing (for RV users)

If the appliance is installed in an RV or an area subject to freezing temperatures, use the Quick Winterize cycle to prepare the unit for storage and prevent damage from freezing water.

Resolució de problemes

If you encounter issues with your Pinnacle 18-4400NG, refer to the following common solutions. For more complex problems, contact customer support.

Problemes comuns i solucions

• L'aparell no s'engega: Ensure the power cord is securely plugged in and the circuit breaker has not tripped. Check if the door is fully closed.
• Sense omplir d'aigua: Verify that the water supply faucets are fully open and that the water inlet hoses are not kinked.
• Vibració o soroll excessiu: Ensure the appliance is level and all four leveling legs are properly adjusted. Check that shipping bolts (if any) have been removed.
• La roba no s'asseca correctament: Check if the lint filter is clean. Ensure the selected dry cycle is appropriate for the load size and fabric type. For vented models, check the exhaust vent for obstructions.
• Codis d'error: The appliance features diagnostics with 12 error codes. If an error code appears on the display, consult the full user manual or contact customer support for specific interpretations and solutions.

Especificacions

The following are key specifications for the Pinnacle 18-4400NG Super Combo Washer/Dryer:

Image: Energy Guide label detailing the estimated yearly energy cost and electricity use for the 4400N model, indicating its energy efficiency.

Garantia i Suport

Informació de la garantia

Your Pinnacle 18-4400NG Super Combo Washer/Dryer comes with a 5-year limited warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.

Atenció al client

For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Pinnacle customer support. Refer to the contact information provided with your purchase documentation or visit the official Pinnacle weblloc.
