Toptekits UK Plug BS1363 to 2-Prong C7 Figure-8 Power Short Cord User Manual

Introducció

This manual provides essential information for the safe and effective use of your Toptekits UK Plug BS1363 to 2-Prong C7 Figure-8 Power Short Cord. This power cord is designed to connect devices requiring a C7 (figure-8) connector to a standard UK BS1363 wall socket. Please read this manual thoroughly before use and retain it for future reference.

Informació de seguretat

• Ensure the power cord's voltage and current ratings (250V, 3A) are compatible with your device and power supply.
• No feu servir el cable si està danyat, esfilagarsat o té els fils exposats.
• Avoid placing the cord under heavy objects, near heat sources, or in wet environments.
• Always grasp the plug, not the cord, when disconnecting from a power outlet or device.
• This cord is equipped with a 3A fuse for protection. If the fuse blows, replace it with a fuse of the same rating (BS1362 3A).
• Do not attempt to modify or repair the power cord yourself. Refer to qualified personnel for service.

Producte acabatview

The Toptekits UK Plug BS1363 to 2-Prong C7 Figure-8 Power Short Cord features a UK standard 3-pin plug (BS1363) on one end and a non-polarized C7 (figure-8) connector on the other. It is designed for short-distance power connections.

Figura 1: Mésview of the Toptekits UK Plug to C7 Figure-8 Power Cord, showing both the UK 3-pin plug and the C7 connector.

Característiques principals:

• Tipus de connector 1: UK BS1363 3-pin plug (Male)
• Tipus de connector 2: IEC 60320 C7 2-prong (Figure-8) receptacle (Female)
• Voltage Valoració: 250 V AC
• Valoració actual: 3A (with 3A fuse)
• Mesura de filferro: 2X0.75mm² (equivalent to 18AWG)
• Material de la jaqueta: PVC durador
• Longitud: Approximately 1ft (30cm)
• Compliment: UK BSI listed and RoHS compliant

Figura 2: Detallada view highlighting the BS1363 plug with its 13A fuse (note: product description states 3A fuse for this specific product) and the C7 connector, along with the 2X0.75mm² wire gauge.

Configuració

1. Identificació de connectors: Ensure your device has a C7 (figure-8) power input port and that you have a standard UK BS1363 wall socket available.
2. Connecta't al dispositiu: Insert the C7 (figure-8) end of the power cord firmly into the corresponding power input port on your electronic device. The non-polarized design allows it to be inserted in either orientation.
3. Connecteu-vos a la presa de corrent: Insert the UK BS1363 3-pin plug end of the power cord into a standard UK wall power outlet. Ensure it is fully inserted.
4. Encès: Once both ends are securely connected, you may power on your device.

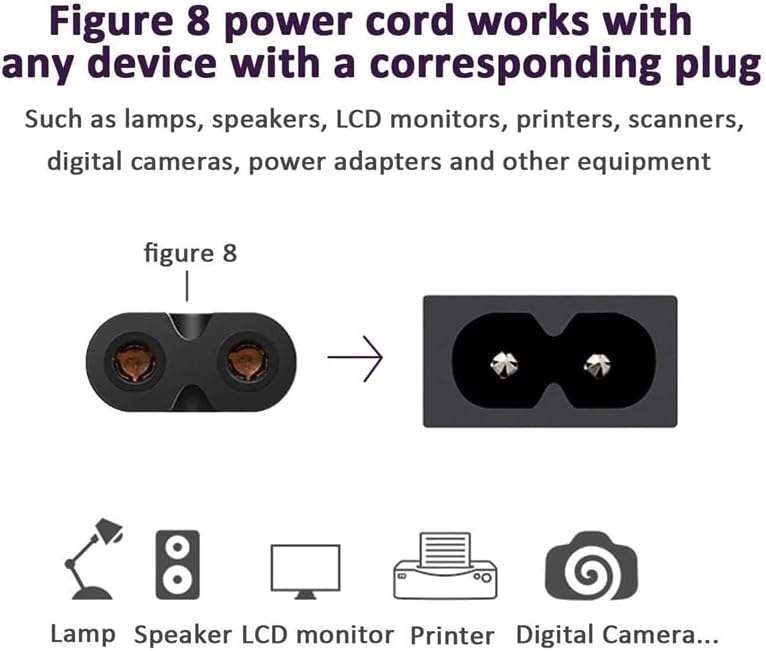

Figure 3: Illustration showing the compatibility of the figure-8 (C7) power cord with various electronic devices such as lamps, speakers, LCD monitors, printers, scanners, and digital cameras.

En funcionament

This power cord functions as a direct power conduit. Once properly connected, it supplies power from the wall outlet to your compatible electronic device. No specific operational steps are required beyond proper connection.

Manteniment

• Neteja: Disconnect the cord from all power sources before cleaning. Wipe the cord and connectors with a dry, soft cloth. Do not use liquid cleaners or solvents.
• Emmagatzematge: When not in use, store the cord in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid tightly coiling or bending the cord, which can damage the internal wires.
• Inspecció: Periodically inspect the cord for any signs of damage, such as cuts, abrasions, or discolored areas. If damage is found, discontinue use immediately and replace the cord.
• Substitució de fusibles: The UK plug contains a 3A fuse. If the cord stops providing power, check the fuse. To replace, carefully open the fuse compartment on the plug (usually with a flat-head screwdriver) and replace the blown fuse with a new 3A BS1362 compliant fuse.

Resolució de problemes

Especificacions

Figure 4: Technical diagrams showing the dimensions of the IEC 60320 C7 connector and the UK BS1363 plug for precise compatibility reference.

Garantia i Suport

For information regarding warranty, returns, or technical support, please refer to the retailer or manufacturer's official weblloc web. Conserveu el rebut de compra com a comprovant de compra.

Fabricant: Tekit
