Introducció
Thank you for choosing the Benro Phonographer P1 Handheld Gimbal Stabilizer. This device is designed to provide smooth, stable footage for your smartphone videos, enhancing your mobile filmmaking experience. Please read this manual thoroughly before use to ensure proper operation and to maximize the potential of your P1 gimbal.
Image: The Benro Phonographer P1 Handheld Gimbal Stabilizer, showcasing el seu disseny compacte.
Què hi ha a la caixa
En desempaquetar, comproveu que hi hagi tots els elements següents:
- Benro Phoneographer P1 Gimbal for Smartphones
- Cable USB-C a USB-C
- Cable d'àudio
- Cable d'alimentació
- Bossa d'emmagatzematge
Image: Retail packaging of the Benro Phonographer P1, indicating included accessories.
Característiques clau
- 310g Maximum Payload: Supports a wide range of smartphones.
- Folding Super Compact Design: Fàcil de transportar i emmagatzemar.
- Switch between Horizontal and Vertical: Quickly change shooting orientation.
- Up to 24 Hour Battery Life: Extended usage for long shooting sessions.
- Càrrega sense fils: Convenient charging for compatible smartphones.
- Entrada de micròfon extern: Enhance audio quality with an external microphone.
- 4-way Joystick, Trigger Button, and Custom Button: Intuitive controls for precise adjustments.
- App with Face Tracking and Time-lapse Support: Advanced shooting modes and intelligent tracking.
Guia de configuració
1. Desplegament del cardan
Gently unfold the gimbal from its compact storage position. Ensure all joints click into place securely.
2. Muntatge del telèfon intel·ligent
- Allargar la clavilla del telèfonamp on the gimbal.
- Col·loca amb cura el teu telèfon intel·ligent a la tapa.amp, ensuring it is centered and secure.
- Adjust the phone's position within the clamp to achieve a balanced state. While critical balancing is often not required, a roughly balanced phone will optimize motor performance and battery life.

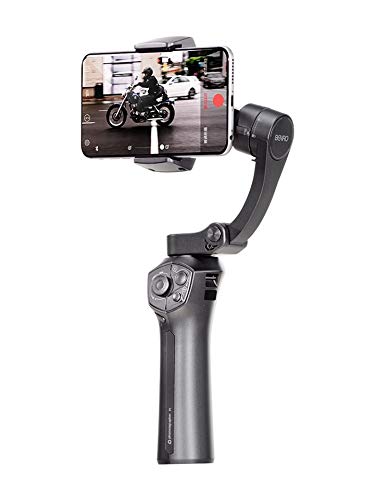

Image: The Benro Phonographer P1 with a smartphone securely mounted, ready for use.
3. Encès / apagat
- Per engegar: premeu i manteniu premut el botó d'engegada fins que s'il·lumini l'indicador lluminós.
- Per apagar: premeu i manteniu premut el botó d'engegada fins que l'indicador lluminós s'apagui.
4. App Connection (Benro Phonographer App)
- Download the "Benro Phonographer" app from your smartphone's app store.
- Activa el Bluetooth al teu telèfon intel·ligent.
- Open the Benro Phonographer app and follow the on-screen instructions to connect to your P1 gimbal.
- Ensure the gimbal is powered on during the connection process.
Instruccions de funcionament
Controls bàsics
- 4-way Joystick: Controls the pan and tilt movements of the gimbal.
- Botó d'activació: Typically used for quick mode changes or recentering the gimbal. Refer to the app for specific functionalities.
- Botó personalitzat: Programmable button for frequently used functions within the app, such as focus pull or zoom.
Image: The Benro Phonographer P1 in action, demonstrating its ergonomic design and smartphone integration.
Switching Orientation (Horizontal/Vertical)
The P1 gimbal allows for quick switching between horizontal (landscape) and vertical (portrait) shooting modes. This is typically done via a dedicated button or a gesture within the Benro Phonographer app. Consult the app's interface for precise instructions.
Càrrega sense fils
For smartphones equipped with wireless charging capabilities, the P1 gimbal can provide power while in use. Ensure your phone is correctly positioned in the clamp for optimal wireless charging contact.
Entrada de micròfon extern
Connect an external microphone to the dedicated input port on the gimbal handle using the provided audio cable to significantly improve audio recording quality.
Funcions avançades de l'aplicació
- Seguiment facial: Utilize the app's intelligent face tracking feature to keep subjects automatically in frame.
- Lapse de temps: Create dynamic time-lapse videos with customizable settings through the app.
- Explore other creative modes and settings available within the Benro Phonographer app for enhanced video production.
Manteniment
- Neteja: Feu servir un drap suau i sec per netejar el cardan. Eviteu utilitzar netejadors líquids o dissolvents.
- Emmagatzematge: When not in use, fold the gimbal into its compact form and store it in the provided storage bag to protect it from dust and damage.
- Cura de la bateria: For optimal battery longevity, avoid fully discharging the battery frequently. Charge the gimbal regularly, even if not in active use, to maintain battery health.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Gimbal does not power on. | Bateria baixa o botó d'engegada no premut correctament. | Charge the gimbal using the provided power cord. Ensure the power button is pressed and held for a few seconds. |
| Smartphone not balancing correctly. | Smartphone not centered in the clamp. | Adjust the smartphone's position in the clamp until it is as balanced as possible. |
| Problemes de connexió de l'aplicació. | Bluetooth off, app not open, or gimbal not powered on. | Ensure Bluetooth is enabled, the Benro Phonographer app is open, and the gimbal is powered on. Restart both the app and gimbal if necessary. |
| Face tracking or object tracking not working. | App software issue or environmental factors. | Ensure good lighting conditions. Update the Benro Phonographer app to the latest version. Some mobile phone models may have compatibility limitations. |
| Gimbal motors feel weak or unstable. | Smartphone weight exceeds maximum payload or improper balancing. | Verify your smartphone's weight is within the 310g limit. Re-adjust the phone's position for better balance. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | BENRO |
| Nom del model | P1 GIMBAL |
| Número de model de l'article | P1GRY |
| Dispositius compatibles | Telèfon mòbil |
| Càrrega útil màxima | 310 g |
| Dimensions del producte | 10.6 x 5 x 17.8 cm |
| Mida plegada | 50 mm x 106 mm x 178 mm |
| Pes de l'article | 480 g |
| Tipus de bateria | Ió de liti (1 inclosa) |
| Durada mitjana de la bateria | Fins a 24 hores |
| Data de primera disponibilitat | 11 de juliol de 2019 |
Garantia i Suport
The Benro Phonographer P1 Handheld Gimbal Stabilizer comes with a 1 anys de garantia des de la data de compra. Aquesta garantia cobreix els defectes de fabricació i garanteix que el producte funcioni tal com està previst en condicions d'ús normal.
For warranty claims, technical support, or further assistance, please contact Benro customer service through their official weblloc web o la informació de contacte proporcionada amb la documentació de compra.
Si us plau, conserveu el comprovant de compra per validar la garantia.
