McMurdo Fastfind 220 Personal Locator Beacon User Manual

1. Introduction to the McMurdo Fastfind 220 PLB

The McMurdo Fastfind 220 is a robust, waterproof Personal Locator Beacon (PLB) designed for emergency assistance. This compact device is easily carried in a backpack or pocket. In an emergency, the integrated GPS and Galileo GNSS receivers quickly determine your position within meters. It then transmits a powerful 406 MHz signal to orbiting emergency satellites, along with a 121.5 MHz homing signal for local recovery teams. The Fastfind 220 has been tested in the world's most remote locations and under severe conditions to ensure reliability.

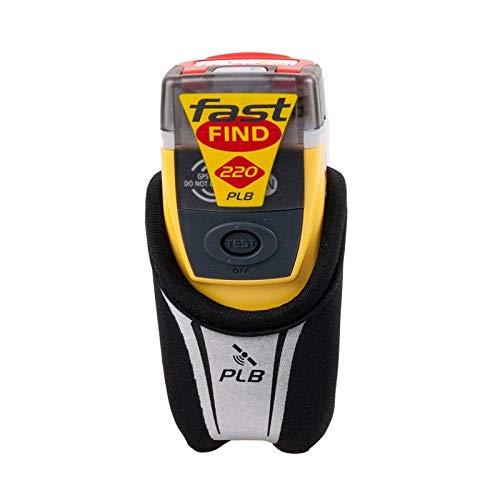

Figura 1: Frontal view of the McMurdo Fastfind 220 PLB.

2. Característiques clau

• Advanced GNSS Receiver: Updated for 2019, the Fastfind 220 includes a GNSS receiver with dual GPS (USA) and Galileo (Europe) satellite capabilities for accelerated position detection.
• Global Emergency Transmission: Transmits a 406 MHz signal to global emergency services via orbiting satellites.
• Local Homing Signal: Emits a 121.5 MHz homing signal to aid local search and rescue teams in pinpointing your exact location.
• Llum estroboscòpica: Features a high-luminosity strobe light that flashes an SOS Morse code, enhancing visibility in low-light conditions.
• Disseny impermeable: The unit is waterproof, ensuring functionality in marine and wet environments.
• Floating Pouch Included: Comes with a floating pouch to prevent loss in water.

3. Què hi ha a la caixa

Upon unpacking your McMurdo Fastfind 220, please ensure all components are present:

• McMurdo Fastfind 220 Personal Locator Beacon (Waterproof GPS device)
• Bossa flotant

Figure 2: McMurdo Fastfind 220 PLB with its packaging and included floating pouch/lanyard.

4. Setup and Registration

Before using your Fastfind 220 PLB, it is crucial to complete the following steps:

1. Inscripció: Registration of your Personal Locator Beacon is legally required in most countries. This process links your device's unique ID to your personal contact information and emergency contacts. This information is vital for rescue teams to identify you and obtain details about your travel plans when the beacon is activated. Please refer to the included registration documentation or the manufacturer's website for specific instructions on how to register your device in your region.
2. Battery Installation/Check: The product specifications indicate that batteries are not included. Please ensure appropriate batteries are installed according to the full product manual before use. If batteries are pre-installed, check their expiry date.
3. Familiarització: Become familiar with the device's controls, particularly the ON/OFF button and the antenna deployment mechanism.
4. Floating Pouch: Always keep the PLB in its included floating pouch, especially when near water, to ensure it remains buoyant if dropped.

5. Instruccions de funcionament

WARNING: This PLB is to be used only in grave and imminent danger. False alarms endanger lives and incur costly disruptions to search and rescue services. Intentional misuse of the device may lead to criminal penalties.

5.1. Activation in an Emergency

To activate the McMurdo Fastfind 220 in an emergency:

1. Deploy Antenna: Manually install or deploy the antenna.
2. Remove Tamper Seals: Disconnect any tamper-evident seals that prevent accidental activation.
3. Press ON Button: Press and hold the ON button until the activation indicator confirms the device is transmitting.

Figura 3: superior view showing the activation area and antenna deployment instructions.

Once activated, the PLB will transmit two signals simultaneously:

• 406 MHz Signal: This signal is sent to global emergency satellites. The PLB typically begins transmitting on the 406 MHz frequency within 5 minutes, though this can take up to 45 minutes depending on satellite coverage.
• 121.5 MHz Homing Signal: This secondary signal assists search and rescue teams in localizing your exact position once they are in the vicinity.

5.2. Strobe Light Operation

The integrated strobe light will activate upon emergency transmission. It emits a high-luminosity flash, including an SOS Morse code sequence, to enhance visual detection by rescue personnel, especially during night-time or low-visibility conditions.

5.3. Prova el dispositiu

The device features a 'TEST' button. Refer to the full product manual for instructions on how to perform a self-test to ensure the beacon is functioning correctly without initiating a false alarm. Regular testing is recommended to verify operational readiness.

6. Manteniment

Proper maintenance ensures the longevity and reliability of your Fastfind 220 PLB:

• Neteja: Netegeu el dispositiu amb un suau, damp drap. No utilitzeu productes químics agressius ni netejadors abrasius. Assegureu-vos que el dispositiu estigui sec abans de guardar-lo.
• Inspecció: Regularly inspect the PLB for any signs of physical damage, cracks, or corrosion. Check the antenna for bends or breaks.
• Durada de la bateria: The internal battery has a limited lifespan. Consult the full product manual for information on battery expiry dates and replacement procedures. Ensure the battery is replaced by an authorized service center when due.
• Emmagatzematge: Store the PLB in a cool, dry place, away from direct sunlight and extreme temperatures.

7. Solució De Problemes

If your Fastfind 220 PLB does not appear to be functioning correctly, consider the following:

• Device Not Activating:
  • Ensure the ON button is pressed firmly and held for the required duration.
  • Verify that tamper seals have been removed and the antenna is properly deployed.
  • Check the battery status. If the battery is expired or low, the device may not activate.
• No Signal Transmission:
  • Assegureu-vos que el dispositiu té una imatge clara view of the sky for satellite acquisition. Obstructions can block the signal.
  • Allow sufficient time for satellite acquisition (up to 45 minutes in some conditions).
  • Perform a self-test (refer to the full manual) to confirm internal functionality.
• Danys físics: If the device has sustained physical damage, it may compromise its waterproof integrity or internal electronics. Do not attempt to repair it yourself; contact an authorized service center.

For persistent issues, refer to the comprehensive troubleshooting guide in the full product manual or contact McMurdo customer support.

8. Especificacions

9. Garantia i Suport

For detailed information regarding the product warranty, please refer to the documentation included with your McMurdo Fastfind 220 PLB or visit the official McMurdo weblloc. Els termes i condicions de la garantia poden variar segons la regió.

For technical support, service, or battery replacement, please contact McMurdo customer service or an authorized service center. Do not attempt to open or repair the device yourself, as this may void the warranty and compromise its waterproof integrity and functionality.

Manufacturer: McMurdo
