EPEVER GM3024N Solar Charge Controller User Manual

1. Producte acabatview

The EPEVER GM3024N is a flush-mounted 30A 12V/24V auto-work negative-ground solar charge controller. It utilizes Pulse Width Modulated (PWM) charging mode and is designed for off-grid solar systems, including applications in Recreation Vehicles (RVs), mobile service vehicles, and solar boats.

Key features of the GM3024N include:

• Flush mounted and embedded installation design.
• High quality and low failure rate components (ST/IR) for extended product lifetime.
• 3-Stage intelligent PWM charging: Bulk, Boost/Equalize, and Float.
• Compatibility with Sealed, Gel, and Flooded lead-acid batteries, with a user-definable option.
• Real-time energy statistics feature.
• Battery temperature compensation feature.
• Digital LCD monitor for displaying operational parameters and fault messages.
• RS485 communication port with Modbus protocol, offering short circuit protection for 5V/200mA power supply.
• Multiple communication peripherals for monitoring and setting parameters via PC software or mobile app.
• Rated charging current at working temperature without de-rating.
• Extensive electronic protections against overcharging, overload, short-circuit, and reverse polarity.

Figura 1: Frontal view of the EPEVER GM3024N Solar Charge Controller, showing the LCD display and control buttons.

2. Product Components and Exterior

The GM3024N controller features a compact design with clearly labeled components for easy installation and operation.

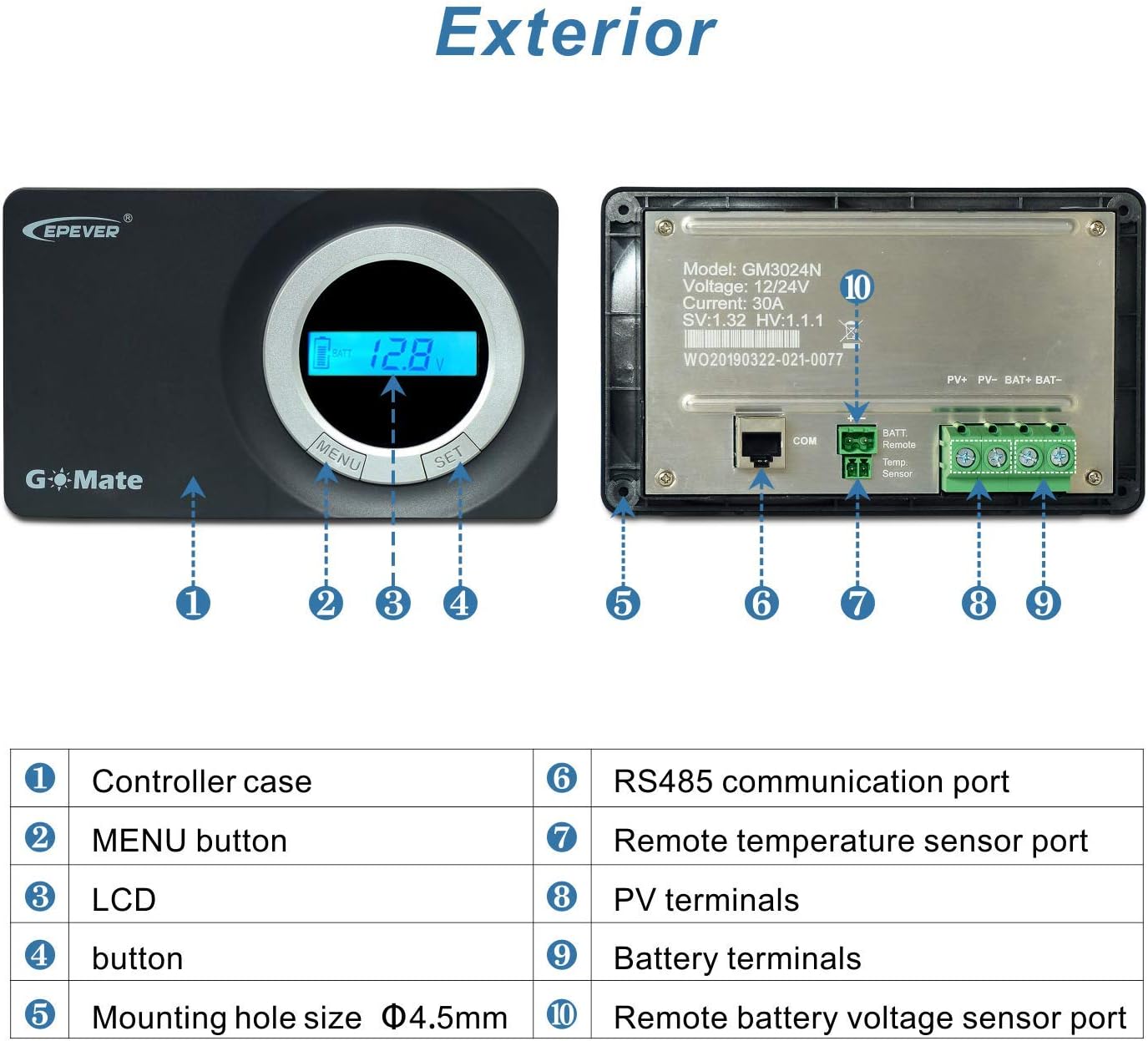

Figura 2: Exterior view and component identification of the GM3024N controller.

1. Controller case: The main housing of the device.
2. Botó MENÚ: Used to navigate through display menus and settings.
3. LCD: Liquid Crystal Display for showing operational data and fault messages.
4. Botó SET: Used to confirm selections and adjust parameters.
5. Mida del forat de muntatge: Φ4.5mm holes for secure installation.
6. Port de comunicació RS485: For connecting to PC software, mobile app, or other communication peripherals.
7. Remote temperature sensor port: For connecting an external temperature sensor to enable battery temperature compensation.
8. PV terminals: Connections for solar panel input.
9. Battery terminals: Connections for battery bank.
10. Volum de la bateria del comandamenttage sensor port: For connecting an external voltage sensor for more accurate battery voltage lectures.

3. Configuració i instal·lació

The GM3024N is designed for flush-mounted and embedded installation. Ensure the installation location is well-ventilated and protected from direct sunlight, high temperatures, and moisture.

3.1 Connexions de cablejat

Follow the connection sequence carefully to prevent damage to the controller or other components. The controller is a common-negative ground type.

Figure 3: Wiring diagram for the GM3024N controller.

1. Connecteu la bateria: Connect the battery to the controller's battery terminals. Ensure correct polarity. The controller will detect the battery voltage (12V or 24V) automatically.
2. Connecteu el panell solar: Connect the solar panel to the controller's PV terminals. Ensure correct polarity.
3. Connect Remote Sensors (Optional): If using, connect the remote battery voltage sensor and remote temperature sensor to their respective ports. These enhance charging accuracy.
4. Connect Communication Peripherals (Optional): Connect PC, mobile app (via Bluetooth/Wi-Fi module), or MT50 remote meter to the RS485 communication port for monitoring and parameter setting.

Recommended Cable Size: The controller terminals support up to 16mm² (6AWG) wire. For optimal performance, a recommended cable size of 10mm² (8AWG) is suggested for connections.

3.2 Selecció del tipus de bateria

The controller is compatible with Sealed, Gel, and Flooded lead-acid batteries. A 'User' defined battery type is also available for custom settings. Ensure the correct battery type is selected in the controller settings to optimize charging and prolong battery life.

4. Instruccions de funcionament

The GM3024N features an intuitive LCD display for real-time monitoring and parameter adjustment.

Pantalla LCD i botons 4.1

The LCD displays various operational parameters such as PV voltage, PV current, PV power, battery voltage, and battery temperature. Fault messages are also shown on the display.

• Botó MENÚ: Press to cycle through different display screens and enter setting menus.
• Botó SET: Press to confirm selections or modify parameters within a setting menu.

4.2 Procés de càrrega

El controlador utilitza un sistema de 3 segonstage intelligent PWM charging algorithm:

1. Càrrega massiva: Charges the battery at maximum current until the voltage arriba al Boost voltage punt de consigna.
2. Boost/Equalize Charge: Charges at a higher voltage for a set period to ensure the battery is fully charged and to equalize cell voltages (for flooded batteries).
3. Càrrega del flotador: Maintains the battery at a lower voltage to prevent self-discharge and keep it fully charged.

4.3 Parameter Setting and Monitoring

Parameters can be monitored and set using the built-in LCD and buttons, or through external communication methods:

• Programari de PC: Connect the controller to a computer via the RS485 port for detailed monitoring and configuration.
• Aplicació mòbil: Use a compatible Bluetooth or Wi-Fi module (sold separately) to connect to a smartphone app for remote monitoring and control.
• MT50 Remote Meter: An optional external display unit that provides comprehensive control and monitoring capabilities.

5. Manteniment

Regular maintenance ensures the longevity and optimal performance of your EPEVER GM3024N solar charge controller.

• Neteja: Mantingueu el controlador net i lliure de pols i brutícia. Feu servir un drap sec per netejar-lo.
• Connexions: Periodically check all wiring connections to ensure they are tight and secure. Loose connections can cause overheating or poor performance.
• Inspecció: Inspect the controller and wiring for any signs of damage, corrosion, or wear. Address any issues promptly.
• Ventilació: Ensure that the area around the controller remains well-ventilated to prevent overheating.

6. Solució De Problemes

The GM3024N is equipped with extensive electronic protections and can display fault messages on its LCD. Refer to the display for error codes or indicators.

Problemes comuns i solucions:

• Sense pantalla/alimentació:
  • Check battery connections and ensure correct polarity.
  • Comproveu el volum de la bateriatage is within the operating range (9V~32V).
• Sense càrrega:
  • Check solar panel connections and ensure correct polarity.
  • Verifica el volum del panell solartage is sufficient (Max.PV open circuit voltage: 50VDC).
  • Ensure there is adequate sunlight on the solar panels.
• Overcharge/Over-discharge Protection:
  • The controller automatically protects against these conditions. If charging stops, check battery health and settings.
  • Ensure the correct battery type is selected.
• Fault Messages on LCD:
  • Consult the detailed user manual (typically provided with the product) for specific error code interpretations and troubleshooting steps.
  • Common protections include overcharging, overload, short-circuit, and reverse polarity.

For persistent issues or complex problems, contact EPEVER customer support or refer to the comprehensive manual that came with your product.

7. Especificacions

Detailed technical specifications for the EPEVER GM3024N Solar Charge Controller:

Figure 4: Technical specifications of the GM3024N controller.

Note: The battery type of 'User' can be set via PC software, APP software, and MT50.

Figure 5: Product packaging dimensions.

8. Garantia i Suport

Specific warranty terms and conditions for the EPEVER GM3024N Solar Charge Controller are typically provided with the product packaging or available on the manufacturer's official weblloc web. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

For technical support, troubleshooting assistance, or further inquiries, please visit the official EPEVER weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. També podeu visitar el EPEVER Store on Amazon per a més informació i recursos del producte.
