XtremepowerUS 71041 Industrial 1.6HP Shallow Well Pump Instruction Manual

1. Introducció

This instruction manual provides important information for the safe installation, operation, and maintenance of your XtremepowerUS 1.6HP Shallow Well Jet Pump. This pump is designed for various water transfer applications, including domestic water supply for high-floor residences, faucet and shower pressurization, groundwater and well water extraction, farmland irrigation, and water tower pressurization. It is suitable for constructing lawn sprinkler systems and features built-in thermal overload protection for safety and an automatic booster system with a high-precision pressure gauge for easy water pressure control. Please read this manual thoroughly before use and retain it for future reference.

Figura 1.1: global view of the XtremepowerUS Shallow Well Pump.

2. Informació de seguretat

Observeu sempre les precaucions de seguretat bàsiques per reduir el risc d'incendi, descàrrega elèctrica i lesions personals. Si no seguiu aquestes instruccions, podeu patir lesions greus o danys materials.

• Seguretat elèctrica: Ensure the pump is properly grounded. Do not operate with a damaged cord or plug. Disconnect power before servicing.
• Seguretat de l'aigua: Do not pump flammable or corrosive liquids. Ensure the pump is not submerged unless specifically designed for submersible use.
• Instal·lació: Install the pump on a stable, level surface. Ensure all connections are secure and leak-free. Protect the pump from freezing temperatures.
• Funcionament: Never run the pump dry. Ensure the pump is primed before starting. Keep hands and clothing clear of moving parts.
• Manteniment: Only perform maintenance when the pump is disconnected from power. Refer to the maintenance section for specific procedures.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents en desembalar-lo:

• 1 x XtremepowerUS 1.6HP Shallow Well Pump
• 1 x Manual d'instruccions (aquest document)

4. Especificacions

Technical specifications for the XtremepowerUS 71041 Shallow Well Pump:

Figure 4.1: Pump control box and pressure gauge with visible specifications.

5. Configuració i instal·lació

Una instal·lació correcta és crucial per al rendiment i la longevitat de la bomba. Si no esteu segurs de cap pas, consulteu un professional qualificat.

5.1 Ubicació

• Place the pump on a firm, level surface to minimize vibration.
• Ensure the location is dry, well-ventilated, and protected from direct sunlight, rain, and freezing temperatures.
• Deixeu prou espai al voltant de la bomba per a la ventilació i l'accés per al manteniment.

5.2 Connexions de fontaneria

Connect the suction (inlet) and discharge (outlet) pipes to the pump. Use appropriate thread sealant on all pipe connections to prevent leaks.

• Línia d'aspiració: Connect the pipe from your water source (well, tank) to the pump's inlet. Ensure this line is airtight to prevent air from entering the pump, which can cause loss of prime.
• Línia de descàrrega: Connect the pipe leading to your distribution system (faucets, irrigation) to the pump's outlet.
• Install a check valve on the suction line to maintain prime, especially if the pump is above the water source.

Figura 5.1: Detallada view of pump connections.

5.3 Connexió elèctrica

• Assegureu-vos que la font d'alimentació coincideixi amb el volum de la bombatage (115 volts).
• Connect the pump to a dedicated, properly grounded electrical circuit protected by a fuse or circuit breaker.
• Si el cable d'alimentació està malmès, l'ha de substituir el fabricant o un agent de servei qualificat per evitar un perill.

5.4 Cebament de la bomba

Before initial operation, the pump must be primed. This involves filling the pump casing and suction line with water.

1. Remove the priming plug located on the top of the pump casing.
2. Slowly fill the pump casing and the suction line with clean water until it overflows from the priming port.
3. Replace and tighten the priming plug securely.
4. Open a faucet in the discharge line to allow air to escape during startup.

6. Instruccions de funcionament

Once installed and primed, the pump is ready for operation.

6.1 Engegada de la bomba

1. Ensure the pump is properly primed (refer to Section 5.4).
2. Ensure all plumbing connections are tight and leak-free.
3. Turn on the power supply to the pump. The pump should start running.
4. Observe the pressure gauge. The pressure should rise as the pump builds pressure in the system.
5. Once water flows steadily from the open faucet, close the faucet. The pump will continue to run until the system reaches the cut-off pressure, then it will shut off automatically.

Figure 6.1: Power switch on the pump's control box.

6.2 Monitorització de la pressió

The integrated pressure gauge allows you to monitor the system pressure. The pump is equipped with an automatic booster system that maintains desired pressure levels.

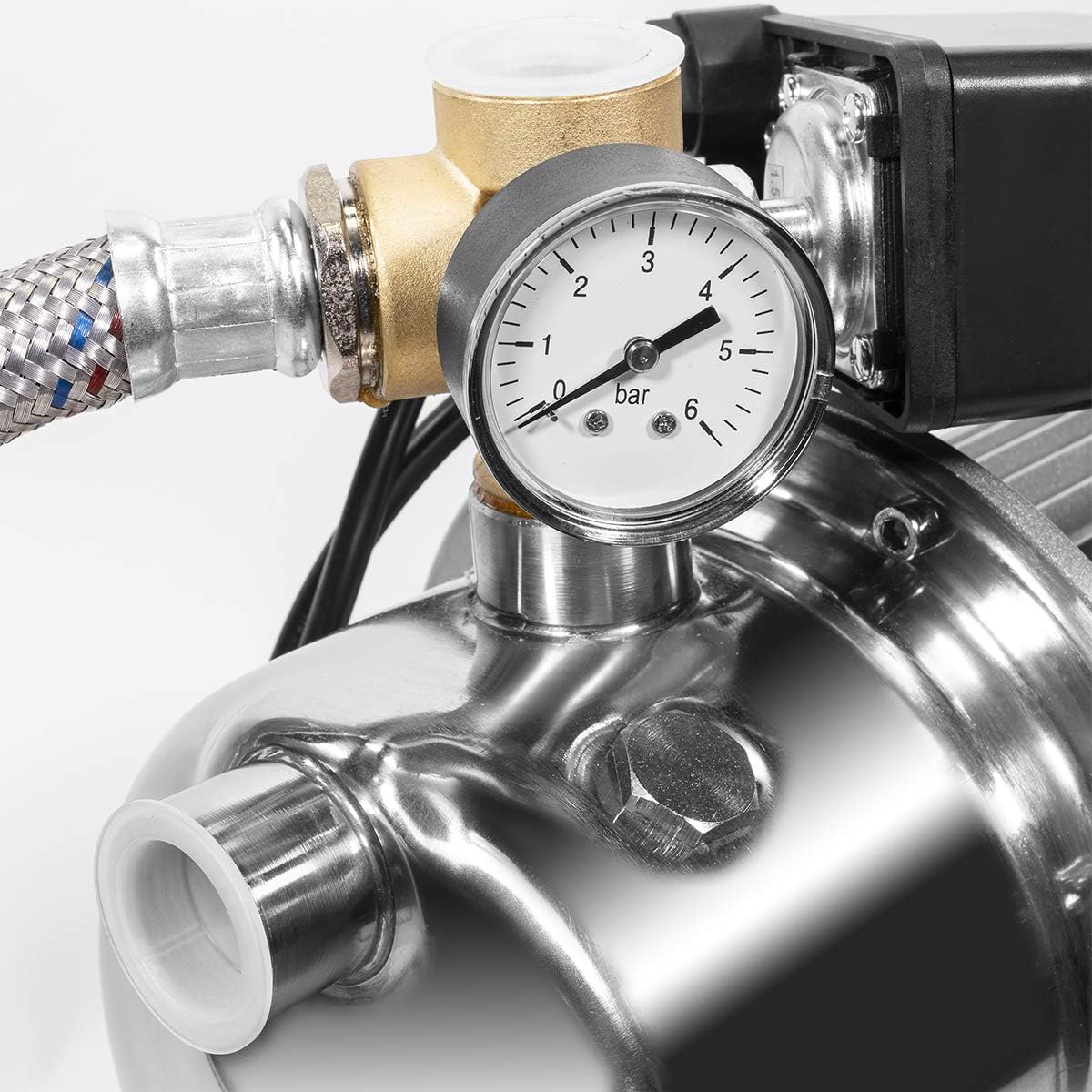

Figura 6.2: Detallada view of the pressure gauge.

6.3 Thermal Overload Protection

The pump features built-in thermal overload protection. If the motor overheats due to prolonged use, low voltage, or other issues, the pump will automatically shut off to prevent damage. Allow the pump to cool down before attempting to restart it. Identify and resolve the cause of overheating before resuming operation.

7. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la bomba. Desconnecteu sempre l'alimentació abans de realitzar qualsevol manteniment.

7.1 Comprovacions rutinàries

• Inspeccionar si hi ha fuites: Periodically check all plumbing connections for leaks. Tighten as necessary.
• Comproveu si hi ha obstruccions: Ensure the pump's intake is free from debris.
• Monitoritzar el rendiment: Pay attention to unusual noises, vibrations, or changes in water pressure.

7.2 Hivernització

If the pump is in an area subject to freezing temperatures, it must be properly winterized to prevent damage.

1. Desconnecteu la bomba de la font d'alimentació.
2. Drain all water from the pump casing and plumbing lines. Remove the priming plug and drain plug (if present) to ensure complete drainage.
3. Store the pump in a warm, dry location if possible. If not, ensure it is completely drained and protected from freezing.

8. Solució De Problemes

Abans de contactar amb l'atenció al client, review els següents problemes i solucions habituals:

9. Garantia i Suport

For warranty information or technical support, please contact XtremepowerUS customer service. Keep your purchase receipt and model number (71041) handy when contacting support.

Fabricant: XtremepowerUS
Lloc de treball: CHINO, CA, 91710 US
