1. Introducció
This instruction manual provides essential information for the proper installation, operation, and maintenance of your uxcell GSM LTE Antenna. This antenna is designed to enhance 3G and 4G signal reception for compatible devices, offering a 5dBi high gain and broad frequency coverage.
Si us plau, llegiu aquest manual detingudament abans d'utilitzar el producte per garantir un rendiment i una longevitat òptims.
2. Característiques del producte
- Guany alt: 5dBi for improved signal strength and data transfer.
- Ampli rang de freqüències: Supports 780-960MHz and 1710-2700MHz, compatible with various GSM, 3G, and 4G LTE networks.
- Tipus de connector: TNC Male connector with internal thread and central pin for secure attachment.
- Angle ajustable: The antenna's paddle type design allows for angle adjustment up to 90 degrees to optimize signal reception.
- Fàcil instal·lació: No software required; simply connect to a compatible device.
- Disseny durador: Foldable paddle type for convenience and protection.
3. Instruccions de configuració
Follow these steps to properly set up your uxcell GSM LTE Antenna:
- Identifica el connector: Locate the TNC male connector on the antenna. This connector features external threads and a central pin.
- Prepara el dispositiu: Ensure your GSM/GPRS or LTE device has a compatible TNC female port.
- Connectar l'antena: Carefully align the antenna's TNC male connector with the device's port. Gently screw the connector clockwise until it is finger-tight. Avoid over-tightening.
- Ajust d'angle: Once connected, adjust the antenna's angle by pivoting the paddle section. Experiment with different angles to find the optimal position for the best signal strength. The antenna can be tilted up to 90 degrees.
A black paddle-type antenna with a TNC male connector at its base, designed for GSM and LTE signal reception.
Un detallat view of the TNC male connector, featuring external threads and a central pin, ensuring a secure connection to compatible devices.

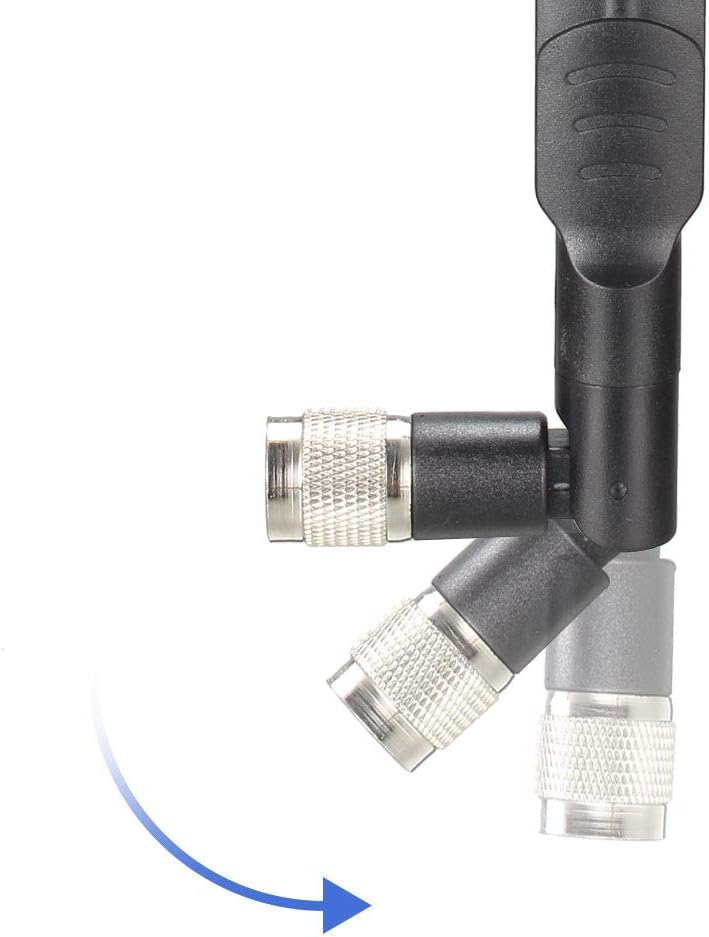

Illustration demonstrating the antenna's ability to pivot at the base, allowing for angle adjustment up to 90 degrees for optimal signal.
4. Instruccions de funcionament
Once the antenna is securely connected to your device, it will immediately begin to function. The antenna is passive and does not require external power or software configuration.
- Optimització del senyal: To achieve the best possible signal, you may need to experiment with the antenna's angle and the device's placement. Obstructions like walls, large metal objects, or being indoors can affect signal quality.
- Ajust direccional: While not strictly directional, adjusting the angle can sometimes help in receiving signals more effectively from a particular direction.
5. Manteniment
Per garantir la longevitat i el rendiment òptim de la vostra antena, seguiu aquestes senzilles pautes de manteniment:
- Neteja: Use a soft, dry cloth to gently wipe the antenna clean. Avoid using harsh chemicals or abrasive materials.
- Comprovació de la connexió: Periodically check that the TNC connector remains securely fastened to your device. A loose connection can degrade signal quality.
- Protecció física: Avoid dropping the antenna or subjecting it to strong impacts, which could damage internal components or the connector.
- Condicions ambientals: While designed for general use, avoid prolonged exposure to extreme temperatures or direct moisture if not rated for outdoor use.
6. Solució De Problemes
Si teniu problemes amb l'antena, tingueu en compte els passos següents per resoldre'ls:
- Sense senyal o senyal feble:
- Ensure the antenna is securely connected to the device's TNC port.
- Verify that your device is compatible with a TNC male antenna and operates within the antenna's frequency range (780-960/1710-2700MHz).
- Adjust the antenna's angle and reposition your device to find a location with better signal reception.
- Check for any physical obstructions (e.g., thick walls, metal structures) that might be blocking the signal.
- Antenna Not Fitting:
- Confirm that your device requires a TNC male connector. There are various connector types (e.g., SMA, N-type), and they are not interchangeable.
7. Especificacions
| Especificació | Valor |
|---|---|
| Número de model | a19070900ux0143 |
| Guanyar | 5dBi |
| Interval de freqüència | 780-960 MHz / 1710-2700 MHz |
| Tipus de connector | TNC Mascle |
| Total Size (L*W*H) | 165 x 18 x 15mm (6.5 x 0.7 x 0.6 polzades) |
| Pes de l'article | 1.13 unces |
| Color | Negre |
| Fabricant | uxcell |
| Primera data disponible | 25 d'agost de 2019 |
Diagram showing the antenna's dimensions: 165mm (6.5 inches) length, 18mm (0.7 inches) width, and 15mm (0.6 inches) connector height.
8. Garantia i Suport
For warranty information or technical support regarding your uxcell GSM LTE Antenna, please contact uxcell customer service directly. Refer to the product packaging or the uxcell official weblloc web per obtenir les dades de contacte més actualitzades.
