Palram Greenhouse Heater with Digital Thermostat Control, 2400W

Introducció

The Palram Greenhouse Heater is designed to provide efficient and controlled heating for your greenhouse, ensuring optimal growing conditions for your plants. With a powerful 2400W output and digital thermostat control, it helps maintain a stable temperature, protecting your plants from cold weather. This manual provides essential information for safe operation, setup, and maintenance.

Instruccions de seguretat

Si us plau, llegiu i comprengui totes les instruccions de seguretat abans de fer servir aquest aparell. Si no segueix aquestes instruccions, es poden produir descàrregues elèctriques, incendis o lesions greus.

• Always ensure the heater is connected to a properly grounded electrical outlet.
• Do not operate the heater with a damaged cord or plug. If the cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• Do not immerse the heater or its electrical components in water. The heater unit has an IPX4 rating, meaning it is protected against splashing water from any direction. The external temperature sensor has an IP65 rating, offering protection against dust and low-pressure water jets.
• Maintain a minimum clearance of 1 meter (3 feet) around the heater to ensure proper ventilation and prevent fire hazards.
• Do not use the heater near flammable liquids, gases, or materials.
• Desendolleu sempre l'escalfador abans de netejar-lo o fer-ne qualsevol manteniment.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
• The heater is equipped with an automatic safety cutoff that will switch off the unit in case of overheating. The unit will reset once it has cooled down.

Contingut del paquet

Verifiqueu que tots els components siguin presents i no estiguin danyats en desembalar-los:

• Palram Greenhouse Heater Unit
• Controlador de termòstat digital
• External Temperature Sensor with 1.5m cable
• Manual d'instruccions (aquest document)

Image: Main heater unit with the digital thermostat and external temperature sensor.

Configuració

Follow these steps to set up your Palram Greenhouse Heater:

1. Col·locació: Place the heater on a stable, level surface in your greenhouse. Ensure it is not directly exposed to water spray and maintains the recommended clearance from walls, plants, and other objects.
2. Connectar el termòstat: Plug the heater's power cord into the output socket of the digital thermostat controller.
3. Connect Temperature Sensor: Plug the external temperature sensor into the designated port on the digital thermostat controller.
4. Sensor de posició: Position the external temperature sensor in the greenhouse where you want to measure the ambient temperature. Avoid placing it in direct sunlight or near heat sources that could skew readings. The 1.5m cable allows for flexible placement.
5. Connexió d'alimentació: Plug the digital thermostat controller's power cord into a grounded 240V electrical outlet.

Imatge: Detallada view of the digital thermostat connections for the heater and temperature sensor.

Imatge: Example of the digital thermostat and temperature sensor placement within a greenhouse environment.

Instruccions de funcionament

The Palram Greenhouse Heater offers both heating and ventilating functions, controlled via the unit and the digital thermostat.

Heater Unit Controls

The heater unit features two rotary knobs:

• Selector de potència: This knob allows you to select the heating power output. Options typically include Off (0), Fan Only (fan symbol), and two heating levels (e.g., 1.5kW and 2.4kW).
• Thermostat Dial (Internal): This dial sets the desired temperature for the heater's internal thermostat. When using the external digital thermostat, set this dial to its maximum setting to allow the external thermostat to control the heating cycle.

Image: The two control knobs on top of the heater unit for power selection and internal temperature setting.

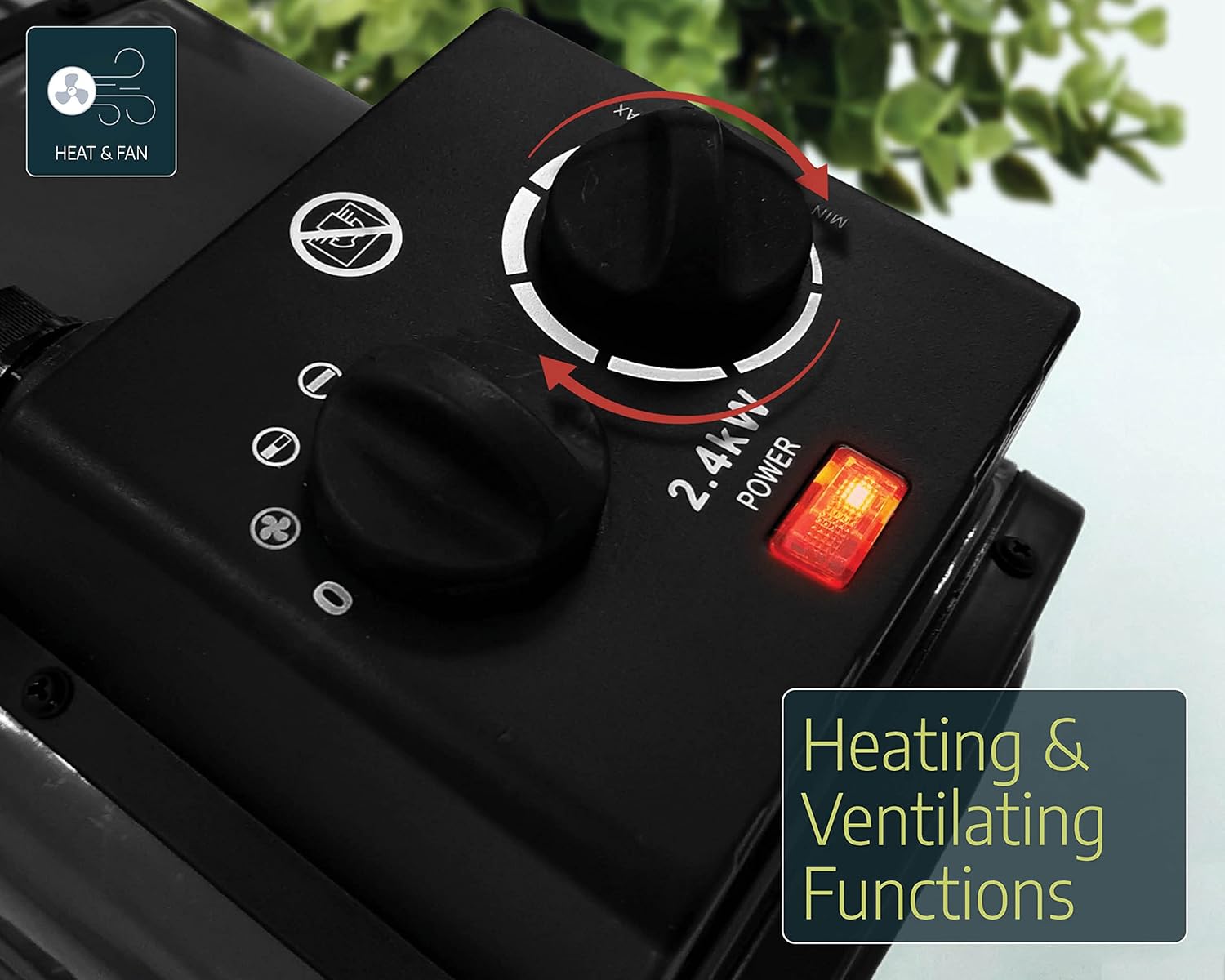

Image: The heater unit indicating its dual functionality for heating and ventilation.

Controlador de termòstat digital

The digital thermostat provides precise temperature control for your greenhouse.

1. Encès: Ensure the thermostat is plugged into the main power supply and the heater is connected to the thermostat's output.
2. Set Desired Temperature (SV): Use the 'SET' button and arrow keys (up/down) on the digital thermostat to adjust the desired temperature (Set Value, SV). The display will show the current temperature (Process Value, PV) and the set temperature (SV).
3. Mode de calefacció/refrigeració: The thermostat can be configured for heating or cooling. For greenhouse heating, ensure it is set to heating mode. Refer to the thermostat's specific manual for detailed mode configuration.
4. Funcionament: The heater will automatically turn on when the ambient temperature (PV) drops below your set temperature (SV) and turn off when the temperature reaches or exceeds the SV.

Image: A user adjusting the control knobs on the heater unit.

Manteniment

Un manteniment regular garanteix la longevitat i el funcionament eficient del vostre escalfador.

• Neteja: Before cleaning, always unplug the heater from the power source. Use a soft, damp cloth to wipe down the exterior of the heater. Do not use abrasive cleaners or solvents. Ensure no water enters the electrical components.
• Eliminació de pols: Periodically check the air intake and output grilles for dust or debris accumulation. Use a soft brush or vacuum cleaner to gently remove any blockages.
• Emmagatzematge: When not in use for extended periods, store the heater in a dry, cool place, protected from dust and moisture.

Resolució de problemes

If you encounter issues with your Palram Greenhouse Heater, refer to the following common problems and solutions:

Especificacions

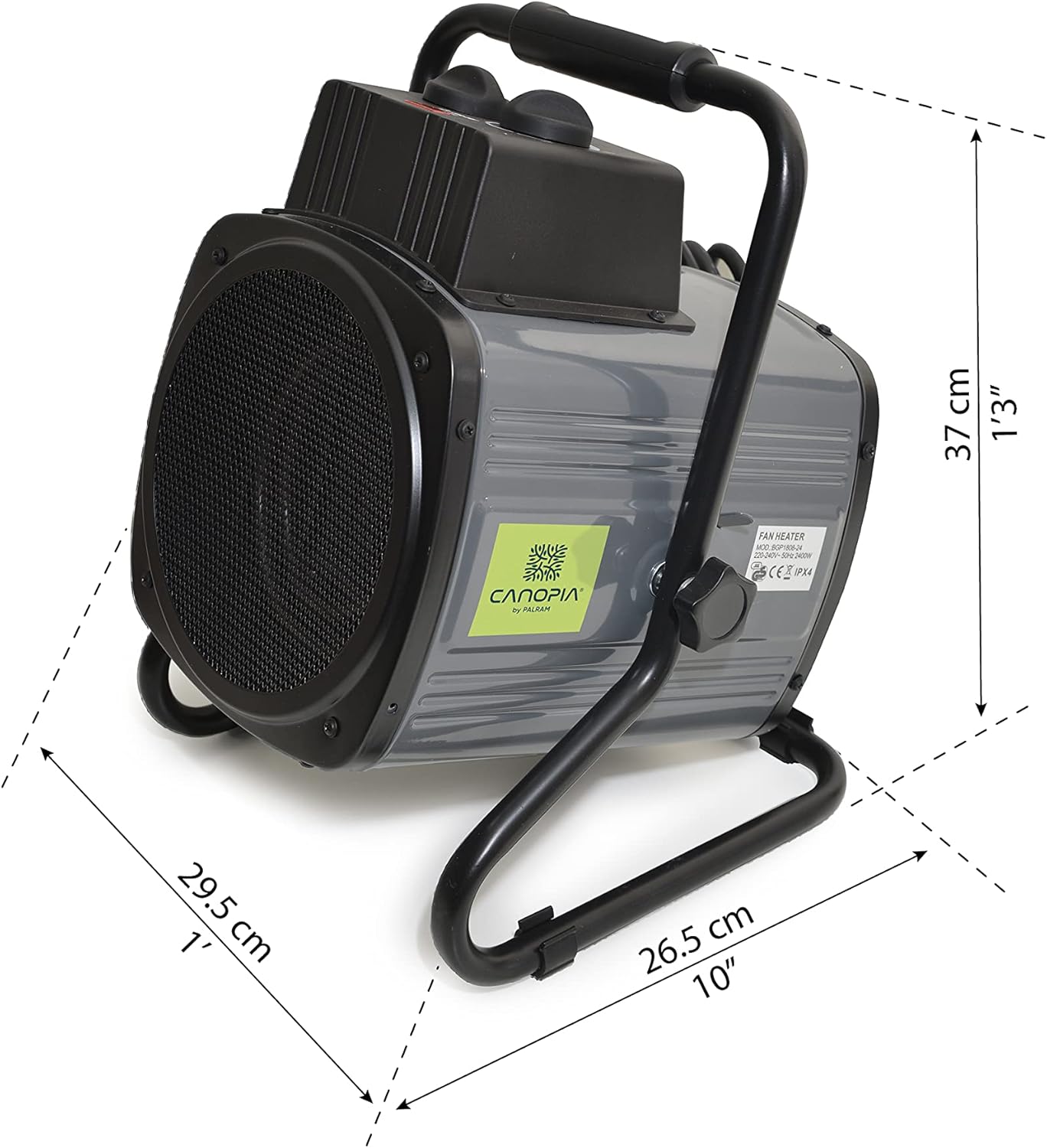

Image: Dimensions of the Palram Greenhouse Heater unit.

Garantia i Suport

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Palram customer service directly. Keep your proof of purchase for warranty claims.
