1. Introducció
Thank you for choosing the Suuonee Car MP5 Player. This device is designed to provide a comprehensive multimedia experience in your vehicle, featuring a 9-inch HD touchscreen, high-fidelity audio processing, and broad media format compatibility. This manual provides essential information for installation, operation, and maintenance to ensure optimal performance and longevity of your device.
2. Informació de seguretat
- Instal·lació professional: It is highly recommended to have this product installed by a qualified professional to prevent damage to the device or your vehicle.
- Font d'alimentació: Assegureu-vos que la font d'alimentació voltage matches the requirements of the device (typically 12V DC). Incorrect voltage pot causar danys.
- Cablejat: Connect all wires correctly according to the wiring diagram. Improper connections can lead to malfunctions or electrical hazards.
- Seguretat de conducció: No feu servir el dispositiu de manera que us distregui de la conducció. Prioritzeu sempre la seguretat viària.
- Temperatura: Eviteu exposar el dispositiu a temperatures extremes o a la llum solar directa durant períodes prolongats.
- Humitat: Keep the device away from water and excessive moisture to prevent electrical shock or damage.
- Característiques de protecció: The device includes built-in protection against overload, overvoltage, and short circuits. Do not attempt to bypass these safety features.
3. Contingut del paquet
Si us plau, comproveu el contingut del paquet en rebre'l. Si falta algun article o hi ha algun dany, poseu-vos en contacte amb el vostre distribuïdor.
- 1 x Suuonee Car MP5 Player
- 1 x comandament a distància (bateria no inclosa)
- 2 x Wiring Harnesses
- 1 x manual d'instruccions
4. Configuració i instal·lació
Proper installation is crucial for the functionality and safety of your car MP5 player. It is strongly recommended to seek professional assistance for installation.
4.1 Diagrama de cablejat anteriorview
The device comes with two wiring harnesses. Refer to the detailed wiring diagram provided in the separate wiring manual or consult a professional installer. Key connections typically include:
- Cables d'alimentació: Constant 12V (Yellow), Accessory 12V (Red), Ground (Black).
- Cables de l’altaveu: Connect to your vehicle's speakers (Front Left, Front Right, Rear Left, Rear Right).
- Cable d'antena: Per a la recepció de ràdio.
- Entrada de càmera inversa: If applicable, for automatic display when reversing.
- Entrades USB/AUX: Per a dispositius multimèdia externs.
Imatge: posterior view of the Suuonee Car MP5 Player, illustrating the various input and output connectors for power, speakers, and auxiliary devices. This image helps in identifying the connection points during installation.
4.2 Muntatge de la unitat
Securely mount the MP5 player into your vehicle's dashboard using the provided mounting brackets. Ensure it is firmly in place to prevent movement during driving.
5. Instruccions de funcionament
This section details the basic functions and operations of your Suuonee Car MP5 Player.
5.1 Engegada/Apagada i Controls Bàsics
- Botó d'encesa: Press and hold the power button (usually located on the front panel or side) to turn the device on or off. A short press may mute/unmute or switch modes.
- Control de volum: Use the volume buttons on the side panel or the remote control to adjust the audio level.
- Botó d'inici: Returns to the main menu interface.
- Botó enrere: Navega de tornada a la pantalla o al menú anterior.
Imatge: The main user interface of the Suuonee Car MP5 Player, displaying various function icons such as USB, Card, Radio, Setup, AV IN, and A-Link. A remote control is also shown, indicating alternative control methods.
5.2 Media Playback (USB/SD Card)
Insert a USB drive or SD card into the designated slot. The player supports various audio formats including APE, FLAC, and DIS. Navigate to the 'USB' or 'CARD' icon on the main menu to access your media files.
Imatge: Un costat de primer pla view of the MP5 player, highlighting the USB port for media input, the RST (reset) button, and the MIC (microphone) input for hands-free calling.
5.3 Connectivitat Bluetooth
To connect your mobile phone via Bluetooth:
- Go to the 'Bluetooth' menu on the MP5 player.
- Activa el Bluetooth al teu telèfon mòbil i busca els dispositius disponibles.
- Select the MP5 player (usually named 'Car BT' or similar) from the list on your phone.
- Confirma el codi d'emparellament si se't demana.
- Once connected, you can make/receive hands-free calls and stream audio.
5.4 Phone Mirroring (A-Link)
The device supports phone mirroring for Android phones (versions 4.4-8.1). This feature allows you to display your phone's screen on the MP5 player's display.
- Connect your Android phone to the MP5 player via a USB cable.
- Select the 'A-Link' option on the player's main menu.
- Follow the on-screen instructions to enable USB debugging or grant necessary permissions on your phone.
- Your phone's screen should now be mirrored on the player.
Imatge: An Android smartphone connected to the Suuonee Car MP5 Player via a USB cable, illustrating the phone mirroring functionality where the phone's display content is shown on the player's screen.
5.5 Funció de ràdio
Select the 'Radio' icon from the main menu. You can scan for FM stations (frequency range 87.5MHz - 108MHz), save presets, and manually tune to desired frequencies.
6. Manteniment
- Neteja de la pantalla: Feu servir un drap suau i sense borrissol per netejar suaument la pantalla. No utilitzeu productes de neteja abrasius ni dissolvents.
- Neteja general: Keep the unit free from dust and debris. Use a dry cloth for cleaning the exterior.
- Eviteu líquids: No ruixeu líquids directament sobre la unitat.
- Substitució de fusibles: If a fuse blows, replace it with one of the same type and rating. Refer to the wiring diagram for fuse locations.
7. Solució De Problemes
If you encounter issues with your MP5 player, refer to the following common problems and solutions before contacting support.
| Problema | Causa possible | Solució |
|---|---|---|
| Sense poder | Cablejat incorrecte, fusible fundit, problema d'alimentació del vehicle. | Check power connections, inspect fuses, ensure vehicle battery is charged. |
| Sense so | Cables d'altaveu desconnectats, volum massa baix, font d'àudio incorrecta. | Verify speaker connections, increase volume, select correct audio input. |
| La pantalla no respon | Software glitch, static electricity. | Press the RST (Reset) button with a thin object. Power cycle the device. |
| Bluetooth no connectat | Bluetooth off on phone/player, device not discoverable, interference. | Ensure Bluetooth is enabled on both devices, make player discoverable, try re-pairing. |
| Mala recepció de ràdio | Antenna not connected, weak signal area, damaged antenna. | Check antenna connection, try in a different location, inspect antenna for damage. |

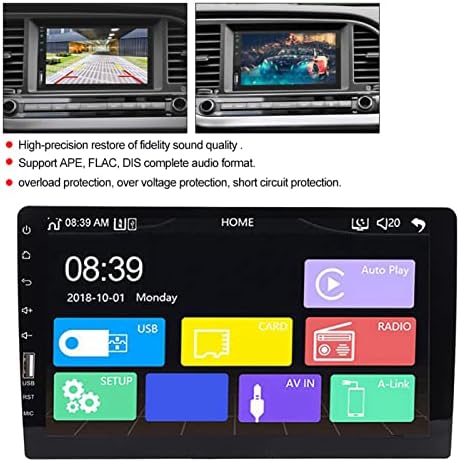

Imatge: A visual summary of the MP5 player's core features, including its high-fidelity sound restoration, support for APE, FLAC, and DIS audio formats, and integrated protection mechanisms against overload, overvoltage, i curtcircuits.
8. Especificacions
| Característica | Especificació |
|---|---|
| Model | 719234019701 |
| Mida de la pantalla | 9 polzades |
| Resolució de pantalla | 1024 x 800 |
| Relació senyal/soroll | 65 dB |
| Resposta de freqüència | 20Hz-20KHz |
| Potència de sortida màxima | 4 x 50W |
| Tone Control (Bass) | +/- 7dB (100Hz) |
| Tone Control (Treble) | +/- 7dB (20KHz) |
| Interval de freqüència FM | 87.5 MHz - 108 MHz |
| Xip de ràdio | QN8035 |
| Xip de descodificació | C700 |
| Formats d'àudio compatibles | APE, FLAC, DIS |
| DAC | 24 bits |
| Connectivitat | Bluetooth, Wi-Fi |
| Dispositius compatibles | Smartphone (Android 4.4-8.1 for mirroring) |
| Idiomes | English, Chinese, French, Portuguese, Spanish, Russian, German, Italian, etc. |
| Protecció | Sobrecàrrega, sobrevoltage, curtcircuit |
| Dimensions del producte | 23 x 13 x 9 cm |
| Pes del producte | 1.05 kg |
9. Garantia i Suport
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or contact your retailer for specific warranty terms and conditions.
For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact Suuonee customer service through the retailer where you purchased the product or visit the official Suuonee weblloc per obtenir informació de contacte.
