Baseus Super Energy Car Jump Starter (8000mAh, 5V-2.4A) User Manual

1. Introducció

The Baseus Super Energy Car Jump Starter is a portable and powerful device designed to jump-start vehicles with dead batteries. It also functions as a power bank, allowing you to charge various electronic devices on the go. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your jump starter.

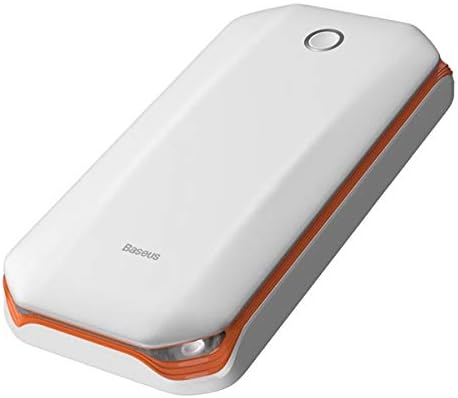

Image: The Baseus Super Energy Car Jump Starter, a compact device in white with orange accents, designed for portability and ease of use.

2. Instruccions de seguretat

Please read and understand all safety information before using this product. Failure to follow these instructions may result in electric shock, explosion, fire, or serious injury.

• Utilitzeu sempre protecció ocular quan treballeu amb piles.
• Do not short-circuit the jump starter terminals.
• Mantingueu el dispositiu lluny dels nens.
• Do not expose the jump starter to extreme temperatures (above 60°C or below -20°C), direct sunlight, or water.
• Assegureu-vos de la polaritat correcta quan connecteu a la bateria d'un vehicle (clavilla vermella).amp a positiu, negre clamp a negatiu).
• No intenteu arrencar amb ajuda d'una bateria congelada.
• If the battery fluid comes into contact with skin or eyes, rinse immediately with plenty of water and seek medical attention.
• Do not disassemble, modify, or repair the unit yourself. Contact qualified service personnel.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al vostre paquet:

• Baseus Super Energy Car Jump Starter
• Smart Jump Cables with Clamps
• Cable de càrrega USB
• Manual d'usuari

4. Configuració i càrrega inicial

Before first use, fully charge the Baseus Super Energy Car Jump Starter. It is recommended to keep the device charged above 50% for optimal performance and longevity.

1. Connect the provided USB charging cable to the jump starter's input port.
2. Connecteu l'altre extrem del cable USB a un adaptador de corrent USB adequat (no inclòs) o a un port USB alimentat.
3. The indicator lights on the jump starter will show the charging status. Charge until all indicator lights are solid, indicating a full charge.
4. Desconnecta el cable de càrrega un cop estigui completament carregat.

5. Instruccions d'ús: Arrencada d'un vehicle amb ajuda d'un cable

Segueix aquests passos amb atenció per engegar el vehicle amb ajuda d'un cable:

Image: This image illustrates common scenarios where a car jump starter is essential, such as a vehicle with a dead battery requiring a push, the process of connecting a jump starter to a car battery, and the alternative of needing a tow truck. The Baseus Super Energy Car Jump Starter is an ideal device for reviving a dead battery.

1. Step 1: Prepare the Jump Starter. Ensure the jump starter is sufficiently charged (at least 50%). Turn off the vehicle's ignition and all accessories.
2. Step 2: Connect the Smart Jump Cables. Plug the smart jump cable connector into the jump starter's output port. Then, connect the red (+) clamp al terminal positiu de la bateria del cotxe i al born negre (-)amp to the negative terminal of the car battery. Ensure the connections are secure and there is no corrosion.
3. Step 3: Start the Vehicle. Once the cables are correctly connected, start your vehicle's engine. If the vehicle does not start immediately, wait 30 seconds and try again. Do not crank the engine for more than 3 seconds per attempt.
4. Step 4: Disconnect the Cables. As soon as the vehicle starts, immediately remove the black (-) clamp from the car battery, followed by the red (+) clamp. Then, disconnect the smart jump cable from the jump starter.

Image: This image visually guides the user through the jump-starting process. Step 1 shows the jump starter being prepared. Step 2 demonstrates connecting the red (+) and black (-) clamps to the corresponding battery terminals. Step 3 illustrates pressing the car's start button after connections are made.

6. Instruccions d'ús: Ús com a bateria externa

The Baseus Super Energy Car Jump Starter can also be used to charge your electronic devices.

1. Connecteu el cable de càrrega USB del dispositiu al port de sortida USB de l'arrencador de bateria.
2. L'arrencador començarà a carregar el dispositiu automàticament.
3. Desconnecta el dispositiu un cop finalitzada la càrrega.

7. Manteniment

Proper maintenance ensures the longevity and reliability of your jump starter:

• Recàrrega després de l'ús: Always recharge the jump starter after each use to maintain its battery health.
• Emmagatzematge: Guardeu el dispositiu en un lloc fresc i sec, allunyat de la llum solar directa i la humitat.
• Càrrega regular: If the jump starter is not used for extended periods, charge it every 3-6 months to prevent deep discharge and prolong battery life.
• Neteja: Clean the exterior of the device with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.

8. Solució De Problemes

Si teniu problemes, consulteu els següents problemes i solucions habituals:

9. Especificacions

10. Garantia i Suport

Per obtenir informació sobre la garantia, assistència tècnica o consultes de servei, consulteu la pàgina oficial de Baseus. weblloc web o poseu-vos en contacte amb el vostre distribuïdor autoritzat. Conserveu el rebut de compra com a comprovant de compra.
