SENSSUN IF1131D

SENSSUN Bluetooth Body Fat Scale

Model: IF1131D - User Manual

1. Introducció

Thank you for choosing the SENSSUN Bluetooth Body Fat Scale. This smart scale is designed to help you monitor various body composition metrics, providing a comprehensive overview of your health and fitness progress. Please read this manual carefully before use to ensure proper operation and to maximize the benefits of your device.

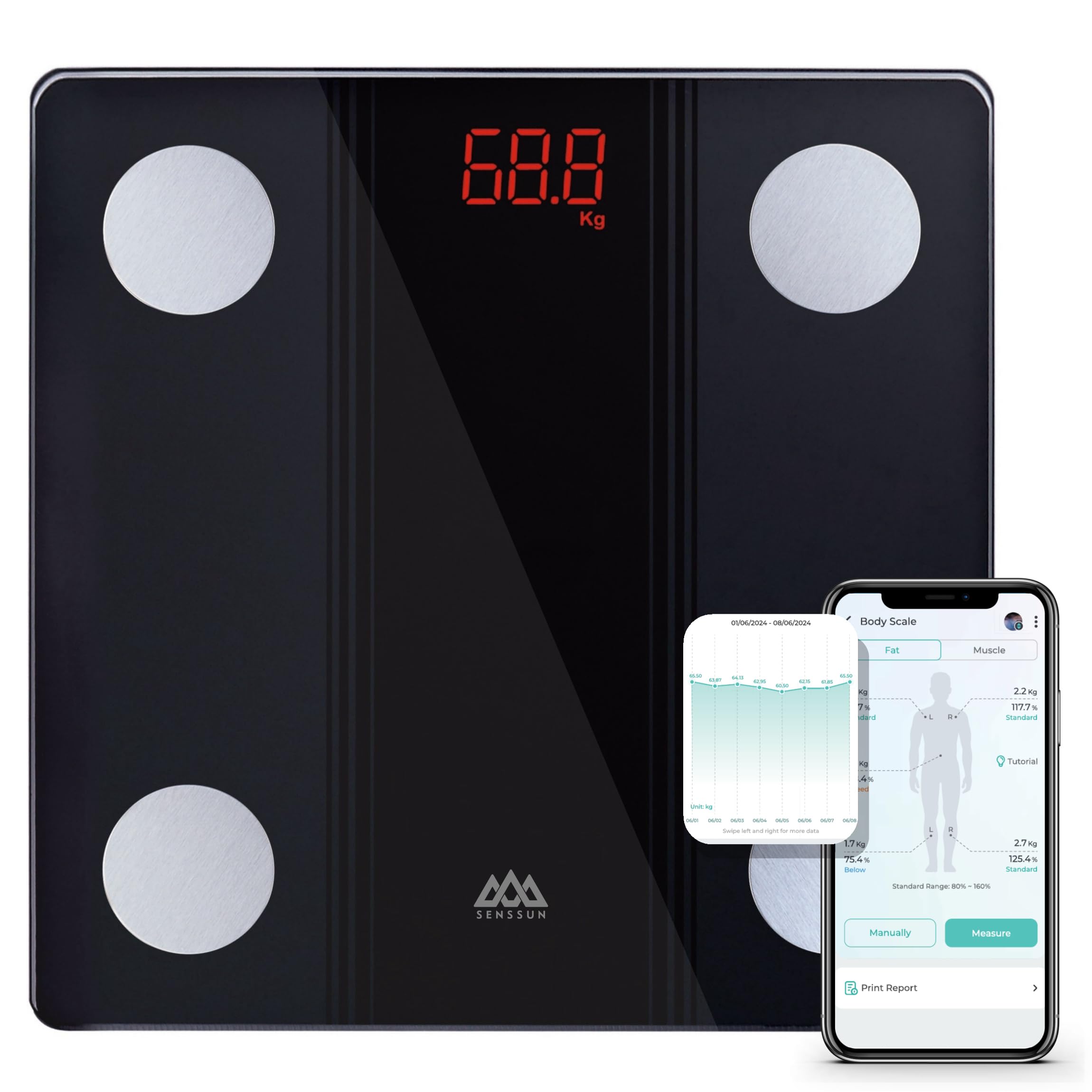

SENSSUN Bluetooth Body Fat Scale, black with LED display

Image: SENSSUN Bluetooth Body Fat Scale, black with LED display.

2. Informació de seguretat

  • No utilitzeu aquest dispositiu si teniu un marcapassos o un altre dispositiu mèdic intern.
  • No utilitzeu aquest dispositiu si esteu embarassada.
  • Mantingueu la bàscula allunyada de l'aigua i de les temperatures extremes.
  • La superfície de la bàscula pot ser relliscosa quan està mullada. Assegureu-vos que la superfície estigui seca abans de trepitjar-hi.
  • No saltis a la bàscula ni la facis servir per a altres finalitats que no siguin pesar-la.
  • The body composition measurements are for reference only and should not be used for medical diagnosis or treatment. Consult a healthcare professional for medical advice.
  • Eliminar les bateries segons la normativa local.

3. Contingut del paquet

El paquet inclou:

  • SENSSUN Bluetooth Body Fat Scale (Model: IF1131D)
  • 3 x piles AAA
  • Manual d'usuari

4. Producte acabatview

The SENSSUN Bluetooth Body Fat Scale features a tempered glass platform with four high-precision electrodes for accurate body composition analysis. It has a clear LED display and is designed with rounded corners and anti-slip feet for safety.

Característiques principals:

  • Measures 14 body composition metrics including weight, BMI, body fat, muscle, protein, bone mass, and more.
  • High-precision sensors with 0.1 kg (0.2 lb) increments.
  • Maximum weight capacity of 150 kg (330 lbs).
  • Bluetooth connectivity for data synchronization with the iMoni Health app.
  • Automatic calibration and auto-off function.
  • Low battery and overload indicators.
SENSSUN Bluetooth Body Fat Scale dimensions: 26cm x 26cm x 2cm, showing battery compartment for 3 AAA batteries.

Image: Scale dimensions (26cm x 26cm x 2cm) and battery compartment location.

Diagram illustrating 17 essential body composition measurements provided by the SENSSUN smart scale, including Weight, BMI, Fat, Protein Rate, Muscle Reserve Capacity, Water Rate, Heart Rate, Cardiac Index, Subcutaneous Fat Amount, Basic Metabolism, Active Metabolism, Inorganic Salts, Lean Body Mass, Visceral Fat Index, Muscle Rate, Skeletal Muscle Rate, and Bone Rate.

Imatge: Més deview of 17 body composition metrics measured by the scale.

Close-up images of the SENSSUN smart scale highlighting safety features: rounded corners, anti-slip feet, and a clear LED display showing '68.8 Kg'.

Image: Safety features including rounded corners, anti-slip feet, and LED display.

5. Configuració

5.1 Instal·lació de la bateria

  1. Obriu el compartiment de la bateria a la part inferior de la bàscula.
  2. Introduïu les 3 piles AAA, assegurant-vos de la polaritat correcta (+/-).
  3. Tanqueu el compartiment de la bateria de manera segura.

5.2 Descàrrega i emparellament de l'aplicació

  1. Descarrega't el iMoni Health app from the Apple App Store (for iOS 8.0 or higher) or Google Play Store (for Android 4.3 or higher).
  2. Activa el Bluetooth al teu telèfon intel·ligent.
  3. Open the iMoni Health app and create a user profile.
  4. Step onto the scale to activate it. The scale will automatically attempt to pair with the app via Bluetooth.
  5. Seguiu les instruccions que apareixen a la pantalla de l'aplicació per completar el procés de vinculació.
Image showing the SENSSUN smart scale and a smartphone displaying the iMoni Health app, with logos for Fitbit, Google Fit, and Apple Health, indicating data synchronization capabilities.

Image: The iMoni Health app interface and compatibility with other health platforms.

6. Instruccions de funcionament

6.1 Prendre una mesura

  1. Place the scale on a hard, flat surface. Avoid carpets or uneven floors.
  2. Step onto the scale barefoot and stand still. Ensure your feet are in contact with the four metal electrodes.
  3. The LED display will show your weight. If the app is open and connected, other body composition data will be displayed in the app.
  4. The scale will automatically turn off after a few seconds of inactivity.

Nota: You can weigh yourself at any time without your phone. The data will synchronize with the app automatically once your phone is reconnected and the app is open.

Interna view of the SENSSUN smart scale, focusing on the self-developed chip responsible for high accuracy and sensitive response.

Image: Illustration of the high-accuracy chip for sensitive and precise measurements.

7. App Usage (iMoni Health)

The iMoni Health app allows you to track your body composition data over time, set goals, and monitor your progress. It also supports multiple user profiles and can synchronize data with other popular health apps.

7.1 Data Tracking and Trends

  • View daily, weekly, monthly, and yearly trends for all measured metrics.
  • Analyze changes in weight, BMI, body fat, and other parameters through intuitive graphs.
  • Set personal health goals and track your achievements.
Graphs on a smartphone screen showing body weight, BMI, and body fat trends over time, with a comparison between the SENSSUN scale's bioelectrode measurements and other scales' algorithmic data.

Image: App interface showing progress tracking graphs for body weight, BMI, and body fat.

7.2 Multi-User Support and Privacy

  • The app supports an unlimited number of users, making it suitable for families.
  • The scale features auto-recognition, identifying individual users based on their weight and body composition data.
  • Each user's data is kept private within their own profile a l'aplicació.
Illustration demonstrating the multi-user capability and auto-recognition feature of the SENSSUN smart scale, allowing multiple users to track their data privately within the app.

Image: Multi-user support and auto-recognition feature for private data tracking.

8. Manteniment

  • Netegeu la superfície de l'escala amb adamp drap i detergent suau. No utilitzeu productes de neteja abrasius ni submergiu la bàscula en aigua.
  • Guardeu la bàscula en un lloc fresc i sec.
  • Si no heu d'utilitzar la bàscula durant un període prolongat, traieu-ne les piles per evitar fuites.

9. Solució De Problemes

Problema Solució
L'escala no s'encén. Check battery installation. Replace batteries if necessary.
Lectures de pes inexactes. Ensure the scale is on a hard, flat surface. Recalibrate by stepping on and off the scale quickly.
Error de connexió Bluetooth. Ensure Bluetooth is enabled on your phone. Restart the app and scale. Make sure your phone meets the OS requirements (iOS 8.0+/Android 4.3+).
Body composition data not appearing in app. Ensure you are standing barefoot on the scale with feet touching all four electrodes. Ensure the app is open and connected during measurement.
"Lo" displayed on screen. Low battery indicator. Replace batteries.
"Err" or "OL" displayed on screen. Overload indicator. The weight exceeds the maximum capacity of 150 kg.

10. Especificacions

  • Marca: SENSSUN
  • Model: IF1131D
  • Color: Negre
  • Material: Vidre temperat
  • Tipus de visualització: LED
  • Capacitat de pes màxim: 150 kg (330 lliures)
  • Increments de mesura: 0.1 kg (0.2 lliures)
  • Unitats de mesura: Quilograms (kg), lliures (lb)
  • Font d'alimentació: 3 x piles AAA
  • Connectivitat: Bluetooth 4.0
  • Compatibilitat de l'aplicació: iOS 8.0 o superior, Android 4.3 o superior
  • Dimensions del producte: Aproximadament 26 cm x 26 cm x 2 cm
  • Pes de l'article: 1170 grams
  • Certificacions: CE

11. Garantia i Suport

SENSSUN products are manufactured with high-quality standards. For any product-related inquiries, technical support, or warranty claims, please contact SENSSUN customer support. Our professional support team aims to respond within 24 hours.

Consulteu la documentació de compra per conèixer els termes específics de la garantia i la informació de contacte.
