PWAY PW-HT239 HDMI Extender 4K@60Hz User Manual

1. Introducció

The PWAY PW-HT239 HDMI Extender is designed to transmit HDMI video and audio signals over long distances using a single Cat5e/Cat6/Cat7 cable. This extender supports high-resolution video up to 4K@60Hz, including YUV 4:4:4 and RGB 4:4:4 color formats, and HDR functionality. It is ideal for applications requiring extended HDMI signal transmission without compromising video quality.

Característiques principals:

• 4K@60Hz Transmission: Extends HDMI video and audio signals up to 50 meters (165 feet) over a single Cat6/7 cable. Distances vary by cable type: Cat5 up to 30m (100ft), Cat5e up to 40m (130ft), Cat6/7 up to 50m (165ft).
• High Configuration Support: Compatible with YUV 4:4:4 and RGB 4:4:4 image formats.
• HDMI 2.0 & HDCP 2.2: Supports HDMI 2.0 with an 18Gbps transmission rate and HDCP 2.2 protocol, allowing connection to Blu-ray DVD players and other protected content sources.
• Funcionalitat HDR: Provides enhanced dynamic range and image detail compared to standard images.
• EDID Pass-through: Supports EDID penetration function for compatibility with various display devices.
• Sortida de bucle HDMI: The transmitter unit includes an HDMI loop-out port for connecting a local display.

2. Contingut del paquet

Si us plau, verifiqueu que tots els articles estiguin inclosos al vostre paquet:

• 1x HDMI Extender Transmitter (TX)
• 1x HDMI Extender Receiver (RX)
• 2 adaptadors de corrent (DC 5V)
• 1 x manual d'usuari
• 1x After-sale Card

Image: Package contents including the transmitter, receiver, power adapters, user manual, and after-sale card.

3. Producte acabatview

The PWAY PW-HT239 consists of two main units: a Transmitter (TX) and a Receiver (RX).

Unitat transmissora (TX)

• Entrada HDMI: Connects to the HDMI source device (e.g., PC, DVD player).
• HDMI OUT (Loop Out): Connects to a local display for monitoring the source signal.
• UTP: RJ45 port for connecting to the Receiver unit via Cat5e/Cat6/Cat7 cable.
• CC 5V: Port d'entrada d'alimentació.
• LED PWR: Indica l'estat d'alimentació.
• STA LED: Indicates signal status.

Unitat receptora (RX)

• SORTIDA HDMI: Connects to the HDMI display device (e.g., TV, monitor, projector).
• UTP: RJ45 port for connecting to the Transmitter unit via Cat5e/Cat6/Cat7 cable.
• CC 5V: Port d'entrada d'alimentació.
• LED PWR: Indica l'estat d'alimentació.
• STA LED: Indicates signal status.

Image: Diagram illustrating typical connections for the PWAY HDMI Extender, showing source devices connected to the transmitter and display devices connected to the receiver.

4. Especificacions

5. Instruccions de configuració

Follow these steps to set up your PWAY HDMI Extender:

1. Prepareu els cables: Ensure you have a high-quality Cat5e, Cat6, or Cat7 Ethernet cable of appropriate length (up to 50m for Cat6/7) and two HDMI cables.
2. Connect Source to Transmitter (TX): Connect one end of an HDMI cable to the HDMI output of your source device (e.g., PC, DVD player) and the other end to the Entrada HDMI port on the Transmitter (TX) unit.
3. (Optional) Connect Local Display: If you wish to monitor the source signal locally, connect a second HDMI cable from the HDMI OUT (Loop Out) port on the TX unit to a local display.
4. Connect Transmitter to Receiver: Connect one end of the Cat5e/Cat6/Cat7 Ethernet cable to the UTP port on the Transmitter (TX) unit and the other end to the UTP port on the Receiver (RX) unit. Ensure the cable is securely plugged in.
5. Connect Receiver to Display: Connecteu un extrem del cable HDMI a la SORTIDA HDMI port on the Receiver (RX) unit and the other end to the HDMI input of your remote display device (e.g., TV, monitor, projector).
6. Encès: Connect the two provided DC 5V power adapters to the DC 5V ports on both the Transmitter (TX) and Receiver (RX) units, then plug them into power outlets. The PWR LED on both units should illuminate.
7. Verifica la connexió: Power on all connected devices (source and displays). The STA LED on both extender units should light up, indicating a stable signal connection. The image should appear on your remote display.

Image: Connection diagram showing the setup flow from source to transmitter, through the Cat cable to the receiver, and finally to the display.

Imatge: Un example setup demonstrating the extender's capability to transmit signals over a long distance to a remote display.

6. Instruccions de funcionament

Once the setup is complete and all devices are powered on, the PWAY HDMI Extender operates automatically. No additional configuration is typically required.

• Transmissió del senyal: The extender will automatically detect and transmit the HDMI signal from the source to the remote display.
• Resolution and Color: The extender supports resolutions up to 4K@60Hz with YUV 4:4:4 and RGB 4:4:4 color spaces. Ensure your source and display devices are also configured to support these settings for optimal performance.
• Suport HDR: If your source and display support HDR, the extender will pass through the HDR signal, providing enhanced contrast and color.
• Gestió EDID: The EDID pass-through function ensures compatibility between the source and display by relaying the display's capabilities to the source.
• Loop Out Function: The HDMI OUT port on the TX unit provides a convenient way to connect a local display, allowing you to view the source content near the transmitter.

Image: Visual representation of the clarity achieved with 4K@60Hz resolution compared to lower resolutions.

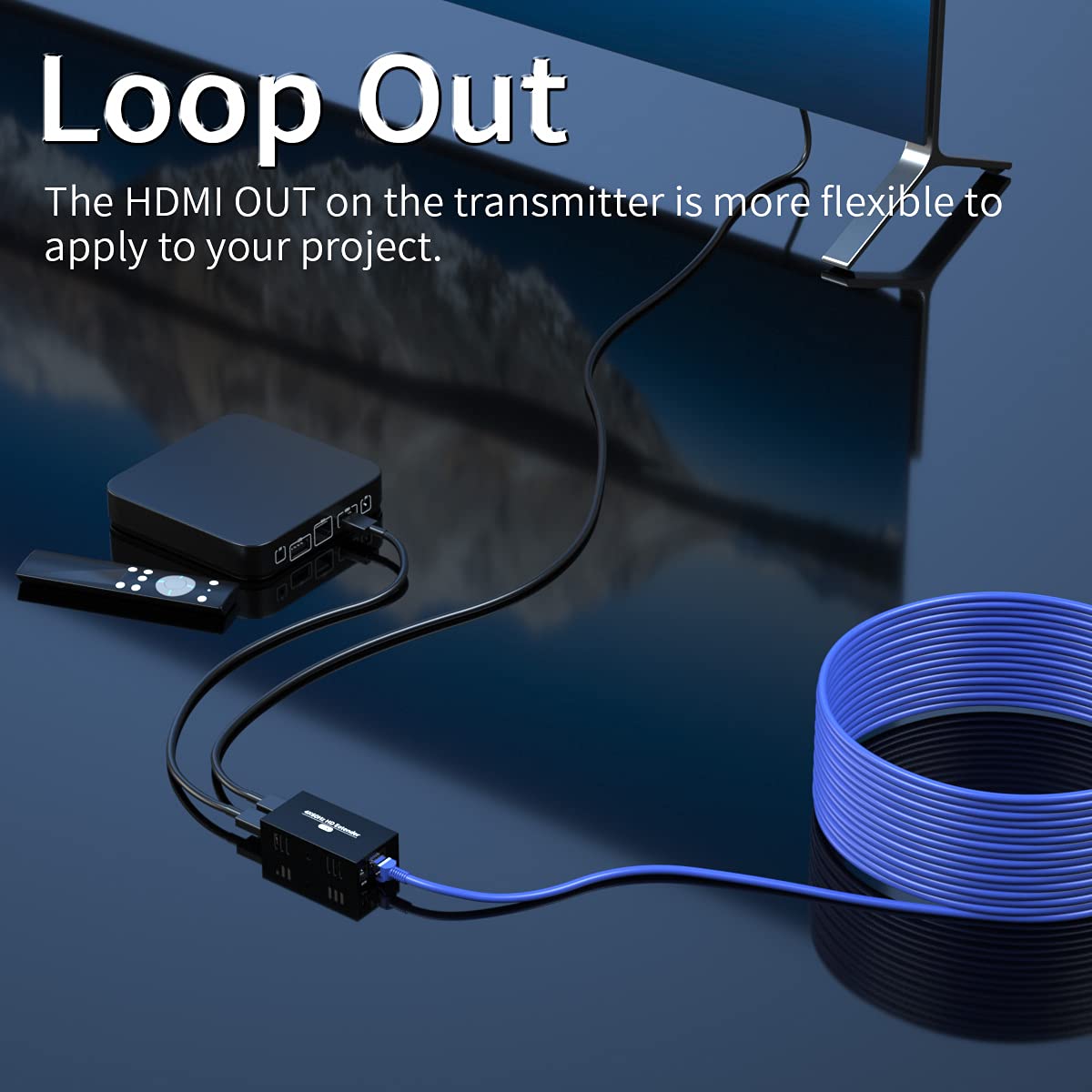

Image: Illustration of the HDMI loop-out port on the transmitter unit, enabling a local display connection.

7. Manteniment

To ensure the longevity and optimal performance of your HDMI extender, please follow these maintenance guidelines:

• Neteja: Use a soft, dry cloth to clean the units. Avoid using liquid or aerosol cleaners, as they may damage the device.
• Medi ambient: Operate the device in a well-ventilated area. Avoid exposing the units to extreme temperatures, humidity, or direct sunlight.
• Potència: Use only the provided power adapters. Disconnect power when the device is not in use for extended periods.
• cables: Ensure all cables are securely connected and not bent or crimped, which can lead to signal loss or damage.

Image: The extender unit featuring ventilation slots for proper heat dissipation.

8. Solució De Problemes

If you encounter issues with your PWAY HDMI Extender, refer to the following common problems and solutions:

9. Garantia i Suport

PWAY products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included in your package or visit the official PWAY website. If you require technical assistance or have questions not covered in this manual, please contact PWAY customer support through their official channels.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.
