1. Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Snooker Half Cube Commercial Ice Machine. This air-cooled commercial ice maker is designed to produce 280 lbs of half cube ice per day and features an integrated storage bin with an 80 lbs capacity. It is suitable for mid-sized commercial kitchens, bars, or restaurants. The unit includes a digital control panel for status monitoring and ice thickness adjustment, and an in-line water filter for improved ice quality.

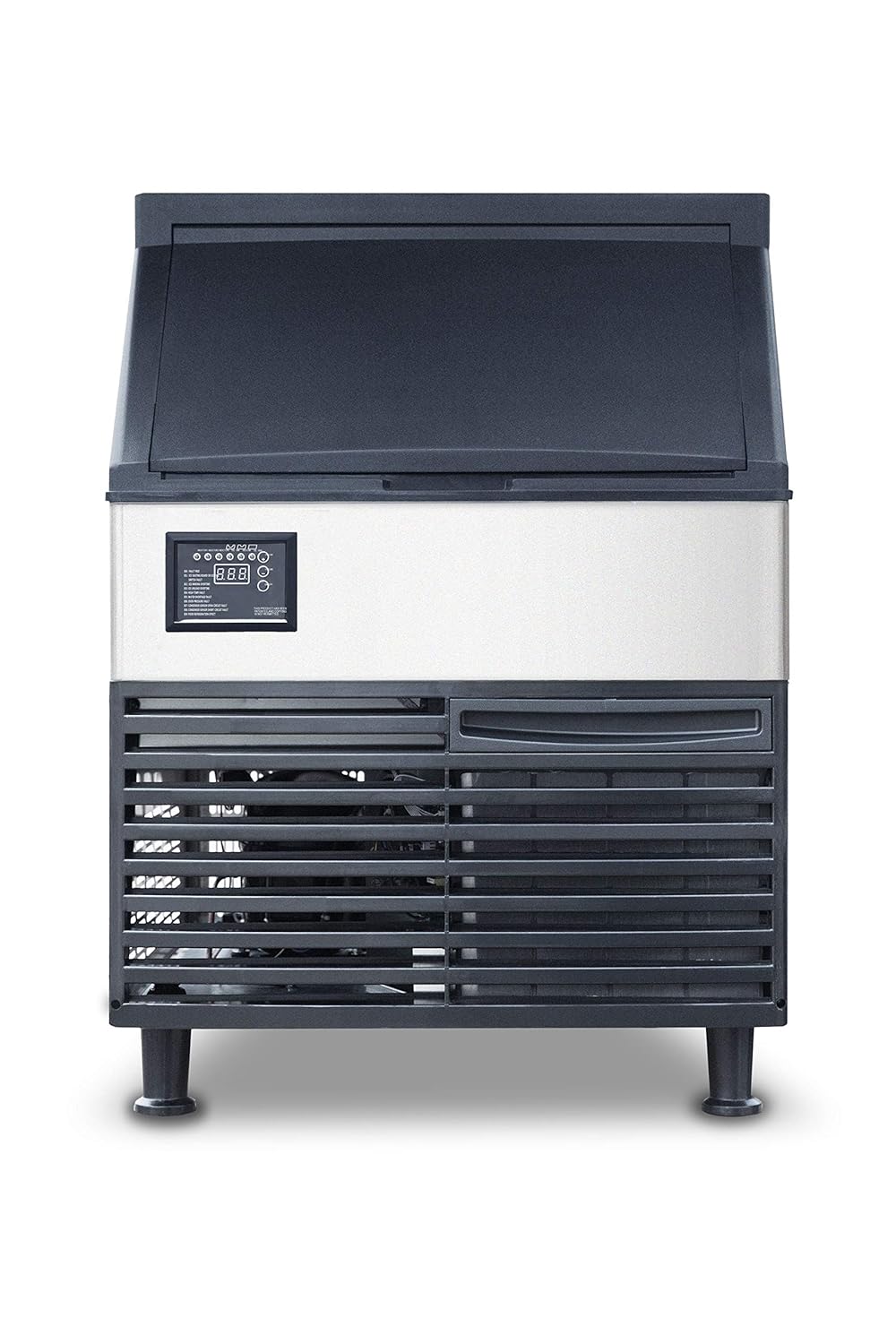

Figura 1.1: Part frontal view of the Snooker Half Cube Commercial Ice Machine. This image shows the overall design of the ice machine, including the front panel with ventilation grilles and the top lid for the ice storage bin.

2. Instruccions de seguretat importants

Please read all instructions carefully before operating the appliance to prevent injury or damage. Keep this manual for future reference.

• Seguretat elèctrica: Ensure the power supply matches the machine's requirements (115V/60Hz/1-Phase, 6.3 Amps). Do not use extension cords. Always unplug the unit before cleaning or servicing.
• Connexió d'aigua: Connecteu-ho només a un subministrament d'aigua potable. Assegureu-vos que totes les connexions d'aigua estiguin ben segeres per evitar fuites.
• Ventilació: This is an air-cooled unit. Maintain adequate clearance around the machine for proper airflow (minimum 6 inches on sides and rear). Do not block air vents.
• Col·locació: Install on a level, stable surface capable of supporting the machine's weight when full of ice. Avoid direct sunlight or heat sources.
• Neteja: Use only food-grade cleaning solutions. Always wear appropriate personal protective equipment (PPE) during cleaning.
• Nens i animals de companyia: Mantingueu els nens i les mascotes lluny de l'aparell.
• Servei: Tot el manteniment ha de ser realitzat per personal qualificat.

3. Què hi ha a la caixa

En desembalar-lo, comproveu que tots els components siguin presents i no estiguin danyats:

• Snooker Half Cube Commercial Ice Machine Unit
• Integrated Ice Storage Bin
• In-line Water Filter
• Ice Scoop (typically included, though not explicitly listed in "whats_in_the_box", it's mentioned in description)
• Manual d'instruccions (aquest document)

4. Especificacions del producte

Detailed technical specifications for the Snooker Half Cube Commercial Ice Machine:

Figure 4.1: Dimensional drawing of the Snooker Half Cube Commercial Ice Machine, showing width (26"), depth (27.8"), and height (38.6").

5. Configuració i instal·lació

Proper installation is crucial for optimal performance and longevity of your ice machine. It is recommended that installation be performed by a qualified technician.

5.1. Desembalatge i col·locació

• Carefully remove all packaging materials. Inspect the unit for any shipping damage.
• Place the ice machine on a firm, level surface capable of supporting its weight (204 lbs empty, plus ice).
• Ensure adequate ventilation. As an air-cooled unit, it requires a minimum of 6 inches of clear space on the sides and rear for proper airflow. Do not install in an enclosed cabinet without proper ventilation.
• Avoid locations near heat-generating appliances or in direct sunlight. The ambient temperature should be between 50°F (10°C) and 90°F (32°C).

Figura 5.1: Frontal view of the ice machine, highlighting the ventilation grilles and control panel. Ensure these areas are not obstructed.

5.2. Connexió d'aigua

• Connect the ice machine to a cold, potable water supply with a pressure between 20 PSI and 80 PSI.
• Install the included in-line water filter according to its instructions to ensure clean water for ice production and to protect the machine.
• Use new water supply hoses; do not reuse old hoses.

5.3. Connexió de desguàs

• The unit requires a floor drain or a drain pump (not included) for proper water drainage.
• Ensure the drain hose has a continuous downward slope to prevent standing water and blockages.

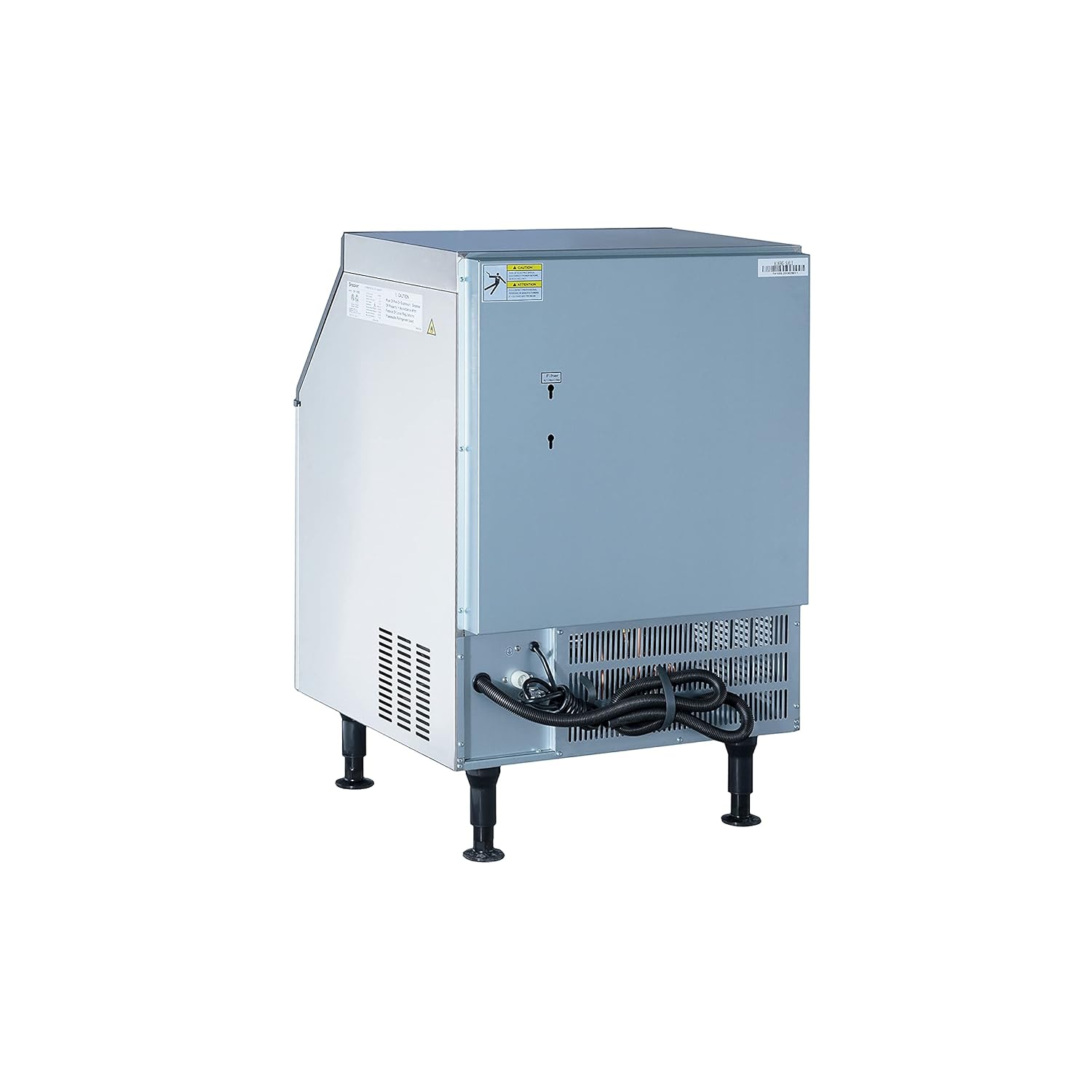

Figura 5.2: posterior view of the ice machine, illustrating the location of water inlet and drain connections, and the power cord.

5.4. Connexió elèctrica

• Plug the ice machine into a dedicated, grounded 115V/60Hz/1-Phase electrical outlet.
• No utilitzeu endolls adaptadors ni cables d'extensió.
• Ensure the circuit is protected by a properly sized fuse or circuit breaker (rated for 6.3 Amps or higher).

5.5. Neteja inicial

• Before first use, clean the ice storage bin and all surfaces that come into contact with water or ice. Refer to the "Maintenance" section for detailed cleaning instructions.

6. Instruccions de funcionament

This section details the basic operation of your Snooker ice machine.

6.1. Tauler de control acabatview

The digital control panel provides status indicators and allows for basic adjustments.

Figure 6.1: Digital control panel showing status indicators (INIT, PREP, MAKE, DROP, INLET, E FAULT), a digital display, and buttons for thickness adjustment, clean cycle, and power (ON/OFF).

• INIT: Initialization phase.
• PREPARACIÓ: Preparation phase before ice making.
• FER: Ice making cycle in progress.
• CAIXAR: Ice harvesting/dropping cycle.
• Entrada: Water inlet status.
• E FAULT: Error indicator. Refer to the display for specific error codes (E01-E08).
• Botons +/-: Adjust ice thickness.
• Botó CLEAN: Inicia el cicle de neteja.
• Botó ON/OFF: Encén o apaga la unitat.

6.2. Starting the Ice Machine

1. Assegureu-vos que la unitat estigui correctament instal·lada i connectada a l'aigua i a la llum.
2. Premeu el botó ON/OFF button on the control panel. The machine will begin its initialization sequence.
3. The unit will automatically proceed through the PREP, MAKE, and DROP cycles to produce ice.

6.3. Ajust del gruix del gel

• During the MAKE cycle, use the + or - buttons on the control panel to adjust the ice thickness. Increasing the value typically results in thicker ice, and decreasing it results in thinner ice.
• Allow several cycles for the adjustment to take full effect.

6.4. Emmagatzematge de gel

• Ice is automatically dropped into the integrated 80 lb storage bin.
• The machine will stop producing ice when the bin is full (indicated by E01: ICE FULL). Production will resume automatically when ice is removed.
• Use the provided ice scoop to retrieve ice from the bin. The lift and slide lid stays open for convenience.

Figura 6.2: Interior view of the ice storage bin, showing the ice-making components and the blue LED light, which illuminates the bin for visibility.

7. Manteniment i Neteja

Regular cleaning and maintenance are essential for hygienic ice production and extending the lifespan of your machine.

7.1. Manteniment diari

• Wipe down the exterior surfaces with a clean, damp tela.
• Ensure the ice scoop is clean and stored hygienically.

7.2. Manteniment setmanal

• Empty and clean the ice storage bin. Use a mild, food-grade detergent and rinse thoroughly.
• Check for any obstructions in the air vents and clean if necessary.

7.3. Monthly / Bi-Monthly Cleaning (or as needed)

Perform a thorough cleaning of the ice-making system and water circuit.

1. Prepara: Ensure the ice bin is empty. Turn off the machine and unplug it from the power outlet.
2. Cicle de neteja: Plug the machine back in. Press and hold the NETEJA button for 3 seconds to initiate the automatic cleaning cycle. Follow the instructions on the display. This cycle typically circulates a cleaning solution through the system.
3. Neteja manual: For deeper cleaning, you may need to manually clean components like the evaporator, water pump, and water tray. Consult a qualified technician if unsure.
4. Descalcificació: Use a commercial ice machine descaling solution to remove mineral buildup. Follow the descaler manufacturer's instructions carefully.
5. Esbandida: After cleaning/descaling, run several rinse cycles (often part of the automatic clean cycle or by running ice cycles and discarding the first few batches of ice) to ensure all cleaning solution is flushed out.

7.4. Substitució del filtre d'aigua

• The in-line water filter should be replaced every 3-6 months, or more frequently depending on water quality and usage.
• Consulteu les instruccions específiques del filtre d'aigua per conèixer els procediments de substitució.

8. Solució De Problemes

This section provides solutions to common issues. For problems not listed or if issues persist, contact qualified service personnel.

8.1. Error Codes (E FAULT)

The digital display will show specific error codes if a fault occurs:

8.2. Solució de problemes generals

• Sense energia: Comproveu la connexió del cable d'alimentació, la presa de corrent i l'interruptor automàtic.
• Sense producció de gel: Ensure water supply is on, water filter is not clogged, and the unit is not in an error state. Check ambient temperature.
• Small or Soft Ice: Adjust ice thickness setting (increase). Check water pressure and temperature. Clean condenser coils.
• Fuites d'aigua: Check all water connections for tightness. Inspect drain hose for kinks or blockages.
• Soroll inusual: Could indicate a fan issue, pump issue, or loose component. Turn off the unit and inspect. If noise persists, contact service.

9. Garantia i Suport

For warranty information, please refer to the documentation provided at the time of purchase or contact the seller directly. This product is sold by Iron Mountain Refrigeration & Equipment LLC.

For technical support or service inquiries, please contact the manufacturer, Snooker, or the seller, Iron Mountain Refrigeration & Equipment LLC. Keep your purchase receipt and product model number (commercial ice maker) and ASIN (B0821TMBRM) ready when contacting support.

Informació del venedor:

• Name: Iron Mountain Refrigeration & Equipment LLC
• Amazon Seller Link: View Venedor Profile a Amazon
