1. Introducció
The SOGO Vertical Garment Steamer SS-6335 is a powerful 1900W appliance designed for efficient vertical steaming of garments and various fabrics. It features a 1.9-liter water tank, providing continuous steam for up to 55 minutes, and heats up in approximately 45 seconds. This steamer helps to remove wrinkles, eliminate odors, and disinfect fabrics without the need for an ironing board, offering a convenient solution for garment care.
Image: The SOGO Vertical Garment Steamer features 1900W of power, effectively eliminating bacteria, mites, and persistent odors from fabrics.
2. Instruccions de seguretat importants
To ensure safe operation and prevent injury or damage, please read and follow all safety instructions carefully before using the SOGO Vertical Garment Steamer.
- Always use distilled or demineralized water to prevent mineral buildup and extend the life of the appliance.
- Do not immerse the steamer base unit, power cord, or plug in water or other liquids.
- Mantingueu l'aparell fora de l'abast dels nens i de les mascotes.
- Never direct steam at people, animals, or electrical appliances. Steam is hot and can cause burns.
- Ensure adequate ventilation when operating the steamer.
- Unplug the steamer from the power outlet when not in use, before filling or emptying the water tank, and before cleaning.
- Do not operate the appliance if the power cord, plug, or any other part is damaged. Contact customer support for repairs.
- Place the steamer on a stable, level, and heat-resistant surface during use.
- Use the provided anti-burn glove to protect your hand from hot steam during operation.
- No ompliu excessivament el dipòsit d'aigua.
3. Contingut del paquet
Carefully unpack all items and ensure you have received the following components:
- Steamer Base Unit with 1.9L Water Tank
- Pol telescòpic
- Rotating Garment Hanger
- Steam Hose with Nozzle
- Wool Brush Attachment
- 2 Trouser Clips
- 1 Pair of Anti-burn Gloves
4. Producte acabatview
Familiarize yourself with the main components of your SOGO Vertical Garment Steamer:
- Unitat base: Contains the heating element, water tank, and control panel.
- Dipòsit d'aigua: Capacitat extraïble per a aigua de 1.9 litres.
- Pol telescòpic: Adjustable height support for the hanger and hose.
- Rotating Garment Hanger: Allows for easy steaming of clothes from all angles.
- Mànega de vapor: Connects the base unit to the steam nozzle.
- Steam Nozzle/Head: Emet vapor per eliminar arrugues.
- Botó d'encesa: Encén/apaga la unitat.
- Steam Level Selector: Adjusts steam output (2 levels).
- Rodes giratòries: Per facilitar la mobilitat de la unitat.
Image: Main components of the SOGO Vertical Garment Steamer SS-6335.
Image: The steamer's adjustable height feature, ranging from 85 cm to 160 cm.
5. Instruccions de configuració
Follow these steps to assemble and prepare your steamer for first use:
- Desembalar: Traieu tots els components de l'embalatge.
- Muntar el pal: Insert the telescopic pole firmly into the designated slot on the base unit.
- Fixar el penjador: Secure the rotating garment hanger to the top of the telescopic pole.
- Connecteu la mànega: Connect one end of the steam hose to the steam outlet on the base unit and the other end to the steam nozzle/head. Ensure connections are secure to prevent leaks.
- Omplir el dipòsit d'aigua: Remove the 1.9-liter water tank from the base unit. Open the cap and fill it with distilled or demineralized water. Do not use tap water as it can cause mineral buildup.
- Substituir el dipòsit d'aigua: Torneu a col·locar el dipòsit d'aigua ple a la unitat base, assegurant-vos que estigui correctament col·locat.
- Unitat de posició: Place the assembled steamer on a stable, level, and heat-resistant surface, away from walls or furniture that could be damaged by steam.

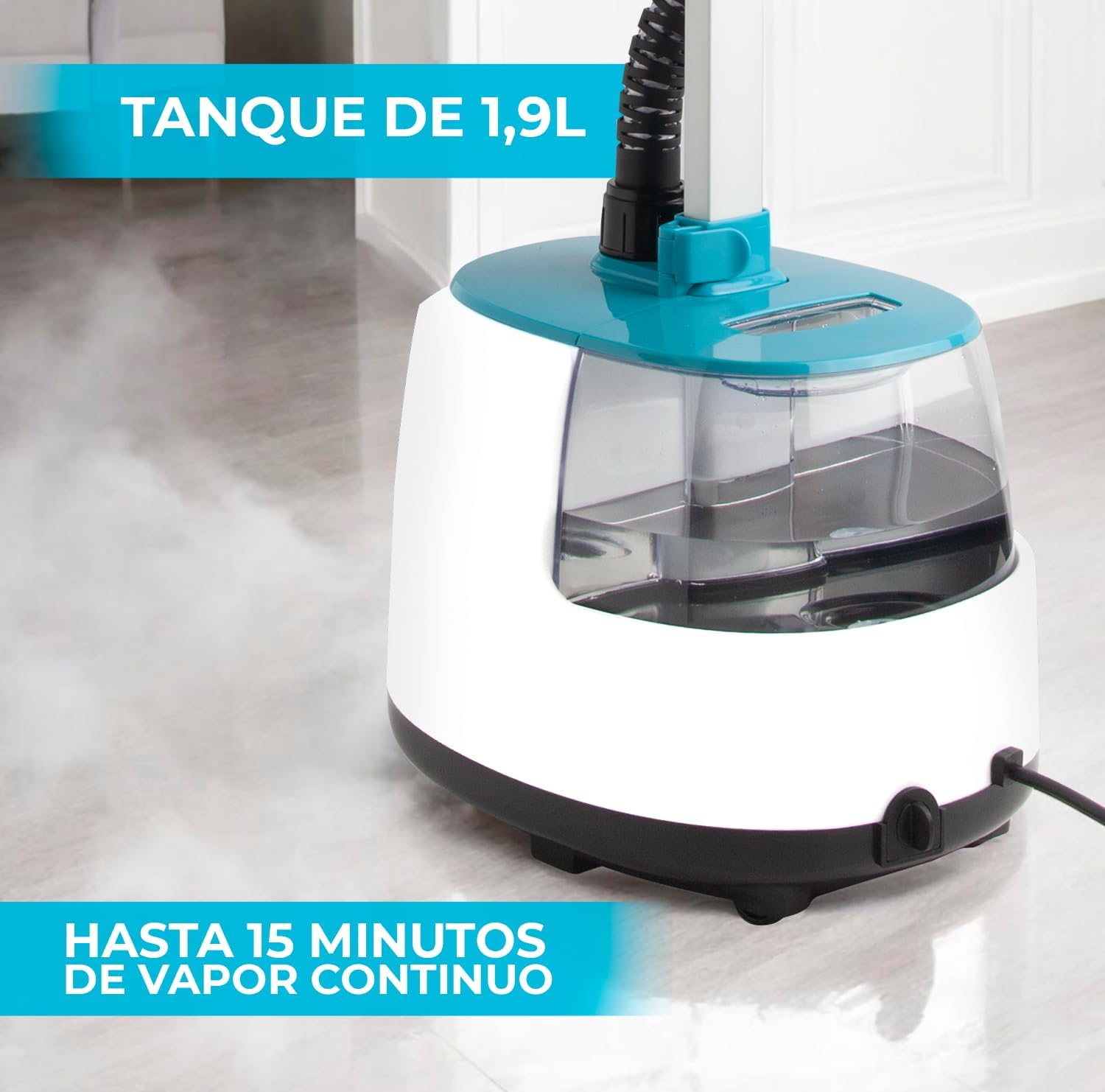

Image: The 1.9-liter water tank, providing ample capacity for extended steaming sessions.
6. Instruccions de funcionament
Once assembled, follow these steps to operate your garment steamer:
- Encès: Plug the steamer into a standard 220-240V ~ 50/60Hz electrical outlet. Press the power button on the base unit to turn it on. The indicator light will illuminate.
- Preescalfament: Allow the steamer to preheat for approximately 45 seconds. Steam will begin to emit from the nozzle once ready.
- Selecciona el nivell de vapor: Use the steam level selector to choose between the two available steam settings, depending on the fabric type and wrinkle severity.
- Penjar la peça: Hang the garment you wish to steam on the rotating hanger. For trousers, use the provided trouser clips to hold them taut.
- Comença a cuinar al vapor: Hold the steam nozzle approximately 1-2 inches away from the fabric. Move the nozzle slowly over the fabric, allowing the steam to penetrate and relax the fibers. Use the anti-burn glove for hand protection.
- Utilitza els fitxers adjunts: For heavier fabrics or stubborn wrinkles, attach the wool brush to the steam nozzle. This helps to lift fibers and improve steam penetration.
- Vapor continu: The steamer provides continuous steam for up to 55 minutes with a full 1.9L water tank. You can use the locking button on the vaporizer to control the steam volume.
- Acabar la cocció al vapor: Once you have finished steaming, press the power button to turn off the unit and unplug it from the wall outlet. Allow the garment to cool and dry before wearing or storing.
Image: Easy to use, the steamer allows for wrinkle removal without an ironing board, ideal for shirts and trousers.
Image: The steamer is perfect for refreshing clothes, curtains, and upholstery.
Video: Official product demonstration of the SOGO Vertical Garment Steamer.
7. Manteniment
Regular maintenance ensures optimal performance and longevity of your steamer.
- Neteja de l'exterior: Wipe the exterior surfaces of the base unit and pole with a soft, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Buidatge del dipòsit d'aigua: After each use, always empty any remaining water from the tank to prevent stagacumulació d'aigua i minerals.
- Descalcificació: To prevent mineral buildup, especially if tap water is used (though distilled water is recommended), regular descaling is necessary. Consult the full product manual for detailed descaling instructions specific to this model.
- Emmagatzematge: Store the steamer in a cool, dry place. Ensure the water tank is empty and the unit is unplugged before storing.
8. Solució De Problemes
Si teniu algun problema amb el vostre vaporitzador, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense vapor o poca producció de vapor | Water tank empty; Unit not powered on; Hose kinked; Mineral buildup. | Refill water tank; Ensure unit is plugged in and power button is pressed; Straighten hose; Perform descaling. |
| Water leaking from nozzle or hose connection | Hose not securely connected; Water tank overfilled or not seated correctly. | Ensure hose connections are tight; Do not overfill tank and ensure it is properly seated. |
| La unitat no s'escalfa | Not plugged in; Power button not pressed; Electrical fault. | Check power connection; Press power button; If problem persists, contact customer support. |
| Wrinkles not removing effectively | Steaming too quickly; Incorrect steam level; Fabric type. | Move nozzle slower; Select a higher steam setting; Use wool brush attachment for heavier fabrics. |
9. Especificacions
Technical details for the SOGO Vertical Garment Steamer SS-6335:
- Número de model: SS-6335
- Potència: 1900 W
- Voltage/Freqüència: 220-240V ~ 50/60 Hz
- Capacitat del dipòsit d'aigua: 1.9 litres
- Velocitat de vapor: 30 g/min
- Temps de preescalfament: Uns 45 segons
- Temps de vapor continu: Up to 55 minutes (with full 1.9L tank)
- Alçada ajustable: 71 - 167 cm
- Longitud de la mànega de vapor: 117 cm
- Dimensions (unitat base): 60 x 60 x 85 cm (L x A x A)
- Pes: 2 quilos
- Característiques: 2 steam levels, double thermostat protection, overheat fuse protection, rotating garment hanger, telescopic rack, 2 swivel wheels.
10. Garantia i Suport
Your SOGO Vertical Garment Steamer SS-6335 comes with a 2 any de garantia des de la data de compra. Aquesta garantia cobreix els defectes de fabricació en condicions d'ús normal.
For any questions, technical assistance, or warranty claims, please contact SOGO customer service. Keep your proof of purchase for warranty validation.

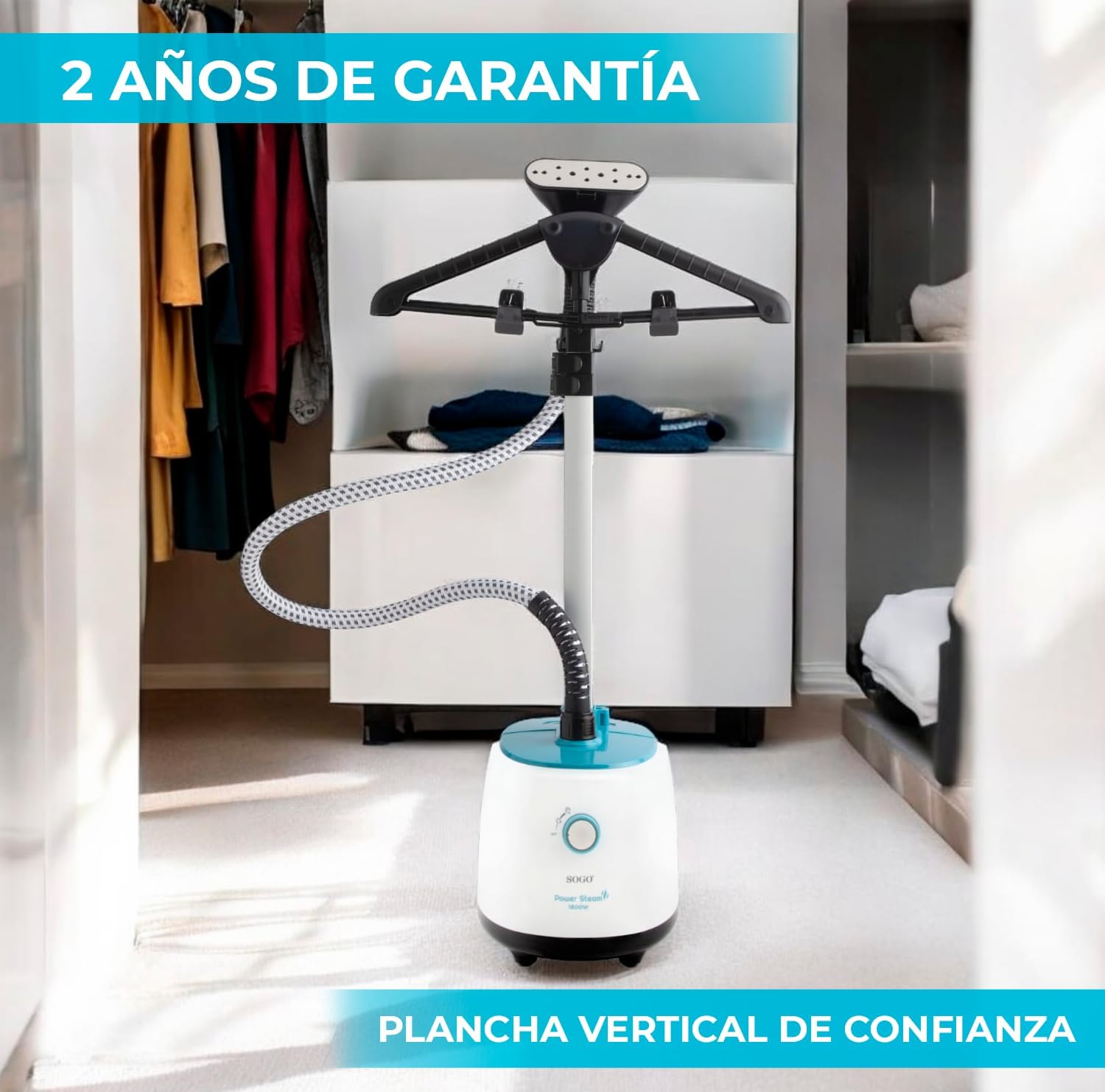

Image: The SOGO Vertical Garment Steamer comes with a 2-year warranty.
