1. Introducció
This manual provides essential instructions for the safe and effective use of your Bosch GWS 900-100 Heavy Duty Electric Angle Grinder. Designed for superior grinding and cutting performance, this 900W tool features a robust design for long lifetime under demanding working conditions. Please read this manual thoroughly before operating the tool and keep it for future reference.

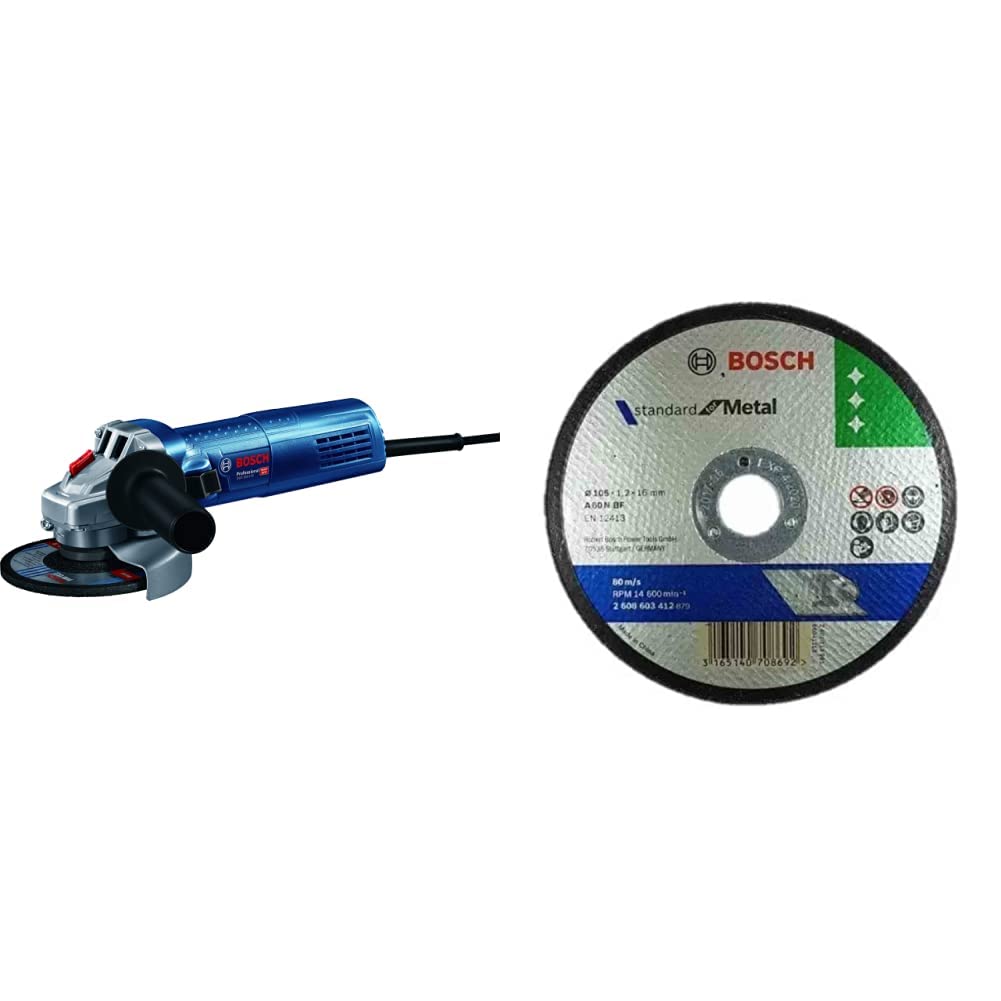

Image 1.1: The Bosch GWS 900-100 Heavy Duty Electric Angle Grinder.
2. Informació general de seguretat
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. This tool is designed for professional use and requires careful handling.
2.1 Seguretat personal
- Porteu protecció ocular: Always wear safety goggles or a face shield.
- Porteu protecció auditiva: Prolonged exposure to noise can cause hearing damage.
- Porteu roba adequada: Avoid loose clothing, jewelry, and long hair that can get caught in moving parts.
- Use respiratory protection: When grinding or cutting materials that produce dust, wear a dust mask.
- Estigueu alerta: Do not operate power tools while tired or under the influence of drugs, alcohol, or medication.
2.2 Seguretat elèctrica
- Doble aïllament: This tool features double insulation, meaning it does not require connection to an electrical earth (ground).
- Eviteu condicions humides: No exposar les eines elèctriques a la pluja o a condicions humides.
- Feu servir cables d'extensió adequats: If an extension cord is used, ensure it is suitable for outdoor use and has adequate wire gauge for the tool's power requirements.
2.3 Tool Specific Safety
- Always use the protection guard: Ensure the guard is correctly fitted and adjusted for the operation.
- Assegurar la peça de treball: Sempre clamp or secure the workpiece to prevent movement during operation.
- Check discs: Before use, inspect grinding/cutting discs for damage or cracks. Do not use damaged discs.
- Protecció de reinici: The tool is equipped with restart protection. If power is interrupted, the tool will not restart automatically when power is restored. The switch must be cycled off and on again.
Image 2.1: Icons representing Protection Guard and Restart Protection features.
3. Producte acabatview
The Bosch GWS 900-100 is a powerful angle grinder designed for heavy-duty applications. Familiarize yourself with its components before use.
3.1 Components principals
- Botó de bloqueig de l'eix
- On/Off Switch (Lockable)
- Mànec auxiliar
- Guàrdia de protecció
- Grinding/Cutting Disc (Accessory)
- Fus
- Femella de brida
- Brida de suport
Imatge 3.1: Detallada view of the Bosch GWS 900-100 Angle Grinder.
Imatge 3.2: Lateral view highlighting the ergonomic design and switch location.
4. Muntatge i muntatge
Before connecting the tool to power, ensure all components are correctly assembled.
4.1 Desembalatge
Carefully remove all items from the packaging. Verify that all parts listed in the package contents are present and undamaged.
Image 4.1: Typical package contents including the grinder, auxiliary handle, protection guard, and wrench.
4.2 Fixació de la nansa auxiliar
Screw the auxiliary handle firmly into one of the threaded holes on the gear head. For optimal control and safety, always operate the grinder with the auxiliary handle attached.
4.3 Mounting the Protection Guard
The protection guard is crucial for safety. Loosen the clamping screw on the guard, position it over the spindle collar, and rotate it until it covers the disc as much as possible, directing sparks away from you. Tighten the clampcargol de manera segura.
4.4 Installing Grinding/Cutting Discs
- Assegureu-vos que l'eina estigui desendollada.
- Col·loqueu la brida de suport al cargol.
- Place the appropriate grinding or cutting disc onto the backing flange. Ensure the disc is compatible with the grinder's specifications (100 mm diameter, M10 arbor).
- Screw the flange nut onto the spindle.
- Press the spindle lock button and tighten the flange nut firmly using the provided wrench. Release the spindle lock button.
Imatge 4.2: Frontal view of a Bosch Standard for Metal cutting disc (part number 3165140708692).
Imatge 4.3: Darrere view of a Bosch Standard for Metal cutting disc.
5. Instruccions de funcionament
Always wear appropriate personal protective equipment (PPE) before starting any operation.
5.1 Activació / desactivació
- Per encendre: Push the On/Off switch forward. For continuous operation, press the front part of the switch down until it locks.
- Per apagar: For continuous operation, press the rear part of the On/Off switch. For non-continuous operation, release the switch.
5.2 Tècniques de mòlta i tall
- Mòlta: Apply moderate pressure and move the grinder evenly across the workpiece. Do not press too hard, as this can reduce disc life and motor efficiency.
- Tall: Use a cutting disc and make straight, controlled cuts. Do not apply side pressure to the cutting disc, as this can cause it to bind or shatter.
- Material suitability: This grinder is suitable for metalworking applications.
Image 5.1: An operator demonstrating the use of the angle grinder for metal cutting, showing sparks generated during operation.
Image 5.2: Icon indicating suitability for metalworking applications.
6. Manteniment
Regular maintenance ensures the longevity and safe operation of your angle grinder. Always unplug the tool before performing any maintenance.
- Neteja: Keep the ventilation openings clean to prevent overheating. Use a soft brush or compressed air to remove dust and debris.
- Disc inspection: Regularly check grinding and cutting discs for wear, cracks, or damage. Replace worn or damaged discs immediately.
- Carbon brushes: The motor is equipped with carbon brushes. If the tool experiences reduced power or intermittent operation, the carbon brushes may need inspection or replacement by a qualified service technician.
- Direct Cooling: The tool features direct cooling to enhance overload capability and extend motor life. Ensure air vents are clear for effective cooling.
Image 6.1: Icon representing the Direct Cooling feature.
7. Solució De Problemes
This section addresses common issues you might encounter. For problems not listed here, contact Bosch customer service.
| Problema | Causa possible | Solució |
|---|---|---|
| L'eina no s'inicia | No power supply; Restart Protection activated; Faulty switch | Check power connection; Cycle On/Off switch; Contact service center |
| Reduced power during operation | Worn carbon brushes; Overload; Clogged ventilation slots | Have carbon brushes checked; Reduce pressure; Clean ventilation slots |
| Vibració excessiva | Damaged or improperly mounted disc; Loose components | Inspect and replace disc if damaged; Ensure disc and guard are securely mounted |
| L'eina es sobreescalfa | Clogged ventilation slots; Prolonged heavy use | Clean ventilation slots; Allow tool to cool down; Reduce workload |
8. Especificacions tècniques
Below are the key technical specifications for the Bosch GWS 900-100 Angle Grinder.
| Característica | Especificació |
|---|---|
| Marca | Bosch |
| Número de model | 900-100 |
| Potència nominal d'entrada | 900 W |
| Diàmetre del disc | 100 mm (4 polzades) |
| Fil de cargol | M10 |
| Velocitat de rotació màxima | 12000 RPM |
| Font d'alimentació | Elèctric amb cable |
| Pes de l'article | 2.28 quilos |
| Material | Metall |
| Aïllament | Doble Aïllament |
9. Garantia i assistència
9.1 Informació de la garantia
Please note that this product is stated to have Sense garantia. For any concerns regarding product quality upon receipt, please refer to the retailer's return policy.
9.2 Atenció al client
For technical assistance, spare parts, or service inquiries, please contact your local Bosch service center or authorized dealer. Always provide the model number (GWS 900-100) when seeking support.
