1. Introducció i informació de seguretat
Thank you for choosing the Skandika RB550 Recumbent Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your fitness equipment. Please read all instructions carefully before use and keep this manual for future reference.
Instruccions importants de seguretat
- Consulteu el vostre metge abans de començar qualsevol programa d'exercici.
- Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
- Place the exercise bike on a stable, level surface. Ensure adequate space around the equipment.
- Porteu roba i calçat esportiu adequats.
- Inspeccioneu l'equip per detectar peces desgastades o soltes abans de cada ús. No l'utilitzeu si està danyat.
- El pes màxim de l'usuari per a aquest dispositiu és de 150 kg (330 lliures).
- The maximum user height is 195 cm (6 ft 4 in).
- Aquest producte està dissenyat només per a ús interior.
2. Muntatge i muntatge
The Skandika RB550 is designed for straightforward assembly. Ensure all components are present before beginning. Refer to the included assembly guide for detailed step-by-step instructions.
Característiques clau del muntatge:
- The ergonomic and comfortably padded seat with backrest ensures a comfortable workout.
- The 3-piece crank pedal system provides smooth operation and increased durability.
- Robust feet with height adjustment compensate for uneven floor surfaces.
- Low access design facilitates easy mounting and dismounting.
Imatge: Detallada view of the Skandika RB550's adjustable seat and robust pedals. The seat can be adjusted for optimal positioning, and the pedals are designed for durability.
Image: Skandika RB550 Recumbent Exercise Bike with key dimensions highlighted: 140 cm length, 63 cm width, and 123 cm height. This image also shows the transport wheels for easy relocation.
Transport i emmagatzematge
The RB550 is equipped with transport wheels and handles for easy relocation and storage. Simply tilt the bike and roll it to your desired location.
3. Instruccions de funcionament
Familiarize yourself with the console and its functions before beginning your workout.
Console Functions and Display
The LCD console displays important workout data:
- Distància: Total distance covered during your session.
- Freqüència cardíaca: Measured via hand pulse sensors.
- Hora: Durada del teu entrenament.
- Watts: Power output during exercise.
- Calories: Calories cremades estimades.
- Velocitat: Velocitat ciclista actual.
- Greix corporal: Percentatge de greix corporaltage mesura.
- RPM (Revolucions per minut): Pedal cadence.
Image: Close-up of the Skandika RB550 console, showing the digital display with metrics like pulse, distance, time, watts, calories, and speed. Integrated hand pulse sensors are visible on the handlebars.
Resistance Levels and Programs
- The RB550 features 32 computer-assisted resistance levels, controlled by a magnetic braking system for smooth and quiet operation.
- Trieu entre 14 pre-set training programs or utilize the 1 mode manual to customize your workout intensity.
- The 11 kg (24.25 lbs) flywheel ensures a consistent and fluid pedaling motion.
Bluetooth Connectivity and Apps
The exercise bike is equipped with Bluetooth 4.0, allowing connection to fitness applications.
- iConsole App: Use the iConsole app to store workout data and manage your training.
- Kinomap App: Connect to Kinomap for interactive training experiences, including virtual routes and coaching videos.
- A tablet holder is integrated into the console for convenient device placement.

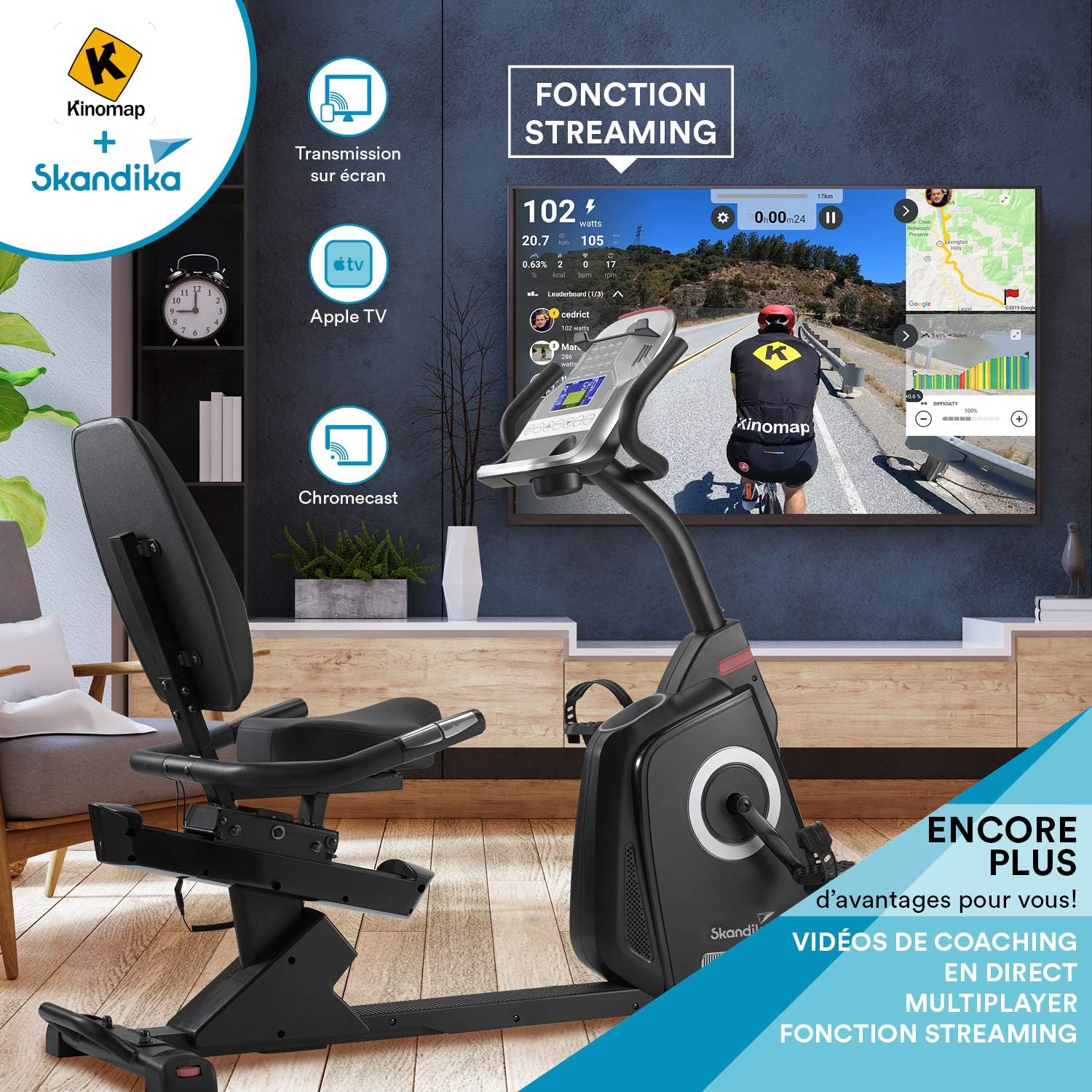

Image: The Skandika RB550 Recumbent Exercise Bike demonstrating its compatibility with Kinomap and streaming functions. A tablet is shown on the console, displaying an interactive virtual route, and the workout is mirrored to a larger screen.
4. Manteniment
Regular maintenance ensures the longevity and optimal performance of your Skandika RB550.
- Neteja: Netegeu l'equipament amb anuncisamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
- Inspecció: Comproveu periòdicament tots els cargols, femelles i peces mòbils per assegurar-vos que estiguin ben ajustats i que no estiguin desgastats. Estrenyeu qualsevol element de fixació solt.
- Lubricació: The magnetic braking system and belt drive are low-maintenance and generally do not require lubrication.
- Emmagatzematge: Store the exercise bike in a dry, cool place away from direct sunlight and extreme temperatures.
5. Solució De Problemes
If you encounter issues with your Skandika RB550, refer to the following common solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La consola no mostra les dades | Loose power cable or battery issue | Ensure the power cable is securely connected. Check and replace batteries if applicable. |
| La resistència no canvia | Control cable disconnected or motor issue | Check the connection of the resistance control cable. If the problem persists, contact customer support. |
| Bicicleta inestable o inestable | Uneven surface or loose stabilizers | Adjust the height stabilizers on the feet to level the bike. Ensure all assembly bolts are tightened. |
| Problemes de connectivitat Bluetooth | App compatibility, device settings, or interference | Ensure Bluetooth is enabled on your device. Restart the app and the exercise bike. Check app permissions. Try disconnecting other Bluetooth devices. |
| Lectures de freqüència cardíaca inexactes | Improper hand placement or dry hands | Ensure both hands are firmly and fully placed on the pulse sensors. Lightly moisten your hands if they are too dry. |
6. Especificacions
Detailed technical specifications for the Skandika RB550 Recumbent Exercise Bike:
- Model: RB550
- Sistema de resistència: Magnetic Brake System
- Nivells de resistència: 32 computer-assisted levels
- Flywheel Mass: 11 kg (24.25 lliures)
- Sistema d'accionament: Accionament per cinturó
- Programes: 14 pre-set, 1 manual mode
- Pantalla de la consola: LCD (Distance, Heart Rate, Time, Watts, Calories, Speed, Body Fat, RPM)
- Connectivitat: Bluetooth 4.0 (iConsole, Kinomap compatible)
- Monitorització de la freqüència cardíaca: Sensors de pols manual
- Màx. Pes de l'usuari: 150 kg (330 lliures)
- Alçada màxima de l'usuari: 195 cm (6 peus i 4 polzades)
- Assembled Dimensions (L x W x H): 140 x 63 x 123 cm (55.1 x 24.8 x 48.4 polzades)
- Pes del producte: 39 kg (86 lliures)
- Font d'alimentació: Cable elèctric
- Característiques especials: Low access, adjustable padded seat with backrest, tablet holder, transport wheels.
7. Garantia i Suport
Skandika is committed to providing high-quality products and excellent customer service.
Atenció al client
Skandika offers customer support in multiple languages, including English, German, French, Spanish, and Italian. For assistance with assembly, operation, or any product-related inquiries, please contact Skandika customer service.
Skandika is a German company with headquarters in Essen, Germany, and service centers in Hamburg (Germany) and Leicester (United Kingdom). They also provide a spare parts service.
Image: Map showing Skandika's key locations including headquarters in Essen, Germany, warehouse and after-sales service in Hamburg, Germany, and after-sales service in Leicester, UK, along with a London office.
For more information or to visit the official store, please refer to the Skandika Brand Store.
