Alpicool ALPFBM
Manual d'usuari de la nevera portàtil Alpicool T36
Model: ALPFBM
1. Introducció
Thank you for choosing the Alpicool T36 Dual Temperature Control Portable Refrigerator. This compact fridge and mini freezer is designed for versatile use with both 12/24V DC and 110-240V AC power inputs, making it ideal for car and home use. With a 38-quart (36-liter) capacity, it offers powerful chilling performance from -4°F (-20°C) to 50°F (10°C) and features a detachable sensor divider for dual temperature control.

Image: The Alpicool T36 portable refrigerator, showcasing its compact design with wheels and handle for easy transport.

Imatge: Un cop mésview of the Alpicool T36's key features, including compressor refrigeration, low voltage protection, mute low noise operation, built-in LED light, wide temperature range (-4°F to 68°F), and anti-shaking design.
2. Instruccions de seguretat
- Llegiu totes les instruccions abans d’utilitzar l’aparell.
- No feu servir l'aparell si està danyat.
- Assegureu-vos que hi hagi una ventilació adequada al voltant de la unitat. No bloquegeu les reixetes de ventilació.
- Mantingueu l'aparell lluny de fonts de calor i de la llum solar directa.
- Use only the provided power cables.
- No submergiu l'aparell en aigua.
- Desendolleu l'aparell abans de netejar-lo o fer-ne el manteniment.
- Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
- Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
3. Contingut del paquet
Si us plau, comproveu el contingut del paquet en desempaquetar-lo:
- Alpicool T36 Portable Refrigerator
- Cable d'alimentació de 12/24V CC (per a ús al cotxe)
- 110-240V AC Power Cable (for home use)
- Manual d'usuari (aquest document)
- Detachable Sensor Divider (pre-installed or separate)
- Internal Basket (pre-installed)
4. Configuració
4.1 Connexió d'alimentació
The Alpicool T36 can be powered by both DC and AC sources.
- For Car Use (12/24V DC): Connect the DC power cable to the refrigerator's DC input port and then to your vehicle's 12V or 24V power outlet (cigarette lighter socket).
- Per a ús domèstic (110-240 V CA): Connect the AC power cable to the refrigerator's AC input port and then to a standard wall outlet.
Assegureu-vos que la font d'alimentació coincideixi amb el voltage requirements of the unit. The unit is also compatible with small solar systems.
4.2 Col·locació
Place the refrigerator on a flat, stable surface. Ensure there is adequate space around the unit for proper ventilation, especially around the air vents.
5. Instruccions de funcionament
5.1 Tauler de control acabatview
The control panel allows you to adjust settings and monitor the refrigerator's status.

Image: Diagram illustrating the control panel and the dual temperature zone functionality of the Alpicool T36, showing how the detachable divider creates two separate compartments.
- Visualització de la temperatura: Shows the current temperature inside the compartments.
- Botons d'ajust de temperatura (+/-): Used to increase or decrease the target temperature.
- Botó de configuració: Accesses additional settings.
- Botó d'encesa: Encén o apaga la unitat.
- Icona de la bateria: Indicates battery protection level.
5.2 Dual Temperature Control
The Alpicool T36 features a detachable sensor divider, allowing you to operate it as a single temperature zone or two independent temperature zones.

Imatge: Una imatge superior view of the Alpicool T36 interior, clearly showing the removable divider that separates the two compartments, enabling dual temperature control.
- With Divider: When the detachable sensor divider is in place, the unit operates as two separate zones. The icons under the screen indicate "Left Zone" and "Right Zone".
- Switching Zones: To switch the left zone on/off, press the "upper +" and "-" buttons simultaneously for three seconds.
- Without Divider (Single Zone): If the divider is removed, the two zones merge into a single large compartment. The lower screen will turn off, and temperature control will be managed solely by the upper screen.
5.3 Configuració de la temperatura
The unit can achieve temperatures from -4°F (-20°C) to 50°F (10°C). Use the "+" and "-" buttons to set your desired temperature for each active zone.

Image: A visual guide demonstrating various applications and recommended temperatures for the Alpicool T36, including fruit at 50°F, seafood at -4°F, beer at 42°F, ice cream at 0°F, skin care at 42°F, and beef at -4°F.
Refer to the image above for common temperature recommendations for various items.
5.4 Protecció de la bateria
The unit features a multi-level battery protection system to prevent your vehicle battery from draining. You can adjust the protection level (High, Medium, Low) via the settings menu. Refer to the control panel section for details on accessing settings.
6. Manteniment
6.1 Neteja
- Desconnecteu sempre la unitat abans de netejar-la.
- Netegeu l'interior i l'exterior amb anunciamp drap i detergent suau.
- No utilitzeu netejadors abrasius ni dissolvents.
- Ensure the unit is dry before plugging it back in.
- Clean the air vents regularly to ensure proper airflow and cooling efficiency.
6.2 Emmagatzematge
When storing the refrigerator for extended periods, ensure it is clean, dry, and unplugged. Leave the lid slightly ajar to prevent odors and mold growth.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | Sense alimentació, cable defectuós, baix volumtage. | Check power connection. Ensure power source is active. Adjust battery protection level if in car. |
| La unitat no refreda prou. | Blocked vents, ambient temperature too high, overfilled. | Clear vents. Move to cooler area. Do not overfill. Ensure lid is properly closed. |
| La pantalla mostra el codi d'error. | Falla interna. | Consulteu el codi d'error específic en un manual més detallat (si n'hi ha) o poseu-vos en contacte amb el servei d'atenció al client. |
| Soroll excessiu. | Unitat no anivellada, obstrucció del ventilador. | Place on a level surface. Check for obstructions around the fan. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb el servei d'atenció al client d'Alpicool.
8. Especificacions
| Característica | Especificació |
|---|---|
| Model | ALPFBM (T36) |
| Capacitat | 38 quarts (36 litres) |
| Dimensions exteriors (L x A x A) | 28.46 x 14.17 x 14.49 polzades |
| Pes de l'article | 30.8 lliures |
| Voltage | DC 12V/24V, AC 110-240V |
| Wattage | 60 watts |
| Interval de temperatura | -4 °F a 50 °F (-20 °C a 10 °C) |
| Característiques especials | Portable, Dual Temperature Control, Built-in LED light, Internal basket, Foldable handle, Wheels |

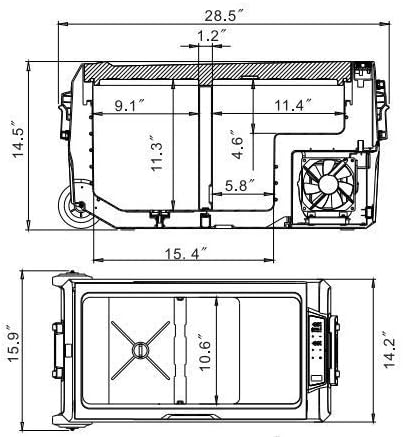

Image: Detailed technical diagram showing the precise dimensions of the Alpicool T36 portable refrigerator, including internal compartment measurements.
9. Garantia i Suport
Alpicool products are designed for reliability and performance. For warranty information and customer support, please refer to the warranty card included with your product or visit the official Alpicool weblloc.
També podeu visitar el Botiga Alpicool a Amazon per a més informació i opcions de contacte.
