HABOTEST HT106B Socket Tester User Manual

1. Introducció

The HABOTEST HT106B Socket Tester is a compact and portable device designed for quick and accurate detection of socket wiring status. It features RCD (Residual Current Device) or GFCI (Ground Fault Circuit Interrupter) testing capabilities and voltage measurement with an LCD display. This manual provides essential information for safe and effective use of the device in various settings, including schools, laboratories, and factories.

Image 1: HABOTEST HT106B Socket Tester alongside its user manual.

2. Instruccions de seguretat

⚠ Avís:

• Always read this instruction manual carefully before use and strictly observe all safety rules, cautions, and warnings.
• To avoid possible electric shock or personal injury, always check the tester carefully for any damage before use. If any damage is found, discontinue use immediately and send it for repair.
• Ensure the RCD test is performed only under correct wiring conditions.
• When performing an RCD test, ensure all equipment on the power line is closed to prevent power failure or harm. Obtain permission if testing in public places.

3. Configuració

The HT106B Socket Tester is designed for immediate use. Simply plug the device into a standard three-hole power outlet to begin testing.

Imatge 2: Lateral view of the HT106B Socket Tester, showing the plug pins.

4. Instruccions de funcionament

4.1. Voltage Prova

Insert the tester into a standard three-hole power outlet. The socket voltage value will be displayed on the tester's LCD screen in Volts (V).

• The test duration should not exceed 5 minutes.
• Exercise caution to avoid touching the RCD button during voltage testing to prevent accidental tripping of the leakage protection switch.

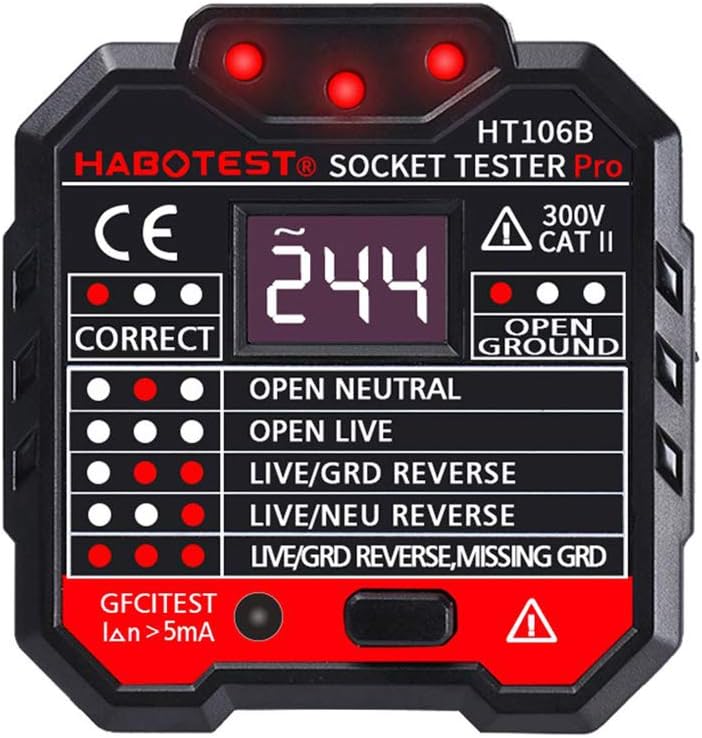

Imatge 3: Frontal view of the HT106B Socket Tester displaying a voltage reading on its LCD screen.

4.2. RCD (or GFCI) Test

Insert the tester into a correctly wired three-hole power socket. Press the RCD/GFCI test button for less than 3 seconds. A properly functioning RCD/GFCI should trip (turn off the power) at this time. If the RCD/GFCI does not trip, it indicates a failure and requires professional electrician maintenance.

• The test duration should not exceed 5 minutes.
• RCD and GFCI functions cannot be used simultaneously.

4.3. Wiring Status Detection

The HT106B Socket Tester uses a series of indicator lights to quickly identify the wiring status of the socket. Refer to the functional control table and indicator results below to interpret the findings.

Image 4: Excerpt from the manual detailing RCD test instructions and the functional control table.

Image 5: Chart illustrating the indicator light patterns and their corresponding wiring test results.

Note: This tester cannot distinguish between neutral line and ground wire reverse.

5. Manteniment

Neteja

Clean the tester with a soft, damp cloth. Do not use abrasive cleaners or other chemicals, as they may damage the device. Ensure the tester is completely dry before its next use.

6. Solució De Problemes

• RCD/GFCI does not trip during test: This indicates that the RCD/GFCI has failed. Immediately contact a professional electrician for inspection and repair.
• Wiring fault detected (e.g., Open Ground, Live/GRD Reverse): If the tester indicates a wrong connection, consult a professional electrician to repair the wiring. Do not attempt to fix faulty wiring yourself unless you are qualified.

7. Especificacions
