EMANER 0508A Outdoor Solar Flood Light User Manual

1. Introducció

Thank you for choosing the EMANER Outdoor Solar Flood Light. This manual provides essential information for the safe and efficient operation of your solar light. Please read it thoroughly before installation and use, and retain it for future reference.

This solar flood light is designed for outdoor use, providing illumination for yards, gardens, driveways, and other outdoor areas. It features a motion sensor, dusk-to-dawn functionality, and a durable, waterproof design.

2. Informació de seguretat

• Assegureu-vos que el panell solar rebi la llum solar directa per a una càrrega òptima.
• Do not disassemble or modify the product, as this may void the warranty and cause damage.
• Mantingueu el producte allunyat del foc o de temperatures elevades.
• Avoid submerging the product in water, despite its waterproof rating.
• Handle the product with care during installation to prevent damage.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents al paquet:

• 2x EMANER Solar Flood Lights
• 2x Spike Stakes
• 4x Extension Poles
• Maquinari de muntatge (cargols, tacs de paret)
• Bateries (preinstal·lades)

4. Producte acabatview

The EMANER 0508A solar flood light features a high-efficiency solar panel, dual adjustable LED light heads, and an integrated motion sensor. It is powered by a 5000mAh battery for extended operation.

Image: Two EMANER 0508A solar flood lights, showing the solar panel and dual light heads.

Característiques principals:

• Bateria d'alta capacitat: Equipped with a 5000mAh battery for long-lasting illumination.
• Classificació impermeable IP65: Dissenyat per suportar diverses condicions meteorològiques a l'aire lliure.
• Panell solar eficient: Larger solar panel (7"x6") for improved charging efficiency.
• Components ajustables: Both the solar panel and dual light heads can be rotated 360 degrees for optimal positioning.
• Sensor de moviment: Detects movement to activate bright lighting.
• Funció de la posta de sol a l'alba: S'encén automàticament a la nit i s'apaga durant el dia.

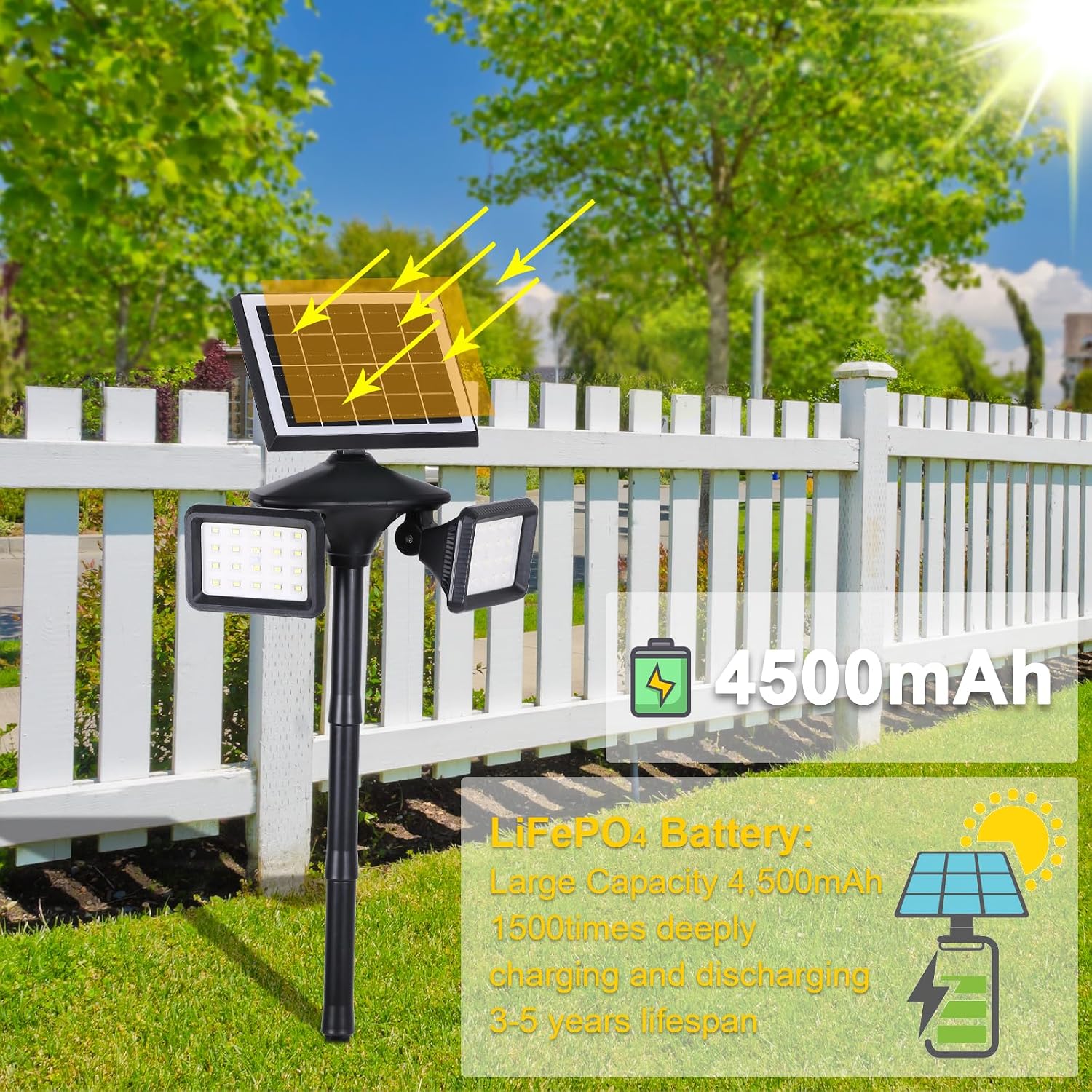

Image: A solar light installed in a garden, highlighting its 4500mAh LiFePO4 battery with a 3-5 year lifespan and 1500 deep charge cycles.

Image: A comparison showing the EMANER light with a larger 41.3 sq inch solar panel and 1200 lumen brightness versus a smaller 15 sq inch panel with 600 lumen brightness.

5. Configuració i instal·lació

The EMANER solar flood light offers two primary installation methods: wall-mount and in-ground mount.

Configuració inicial:

1. Before first use, ensure the light is switched to the 'ON' position.
2. Place the solar panel in direct sunlight for at least 6-8 hours to fully charge the battery.

Instal·lació a la paret:

1. Choose a location on a wall or vertical surface that receives ampla llum solar directa.
2. Feu servir el suport de muntatge proporcionat com a plantilla per marcar els forats.
3. Perforar forats i inserir taps de paret.
4. Fixeu el suport de muntatge a la paret amb cargols.
5. Attach the solar light unit to the mounting bracket.
6. Adjust the solar panel and light heads to the desired angles.

Instal·lació enterrada:

1. Assemble the extension poles and spike stake.
2. Attach the solar light unit to the top of the assembled pole.
3. Select a spot in your yard or garden that receives direct sunlight.
4. Gently push the spike stake into the ground until it is stable.
5. Adjust the solar panel and light heads to the desired angles.

Image: A four-panel image illustrating the assembly of the pole for in-ground mounting and the drilling process for wall mounting.

Image: A diagram showing the dimensions of the solar light unit, solar panel, and included ground-mount and wall-mount components.

Imatge: Dos examples showing the solar light installed, one wall-mounted on a house and one in-ground in a garden.

6. Instruccions de funcionament

The EMANER solar flood light features multiple lighting modes controlled by a single button.

Selecció del mode:

Press the power button located on the unit to cycle through the following modes:

• 1st Press (Mode 1 - Dim + Motion Sensor): The light stays on at a dim level. When motion is detected, it brightens to full intensity for approximately 30 seconds, then returns to dim.
• 2nd Press (Mode 2 - Motion Sensor Only): The light remains off. When motion is detected, it turns on at full intensity for approximately 30 seconds, then turns off completely.
• 3rd Press (Mode 3 - Steady Light): The light stays on at a medium brightness level throughout the night (dusk to dawn), regardless of motion.
• 4th Press (OFF): El llum s'apaga.

Image: A visual representation of the three lighting modes: Dim with motion, Off with motion, and Steady On.

Image: An outdoor scene at night demonstrating the 'Dim Light + Motion Sensor Mode', where the light brightens upon detecting a person.

Image: An outdoor scene at night demonstrating the 'Motion Sensor Mode', where the light turns on only when a person is detected.

Image: An outdoor scene at night demonstrating the 'Stay On Mode', where the light provides continuous medium brightness.

Funció de la posta de sol a l'alba:

The integrated photocell sensor automatically detects ambient light levels. The light will turn on when it gets dark and turn off when it becomes light, conserving battery life.

Image: A split image showing the solar light automatically turning off during the day (sun icon) and turning on at night (moon icon).

7. Manteniment

Neteja del panell solar:

Netegeu regularment la superfície del panell solar amb un drap suau i sec.amp drap per eliminar la pols, la brutícia o les restes. Un panell net garanteix la màxima absorció de la llum solar i l'eficiència de càrrega.

Substitució de la bateria:

The product uses a 5000mAh LiFePO4 battery. While designed for long life, if battery performance significantly degrades over time, it can be replaced. Consult a qualified technician or contact EMANER support for guidance on battery replacement.

Durabilitat a tot temps:

The light is designed for all-weather use, featuring IP65 waterproofing, heat resistance, and frost resistance.

Image: A solar light in a rainy environment, highlighting its heat resistance, frost resistance, anti-corrosion properties, and waterproof design.

Image: A three-panel image showing the solar light functioning in rain, sunny weather, and snowy conditions, emphasizing its IP65 waterproof rating and resistance to heat and frost.

8. Solució De Problemes

If you encounter issues with your EMANER solar flood light, refer to the following common problems and solutions:

• El llum no s'encén a la nit:
  • Assegureu-vos que l'interruptor d'alimentació estigui a la posició "ON".
  • Verify the solar panel is receiving direct sunlight for at least 6-8 hours daily.
  • Check for obstructions blocking sunlight to the solar panel.
  • Ensure the light is not installed near other strong light sources (e.g., streetlights) that might trigger the dusk-to-dawn sensor to keep it off.
• Light runtime is short:
  • The solar panel may not be fully charged. Ensure it receives maximum direct sunlight.
  • Clean the solar panel surface to remove any dirt or debris.
  • Battery performance may be affected by prolonged cloudy weather or cold temperatures.
• Motion sensor is not working:
  • Ensure the light is in Mode 1 or Mode 2.
  • Check for obstructions blocking the sensor's field of view.
  • Verify the sensor is positioned correctly to detect motion in the desired area.

9. Especificacions

10. Garantia i Suport

Informació de la garantia:

This EMANER product comes with a limited warranty. For specific details regarding warranty coverage and duration, please refer to your purchase documentation or contact EMANER customer support.

Atenció al client:

If you have any questions, require technical assistance, or need to make a warranty claim, please contact EMANER directly. You can typically find contact information on the product packaging, the seller's page, or by searching for EMANER customer support online.

Image: A visual guide indicating where to find the 'Ask a question' button to contact EMANER for support.
