1. Instruccions de seguretat importants
Please read all safety instructions carefully before installing or operating your air conditioner. Keep this manual for future reference.
- Instal·lació professional: Installation, maintenance, and repair should only be performed by qualified service personnel. Improper installation can lead to electric shock, fire, or water leakage.
- Font d'alimentació: Assegureu-vos que la font d'alimentació voltagCoincideix amb les especificacions de la unitat. No utilitzeu cables d'alimentació ni endolls danyats.
- Ventilació: Assegureu-vos que hi hagi una ventilació adequada al voltant de la unitat exterior per evitar el sobreescalfament.
- Refrigerant: This unit uses R32 refrigerant. Do not discharge refrigerant into the atmosphere. Contact a qualified technician for any refrigerant-related issues.
- Nens i animals de companyia: Mantingueu els nens i les mascotes allunyats de la unitat durant el funcionament i el manteniment.
- Neteja: Always disconnect power before cleaning the unit. Use a soft, dry cloth for cleaning. Do not use water directly on electrical components.
2. Producte acabatview
The Sanyo 1.5 Ton Dual Inverter Split AC is designed for efficient cooling and improved air quality in medium-sized rooms (up to 180 sq ft). It features a dual inverter compressor for energy efficiency and low noise operation.

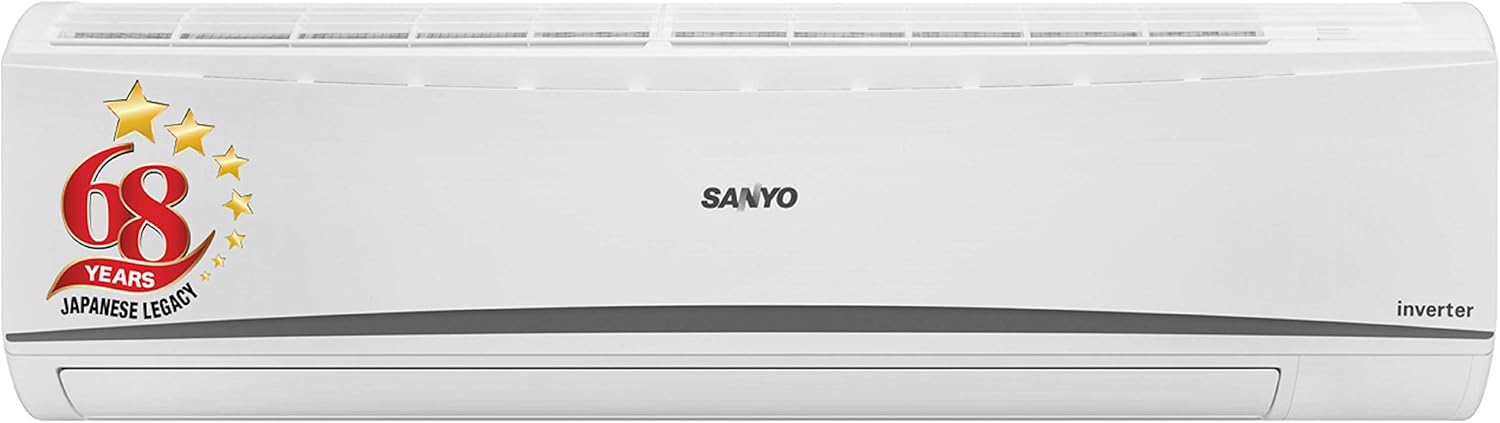

Figure 2.1: Sanyo 1.5 Ton Dual Inverter Split AC Indoor Unit. This image shows the sleek white indoor unit of the Sanyo air conditioner, designed to blend seamlessly into modern interiors.
Figura 2.2: Característiques clauview. This graphic highlights the main features of the Sanyo AC, including its inverter compressor, low noise level (43 dB), copper condenser, R32 refrigerant gas, annual power consumption (840.75 units), ability to cool even at 52°C, and PM 2.5 filter.
Components inclosos:
- Unitat interior
- Unitat exterior
- Muntatge de canonades
- Control remot
- Piles AAA (per al comandament a distància)
- Indoor to Outdoor Power Supply Cord
- Indoor to Main Power Supply Cord
- Manual de muntatge
- Targeta de garantia
Comandament a distància:
The remote control allows you to conveniently operate all functions of your Sanyo AC. Familiarize yourself with its buttons and display.
Figure 2.3: Sanyo AC Remote Control. This image displays the remote control unit, showing various buttons for mode selection, temperature adjustment, fan speed, timer, and special features like Glacier mode.
3. Configuració i instal·lació
For optimal performance and safety, professional installation of the Sanyo Split AC is highly recommended. Ensure the installation site meets the following criteria:
- Ubicació: Choose a location for the indoor unit that allows for even air distribution throughout the room and is away from direct sunlight or heat sources. The outdoor unit should be placed in a well-ventilated area, away from obstructions.
- Dimensions: Consider the dimensions for proper placement and air circulation.
Figure 3.1: Indoor Unit Dimensions. The indoor unit measures 100 cm (W) x 29.5 cm (H) x 23 cm (D), designed for wide air circulation.

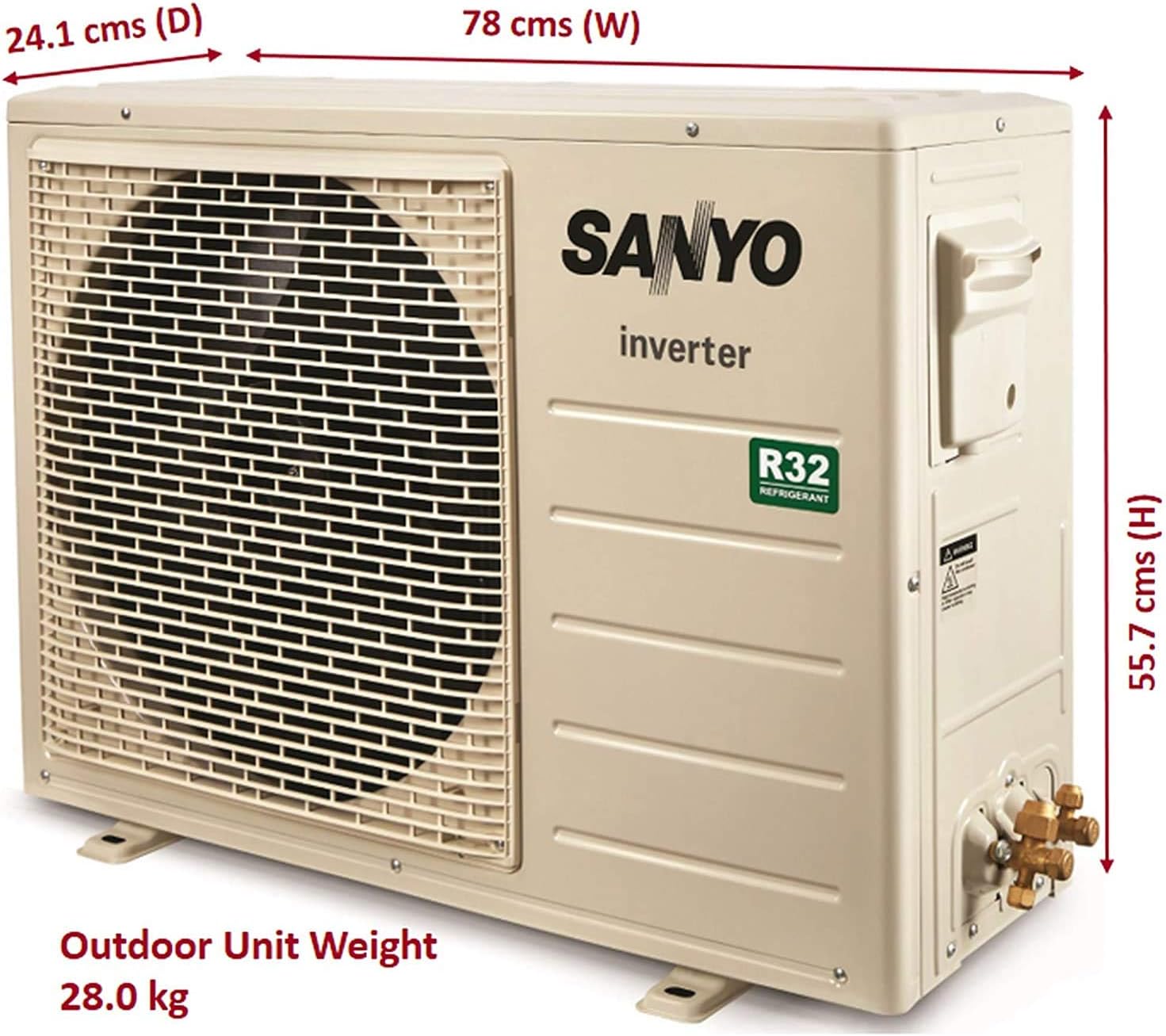

Figure 3.2: Outdoor Unit Dimensions. The outdoor unit measures 78 cm (W) x 55.7 cm (H) x 24.1 cm (D) and weighs 28.0 kg.
- Requisits d'alimentació: The unit supports stabilizer-free operation within a voltage range of 100V-290V. Ensure a dedicated power circuit is available.
- Tuberia: The piping assembly connects the indoor and outdoor units. Ensure proper insulation and sealing to prevent refrigerant leakage.
4. Instruccions de funcionament
Funcionament bàsic:
- Encès/apagat: Premeu el botó ON/OFF botó del comandament a distància per encendre o apagar la unitat.
- Selecció del mode: Premeu el botó MODE button to cycle through available modes: Cool, Dry, Fan, and Auto.
- Ajust de temperatura: Utilitza el TEMP UP i BAIXA DE TEMPERATURA fletxes per ajustar la temperatura desitjada.
- Velocitat del ventilador: Premeu el botó LA VELOCITAT DEL VENTILADOR botó per ajustar la velocitat del ventilador (Automàtic, Baixa, Mitjana, Alta).
- Air Swing: Utilitza el OSCIL · LACIÓ D'AIRE button to adjust the vertical airflow direction.
Característiques especials:
- Glacier Mode: Activates instant cooling for rapid temperature reduction. Press the GLACER botó del comandament a distància.
- Filtre PM 2.5: The in-built PM 2.5 filter helps purify the air by removing fine particulate matter, improving indoor air quality.
- Tecnologia de doble inversor: The variable speed inverter compressor with two rotors adjusts power based on heat load, ensuring energy efficiency and quiet operation.
- Funcionament sense estabilitzador: The unit is designed to operate reliably within a wide voltage range (100V-290V) without the need for an external stabilizer.
- Mode de repòs: Optimitza la temperatura i la velocitat del ventilador per a un son còmode i alhora estalvia energia.
Figure 4.1: Advanced Features. This image highlights key technologies such as Dual Inverter, Glacier Mode for instant cooling, PM 2.5 Filter, Stabilizer Free Operation, and the use of R32 refrigerant. It also mentions the extensive network of 350+ service centers.
5. Manteniment
Regular maintenance ensures the longevity and efficient operation of your Sanyo AC. Always disconnect power before performing any maintenance.
Neteja de filtres:
- The PM 2.5 filter and anti-dust filter should be cleaned regularly, typically every two weeks or more often depending on usage and air quality.
- Obriu el panell frontal de la unitat interior.
- Traieu els filtres amb cura.
- Clean the filters with a vacuum cleaner or wash them gently with lukewarm water. Allow them to dry completely in a shaded area before reinserting.
Neteja de la unitat:
- Netegeu l'exterior de la unitat interior amb un drap suau i sec.amp drap. No utilitzeu detergents forts ni productes de neteja abrasius.
- Periodically check the outdoor unit for any debris accumulation around the condenser coils. Clear any leaves, dirt, or other obstructions.
Controls de temporada:
- Before the cooling season, ensure all components are clean and free from damage.
- Check for any unusual noises or odors during operation. If detected, contact a qualified service technician.
6. Solució De Problemes
Abans de contactar amb el servei tècnic, comproveu els següents problemes habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | No power supply; Remote control batteries low/dead | Comproveu la connexió d'alimentació i l'interruptor automàtic; substituïu les piles del comandament a distància. |
| Refrigeració insuficient | Dirty air filters; Doors/windows open; Temperature setting too high; Obstruction at outdoor unit | Clean air filters; Close doors/windows; Lower temperature setting; Clear obstructions from outdoor unit. |
| Soroll inusual | Loose parts; Obstruction in fan; Unit not level | Check for loose parts; Remove any obstructions; Ensure unit is level. If noise persists, contact service. |
| El comandament a distància no funciona | Batteries dead/incorrectly inserted; Remote out of range; Obstruction between remote and unit | Replace batteries; Ensure remote is within range and pointed at the unit; Remove obstructions. |
If the problem persists after trying these solutions, please contact Sanyo customer support or a qualified service technician.
7. Especificacions
Detailed technical specifications for the Sanyo 1.5 Ton Dual Inverter Wide Split AC:
| Especificació | Valor |
|---|---|
| Marca | Sanyo |
| Model | SI/SO-15T5SCIC |
| Capacitat | 1.5 tones |
| Qualificació energètica | 5 Estrella |
| Consum anual d'energia | 840.75 Unitats |
| ISEER Value | 4.70 |
| Cooling Capacity (100%) | 5100W |
| Gas refrigerant | R32 (Low Global Warming Potential) |
| Nivell de soroll (interior) | 43 dB |
| Tipus de compressor | Dual Inverter (Variable Speed) |
| Bobina del condensador | 100% coure |
| Vol. Operatiutage | 100V-290V (Stabilizer Free Operation) |
| Dimensions de la unitat interior (amplada x alçada x profunditat) | 100 x 29.5 x 23 cm |
| Dimensions de la unitat exterior (amplada x alçada x profunditat) | 78 x 55.7 x 24.1 cm |
| Pes de la unitat interior | 11.8 kg |
| Pes de la unitat exterior | 28.0 kg |
| Característiques especials | Glacier Mode, In-built PM 2.5 filter, Anti-dust filter, Dehumidifier |
Figure 7.1: Energy Efficiency Label. This label provides details on the BEE Star Rating (5 Star), ISEER value (4.70), and annual energy consumption (840.75 units per year) for the Sanyo AC.
8. Garantia i Suport
Sanyo provides comprehensive warranty coverage for your peace of mind:
- Garantia del producte: 1 year on the entire product.
- Condenser Warranty: 1 year on the condenser.
- Garantia del compressor: 5 anys al compressor.
For service requests, technical assistance, or to locate an authorized service center, please refer to the contact information provided in your warranty card or visit the official Sanyo website. Sanyo has an extensive network of over 350 service centers to assist you.
