Sanyo 1.5 Ton 3 Star Dual Inverter Split AC User Manual (Model SI/SO-15T3SCIC)

1. Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Sanyo 1.5 Ton 3 Star Dual Inverter Split Air Conditioner, Model SI/SO-15T3SCIC. Please read this manual thoroughly before using the appliance and retain it for future reference.

The Sanyo SI/SO-15T3SCIC features a dual inverter compressor for energy efficiency, a 100% copper condenser coil for enhanced cooling and durability, and an in-built PM 2.5 filter for improved air quality.

2. Informació de seguretat

ADVERTÈNCIA: La instal·lació, l'ajustament, l'alteració, el servei o el manteniment inadequats poden causar danys a la propietat, lesions o la mort. Llegiu atentament les instruccions d'instal·lació, funcionament i manteniment abans d'instal·lar o donar servei a aquest equip.

Always ensure the unit is installed by a qualified and authorized technician.
Do not attempt to repair or modify the air conditioner yourself. Contact authorized service personnel.
Ensure the power supply matches the unit's specifications and a proper grounding connection is established.
Keep the area around the outdoor unit clear of obstructions to ensure proper airflow.
No introduïu els dits ni objectes a l'entrada/sortida d'aire.
If any abnormal operation or smell occurs, immediately turn off the unit and disconnect the power supply.

3. Producte acabatview

3.1 Components inclosos

The following components are typically included with your Sanyo Split AC unit:

1 unitat interior
1 Unitat exterior
1 Control remot
Manual d'usuari
Targeta de garantia
Piping assembly (3m Copper wire/Interconnecting pipe)
Piles AAA per a comandament a distància
Indoor to outdoor power supply cord
Indoor to main power supply cord

3.2 Característiques clau

Dual Inverter Compressor: Variable speed inverter compressor with two rotors for efficient and quiet operation.
Serpentina del condensador 100% coure: Ensures better cooling performance and requires low maintenance.
Filtre PM 2.5: In-built filter to purify air and improve indoor air quality.
Glacier Mode: Provides instant cooling for rapid temperature reduction.
Funcionament sense estabilitzador: Dissenyat per funcionar dins d'un voltage range of 145V-285V without an external stabilizer.
R32 Refrigerant Gas: Environmentally friendly refrigerant with no ozone depletion potential and low global warming potential.

Figure 1: Sanyo 1.5 Ton Dual Inverter Split AC Indoor Unit.

Sanyo AC Key Features: Dual Inverter, Copper Condenser, Glacier Mode, PM 2.5 Filter, Stabilizer Free Operation, R32 Refrigerant

Figura 2: Mésview of key features including Dual Inverter Technology, Copper Condenser, Glacier Mode, PM 2.5 Filter, Stabilizer Free Operation, and R32 Refrigerant.

4. Configuració i instal·lació

The Sanyo Split AC unit requires professional installation to ensure proper functioning, safety, and warranty validity. Do not attempt to install the unit yourself.

4.1 Comprovacions prèvies a la instal·lació

Ensure the installation site is suitable for both indoor and outdoor units, considering space, drainage, and power supply.
Verify that the electrical wiring meets local codes and the unit's power requirements.
Confirm that the wall where the indoor unit will be mounted is strong enough to support its weight.

4.2 Dimensions de la unitat

Refer to the dimensions below for planning the installation space:

Indoor Unit (WxHxD): 100 x 29.5 x 23 cm
Outdoor Unit (WxHxD): 78 x 55.7 x 24.1 cm
Pes de la unitat interior: 11.8 kg
Pes de la unitat exterior: 27.5 kg

Sanyo AC Indoor Unit Dimensions: 100 cm Width, 29.5 cm Height, 23 cm Depth

Figure 3: Indoor unit dimensions for installation planning.

5. Instruccions de funcionament

Your Sanyo AC unit is controlled via the included wireless remote control. Familiarize yourself with the remote's functions for optimal use.

5.1 Control remotview

Sanyo AC Remote Control with buttons for Power, Mode, Temp, Fan Speed, Glacier, Sleep, Display, Clean, Timer

Figure 4: Sanyo AC Wireless Remote Control.

5.2 Funcionament bàsic

Encès/apagat: Premeu el botó OFF/ON botó per encendre o apagar la unitat.
Selecció del mode: Premeu el botó MODE button to cycle through available modes: Auto, Cool, Dry, Fan.
Ajust de temperatura: Utilitza el TEMP ▲ i TEMP ▼ buttons to increase or decrease the desired temperature.
Velocitat del ventilador: Premeu el botó LA VELOCITAT DEL VENTILADOR botó per ajustar la velocitat del ventilador (Automàtic, Baixa, Mitjana, Alta).

5.3 Funcions especials

Glacier Mode: Premeu el botó GLACER button for rapid cooling. This mode operates at maximum fan speed and lowest temperature setting for a period to quickly cool the room.
Mode de repòs: Premeu el botó DORMIR button to activate sleep mode, which adjusts temperature and fan speed for comfortable sleep and energy saving.
Funció de temporitzador: Utilitza el EL TEMPORITZADOR D'ENCESA i TEMPORITZADOR APAGAT buttons to set specific times for the unit to turn on or off. Press CANCEL·LA per desactivar el temporitzador.
Air Swing: Premeu el botó OSCIL · LACIÓ D'AIRE button to adjust the vertical airflow direction or enable continuous swing.
Funció de neteja: Premeu el botó NETEJA button to activate the self-cleaning function, which helps prevent mold and bacteria growth inside the indoor unit.

6. Manteniment

Regular maintenance ensures optimal performance and longevity of your Sanyo AC unit. Always disconnect power before performing any maintenance.

6.1 Neteja del filtre d'aire

The indoor unit is equipped with an anti-dust filter and a PM 2.5 filter. These should be cleaned regularly, typically every two weeks, or more frequently depending on usage and air quality.

Obriu el panell frontal de la unitat interior.
Traieu els filtres d'aire.
Netegeu els filtres amb un aspirador o renteu-los amb aigua tèbia i un detergent suau.
Esbandiu-les bé i deixeu-les assecar completament en una zona a l'ombra abans de tornar-les a instal·lar.
Tanqueu el panell frontal de manera segura.

6.2 Neteja general

Netegeu l'exterior de la unitat interior amb un drap suau i sec.amp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
Periodically check the outdoor unit for any obstructions (leaves, debris) and clear them carefully.
Assegureu-vos que la mànega de desguàs no estigui obstruïda per evitar fuites d'aigua.

NOTE: For detailed cleaning of internal components or refrigerant checks, contact a qualified service technician.

7. Solució De Problemes

Before contacting service, refer to the following table for common issues and their potential solutions. Many minor problems can be resolved by the user.

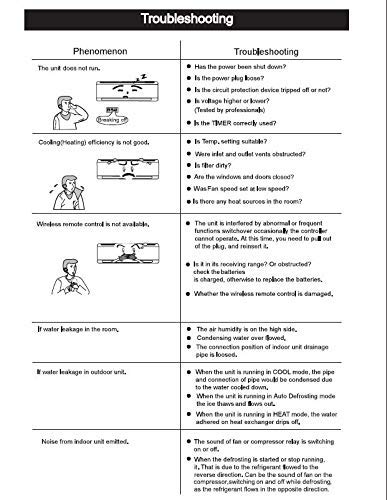

Troubleshooting guide page 1: Unit does not run, Cooling efficiency not good, Wireless remote control not available, Water leakage in room, Water leakage in outdoor unit, Noise from indoor unit

Figure 5: Troubleshooting common issues (Part 1).

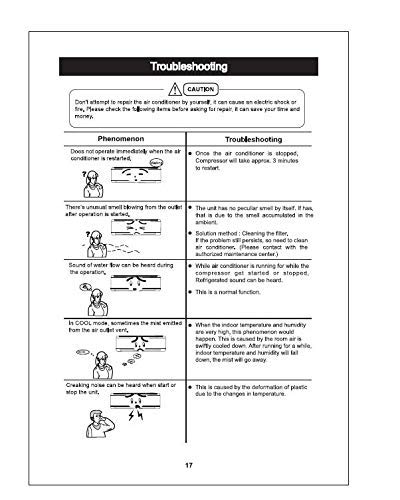

Troubleshooting guide page 2: Unit does not operate immediately when restarted, Unusual smell, Sound of water flow, Mist emitted from air outlet, Creaking noise

Figure 6: Troubleshooting common issues (Part 2).

7.1 Problemes comuns i solucions

Fenomen	Resolució de problemes
La unitat no funciona.	S'ha tancat l'alimentació? Està solt l'endoll? Is the circuit protection device tripped off or not? És voltage higher or lower? (Tested by professionals) Is the TIMER correctly used?
L'eficiència de refrigeració no és bona.	Is the temperature setting suitable? Are the inlet and outlet vents obstructed? El filtre està brut? Are windows and doors closed? Is the fan speed set at low speed? Are there any heat sources in the room?
Wireless remote control is not available.	The unit may be interfered with by abnormal or frequent functional switcher. Pull out the plug, and reinsert it. Is it in its receiving range? Or obstructed? Check the batteries. If discharged, replace them. Check if the wireless remote control is damaged.
If water leakage in the room.	Is the air humidity high? Is condensing water overflowed? Is the connection position of the indoor unit drainage pipe loose?
If water leakage in outdoor unit.	When the unit is running in COOL mode, the pipe and connection of pipe would be condensed due to the water cooled down. When the unit is running in Auto Defrosting mode (ice on the outdoor unit), the water adhered on heat exchanger drips off.
Noise from indoor unit emitted.	The sound of fan or compressor relay is switching on or off. When defrosting is started or stopped, it can be the sound of refrigerant flow.
Does not operate immediately when the air conditioner is restarted.	Once the air conditioner is stopped, the compressor will take approximately 3 minutes to restart. This is a normal function.
There is an unusual smell blowing from the outlet after operation is started.	The unit has no peculiar smell by itself. If it has, that is due to the smell accumulated in the ambient. Solution: Clean the filter. If the problem persists, contact authorized maintenance center.
Sound of water flow can be heard during the operation.	While the air conditioner is running or while the compressor gets started or stopped, refrigerated sound can be heard. This is a normal function.
In COOL mode, sometimes the mist emitted from the air outlet vents.	When the indoor temperature and humidity are very high, this phenomenon could happen. This is caused by the room air being swiftly cooled down. After running for a while, indoor temperature and humidity will fall down, and the mist will go away.
Creaking noise can be heard when starting or stopping the unit.	This is caused by the deformation of plastic due to changes in temperature. This is normal.

CAUTION: Don't attempt to repair the air conditioner by yourself. It can cause an electric shock or fire. Please check the following items before asking for repair. It can save your time and money.

8. Especificacions

Detailed technical specifications for the Sanyo 1.5 Ton 3 Star Dual Inverter Split AC (Model SI/SO-15T3SCIC).

Especificació	Valor
Marca	Sanyo
Model	SI/SO-15T3SCIC
Capacitat	1.5 tones
Classificació d'eficiència energètica	3 Star (as per BEE guidelines on or before 30th June 2022)
Consum anual d'energia	1050.21 quilowatts-hora
ISEER Value	3.80
Nivell de soroll (unitat interior)	43 decibels
Tipus d'instal·lació	Sistema dividit
Factor de forma	Mini-Split
Característiques especials	Air Purification Filter, Dehumidifier, Dust Filter, Inverter, PM 2.5 Filter
Color	Blanc
Consola de control	Control remot
Voltage	230 Volts
Wattage	1680 watts
Gas refrigerant	R32
Capacitat de refrigeració	5150 watts
Fabricant	Panasonic
Item Weight (Indoor Unit)	11.8 kg
Item Dimensions LxWxH (Indoor Unit)	100 x 23 x 29.5 centímetres

Power Savings Guide for Sanyo AC showing 3 Star Energy Efficiency and ISEER 3.80

Figure 7: Energy Efficiency Label (Power Savings Guide).

9. Garantia i Suport

Your Sanyo 1.5 Ton 3 Star Dual Inverter Split AC comes with the following warranty:

Producte: 1 any
Condensador: 1 any
Compressor: 5 anys

For warranty claims, technical assistance, or service requests, please refer to the contact information provided on your warranty card or visit the official Sanyo service website. Ensure you have your purchase details and model number ready when contacting support.

Fabricant: Panasonic
