Manual d'instruccions de l'eix de transmissió posterior Dorman 976-963

1. Producte acabatview

Replacing a drive shaft doesn't have to be complicated. The Dorman 976-963 Rear Drive Shaft is a complete drive shaft assembly that is pre-balanced and ready to install. It features 100% new yokes, tubes, constant velocity (CV) joints, and universal joints, ensuring dependable fit and performance. This part is compatible with select Chevrolet/GMC Models, specifically Chevrolet C3500: 1997; Chevrolet C3500HD: 1997, 1998, 1999, 2000; GMC C3500: 1997; GMC C3500HD: 1997, 1998, 1999, 2000.

Figure 1: Complete Dorman 976-963 Rear Drive Shaft Assembly.

2. Característiques i avantatges principals

• Substitució directa: This drive shaft is manufactured to original equipment dimensions, ensuring a dependable fit and optimal performance.
• Components 100% nous: Constructed entirely from new components, eliminating the need for core charges or the hassle of returning old parts. This includes new tubes, yokes, and universal joints.
• Pre-Balanced for Easy Installation: Arrives pre-balanced to facilitate a quick and straightforward installation process, ensuring smooth operation right out of the box.
• Construcció útil: Features non-staked universal joints, designed for future serviceability. This makes future maintenance simpler, faster, and less expensive compared to OE driveshafts with non-serviceable staked joints.
• Garantia de qualitat: Engineered and validated in the United States. Each drive shaft is balance-checked and backed by a limited lifetime warranty.
• Efficient Shipping: More than 90% of Dorman driveshafts are built, assembled, and shipped from one of three US facilities, allowing most individual orders to ship within 3 days of receipt.
• Multi-Piece Design (for extended lengths): Extended length driveshafts feature a pre-balanced, multi-piece design with a unique "key" feature that prevents incorrect assembly and maintains balance.

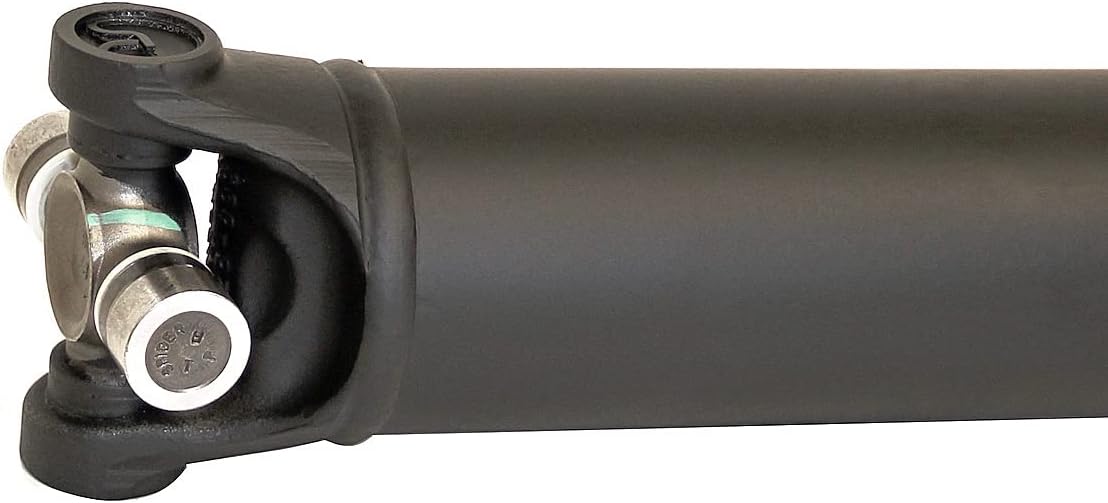

Figura 2: Primer pla view of a driveshaft universal joint, highlighting the new components.

Figura 3: Detallada view of another section of the driveshaft, showing component quality.

Figure 4: Illustration of U-joint serviceability, a key design advantage.

3. Instal·lació i configuració

The Dorman 976-963 drive shaft is designed for direct replacement and comes pre-balanced, simplifying the installation process. While general repair shops may not be equipped for driveshaft rebuilding, installing a new, complete assembly like this one is a more straightforward procedure. Ensure your vehicle is properly supported and secured before beginning any work. Refer to your vehicle's specific service manual for detailed removal and installation steps of the driveshaft. The unique "key" feature on multi-piece driveshafts helps prevent incorrect assembly and maintains proper balance during installation.

Figure 5: The driveshaft is securely packaged, ready for transport and installation.

4. Consideracions operatives

Once properly installed, the Dorman 976-963 Rear Drive Shaft is designed to provide smooth and reliable power transfer to your vehicle's wheels. Due to its pre-balanced nature and new components, it is expected to operate without the vibrations or noise associated with worn or improperly rebuilt driveshafts. Always ensure all mounting hardware is torqued to the manufacturer's specifications to prevent issues during operation.

5. Manteniment

The Dorman 976-963 driveshaft is built with serviceable universal joints. This design allows for easier and more cost-effective future maintenance should the U-joints require replacement. Regular inspection of the driveshaft for any signs of wear, damage, or loose components is recommended as part of your vehicle's routine maintenance schedule. Address any unusual noises or vibrations promptly by consulting a qualified mechanic.

6. Solució De Problemes

As a new, pre-balanced assembly, the Dorman 976-963 driveshaft is designed to minimize common driveshaft issues. If you experience any of the following symptoms after installation, it is recommended to have the vehicle inspected by a professional:

• Vibrations, especially at certain speeds.
• Clunking or banging noises during acceleration or shifting.
• Squeaking or chirping sounds.
• Difficulty in vehicle movement or power transfer.

These symptoms could indicate an installation error, an issue with related driveline components, or, in rare cases, a defect in the part. Always ensure proper fitment for your specific vehicle model using the manufacturer's guidelines.

7. Especificacions

Figure 6: The "Built in the USA" sticker, indicating product origin.

8. Garantia i Suport

The Dorman 976-963 Rear Drive Shaft comes with a garantia limitada de per vida, reflecting the manufacturer's confidence in its quality and durability. For any questions regarding product installation, operation, or warranty claims, please refer to the official user guide or contact Dorman customer support.

• Devolucions: Enjoy 30-day easy returns.
• Guia de l'usuari: A comprehensive user guide is available in PDF format for detailed instructions and information. Descarrega la Guia de l'usuari (PDF)
• Atenció al client: Per obtenir assistència directa, visiteu el Botiga Dorman a Amazon or contact their customer service as per the product packaging.
