1. Introducció
The iJoy Pink Wireless Charger is a 10W fast charging pad designed for Qi-enabled devices. It offers convenient and efficient wireless charging for a variety of smartphones and accessories.
Contingut del paquet:
- 1 x iJoy 10W QI-certified Wireless Charging Pad
- 1 x Cable de càrrega Micro USB
- 1 x manual d'instruccions
Figure 1: Packaging contents including the charging pad, cable, and manual.
2. Guia de configuració
Follow these steps to set up your iJoy Wireless Charging Pad:
- Desembalar: Carefully remove the wireless charging pad and included Micro USB cable from the packaging.
- Connectar l'alimentació: Insert the Micro USB connector of the included cable into the charging port on the wireless charging pad. Connect the standard USB-A end of the cable to a compatible USB power adapter (not included). For fast charging, a QC 3.0/2.0 power adapter is recommended.
- Encès: Plug the USB power adapter into a wall outlet. The charging pad is now ready for use.
3. Instruccions de funcionament
Per carregar el dispositiu sense fils:
- Col·locació: Place your Qi-enabled smartphone or AirPods centrally on the surface of the charging pad. Ensure the device is aligned with the charging coils for optimal performance.
- Confirmació de càrrega: Your device should indicate that it is charging (e.g., a charging icon on the screen). The charging pad may also have an indicator light to show active charging.
- Velocitats de càrrega: The charging pad supports multiple output wattages:
- Càrrega ràpida de 10 W: For compatible Android devices such as Samsung Note 10/10+/S9/S9+/S8/S8+/S7/S10/S10+/S10E, and LG G7 ThinQ/V30/V35/V40.
- Càrrega ràpida de 7.5 W: For compatible iPhone models including iPhone 11/11 Pro Max, Max/XR/XS/X/iPhone 8.
- Càrrega estàndard de 5 W: For Google Pixel 3/3XL/4/4XL and other Qi-enabled devices like AirPods.
- Compatibilitat de casos: The charger can power through most phone cases up to 5mm thick. However, cases containing power banks, magnets, or metal cards should be removed as they can interfere with charging or damage the device.
Figure 2: Proper device alignment for effective charging.
Figure 3: Fast charging capabilities for different devices.

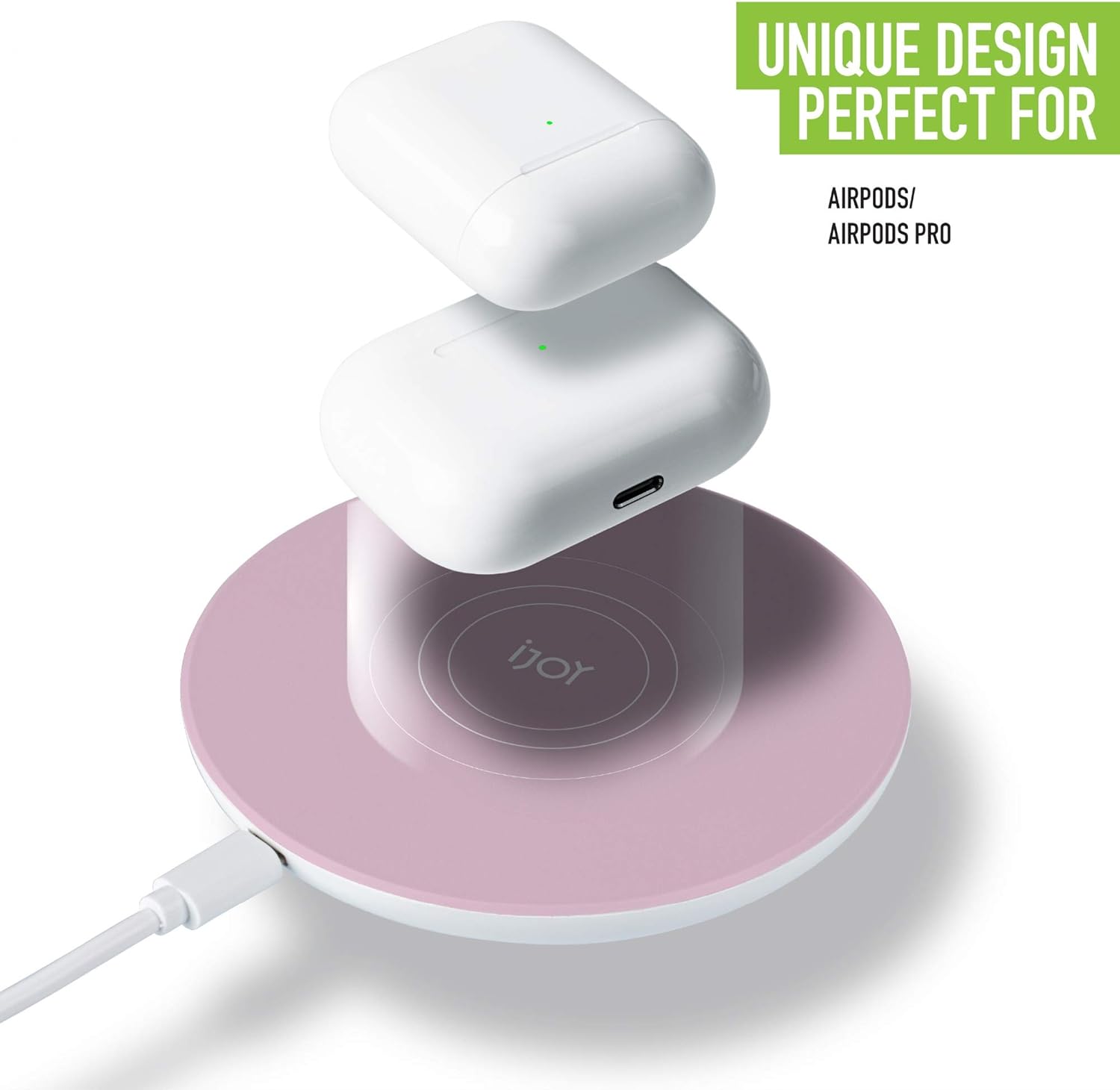

Figure 4: Charging AirPods on the wireless pad.
Figure 5: Case compatibility and items to avoid during charging.
4. Manteniment
To ensure the longevity and optimal performance of your wireless charger:
- Neteja: Use a soft, dry cloth to clean the surface of the charging pad. Do not use abrasive cleaners, solvents, or harsh chemicals.
- Emmagatzematge: Guardeu el carregador en un lloc fresc i sec, lluny de la llum solar directa i de temperatures extremes.
- Manipulació: Avoid dropping the device or subjecting it to strong impacts. Do not disassemble the charger.
5. Solució De Problemes
If you encounter issues with your iJoy Wireless Charging Pad, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no es carrega | 1. Col·locació incorrecta del dispositiu 2. Device not Qi-enabled 3. Connexió de cable solta 4. Foreign objects on pad 5. Incompatible phone case 6. Insufficient power adapter | 1. Reposition device centrally on the pad. 2. Verify device supports Qi wireless charging. 3. Ensure Micro USB cable is securely connected to both the pad and the power adapter. 4. Remove any metal objects, magnets, or credit cards from the charging pad. 5. Remove phone case or use a case thinner than 5mm without metal components. 6. Use a QC 3.0/2.0 compatible power adapter for fast charging. |
| Càrrega lenta | 1. Non-fast charging power adapter 2. Device not optimally aligned 3. Thick phone case | 1. Use a QC 3.0/2.0 compatible power adapter. 2. Adjust device position for central alignment. 3. Remove phone case or use a thinner one. |
| Charger indicator light not on | 1. Sense font d'alimentació 2. Faulty cable/adapter | 1. Check if the power adapter is plugged into a live outlet. 2. Try a different Micro USB cable or power adapter. |
6. Especificacions
| Característica | Detall |
|---|---|
| Marca | iJoy |
| Número de model | IJPB-0004 |
| Color | Rosa |
| Tipus de connector | USB (Micro USB input), Wireless (output) |
| Dispositius compatibles | Qi-enabled Smartphones, AirPods Pro/2nd Gen |
| Models de telèfon compatibles | LG G7, Google Pixel, Samsung Galaxy S20/S10/S9/S8/Note 10, iPhone 11/Pro Max/XR/XS/X/8 |
| Característiques especials | Fast Charging, Temperature Control, Surge Protection, Short Circuit Prevention |
| Potència de sortidatage | 5 W / 7.5 W / 10 W (màx.) |
| Vol. De sortidatage | 5 Volts |
| Font d'alimentació | Elèctric amb cable |
| Certificacions | QI, CE, ROHS, FCC |
| Pes de l'article | 0.14 quilos |
| UPC | 842700136944 |
| ASIN | B0862H55ZT |
7. Informació de la garantia
For detailed warranty information regarding your iJoy Pink Wireless Charger, please refer to the documentation included with your purchase or contact iJoy customer support directly. Warranty terms and conditions may vary.
8. Atenció al client
If you require further assistance or have questions not covered in this manual, please visit the official iJoy store or contact their customer service department.
