FoodSaver FM3943 Vacuum Sealer Instruction Manual

Introducció

The FoodSaver FM3943 Vacuum Sealer is designed to preserve the freshness and flavor of your food by removing air and sealing it in specialized bags or containers. This premium model features moisture control, a marinate function, a built-in handheld sealer, and integrated roll storage with a cutter. By following the instructions in this manual, you can maximize the benefits of your vacuum sealer, extending food freshness up to five times longer than conventional storage methods.

Contingut del paquet

Carefully unpack all items and ensure you have received the following components:

• FoodSaver FM3943 Main Unit x1
• FoodSaver Pack Roll (28cm width) x1
• FoodSaver Vacuum Bags (Size S) x3
• FoodSaver Vacuum Bags (Size L) x2
• FoodSaver Zipper Bags (Size S) x3
• Retractable Handheld Sealer (built-in to main unit) x1

Configuració

1. Col·locació: Place the FoodSaver FM3943 on a flat, stable, and dry surface. Ensure there is enough space around the unit for proper operation and ventilation.
2. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent estàndard de 100 V.
3. Roll Installation (for custom bags):
   • Obriu la tapa de la segelladora al buit.
   • Insert the FoodSaver roll into the designated roll storage area.
   • Pull out enough material from the roll to create a bag of the desired length.
   • Use the built-in roll cutter to cut the material.
   • Place one end of the cut material into the sealing strip area and press the 'Seal' button to create the bottom seal of your custom bag.

Instruccions de funcionament

1. Vacuum Sealing with Bags

1. Prepara la bossa: Place the food item into a FoodSaver vacuum bag. Ensure the open end of the bag is clean, dry, and flat. Leave at least 7-10 cm of space between the food and the top of the bag.
2. Col·locació de la bossa: Open the lid of the vacuum sealer. Place the open end of the bag into the vacuum channel, ensuring it lies flat across the sealing strip. Close the lid firmly until it clicks into place.
3. Seleccioneu el mode (si escau): For moist foods, select the 'Moist' setting. For dry foods, select the 'Dry' setting. This optimizes the sealing process.
4. Començar el segellat: Press the 'Vacuum & Seal' button. The machine will automatically remove air from the bag and then heat-seal it. The indicator light will turn off when the process is complete.
5. Alliberament: Once the light turns off, press the release buttons (usually on the sides) to open the lid and remove your sealed bag.

2. Using the Handheld Sealer for Zipper Bags and Containers

1. Preparar l'element: Place food into a FoodSaver zipper bag or a FoodSaver vacuum container. Close the zipper bag or container lid securely.
2. Attach Handheld Sealer: Pull out the retractable handheld sealer hose from the side of the main unit. Attach the accessory hose to the vacuum port on the zipper bag or container.
3. Comença a aspirar: Press the 'Accessory' button on the main unit. The machine will remove air until a proper vacuum is achieved.
4. Separar: Once vacuuming is complete, detach the handheld sealer from the bag/container and retract the hose back into the unit.

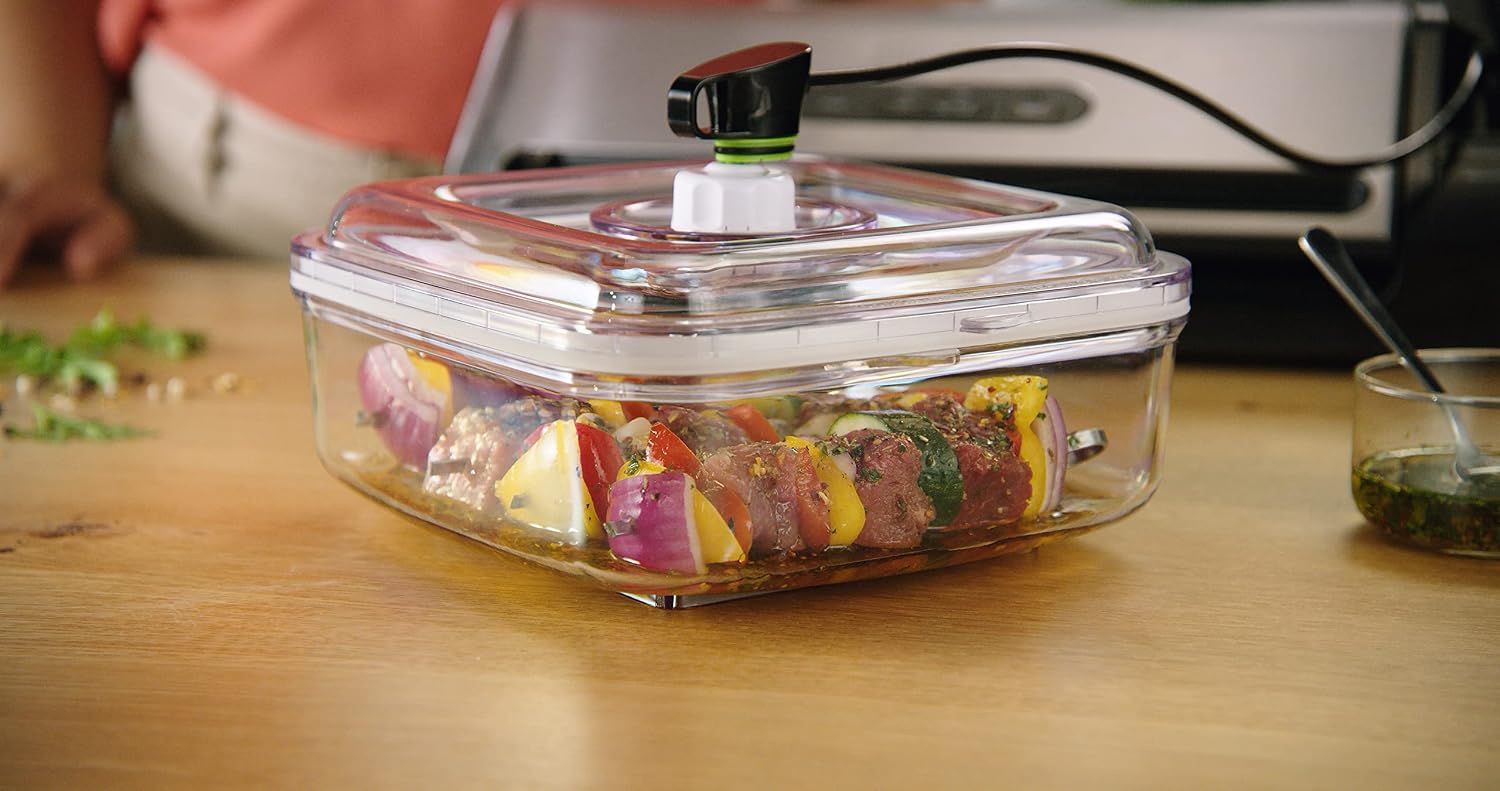

3. Marinate Function

The marinate function uses intermittent vacuum cycles to infuse marinades into food quickly.

1. Preparar menjar: Place food and marinade into a FoodSaver vacuum container. Secure the lid.
2. Connectar: Attach the handheld sealer hose to the container's vacuum port.
3. Start Marinating: Press the 'Marinate' button on the main unit. The machine will cycle through vacuum and release phases for a set period (typically 10-20 minutes).
4. Acabat: Once the cycle is complete, detach the hose and release the vacuum from the container before opening.

Manteniment

Regular cleaning and maintenance ensure the longevity and optimal performance of your FoodSaver FM3943.

• Neteja de la safata de degoteig: The drip tray collects excess liquids during vacuum sealing. It is removable and should be cleaned after each use, especially when sealing moist foods. Wash with warm, soapy water and dry thoroughly.
• Cleaning the Sealing Strip: Wipe the sealing strip and vacuum channel with a damp drap per eliminar qualsevol resta de menjar o humitat. Assegureu-vos que aquestes zones estiguin completament seques abans del proper ús.
• Neteja exterior: Netegeu l'exterior de la unitat amb un damp tela. No submergiu la unitat en aigua ni utilitzeu netejadors abrasius.
• Emmagatzematge: Store the unit with the lid unlatched to prevent compression of the gaskets, which can affect sealing performance over time.

Resolució de problemes

If you encounter issues with your FoodSaver FM3943, refer to the following common problems and solutions:

Especificacions

Garantia i Suport

The FoodSaver FM3943 Vacuum Sealer comes with a Garantia del fabricant de 1 anys des de la data de compra. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.

For warranty claims, technical support, or any questions regarding your product, please contact FoodSaver customer service. Keep your proof of purchase for warranty validation.

For more information and support, visit the official FoodSaver weblloc web o consulteu les dades de contacte que figuren a l'embalatge del producte.
