1. Introducció
Thank you for choosing the Hyper Tough Eyelet Pliers Kit TN50066J. This manual provides essential information for the safe and effective use of your new eyelet pliers. Please read these instructions carefully before operation and retain them for future reference. This kit is designed for setting eyelets in various materials such as fabric, leather, and paper.

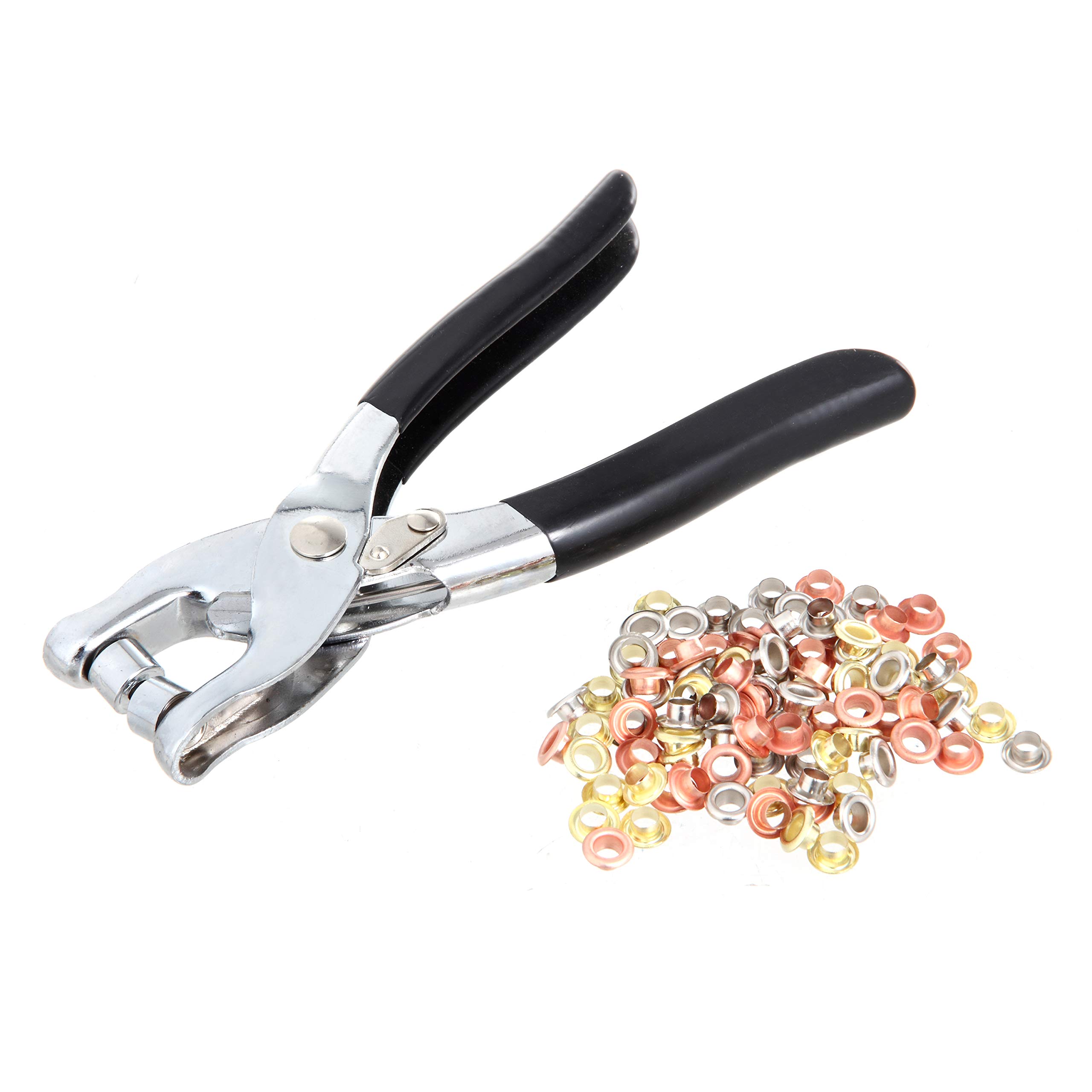

Image: The Hyper Tough Eyelet Pliers Kit TN50066J, showing the pliers with black handles and a chrome finish.
2. Informació de seguretat
WARNING: Always follow basic safety precautions when using hand tools to reduce the risk of personal injury.
- Keep hands and fingers clear of the working area of the pliers to prevent pinching.
- Utilitzeu equips de protecció individual adequats, com ara ulleres de seguretat, per protegir-vos de les deixalles que suren volant.
- Do not use the pliers for purposes other than setting eyelets.
- Mantenir fora de l'abast dels nens.
- Inspect the tool before each use for any damage. Do not use if damaged.
- Ensure the material being worked on is stable and secure.
3. Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació siguin presents al vostre paquet:
- 1 x Eyelet Pliers
- Approximately 100 x Assorted Eyelets (shoe or belt eyelets)
Image: The Hyper Tough Eyelet Pliers Kit in its retail packaging, showing the pliers and a clear blister pack containing assorted eyelets.
Imatge: Un primer pla view of the assorted metallic eyelets (gold, silver, copper tones) included with the kit.
4. Configuració
The Hyper Tough Eyelet Pliers are ready for use directly out of the package. No assembly is required. Familiarize yourself with the tool's components:
- Punching Die: The pointed part used to create a hole in the material.
- Setting Die: The cup-shaped part that crimps the eyelet.
- Nanses: For gripping and applying pressure.
Imatge: Una imatge detallada view of the eyelet pliers' working end, showing the punching die and the setting die.
5. Instruccions de funcionament
Follow these steps to effectively use your eyelet pliers:
5.1 Preparació del material
- Identify the desired location for the eyelet on your material.
- Ensure the material is clean and free from obstructions.
5.2 Punching a Hole
- Open the pliers and position the material between the punching die (pointed part) and the flat base of the setting die.
- Align the punching die with the desired hole location.
- Firmly squeeze the handles together until the punching die pierces through the material, creating a clean hole.
- Release the handles and remove the material.
5.3 Setting an Eyelet
- Take one eyelet and insert its barrel through the hole you just punched in the material. The flange (wider part) of the eyelet should be on the visible side of the material.
- Open the pliers. Place the flange of the eyelet into the cup-shaped setting die.
- Position the barrel of the eyelet over the punching die (the pointed part that now acts as a crimping post).
- Ensure the eyelet is seated correctly and the material is flat.
- Firmly and steadily squeeze the handles together. This action will crimp the barrel of the eyelet, securing it to the material.
- Release the handles and inspect the set eyelet. It should be securely fastened and flat against the material.
Image: A hand demonstrating the use of the eyelet pliers, with an eyelet being crimped into a piece of material.
Image: The eyelet pliers in action, being used to add an eyelet to a shoe, demonstrating a practical application.
6. Manteniment
- Neteja: After each use, wipe the pliers clean with a dry cloth to remove any dust or debris.
- Lubricació: Periodically apply a small amount of light machine oil to the pivot points to ensure smooth operation.
- Emmagatzematge: Store the pliers in a dry place to prevent rust. Keep them in their original packaging or a tool box to protect them from damage.
- Inspecció: Regularly check the punching and setting dies for wear or damage. Replace the tool if significant wear is observed.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Eyelet not crimping properly. | Insufficient pressure applied; eyelet not seated correctly; material too thick. | Apply more firm pressure; ensure eyelet is properly aligned in the dies; check material thickness compatibility. |
| Hole not punching cleanly. | Insufficient pressure; dull punching die; material too thick or too thin. | Apply more firm pressure; ensure the punching die is clean; verify material is suitable for the tool. |
| Pliers feel stiff or difficult to operate. | Lack of lubrication; dirt or debris in pivot points. | Clean the pliers and apply light machine oil to pivot points. |
8. Especificacions
- Model: TN50066J
- Marca: Hiper resistent
- Material: Alloy Steel (Pliers), Plastic (Handle Grip)
- UPC: 889526219017
- ASIN: B08HHXT1ZN
9. Informació de la garantia
This product comes with a 5-year limited warranty as indicated on the product packaging. For specific warranty terms and conditions, please refer to the information provided with your purchase or contact Hyper Tough customer support. The warranty typically covers defects in materials and workmanship under normal use.
10. Atenció al client
If you have any questions, require assistance, or need to report a problem with your Hyper Tough Eyelet Pliers Kit TN50066J, please contact Hyper Tough customer service. Refer to your product packaging or the Hyper Tough official weblloc web per obtenir la informació de contacte més actualitzada.
