Reflexion WMR01BK Portable Cassette Player

Introducció

This manual provides detailed instructions for the setup, operation, and maintenance of your Reflexion WMR01BK portable cassette player. Please read this manual thoroughly before using the device to ensure proper function and longevity. This device allows you to listen to your favorite cassette tapes and FM radio stations wherever you go.

Contingut del paquet

Els articles següents s’inclouen al paquet:

• Reflexion WMR01BK Portable Cassette Player
• Auriculars
• Clip de cinturó
• Manual d'usuari

Image: The included earphones and the cover of the user manual, which is also part of the package contents.

Producte acabatview

Familiarize yourself with the main components and controls of your portable cassette player.

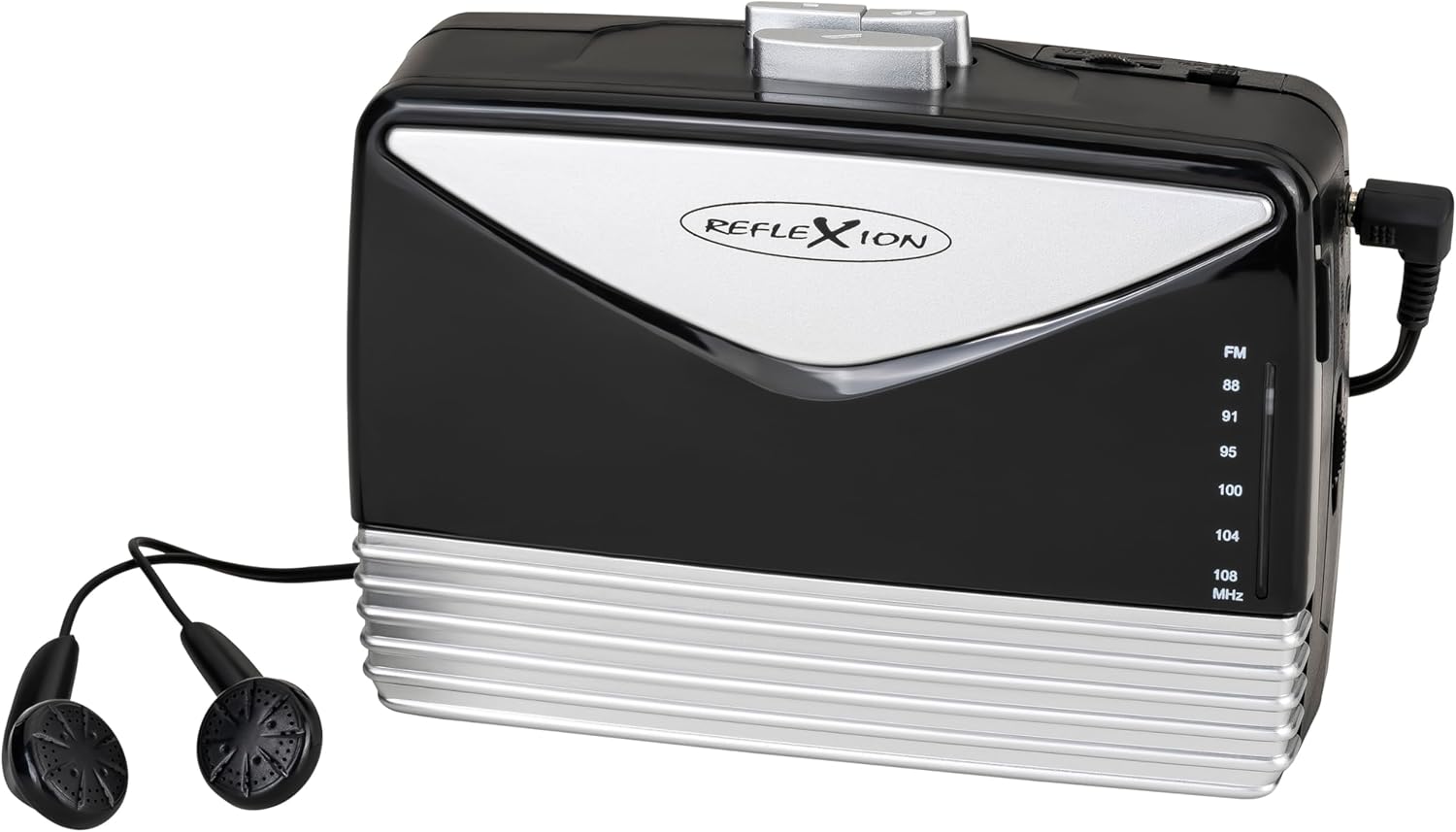

Imatge: Frontal i lateral view of the Reflexion WMR01BK portable cassette player, showcasing its black and silver design and connected earphones.

Imatge: Lateral view of the cassette player, highlighting the playback controls (Play, Stop, Fast Forward), volume dial, and various input/output ports.

Configuració

Font d'alimentació

The Reflexion WMR01BK can be powered by two (2) UM-3 "AA" batteries (not included) or an external DC 3V power adapter (not included).

Instal·lació de la bateria

1. Localitzeu el compartiment de la bateria a la part posterior del dispositiu.
2. Obriu la tapa del compartiment de la bateria.
3. Insert two (2) UM-3 "AA" batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
4. Tanqueu bé la tapa del compartiment de la bateria.

Connexió d'alimentació externa

1. Connect a compatible DC 3V power adapter (not included) to the DC IN jack on the device.
2. Connecteu l'adaptador d'alimentació a una presa de corrent estàndard.

En funcionament

Reproducció de cassets

1. Obriu la porta del compartiment del casset.
2. Insert a cassette tape with the open edge facing upwards and the tape side facing the player.
3. Tanqueu la porta del compartiment del casset.

Image: A hand carefully inserting a cassette tape into the open compartment of the Reflexion WMR01BK player.

4. Connect the included earphones or external headphones to the headphone jack.
5. Premeu el botó "REPRODUIR" per iniciar la reproducció.
6. Use the "STOP" button to stop playback.
7. Use the "FF" (Fast Forward) button to advance the tape quickly.
8. The auto-stop function will automatically stop playback when the tape reaches its end.

Funcionament de la ràdio FM

1. Connect the earphones, as they also function as the FM antenna.
2. Switch the function selector to "RADIO" or "FM".
3. Use the tuning dial to select your desired FM radio station.
4. Ajusteu el volum amb el control de volum.

Headphone and Line Out

Connect headphones to the 3.5mm headphone jack for private listening. The device also features a Line Out port for connecting to external audio systems.

Entrada de micròfon

The device includes a microphone input for recording purposes. Refer to the specific recording instructions if available in the full manual.

Manteniment

Neteja

Wipe the exterior of the player with a soft, dry cloth. Do not use abrasive cleaners or solvents. For internal components like the tape head, use a specialized tape head cleaning kit to ensure optimal sound quality and tape longevity.

Cura de la bateria

Remove batteries if the device will not be used for an extended period to prevent leakage and potential damage to the unit.

Resolució de problemes

Sense poder

• Comproveu la instal·lació de la bateria i assegureu-vos de la polaritat correcta.
• Substituïu les piles velles per unes de noves.
• If using an adapter, ensure it is properly connected and the wall outlet is functional.

Poor Sound Quality (Cassette)

• Clean the tape head and pinch rollers using a specialized cleaning kit.
• Ensure the cassette tape itself is in good condition and not damaged.
• Ajusteu el control de volum.

Mala recepció de ràdio

• Ensure earphones are properly connected, as they act as the FM antenna.
• Adjust the position of the player or earphones for better reception.
• Carefully tune the radio dial to find the clearest signal.

Especificacions

General

• Model: WMR01BK
• Dimensions (L x A x A): 12 x 9 x 5 cm (4.72 x 3.54 x 1.97 polzades)
• Pes: 150 grams (0.33 lliures)
• Color: Negre i Plata
• Material: Plàstic

Poder

• Font d'alimentació: Battery powered (2x UM-3 "AA" batteries, not included) or DC 3V external power adapter (not included)

Àudio

• Reproducció de cassets: Yes, with auto-stop and fast forward functions
• Bandes de ràdio: FM
• Connectivitat: Auxiliary (Line Out, Headphone Out, Microphone In)

Components inclosos

• Reproductor de cassets portàtil
• Auriculars
• Clip de cinturó
• Manual d'usuari

Garantia i Suport

Informació de la garantia

This product comes with a 1-year availability for spare parts. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your retailer.

Atenció al client

For further assistance or technical support, please contact your retailer or the manufacturer's customer service channels as provided in your purchase documentation.
