Christopeit Sport Eco 1000 Ergometer Training Bike User Manual

1. Introducció i finalview

The Christopeit Sport Eco 1000 Ergometer is designed for effective indoor fitness training. It features a self-generating power system, a magnetic braking system, and offers connectivity for various fitness applications. This manual provides essential information for assembly, operation, maintenance, and safety to ensure optimal use of your training bike.

Image 1.1: The Christopeit Sport Eco 1000 Ergometer Training Bike, showcasinel seu disseny elegant i les seves característiques principals.

Imatge 1.2: acabatview of key features including quiet operation, eco-friendly power generation, sustainability, a maximum user weight capacity of 150 kg, and 24 levels of magnetic resistance.

2. Pautes de seguretat

Before using the Eco 1000 Ergometer, please read and understand all safety instructions. Improper use can lead to injury or damage to the equipment.

• Ensure the ergometer is placed on a stable, level surface.
• Maintain a safe distance around the equipment during use.
• The maximum user weight for this device is 150 kg. Do not exceed this limit.
• Aquest producte està dissenyat només per a ús interior.
• Keep children and pets away from the ergometer during operation.
• Consulta un metge abans de començar qualsevol nou programa d'exercicis.
• Porteu calçat i roba esportiva adequats.
• Inspeccioneu regularment l'equip per detectar qualsevol signe de desgast o dany. No l'utilitzeu si està malmès.

Image 2.1: Safety symbol indicating important precautions for using the ergometer.

3. Muntatge i configuració inicial

The Eco 1000 Ergometer requires some assembly. Follow the detailed instructions provided in the separate assembly guide. Ensure all components are securely fastened before use.

3.1. Ajustaments

L'ajust correcte del seient i del manillar és crucial per a la comoditat i un entrenament eficaç.

• Ajust del seient: Adjust the seat height and horizontal position to ensure your leg is slightly bent at the knee when the pedal is at its lowest point.
• Ajust del manillar: Adjust the handlebar angle for a comfortable and ergonomic grip during your workout.
• Pedal Straps: Secure your feet in the pedal straps to prevent slipping.

Image 3.1: The ergometer's adjustable components, including the seat, handlebars, and pedals, designed to accommodate users between 150 cm and 210 cm in height. Dimensions are approximately 105 cm (length) x 55 cm (width) x 140 cm (height).

3.2. Placement and Transport

Place the ergometer on a flat, stable surface. The integrated transport rollers allow for easy relocation within your home or apartment.

4. Instruccions de funcionament

4.1. Power Generation (Eco-Energy)

The Eco 1000 Ergometer utilizes generator technology, eliminating the need for an external power adapter. The energy generated during your workout powers the device. Additionally, a built-in USB port allows you to charge external devices with the stored energy.

Image 4.1: Illustration of the Eco-Energy system, emphasizing the self-powering generator technology and its environmental advantages.

4.2. Console Functions

The integrated computer displays various training parameters to help you monitor your progress.

• Velocitat: Velocitat ciclista actual.
• Hora: Durada del teu entrenament.
• Calories: Calories cremades estimades.
• Watt: Potència de sortida en watts.
• Distància: Distància total recorreguda.
• HRC: Heart Rate Control (requires compatible pulse belt, not included).
• Pols: Heart rate measurement (with compatible sensor).

Image 4.2: The ergometer's computer display, illustrating various metrics such as speed, time, calories, watt, and distance, along with indicators for H.R.C. and pulse belt compatibility. The console offers 23 training programs.

4.3. Resistance Levels

The ergometer features a 24-step magnetic resistance system, allowing for precise adjustment of workout intensity suitable for all fitness levels. Adjust the resistance using the controls on the console.

4.4. Programes de formació

The Eco 1000 offers a variety of training programs to enhance your workout experience:

• 12 Fixed Programs: Pre-set workouts with varying intensity profiles.
• 5 Individual Programs: Customizable programs to suit your specific training goals.
• Programes de control de la freqüència cardíaca (HRC): Programs that adjust resistance based on your target heart rate.
• Watt Program: Allows training at a constant power output (10-350 Watts).

4.5. Connectivitat de l'aplicació

Enhance your training with popular fitness applications. The Eco 1000 is compatible with Kinomap, Zwift, and eHealth via USB and Bluetooth. A tablet/smartphone holder is integrated for convenience (device not included).

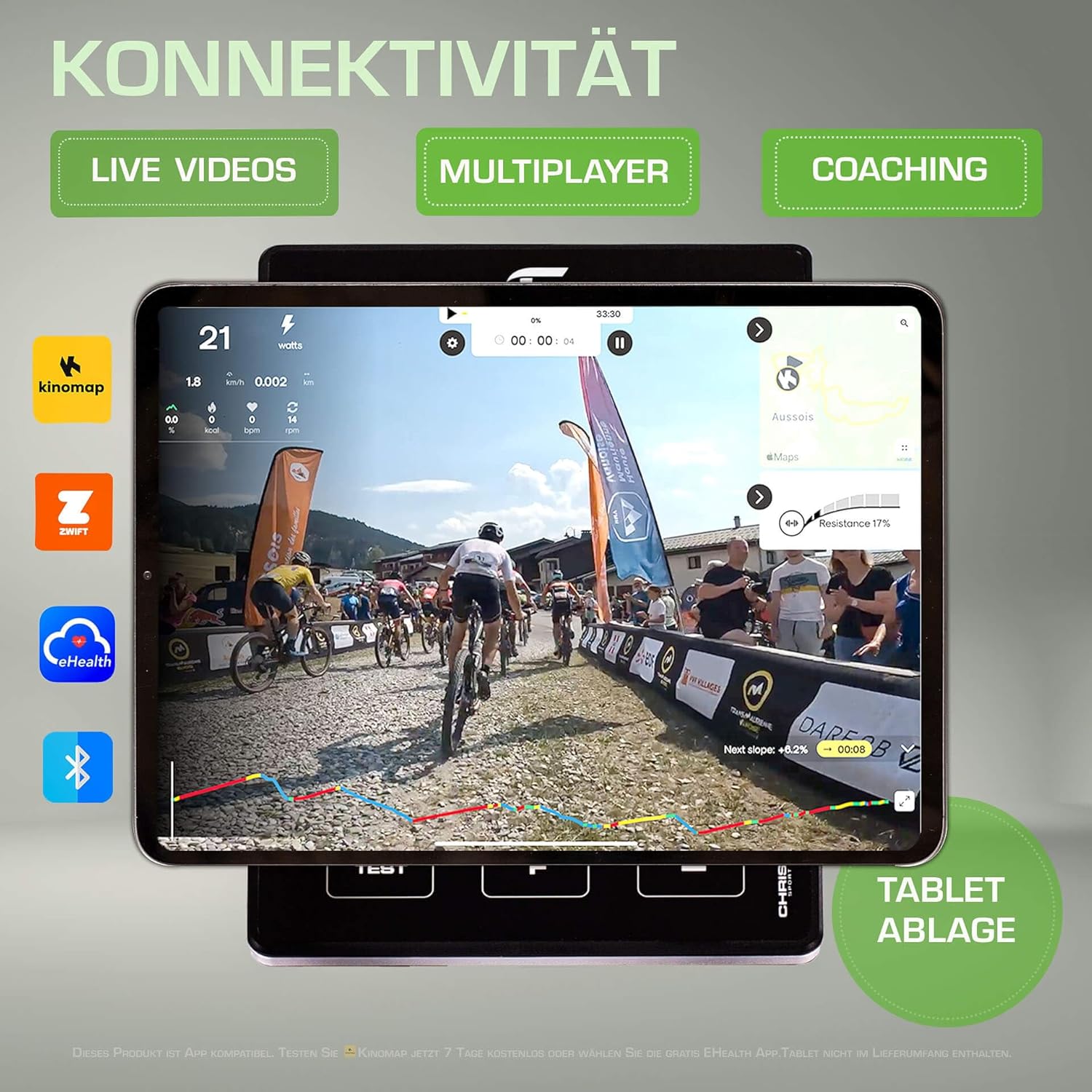

Image 4.3: The ergometer's connectivity options, including integration with Kinomap, Zwift, and eHealth applications, facilitated by USB and Bluetooth. A tablet holder is provided for device placement.

4.6. Modes d'entrenament

The ergometer supports various workout modes to target different fitness goals:

• Cardio Training: Focuses on improving cardiovascular endurance.
• Entrenament a intervals: Alternates between high and low intensity periods.
• Healthy Session: General fitness and well-being workouts.

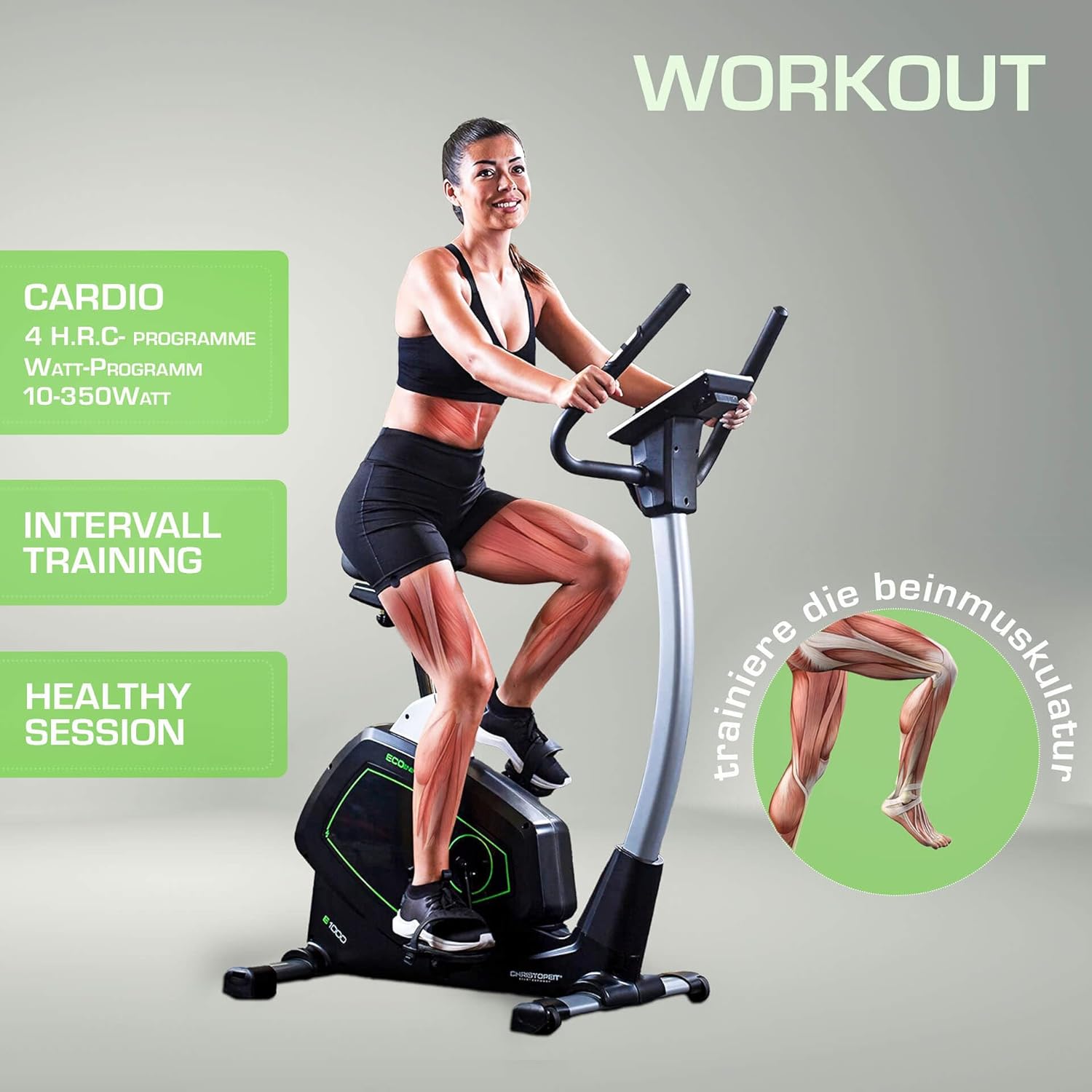

Image 4.4: A user engaged in a workout on the Eco 1000 Ergometer, illustrating the benefits of cardio, interval, and healthy session training modes, with a visual emphasis on leg muscle activation.

5. Cura i Manteniment

Regular maintenance ensures the longevity and optimal performance of your ergometer.

• Neteja: Wipe down the ergometer with a damp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
• Inspecció: Periodically check all bolts and screws for tightness. Ensure all moving parts operate smoothly.
• Emmagatzematge: Store the ergometer in a dry, temperate environment away from direct sunlight and extreme temperatures.

6. Solució De Problemes

If you encounter issues with your Eco 1000 Ergometer, refer to the following common solutions:

• Sense pantalla/alimentació: Ensure you are pedaling consistently to generate power. The console requires motion to activate.
• Funcionament inestable: Check that the ergometer is on a level surface and all stabilizer feet are properly adjusted.
• Sorolls inusuals: Inspect for loose parts or foreign objects. Ensure all connections are secure.
• Problemes de resistència: Verify that the resistance adjustment mechanism is functioning correctly. If the magnetic system feels inconsistent, contact customer support.
• Problemes de connectivitat de l'aplicació: Ensure Bluetooth is enabled on your device and the ergometer. Check app settings and permissions.

For issues not resolved by these steps, please contact Christopeit Sport customer support.

7. Especificacions tècniques

Image 7.1: Icon representing the technical aspects and specifications of the ergometer.

8. Garantia i atenció al client

Christopeit Sport products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Christopeit Sport weblloc.

If you require assistance with assembly, operation, or troubleshooting, please contact Christopeit Sport customer support. Contact information can typically be found on the manufacturer's weblloc o a l'embalatge del producte.
