Manual d'usuari de la rentadora Candy Smart Pro CSO44 1285TE/2-S

Introducció

This manual provides essential information for the safe and efficient operation of your Candy Smart Pro CSO44 1285TE/2-S washing machine. Please read it thoroughly before installation, use, or maintenance. Proper use and care will ensure optimal performance and extend the lifespan of your appliance.

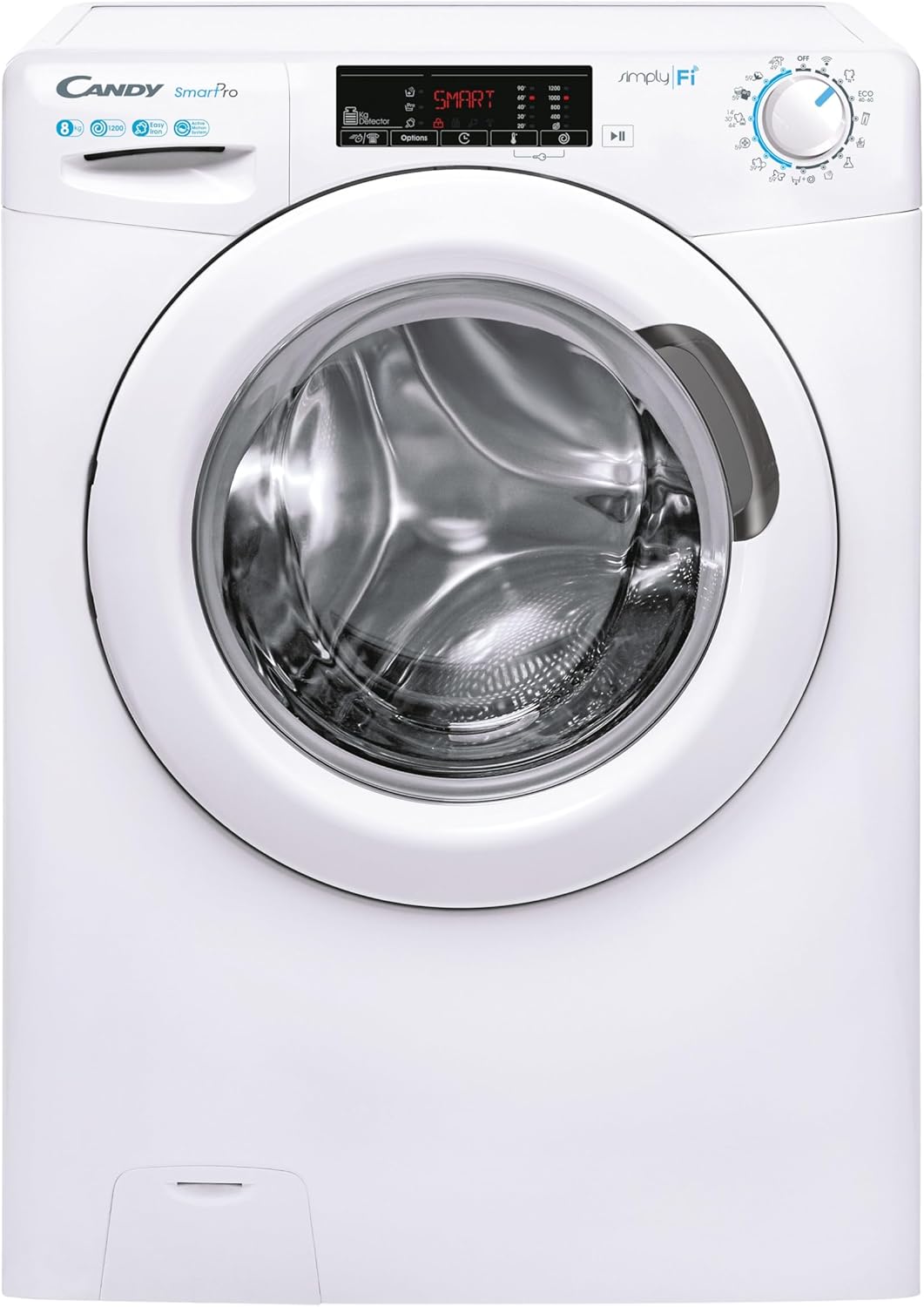

Figura 1: Frontal view of the Candy Smart Pro CSO44 1285TE/2-S washing machine, showcasing its sleek white design and control panel.

Informació de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica o lesions a les persones.

• Assegureu-vos que l'aparell estigui ben connectat a terra.
• Do not operate the washing machine if it has a damaged cord or plug, or if it is not working properly.
• Mantingueu els nens i les mascotes lluny de l'aparell durant el funcionament.
• No renteu articles que estiguin bruts amb líquids inflamables.
• Desendolleu l'aparell abans de netejar-lo o fer-ne cap manteniment.

Configuració i instal·lació

1. Desembalatge

Carefully remove the washing machine from its packaging. The package includes the device and this instruction manual. Inspect the appliance for any damage during transit. Report any damage immediately to your retailer.

2. Removing Transit Bolts

Before operating the washing machine, it is crucial to remove all transit bolts located at the rear of the appliance. These bolts secure the drum during transport and must be removed to prevent damage during operation. Refer to the diagram below for bolt locations.

Figura 2: posterior view of the washing machine, indicating the positions of the transit bolts that must be removed before first use.

3. Col·locació

Place the washing machine on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and connections. The dimensions of the product are approximately 46.9 cm (depth) x 60 cm (width) x 85 cm (height).

Figura 3: Example of the washing machine installed in a residential setting, demonstrating typical space requirements.

4. Water and Drainage Connections

Connect the water inlet hose to a cold water tap and the appliance's inlet valve. Ensure all connections are tight to prevent leaks. Position the drain hose into a suitable standpipe or sink, ensuring it is securely fastened to prevent displacement during the drain cycle.

5. Connexió elèctrica

Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Verifiqueu que el volumtage i la freqüència coincideixen amb les especificacions de l'etiqueta de l'aparell.

Instruccions de funcionament

1. Tauler de control acabatview

The control panel features a program selector dial, a digital display, and touch buttons for various functions such as temperature, spin speed, delay start, and special options like Easy Iron and steam.

2. Càrrega de la bugaderia

Open the washing machine door and load laundry into the drum. Do not overload the machine; the maximum capacity is 8 kg. Ensure items are evenly distributed to prevent imbalance during the spin cycle.

Figure 4: The washing machine with its large porthole door open, providing easy access to the drum for loading and unloading laundry.

3. Afegint detergent

Pull out the detergent drawer and add the appropriate amount of detergent and fabric softener to the designated compartments. Refer to your detergent packaging for recommended dosages.

4. Selecció d'un programa

Turn the program selector dial to choose the desired wash program based on the fabric type and soil level. The digital display will show the default settings for the selected program.

• Easy Iron Function: This special function uses steam to reduce wrinkles, making ironing easier.
• Smart Operation (Wi-Fi & Bluetooth): Connect your washing machine to the Candy simply-Fi app on your smartphone via Wi-Fi or Bluetooth. This allows you to remotely control the machine, download additional programs, and access smart features.

5. Començar un cicle

Premeu el botó Inici/Pausa per iniciar el cicle de rentat. La màquina continuarà automàticament amb el programa seleccionat.

Manteniment

Un manteniment regular garanteix la longevitat i l'eficiència de la teva rentadora.

1. Neteja de l'exterior

Netegeu les superfícies exteriors amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.

2. Neteja del calaix del detergent

Periodically remove and clean the detergent drawer under running water to prevent residue buildup.

3. Neteja del filtre

The washing machine is equipped with a filter to collect lint and small objects. It should be cleaned regularly to ensure proper drainage. Locate the filter access panel at the bottom front of the machine, open it, and carefully remove the filter for cleaning.

Figura 5: Primer pla view of the drain filter compartment, showing the removable filter for easy cleaning.

4. Anti-Calc Cycle

The smart system may alert you when an anti-calc (descaling) cycle is recommended. Follow the instructions in the app or on the display to perform this cycle, which helps prevent limescale buildup and maintains performance.

Resolució de problemes

Abans de contactar amb el servei tècnic, torneu aview els següents problemes comuns i les seves solucions:

For more detailed troubleshooting and diagnostic information, refer to the Candy simply-Fi app or the manufacturer's weblloc.

Especificacions

Garantia i Suport

Your Candy Smart Pro CSO44 1285TE/2-S washing machine comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. Keep your proof of purchase for warranty claims.

For technical assistance, spare parts, or to schedule a service appointment, please contact Candy customer support. Contact details can typically be found on the manufacturer's official weblloc web o a la documentació de la garantia.

Nota: No hi havia vídeos oficials de productes disponibles per incrustar segons les dades proporcionades.
