1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your LEONLITE Premium Series 4-Inch 2W LED Hardscape Lights. These low-voltage fixtures are designed for outdoor use, specifically for integration into retaining walls, steps, and other hardscape elements. Please read this manual thoroughly before installation and retain it for future reference.
2. Característiques del producte
- Directable Design: The light fixture features a 270° up and down rotation capability, allowing for precise light direction to suit various applications.
- Vida útil ampliada: Constructed with a die-casted aluminum shell for enhanced corrosion resistance and heat dissipation, contributing to a lifespan of approximately 40,000 hours.
- Il·luminació sense enlluernament: Operates on 12V AC/DC low voltage, delivering 150 lumens of 5000K daylight. A unique raised lens design minimizes glare.
- Instal·lació simplificada: Designed for easy installation with all necessary accessories included.
- Durador i fiable: Features an IP65 waterproof rating and UL listed cable, ensuring safe outdoor use in various weather conditions.
3. Contingut del paquet
- LEONLITE 4-Inch 2W LED Hardscape Lights (Quantity as per pack)
- Mounting Hardware (screws, wire connectors)
4. Especificacions
| Paràmetre | Valor |
|---|---|
| Número de model | 51795 |
| Wattage | 2W |
| Voltage | 12V AC / DC |
| Flux lluminós | 150 lm |
| Índex de reproducció del color (CRI) | >90 |
| Vida útil | 40,000 hores |
| Angle del feix | 95° |
| Temperatura de color (CCT) | 5000K de llum del dia |
| Classificació impermeable | IP65 |
| Temperatura de treball | -4 °F a 104 °F (-20 °C a 40 °C) |
| Material | Die-casted Aluminum |
| Dimensions del producte | 7.91 x 5.63 x 4.06 polzades |
| Pes de l'article | 2.02 lliures |
5. Informació de seguretat
- Desconnecteu sempre l'alimentació abans de la instal·lació o el manteniment.
- This product is designed for 12V AC/DC low voltage systems. Do not connect directly to 120V AC household power.
- Assegureu-vos que totes les connexions del cablejat estiguin ben fixades i degudament aïllades per evitar riscos elèctrics.
- Consulteu un electricista qualificat si teniu dubtes sobre alguna part del procés d'instal·lació.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create safety risks.
- Mantenir els nens allunyats de la zona d'instal·lació.
6. Configuració i instal·lació
These hardscape lights are designed for integration into retaining walls, steps, and other masonry structures. They require a compatible 12V AC/DC low voltage landscape lighting transformer (not included).
Passos d'instal·lació:
- Preparar la ubicació: Identify the desired mounting location within your hardscape. Ensure there is adequate space for the fixture and wiring.
- Cablejat de ruta: Executar a baix volumtage landscape wiring from your transformer to the installation point. Ensure the wiring is protected and buried according to local electrical codes.
- Muntar l'aparell: Use the included mounting hardware (screws) to securely attach the light fixture's base plate to the desired surface. The fixture is designed to be mounted between hardscape elements.
- Connecteu el cablejat: Connect the fixture's wires to your main low-voltage landscape wiring using the included waterproof wire connectors. Ensure polarity is correct if specified by your transformer or other components.

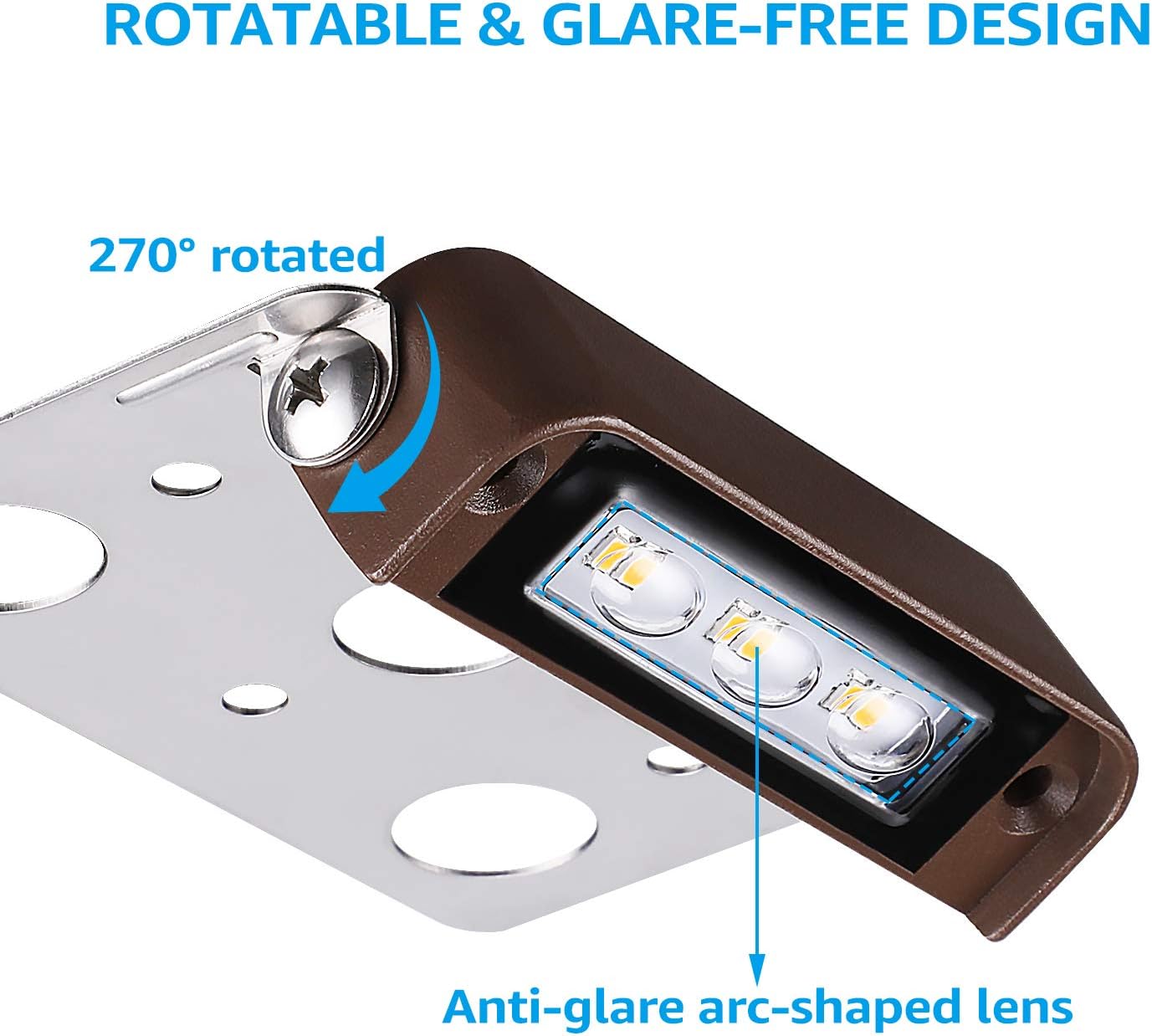

- Ajusta la direcció de la llum: Once mounted, the light head can be rotated up to 270° to direct the illumination as needed.
- Prova: Restore power to the transformer and test the lights.
7. Instruccions de funcionament
Once properly installed and connected to a compatible 12V AC/DC low voltage landscape lighting transformer, the lights will operate according to the transformer's settings. This typically involves turning on and off with the transformer's power switch, timer, or photocell sensor.
- Ensure the transformer is powered on for the lights to function.
- Adjust the light direction by gently swiveling the fixture head to achieve the desired illumination angle.
8. Manteniment
Regular maintenance helps ensure the longevity and optimal performance of your hardscape lights.
- Neteja: Periodically clean the lens and fixture housing with a soft, damp cloth to remove dirt, dust, and debris. Avoid abrasive cleaners that could damage the finish or lens.
- Inspeccioneu el cablejat: Annually inspect all wiring and connections for any signs of damage, fraying, or corrosion. Repair or replace damaged components as necessary.
- Comproveu el muntatge: Ensure the fixtures remain securely mounted. Tighten any loose screws if found.
- Drenatge: Ensure that the area around the lights has proper drainage to prevent water accumulation, despite the IP65 rating.
9. Solució De Problemes
If your hardscape lights are not functioning correctly, refer to the following troubleshooting guide:
| Problema | Causa possible | Solució |
|---|---|---|
| Els llums no s'encenen. | Sense energia al transformador. Connexió de cablejat fluixa o incorrecta. Transformador defectuós. | Check power outlet and transformer switch. Comproveu que totes les connexions dels cables siguin segures. Test transformer output voltage. Replace if faulty. |
| Les llums són tènues o parpellejant. | Voltage drop due to long wire runs or too many fixtures. Connexió fluixa. Damaged fixture. | Ensure wire gauge is appropriate for total wattage i distància. Comproveu i apreteu totes les connexions. Inspect fixture for physical damage. |
| Only some lights are working. | Faulty connection to specific lights. Damaged individual fixture. | Check wiring connections for non-working lights. Isolate and test individual fixtures. |
10. Garantia i Suport
Aquest producte ve amb un 2 any de garantia from the date of purchase, covering defects in materials and workmanship. For warranty claims or technical support, please contact LEONLITE customer service. Keep your purchase receipt as proof of purchase.
For further assistance, please visit the official LEONLITE weblloc web o contacteu amb els seus canals d'atenció al client.
