Dripex Stationary Exercise Bike User Manual

1. Informació important de seguretat

Please read all instructions carefully before assembling or using this exercise bike. Keep this manual for future reference.

• Consulteu el vostre metge abans de començar qualsevol programa d'exercici.
• Assegureu-vos que tots els cargols i femelles estiguin ben ajustats abans de cada ús.
• Col·loca la bicicleta estàtica sobre una superfície plana i estable. Fes servir una estora protectora si cal.
• Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
• Maximum user weight capacity: 300 lliures (135 kg).
• Recommended user height range: 4 feet 9 inches to 6 feet 1 inch.
• Wear appropriate exercise attire and footwear. Avoid loose clothing that could get caught in moving parts.
• Deixa de fer exercici immediatament si et sents dèbil, marejat o tens dolor.

2. Producte acabatview

The Dripex Stationary Exercise Bike is designed for effective indoor cardio training. It features a robust construction and user-friendly adjustments.

Figura 2.1: Complet view of the Dripex Stationary Exercise Bike, showcasinpel seu disseny compacte i les seves funcions integrades.

Característiques principals:

• Marc d'acer resistent: Garanteix estabilitat i durabilitat.
• 20 LBS Flywheel: Provides a smooth and consistent cycling experience.
• Sistema de resistència magnètica: Offers quiet and adjustable resistance.
• Monitor LCD: Tracks time, speed, distance, calories, and pulse.
• Adjustable Seat & Handlebar: S'adapta a diverses altures i preferències d'usuari.
• Titular del telèfon: Conveniently holds mobile devices during workouts.
• Rodes de transport: Allows for easy relocation of the bike.
• Porta ampolles d'aigua: Keeps hydration accessible.

Figura 2.2: Illustration of the bike's internal mechanisms, highlighting the magnetic resistance, belt drive system, and heavy-duty steel flywheel for silent and smooth operation.

3. Muntatge i muntatge

Assembly typically takes 30-60 minutes. It is recommended to have two people for easier assembly, though one person can manage.

3.1 Desembalatge

1. Traieu amb cura tots els components de l'embalatge.
2. Check the parts list against the contents to ensure all pieces are present.
3. Col·loqueu totes les peces sobre una superfície neta i plana.

3.2 Passos de muntatge

Follow these general steps for assembly. Refer to the included assembly diagram for detailed illustrations.

1. Fixeu les barres estabilitzadores: Fixeu les barres estabilitzadores davantera i posterior al xassís principal amb els cargols i les volanderes proporcionats.
2. Instal·lar pedals: Identifica els pedals esquerre (E) i dret (R). Els cargols del pedal esquerre es cargolen en sentit antihorari i els del pedal dret en sentit horari. Assegura't que estiguin ben ajustats per evitar que es destripin.
3. Muntar la tija del seient i el seient: Insert the seat post into the main frame and secure it at the desired height. Attach the seat to the seat post.
4. Instal·leu la tija del manillar i el manillar: Insert the handlebar post into the main frame. Attach the handlebar to the post and secure it.
5. Connecta el monitor: Attach the LCD monitor to the handlebar post. Connect any necessary sensor wires from the bike to the monitor. Insert 2 AAA batteries (not included) into the monitor.
6. Attach Phone Holder and Water Bottle Holder: Secure these accessories to their designated spots on the bike frame.

3.3 Adjustments for Comfort

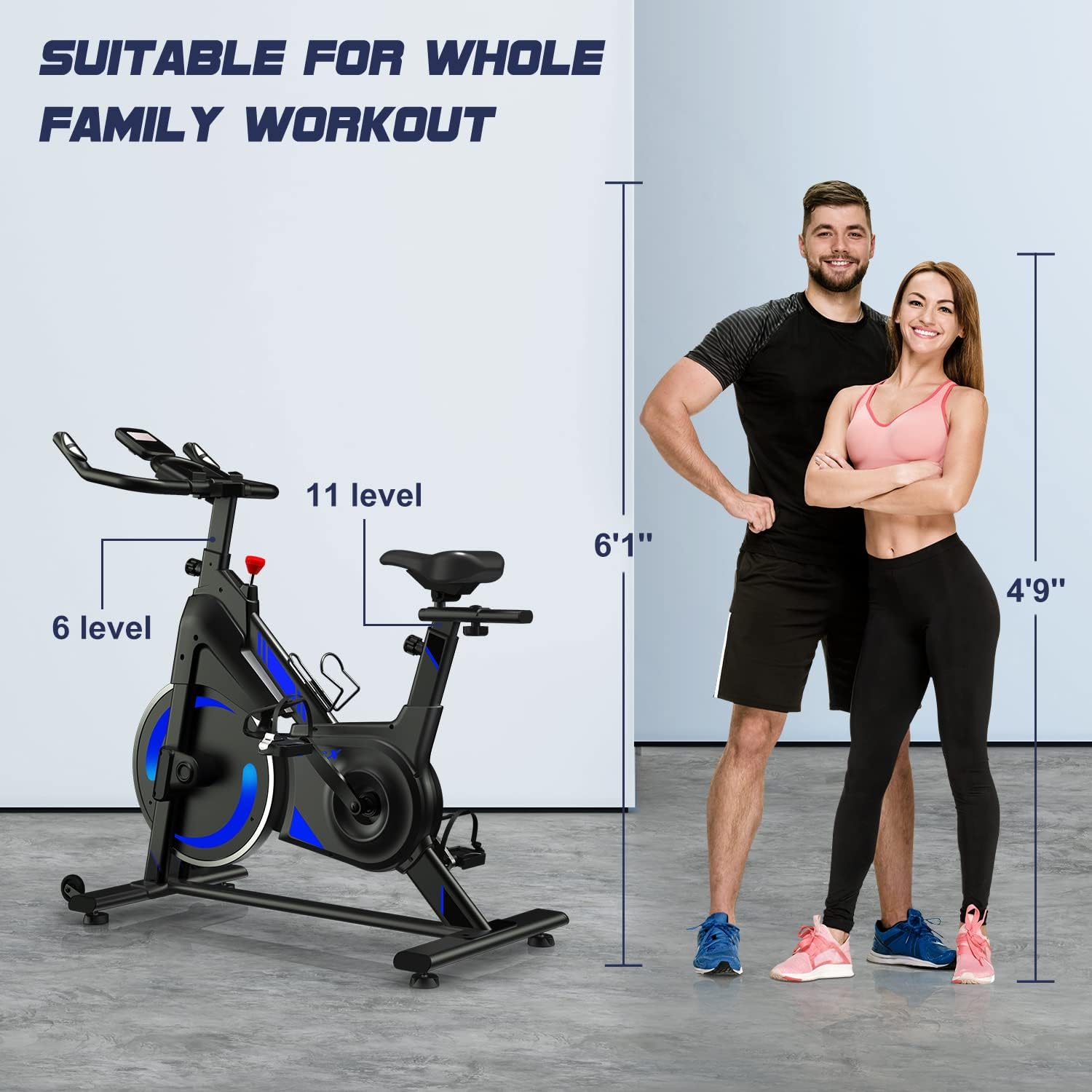

Figura 3.1: Visual guide for adjusting seat and handlebar height to fit various user sizes, ensuring a comfortable and effective workout.

• Alçada del seient: The seat has 11 levels of height adjustment. Loosen the adjustment knob, slide the seat post to your desired height, and re-tighten the knob securely. The seat can also be moved forward or backward.
• Alçada del manillar: The handlebar has 5 levels of height adjustment. Loosen the adjustment knob, raise or lower the handlebar to a comfortable position, and re-tighten.
• Ensure your knees have a slight bend at the bottom of the pedal stroke for optimal comfort and to prevent injury.

4. Funcionament

4.1 Starting Your Workout

Once assembled and adjusted, you are ready to begin your exercise routine.

Figura 4.1: Examples of workout postures, including a warm-up mode (seated) and a standing mode for varied cardio exercises.

4.2 Ajust de la resistència

Figura 4.2: Close-up of the adjustable magnetic resistance knob. Turn clockwise to increase resistance and counter-clockwise to decrease it. Press down to engage the emergency brake.

• The bike features a bidirectional magnetic resistance adjustment bar.
• Gireu el botó en sentit horari per augmentar la resistència, fent que el pedaleig sigui més fort.
• Gireu el botó en sentit antihorari per disminuir la resistència, cosa que facilita el pedaleig.
• To stop the flywheel quickly in an emergency, press down firmly on the resistance knob.

4.3 Ús del monitor LCD

Figura 4.3: The multi-function LCD monitor displaying various workout metrics, alongside the integrated phone/tablet holder.

The LCD monitor displays key workout data to help you track your progress:

• ESCANEAR: Cycles through all functions automatically.
• HORA: Mostra la durada del teu entrenament.
• VELOCITAT: Mostra la teva velocitat actual amb bicicleta.
• DISTÀNCIA: Records the total distance covered during your session.
• CALORIES: Estima les calories cremades.
• IMPULS: Mostra la freqüència cardíaca quan subjectes els sensors de pols al manillar.

Use the "MODE" button to select specific display functions or to reset values. The integrated phone holder allows you to place your mobile device for entertainment or fitness apps.

5. Manteniment

Regular maintenance ensures the longevity and safe operation of your Dripex Exercise Bike.

• Neteja: Netegeu la bicicleta amb un anunciamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
• Comproveu les connexions: Reviseu periòdicament tots els cargols, femelles i cargols per assegurar-vos que estiguin ben ajustats. Torneu a apretar-los si cal.
• Sistema de resistència magnètica: The magnetic resistance system requires no lubrication or specific maintenance.
• Pedals: Ensure pedals are securely fastened. If you notice any looseness or clicking, re-tighten them.
• Emmagatzematge: Store the bike in a dry, cool place away from direct sunlight and extreme temperatures. Use the transportation wheels to move the bike easily.

6. Solució De Problemes

7. Especificacions

Figura 7.1: Product dimensions of the Dripex Stationary Exercise Bike, including length, width, and height.

8. Garantia i atenció al client

Dripex stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Dripex weblloc.

If you encounter any issues or have questions regarding your Dripex Stationary Exercise Bike, please contact our customer support team:

• Assistència en línia: Visita el Dripex Store on Amazon per a preguntes freqüents i informació de contacte.
• Suport per correu electrònic: Consulteu l'embalatge del producte o la fitxa oficial website for the dedicated customer service email address.

Please have your model number (B08R87M9XY) and purchase date ready when contacting support.
