KAOLALI Double DIN Car Radio Fascia for Seat Leon 2005-2012 Installation Guide

1. Producte acabatview

This KAOLALI Double DIN Car Radio Fascia is designed to facilitate the installation of an aftermarket double DIN car stereo into Seat Leon models manufactured from 2005 to 2012. It provides a seamless and integrated look for your vehicle's dashboard.

Característiques principals:

• Aplicació: Compatible with Seat Leon models from 2005 onwards (specifically for left-hand drive vehicles).
• Alta qualitat: Constructed from durable ABS plastic, offering stability, water resistance, and corrosion resistance for long-term reliability.
• Dimensions: Designed for double DIN units with interior dimensions of 220 x 130 mm.
• Color: Silver-grey finish to match the vehicle's interior.
• Fàcil instal·lació: Engineered for direct replacement, ensuring simple installation and removal.

2. Nota important de compatibilitat

Before proceeding with installation, it is crucial to verify the dimensions of your aftermarket car radio and the specific shape of your vehicle's central console. Ensure that the dimensions and design of this fascia match your existing car's dashboard configuration to guarantee proper fitment.

Figure 1: Product Dimensions. This diagram illustrates the precise measurements of the fascia, including the outer frame and the inner opening for the double DIN unit.

3. Configuració i instal·lació

This section outlines the general steps for installing the KAOLALI Double DIN Car Radio Fascia. Professional installation is recommended if you are unfamiliar with car audio system removal and installation procedures.

1. Preparació: Ensure your vehicle's ignition is off and the battery is disconnected to prevent electrical shorts. Gather necessary tools, which typically include trim removal tools, screwdrivers, and a wrench.
2. Remove Existing Fascia: Carefully use trim removal tools to pry off the existing car radio fascia. Start from an edge and work your way around, releasing clips. Be gentle to avoid damaging the dashboard or the fascia.
3. Disconnect Old Radio (if applicable): If an old radio is present, unscrew it from its mounting brackets and disconnect all wiring harnesses (power, speaker, antenna, etc.).
4. Prepare New Radio: Attach the mounting brackets to your new double DIN car radio, ensuring they align with the screw holes on the radio and the fascia.
5. Instal·leu la nova fascia: Position the KAOLALI Double DIN Car Radio Fascia around your new car radio. The fascia should snap into place within the dashboard opening. Ensure all clips are securely engaged.
6. Connect New Radio: Connect all necessary wiring harnesses to your new car radio. Refer to your new car radio's instruction manual for specific wiring diagrams.
7. Secure New Radio: Slide the new car radio with the fascia into the dashboard opening. Secure it with screws if required by your radio's mounting system.
8. Torneu a connectar la bateria i proveu-ho: Reconnect the vehicle's battery. Turn on the ignition and test the new car radio to ensure all functions (power, audio, display) are working correctly.

Figure 2: Fascia Installed. This image demonstrates the appearance of the fascia after successful installation with a compatible double DIN car radio.

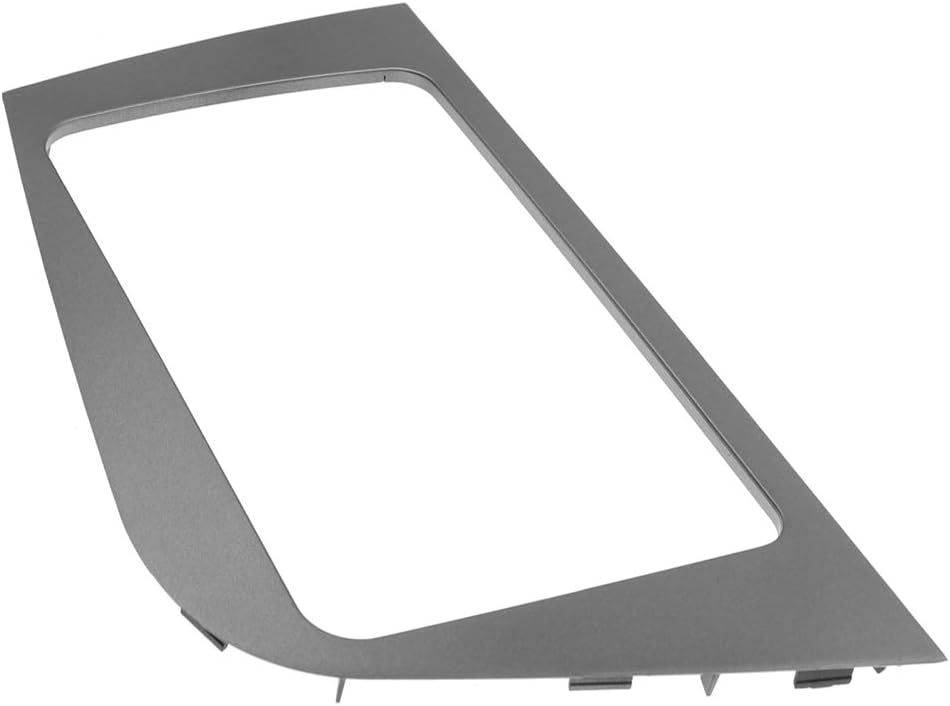

Figura 3: Frontal View of Fascia. A detailed view of the fascia's front surface and opening.

Figura 4: posterior View of Fascia. This image displays the rear side of the fascia, highlighting the clips and structural elements for installation.

4. Instruccions de funcionament

The KAOLALI Double DIN Car Radio Fascia is a mounting frame and does not have operational functions itself. Its purpose is to provide a secure and aesthetically pleasing fit for your aftermarket double DIN car radio. Please refer to the instruction manual provided with your specific car radio for operating instructions.

5. Manteniment

The fascia requires minimal maintenance. To keep it clean and in good condition:

• Netegeu la superfície amb un suau, damp tela.
• Avoid using harsh chemical cleaners or abrasive materials, as these can damage the finish.
• Ensure no liquids seep into the gaps around the radio, which could affect the electronic components.

6. Solució De Problemes

As the fascia is a passive component, most troubleshooting will relate to its fitment or the car radio itself.

• La fàscia no encaixa correctament:
  • Double-check the compatibility with your specific Seat Leon model year (2005-2012, left-hand drive).
  • Verify the dimensions of your car radio against the fascia's inner opening (220 x 130 mm).
  • Ensure all clips on the fascia are aligned with the dashboard openings and are fully engaged.
• Gaps around the radio:
  • Confirm that the car radio is properly seated within the mounting brackets and pushed fully into the dashboard.
  • Ensure the fascia is correctly installed and all clips are secured.
• Car radio not functioning after installation:
  • This is likely an issue with the car radio's wiring or the radio unit itself, not the fascia.
  • Refer to your car radio's instruction manual for troubleshooting electrical or operational issues.
  • Check all electrical connections and ensure the vehicle's battery is properly reconnected.

7. Especificacions

8. Garantia i Suport

Specific warranty information for the KAOLALI Double DIN Car Radio Fascia is not provided in the product details. For any support inquiries or questions regarding this product, please contact the retailer or manufacturer directly through their official channels.
