McGraw 3 Gallon 1/3 HP 110 PSI Oil-Free Pancake Air Compressor User Manual

Introducció

Thank you for choosing the McGraw 3 Gallon 1/3 HP 110 PSI Oil-Free Pancake Air Compressor. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new air compressor. Please read this manual thoroughly before operating the unit and keep it for future reference.

This compact and lightweight air compressor is designed for various tasks including jobsite nailing/stapling, inflation, and general cleaning. Its oil-free pump ensures no-maintenance operation, offering convenience and reliability.

Informació important de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions personals.

• Llegiu totes les instruccions abans d'utilitzar.
• Wear appropriate personal protective equipment (PPE), including eye protection.
• Assegureu-vos que la zona de treball estigui ben il·luminada i lliure d'obstacles.
• No feu funcionar el compressor en aigua humida o damp condicions.
• Always unplug the unit before performing any maintenance or adjustments.
• This unit is equipped with Thermal Overload Protection. If the compressor automatically shuts off before reaching its normal cutoff pressure, turn it off and unplug it for 15 minutes. Plug it back in, then turn unit on and resume operation.

Components del producte

Familiarize yourself with the main components of your McGraw Air Compressor:

• Manòmetres: Displays tank pressure and regulated tool pressure.
• Regulador de pressió: Adjusts the air pressure supplied to the tool.
• Acoblador de connexió ràpida: Per connectar mànegues d'aire i eines.
• Vàlvula de desguàs: Situat a la part inferior del dipòsit per evacuar la condensació.
• Cable d'alimentació: For connecting to a 110V power outlet.
• Mànec: Integrated into the design for easy portability.

Figura 1: Frontal view of the McGraw 3 Gallon Pancake Air Compressor, showing the main control panel with pressure gauges and the integrated handle.

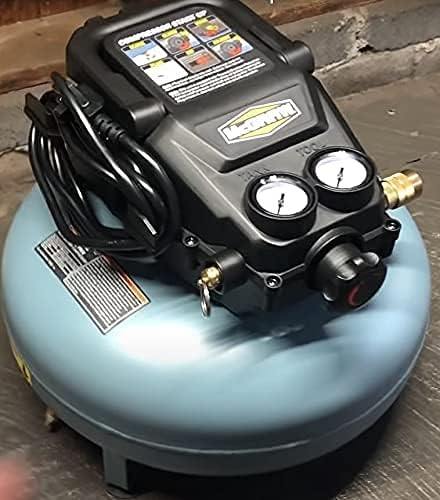

Figura 2: lateral view of the compressor, highlighting the power cord wrap and compact design.

Configuració

1. Desembalatge: Traieu amb cura el compressor del seu embalatge. Inspeccioneu-lo per si hi ha hagut danys durant l'enviament.
2. Col·locació: Col·loqueu el compressor sobre una superfície estable i anivellada. Assegureu-vos que hi hagi una ventilació adequada al voltant de la unitat.
3. Connectar la mànega d'aire: Attach your air hose to the quick connect coupler on the compressor. Ensure a secure connection.
4. Connexió d'alimentació: Ensure the power switch is in the "OFF" position. Plug the power cord directly into a grounded 110V wall outlet. Extension cords are not recommended; use a longer hose instead if needed.

Figure 3: The compressor set up with an air hose and nozzle, demonstrating its readiness for operation.

Instruccions de funcionament

1. Posada en marxa inicial:
   • Close the drain valve at the bottom of the tank.
   • Turn the pressure regulator knob fully counter-clockwise to the lowest pressure setting.
   • Turn the power switch to the "ON" position. The compressor will begin to fill the tank.
   • Allow the compressor to reach its maximum pressure and shut off automatically. This may take a few minutes.
2. Ajust de pressió:
   • With the compressor running or fully charged, slowly turn the pressure regulator knob clockwise to increase the output pressure to your desired setting for the tool.
   • Monitor the "TOOL" gauge to set the correct pressure.
3. Eines de connexió:
   • Ensure the tool you are connecting is rated for the pressure you are setting.
   • Connect your air tool to the quick connect coupler.
4. Funcionament: Begin using your air tool. The compressor will cycle on and off as needed to maintain tank pressure.
5. Apagar:
   • Turn the power switch to the "OFF" position.
   • Desconnecteu l'eina pneumàtica.
   • Slowly open the drain valve to release all air pressure from the tank. This is crucial for safety and to prevent condensation buildup.

Manteniment

Regular maintenance ensures optimal performance and extends the life of your compressor.

• Buidar el dipòsit diàriament: Open the drain valve at the bottom of the tank daily after each use to release accumulated condensation. Failure to do so can lead to rust and damage to the tank.
• Filtre d'aire net: Periodically inspect and clean the air filter to ensure proper airflow and prevent debris from entering the pump.
• Neteja general: Keep the compressor clean and free of dust and debris. Use a damp drap per netejar; eviteu productes químics agressius.
• Bomba sense oli: This compressor features an oil-free pump, requiring no lubrication maintenance.

Figura 4: Primer pla view of the compressor's underside, indicating the location of the drain valve for daily condensation release.

Resolució de problemes

Especificacions

Garantia i Suport

For warranty information, technical support, or to purchase replacement parts, please contact McGraw customer service. Refer to your product packaging or the manufacturer's weblloc web per obtenir les dades de contacte més actualitzades.

Nota: Protection plans are available for extended coverage. Please refer to the product listing or contact your retailer for details on available plans.

For assistance, you may also refer to the contact information provided on the product label: WE ARE HERE TO HELP FOR ASSISTANCE, CONTACT TECHNICAL SUPPORT AT 1-888-866-5797
