ZJchao Electric Head Sleep Instrument User Manual

1. Introducció

This manual provides detailed instructions for the safe and effective use of your ZJchao Electric Head Sleep Instrument. This device is designed to assist with sleep, alleviate headaches, and reduce stress through gentle stimulation.

2. Informació important de seguretat

Please read all safety warnings and instructions carefully before using the device. Failure to do so may result in injury or damage to the device.

• No utilitzeu si està embarassada.
• Do not use if you have open wounds or injuries on your forehead.
• Individuals with sensitive skin should exercise caution or consult a physician before use.
• Aquest dispositiu no està pensat per a l'ús infantil. Mantingueu-lo fora de l'abast dels nens.
• Do not use this device simultaneously with other electronic medical equipment.
• Assegureu-vos que el dispositiu estigui completament carregat abans del primer ús.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al vostre paquet:

• 1 x ZJchao Electric Head Sleep Instrument
• 1 x Electrode Band (with attached electrode pads)
• 1 x cable de càrrega USB

Image: The ZJchao Electric Head Sleep Instrument, its electrode pads, and the USB charging cable, displayed alongside the product packaging.

4. Especificacions del producte

5. Configuració

5.1 Càrrega inicial

Before first use, fully charge the device. Connect the USB charging cable to the instrument and a suitable USB power source. The charging indicator light will show the charging status.

Image: The ZJchao device connected to a USB charging cable, illustrating the charging process.

5.2 Attaching Electrodes

1. Ensure the electrode pads are securely connected to the main instrument unit.
2. Clean the skin on your forehead, specifically the area between your eyebrows and the hairline, using a warm towel or clean water. This helps ensure optimal adhesion and conductivity.
3. Carefully peel off the protective film from the electrode pads.

Image: A close-up of the electrode pads, showing their design and attachment points.

6. Instruccions de funcionament

1. Place the instrument on your head, positioning the electrode pads firmly against the trigeminal nerve acupuncture points on your forehead. Gently press the instrument with your fingers to ensure good skin contact.
2. Adjust the elastic strap for a comfortable and secure fit. The strap should be snug but not overly tight.
3. Press and hold the power button. The device will emit a beep, and the working indicator light will illuminate green, indicating the program has started.
4. The device features an automatic timing system and will turn off after approximately 15 minutes of operation.
5. To stop the device manually, press and hold the power button again.

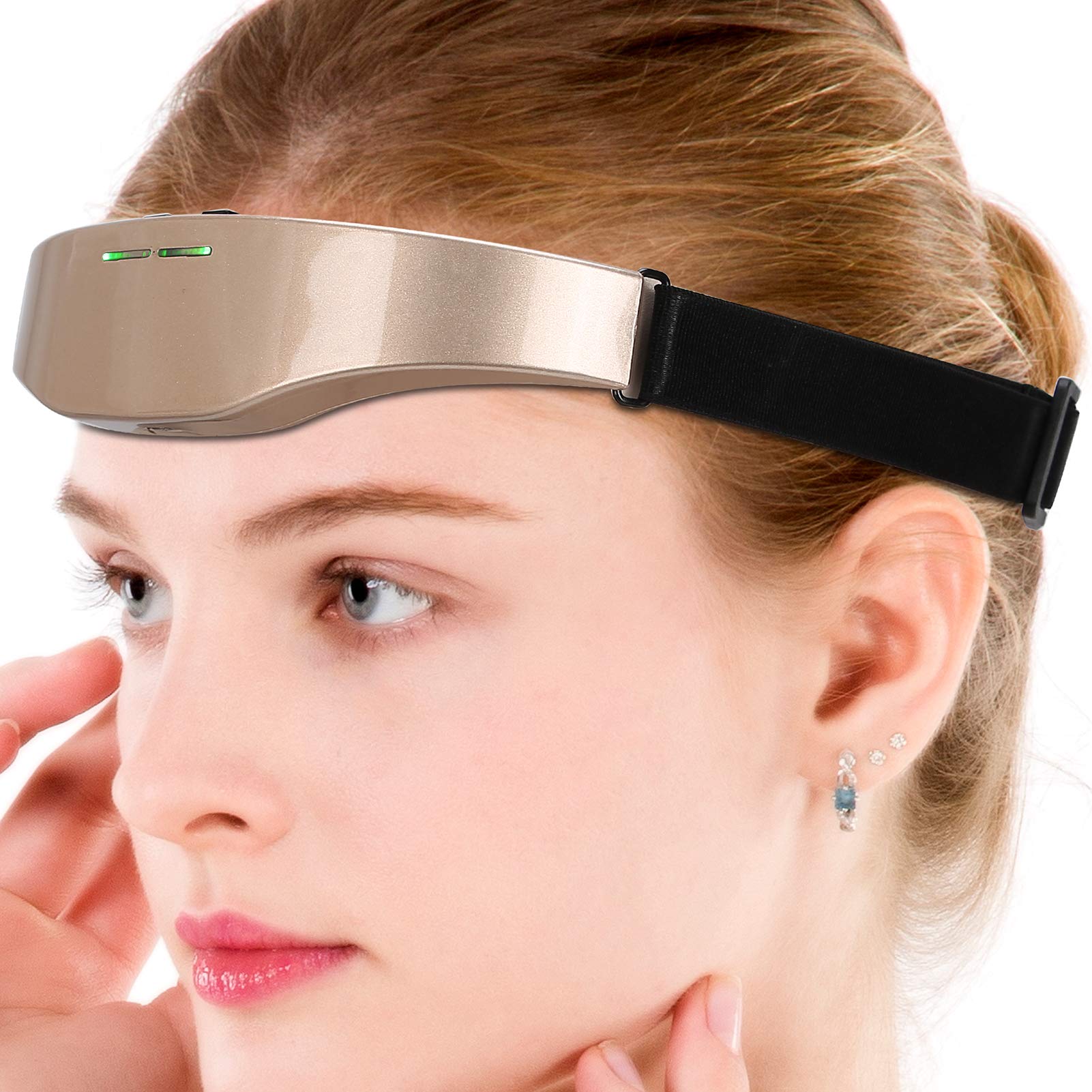

Image: A user wearing the ZJchao Electric Head Sleep Instrument, demonstrating proper placement on the forehead.

Image: The ZJchao device in operation, with green indicator lights visible, positioned on a surface while a person sleeps in the background.

7. Manteniment

7.1 Cura dels coixinets d'elèctrode

The electrode pads are consumable items with a limited lifespan (approximately 50 uses or more, depending on care). To maximize their lifespan:

• After each use, reattach the protective film to the electrode pads. This prevents them from drying out and losing adhesion.
• Store the device and pads in a clean, dry place.

7.2 Neteja del dispositiu

Wipe the main unit with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.

8. Solució De Problemes

• El dispositiu no s'encén: Ensure the device is fully charged. If the battery is low, connect it to the USB charging cable.
• No sensation during use: Verify that the electrode pads are firmly attached to your forehead and that your skin is clean. Adjust the elastic strap for better contact.
• Electrode pads losing adhesion: Clean your forehead thoroughly before use. Ensure the protective film is reattached after each use to prevent drying. Replace pads if they no longer adhere effectively.

9. Garantia i Suport

For warranty information or technical support, please refer to the documentation provided at the point of purchase or contact ZJchao customer service. Keep your purchase receipt for warranty claims.
