Svbony SV202 ED 10x50 Binoculars Instruction Manual

Introducció

Thank you for choosing the Svbony SV202 ED 10x50 Binoculars. These binoculars are engineered for exceptional optical performance, featuring Extra-low Dispersion (ED) glass to minimize chromatic aberration and deliver high-resolution, color-accurate images. The fully multi-coated lens system ensures maximum brightness and contrast, while the 50mm objective lenses provide excellent low-light performance. Equipped with Bak4 roof prisms with phase and dielectric coatings, these binoculars offer sharp, clear, and precise images. The robust magnesium alloy body is waterproof and fog-proof, making them suitable for all weather conditions. Twist-up eyecups and easy diopter adjustment ensure comfortable use for all users, including those wearing glasses.

Image: ED Glass technology in Svbony SV202 binoculars, illustrating reduced chromatic aberration compared to non-ED glass.

Image: Fully Multi-Coated lenses provide bright, sharp images, as demonstrated by the clarity of the tiger cub.

Informació de seguretat

ADVERTIMENT: Do not look directly at the sun through the binoculars, as this will cause irreversible eye damage.

Contingut del paquet

• Svbony SV202 ED 10x50 Binoculars
• Corretja per al coll
• Maleta de transport
• Tapes d'objectius
• Eyepiece Caps
• Drap de neteja de lents
• Manual d'instruccions

Image: All items included in the Svbony SV202 ED 10x50 Binoculars package.

Producte acabatview

Familiarize yourself with the main components of your Svbony SV202 ED 10x50 Binoculars:

1. Lents objectius: The large front lenses (50mm diameter) that gather light.
2. Ulleres: Adjustable twist-up cups for comfortable viewing, especialment per a aquells que porten ulleres.
3. Central Focus Wheel: Used to adjust the focus for both eyepieces simultaneously.
4. Anell d'ajust de diòptries: Located on the right eyepiece, used to compensate for differences in vision between your eyes.
5. Oreilles de la corretja: Attachment points for the neck strap.
6. Tripod Adapter Interface: A threaded socket (UNC 1/4-20) located under the central hinge, allowing attachment to a tripod with an optional adapter.

Imatge: Frontal view of the binoculars, showing the objective lenses.

Image: Detail of the central focus wheel and diopter adjustment ring.

Image: The UNC 1/4-20 tripod interface for stable viewing.

Configuració

1. Fixació de la corretja del coll

Thread the neck strap through the strap lugs on each side of the binoculars. Ensure it is securely fastened to prevent accidental drops.

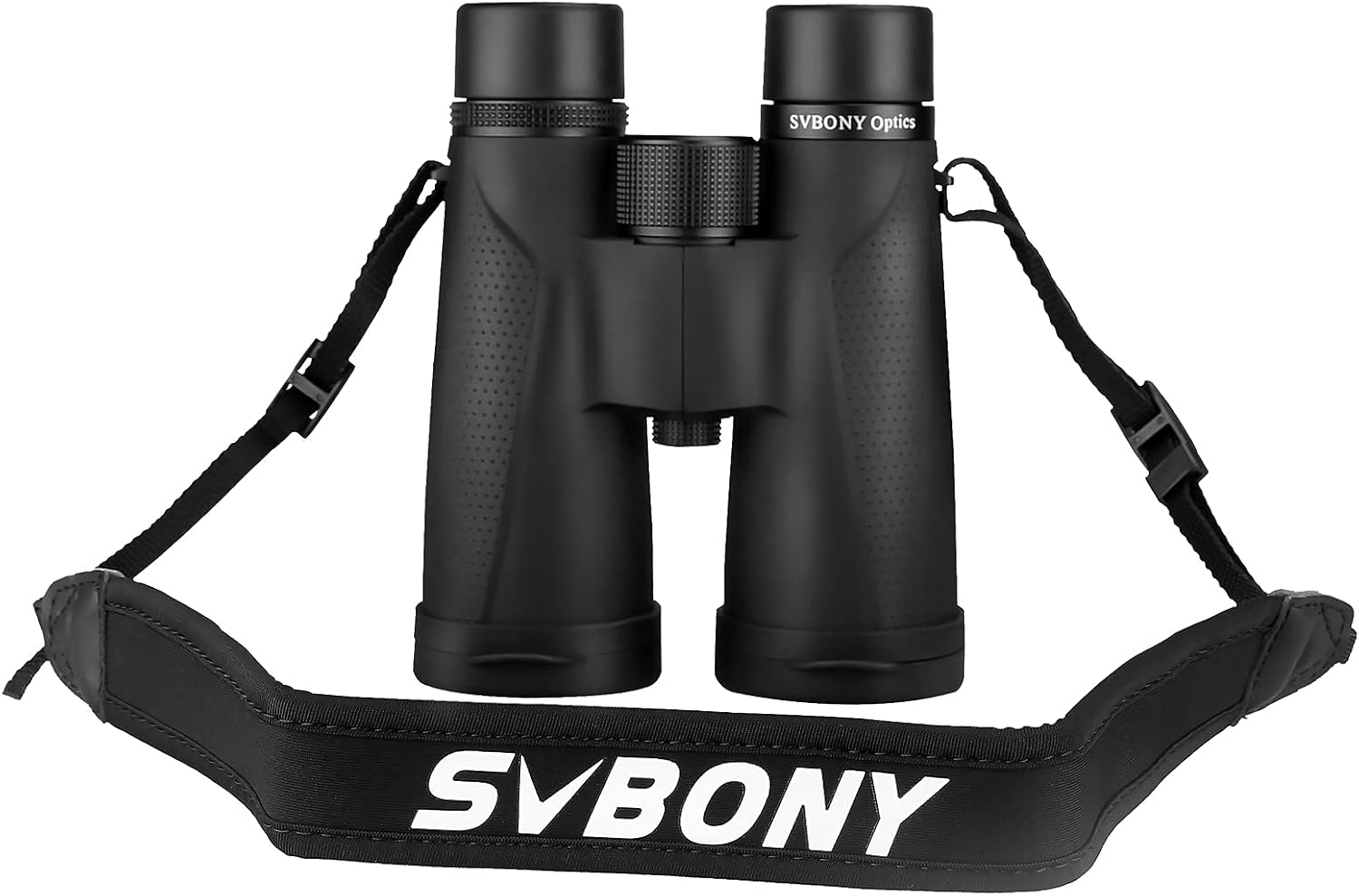

Image: Binoculars with the neck strap attached.

2. Adjusting Interpupillary Distance

Hold the binoculars up to your eyes. Adjust the distance between the two barrels by moving them closer or further apart until you see a single, clear circular field of view. This ensures both eyes are looking through the center of the eyepieces.

3. Ajust dels oculars

The SV202 features twist-up eyecups. If you do not wear eyeglasses, twist the eyecups counter-clockwise until they are fully extended. If you wear eyeglasses, twist them clockwise until they are fully retracted to achieve the full field of view.

4. Ajust de diòptries

This step compensates for differences in vision between your left and right eyes:

1. Tanca l'ull dret o tapa la lent de l'objectiu dreta.
2. Look through the left eyepiece with your left eye and rotate the central focus wheel until the image is sharp.
3. Tanca l'ull esquerre o tapa la lent de l'objectiu esquerre.
4. Look through the right eyepiece with your right eye and rotate the diopter adjustment ring (on the right eyepiece) until the image is sharp. No utilitzeu la roda d'enfocament central per a aquest pas.
5. Now, both eyepieces are adjusted for your individual vision. For future use, you will only need to use the central focus wheel to adjust for different distances.

Instruccions de funcionament

1. Enfocament

After completing the diopter adjustment, simply use the central focus wheel to bring objects at various distances into sharp focus. Turn the wheel slowly for precise adjustments.

2. Observing

Hold the binoculars steady and aim them at your desired subject. Use the central focus wheel to achieve a clear image. For extended observation, consider mounting the binoculars on a tripod using the integrated tripod adapter interface (requires an optional tripod adapter).

Image: Binoculars in use during an outdoor activity.

Image: The SV202 ED 10x50 Binoculars are suitable for a wide range of outdoor activities.

Manteniment

1. Neteja de les lents

Use the included lens cleaning cloth or a soft, lint-free cloth specifically designed for optics. Gently wipe the lens surfaces. For stubborn smudges, use a small amount of optical cleaning fluid applied to the cloth, not directly to the lens.

2. Neteja del cos

Netegeu el cos dels binoculars amb un drap suau iamp cloth. Avoid using harsh chemicals or abrasive materials that could damage the rubber armor.

3. Emmagatzematge

When not in use, store the binoculars in their protective carrying case in a cool, dry place. Avoid extreme temperatures and high humidity. Ensure lens caps are in place to protect the optics from dust and scratches.

Image: The binoculars are waterproof and fog-proof, designed for use in various weather conditions.

Resolució de problemes

• Imatge borrosa: Ensure the central focus wheel and diopter adjustment are correctly set for your eyes and the viewing distance. Check for dirt or smudges on the lenses.
• Doble imatge: Adjust the interpupillary distance by moving the barrels closer or further apart until a single, circular field of view s'aconsegueix.
• Dificultat per concentrar-se: Ensure the eyecups are correctly positioned for your use (extended for non-eyeglass wearers, retracted for eyeglass wearers).
• Entelament intern: While the binoculars are fog-proof, rapid temperature changes can sometimes cause external condensation. Allow the binoculars to acclimate to the ambient temperature. If internal fogging persists, contact customer support.

Especificacions

Garantia i Suport

Svbony offers a lifetime warranty for spotting scopes, monoculars, binoculars, and microscopes. Additionally, a 30-day no-reason return guarantee is provided. Beyond the warranty period, maintenance services are available, with buyers responsible for associated costs. For any support inquiries, please contact us on Amazon, and we commit to responding within 12 hours.
