Remax RB-T35 Wireless Bluetooth Mono Earphone User Manual

1. Introducció

Thank you for choosing the Remax RB-T35 Wireless Bluetooth Mono Earphone. This device is designed to provide a convenient and high-quality audio experience for calls and media playback. Please read this manual carefully before use to ensure proper operation and to maximize the lifespan of your earphone.

2. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• Remax RB-T35 Mono Earphone
• USB / Micro USB Charging Cable
• Manual d'usuari
• Coixinets per a les orelles

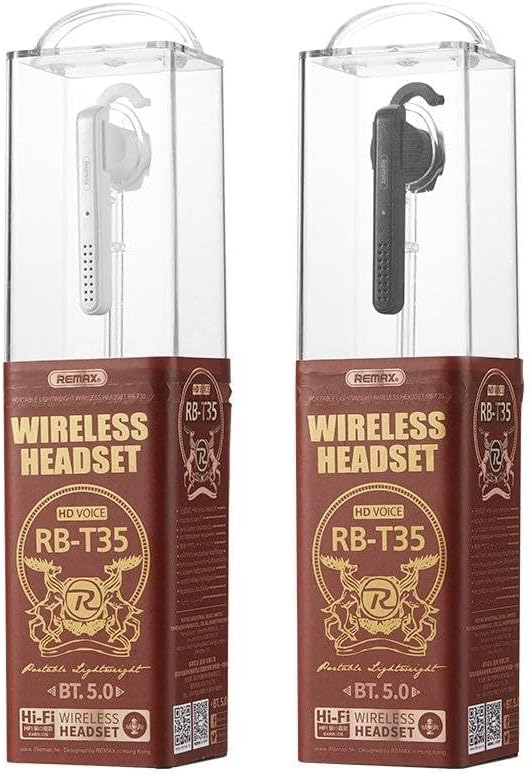

Figura 2.1: Remax RB-T35 Mono Earphone in its retail packaging, showing the black earphone and its clear plastic case.

3. Producte acabatview

The Remax RB-T35 features a comfortable ear hook design for secure wear and easy access to controls.

Figura 3.1: lateral view of the Remax RB-T35 Mono Earphone, highlighting the ear hook and the main body with the Remax logo and speaker grille.

Figura 3.2: The Remax RB-T35 Mono Earphone being worn, demonstrating its ergonomic fit and discreet profile.

Característiques principals:

• Bluetooth 5.0 for stable connection
• Ergonomic ear hook design
• Integrated microphone for calls
• Lleuger i còmode

4. Configuració i emparellament

Follow these steps to pair your Remax RB-T35 earphone with your Bluetooth-enabled device.

1. Carregueu l'auricular: Before first use, fully charge the earphone (refer to Section 6 for charging instructions).
2. Encès: Press and hold the Multi-function Button (usually the main button on the earphone) for approximately 3-5 seconds until the LED indicator flashes blue and red, indicating it is in pairing mode.
3. Activa el Bluetooth: On your mobile phone or other Bluetooth device, enable Bluetooth.
4. Cerca Dispositius: In your device's Bluetooth settings, search for available devices. You should see "RB-T35" or "Remax RB-T35" in the list.
5. Connectar: Select "RB-T35" to connect. Once successfully paired, the LED indicator on the earphone will flash blue slowly or turn off, and you will hear a confirmation tone.
6. Torneu a connectar: The earphone will automatically attempt to reconnect to the last paired device when powered on and within range.

Nota: If pairing fails, turn off the earphone and your device's Bluetooth, then repeat the steps. Ensure the earphone is sufficiently charged.

5. Instruccions de funcionament

Encès/apagat:

• Encès: Mantén premut el botó multifunció durant 3 segons.
• Apagar: Mantén premut el botó multifunció durant 5 segons.

Gestió de trucades:

• Respondre/Finalitzar la trucada: Premeu el botó multifunció una vegada.
• Rebutja la trucada: Mantén premut el botó multifunció durant 2 segons.
• Torna a marcar l'últim número: Premeu dues vegades el botó multifunció.

Reproducció de música:

• Reproduir/pausa: Premeu el botó multifunció una vegada.

Control de volum:

Volume is typically controlled directly from your connected device. Some earphones may have dedicated volume buttons; refer to the physical earphone for these controls if present.

6. Càrrega

To charge your Remax RB-T35 earphone:

1. Connect the Micro USB end of the charging cable to the charging port on the earphone.
2. Connecteu l'extrem USB-A del cable de càrrega a una font d'alimentació USB (per exemple, un port USB de l'ordinador o un adaptador de paret USB).
3. The LED indicator will typically show a red light during charging and turn off or change to blue when fully charged.
4. El temps de càrrega és d'aproximadament 1.5 hores.

Important: Use only the provided charging cable or a certified equivalent. Do not use damaged cables or chargers.

7. Manteniment

Proper care will extend the life of your earphone:

• Keep the earphone dry. Avoid exposure to moisture, rain, or liquids.
• Clean the earphone with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• Store the earphone in a cool, dry place away from extreme temperatures.
• Avoid dropping or subjecting the earphone to strong impacts.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

Remax products are manufactured to high-quality standards. For warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official Remax weblloc web. Conserveu el rebut de compra com a comprovant de compra.

For further assistance, please contact Remax customer service.
