Mienta Ultimo Plus FP14201B Food Processor Instruction Manual

1. Introducció

Thank you for choosing the Mienta Ultimo Plus FP14201B Food Processor. This appliance is designed to simplify your food preparation tasks with its powerful 1000 Watt motor and 28 versatile functions. To ensure safe and efficient operation, please read this instruction manual thoroughly before first use and keep it for future reference.

2. Instruccions de seguretat importants

• Assegureu-vos sempre que l'aparell estigui desendollat ​​de la presa de corrent abans de muntar-lo, desmuntar-lo o netejar-lo.
• Keep hands and utensils away from moving blades or discs while operating the food processor to prevent injury.
• No feu servir l'aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi caigut o s'hagi danyat de cap manera.
• This appliance is equipped with a safety lock mechanism. The motor will not operate unless the bowl and lid are correctly assembled and locked into place.
• Avoid processing excessively hot liquids in the blender to prevent scalding.
• Never immerse the motor base in water or any other liquid. Clean with a damp només tela.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• No utilitzeu accessoris no recomanats o venuts pel fabricant.

3. Components del producte

Familiarize yourself with the main parts of your Mienta Ultimo Plus Food Processor:

• Base del motor
• Food Processor Bowl (3 Liter capacity)
• Food Processor Lid with Feeder Tube and Pusher
• Chopping Blade (Dual blade system)
• Blender Jar (1.5 Liter capacity)
• Blender Lid with Filler Cap
• Batre l'ou
• Dough Kneading Tool
• Stainless Steel Grater Disc
• Stainless Steel Slicing Disc
• Adjunt del molinet
• Adjunt per espremedor de cítrics

Figura 3.1: The Mienta Ultimo Plus FP14201B Food Processor main unit, featuring the motor base, 3-liter processing bowl, and lid with pusher.

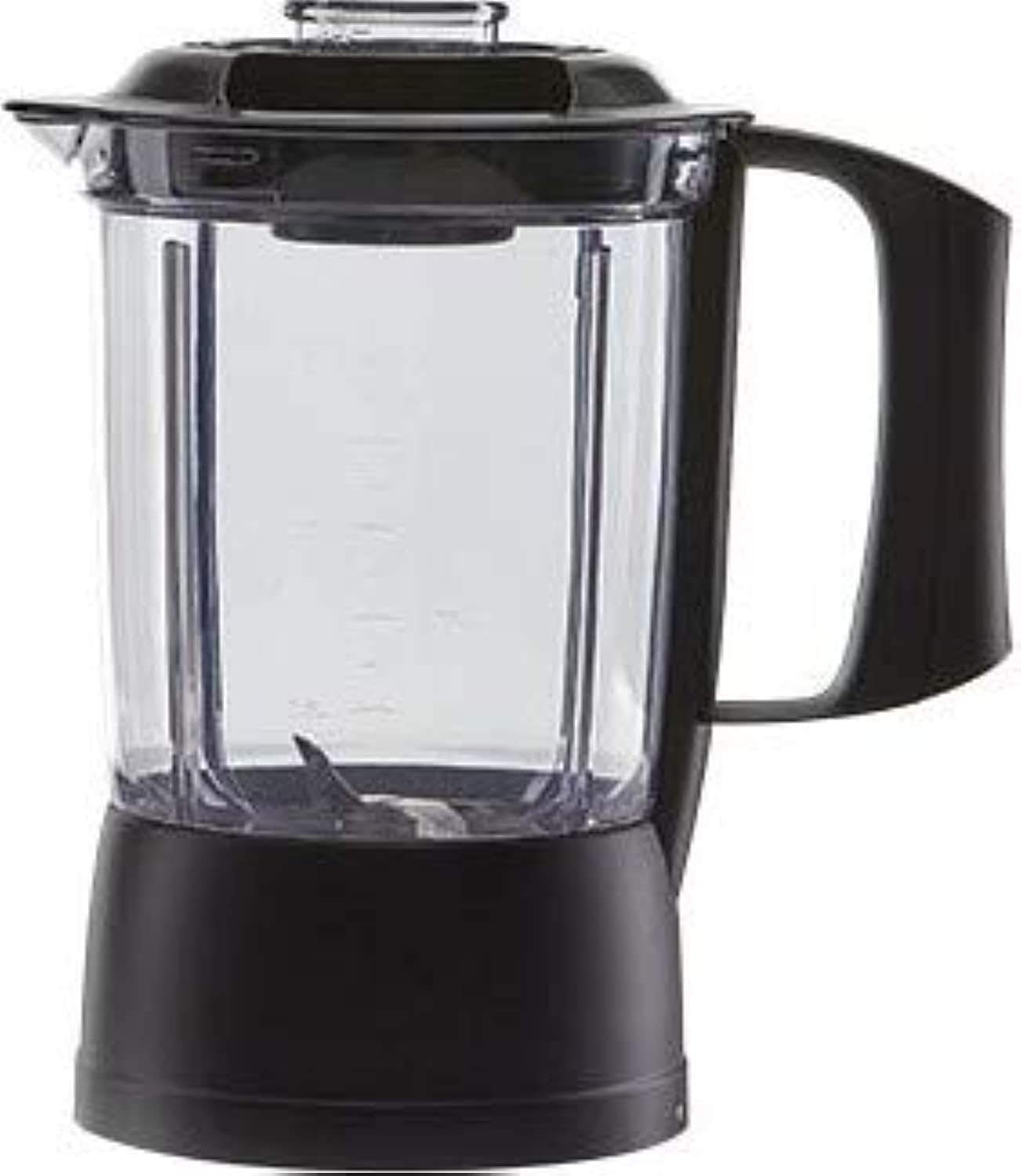

Figura 3.2: The 1.5-liter blender jar attachment, ready for blending tasks.

4. Muntatge i muntatge

4.1 Abans del primer ús

1. Desembaleu tots els components i traieu qualsevol material d'embalatge.
2. Wash the food processor bowl, lid, pusher, blender jar, and all attachments in warm soapy water. Rinse thoroughly and dry. The motor base should only be wiped with a damp tela.
3. Assegureu-vos que totes les peces estiguin completament seques abans del muntatge.

4.2 Muntatge del processador d'aliments

1. Col·loqueu la base del motor sobre una superfície neta, seca i estable.
2. Fit the food processor bowl onto the motor base, aligning the arrow on the bowl with the arrow on the base. Turn clockwise until it locks securely.
3. Carefully place the desired attachment (e.g., chopping blade, slicing disc) onto the central shaft inside the bowl.
4. Place the lid onto the food processor bowl, aligning the arrow on the lid with the arrow on the bowl handle. Turn clockwise until it locks securely. The safety lock will engage.
5. Introduïu l'empunyador al tub d'alimentació de la tapa.

4.3 Muntatge de la batedora

1. Assegureu-vos que el conjunt de fulles de la batedora estigui ben fixat a la part inferior del recipient de la batedora.
2. Place the blender jar onto the motor base, aligning the arrow on the jar with the arrow on the base. Turn clockwise until it locks securely.
3. Place the blender lid onto the jar and secure it. Insert the filler cap into the lid opening.

5. Instruccions de funcionament

Once assembled, plug the appliance into a suitable power outlet. The Mienta Ultimo Plus FP14201B features 2 speeds and a pulse function.

5.1 Funcionament general

1. Assegureu-vos que l'aparell estigui correctament muntat i bloquejat.
2. Add ingredients to the food processor bowl or blender jar. Do not overfill beyond the maximum level indicated.
3. Select the desired speed (Speed 1 or Speed 2) using the control dial. For short bursts of power, turn the dial to the 'Pulse' setting and release.
4. For food processing, use the pusher to guide ingredients through the feeder tube. Never use your fingers or other utensils.
5. Després de l'ús, gireu el selector a la posició "OFF" i desendolleu l'aparell.
6. Wait for all moving parts to stop completely before disassembling.

5.2 Usos recomanats

• Trossejar/Picar: Use the chopping blade for vegetables, nuts, meat, etc. Use the pulse function for coarse chopping.
• Slicing/Shredding/Grating: Use the stainless steel discs for uniform slices, shreds, or grated ingredients.
• Pastat: Use the dough kneading tool for light doughs.
• Blending/Liquefying: Use the blender jar for smoothies, soups, sauces, and purees.
• Mòlta: Use the grinder attachment for coffee beans, spices, or small quantities of nuts.
• Sucs: Use the citrus juicer attachment for fresh orange, lemon, or lime juice.
• Whisking/Emulsifying: Use the egg whisk for whipping cream, egg whites, or emulsifying dressings.

6. Neteja i Manteniment

Una neteja adequada garanteix la longevitat i la higiene del vostre robot de cuina.

1. Desconnecteu sempre l'aparell abans de netejar-lo.
2. Disassemble all removable parts: food processor bowl, lid, pusher, blender jar, and all attachments.
3. Wash these parts immediately after use to prevent food from drying on them. Hand washing with warm soapy water is recommended, especially for blades, to maintain their sharpness. Some plastic parts may be dishwasher safe, but always check for specific markings.
4. Use a brush for cleaning blades, exercising extreme caution due to their sharpness.
5. Netegeu la base del motor amb un anunciamp tela. No el submergiu mai a l'aigua.
6. Assequeu totes les peces a fons abans de tornar a muntar o emmagatzemar.
7. Store the appliance and its attachments in a dry place.

7. Solució De Problemes

Si teniu problemes amb el vostre robot de cuina, consulteu els següents problemes i solucions habituals:

8. Especificacions

• Marca: Mienta
• Model: FP14201B
• Potència: 1000 watts
• Funcions: 28
• Velocitats: 2 + pols
• Capacitat del bol del processador d'aliments: 3 litres (plàstic)
• Capacitat del recipient de la batedora: 1.5 litres (plàstic)
• Material: Plastic (body), Stainless Steel (blades/discs)
• Color: Negre
• Característiques especials: Safety Lock, Dual Blade System
• Pes de l'article: 4000 grams
• Font d'alimentació: AC
• Cura del producte: Hand wash recommended for blades; some parts are dishwasher safe.

9. Garantia i Suport

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Mienta customer service directly. Keep your purchase receipt as proof of purchase.
